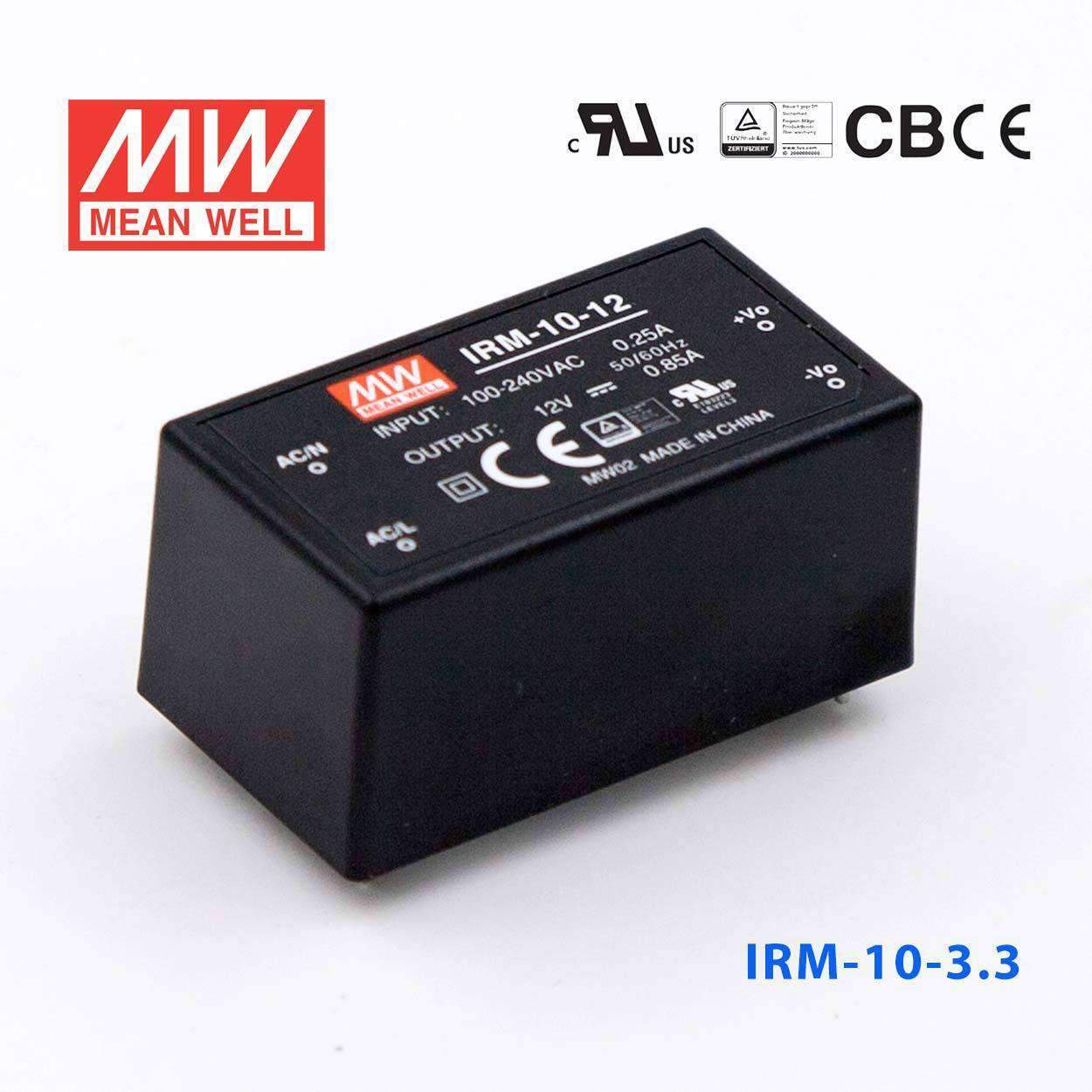

Mean Well IRM-10-3.3 Switching Power Supply 8.25W 3.3V 2.5A - Encap...
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.1W |
| Protections: Short circuit / Overload / Over voltage |
| Miniature size, high power density |
| Cooling by free air convection |
| Isolation class II |
| Fully isolated plastic case |
| Withstand 5G vibration test |
| Low cost, high reliability |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 20A at 115VAC, 40A at 230VAC |
| Setup, rise, hold up time | 600ms, 30ms, 30ms |
| Overload protection | 115%~190% |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Less than 0.75mA at 240VAC |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | 4 industrial pins |
| Dimension (LxWxH) | 45.7x 25.4x 21.5 |
| Vibration | 10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes |
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating8.25 Watt
-
Output Voltage3.3 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length4.57 cm
-
Width2.54 cm
-
Height2.15 cm
-
Weight0.03 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well IRM-10-3.3 provide?
The IRM-10-3.3 is a 3.3V AC/DC switching power supply rated for 2.5A output current. Its maximum power rating is 8.25W, making it suitable for low-power embedded and PCB-based equipment that requires a regulated 3.3V supply.
What input voltage range does the IRM-10-3.3 support?
This model accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. That wide range helps it fit equipment intended for different regional mains standards without needing a separate input-specific version.
What kinds of applications is the IRM-10-3.3 best suited for?
The IRM-10-3.3 is designed for compact, board-level AC/DC power conversion in space-constrained equipment. Its encapsulated construction, miniature size, and 3.3V output make it a practical option for industrial electronics, control boards, and other low-power OEM applications.
What protection features are included in the Mean Well IRM-10-3.3?
This power supply includes short circuit, overload, and over voltage protection. The listed overload protection range is 115% to 190%, and over voltage protection is specified at 115% to 135% of rated output voltage.
How does the IRM-10-3.3 compare with larger open frame power supplies?
The IRM-10-3.3 is intended for lower-power applications where compact size and PCB integration matter more than higher wattage. Compared with larger open frame supplies, it offers a much smaller 45.7 x 25.4 x 21.5 mm form factor and 8.25W output, which is better suited to compact embedded designs.
Is the IRM-10-3.3 designed for low standby power and passive cooling?
Yes. Mean Well specifies no-load power consumption below 0.1W, and the unit is cooled by free air convection, so it does not require active fan cooling under normal operating conditions.
