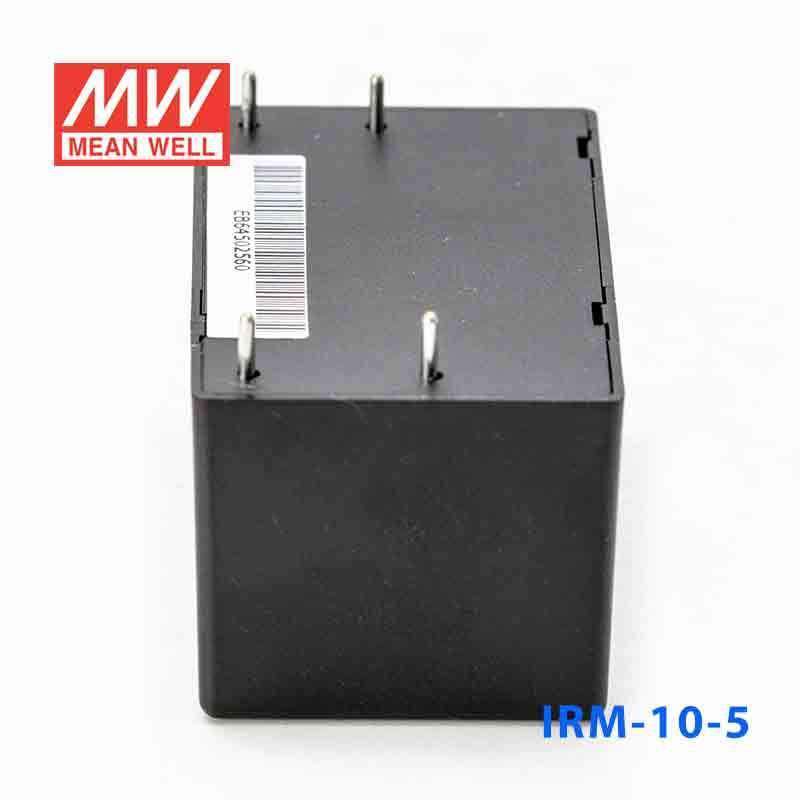

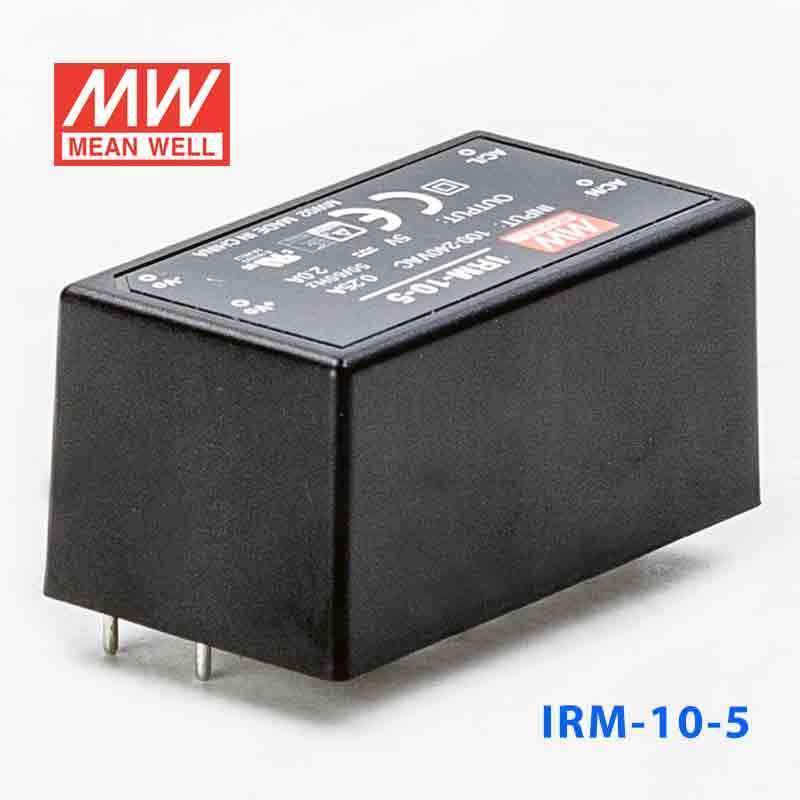

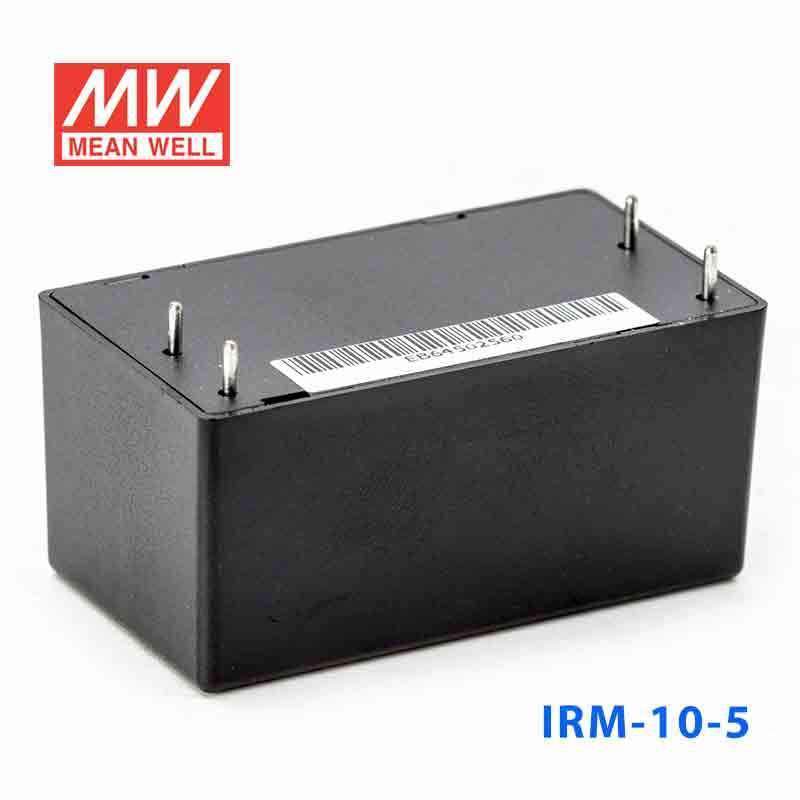

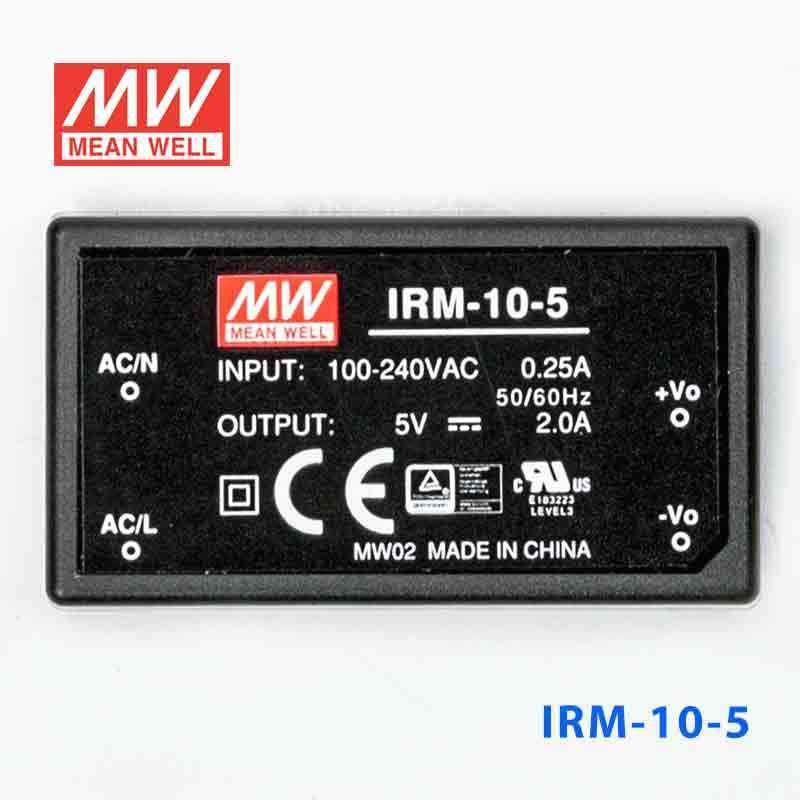

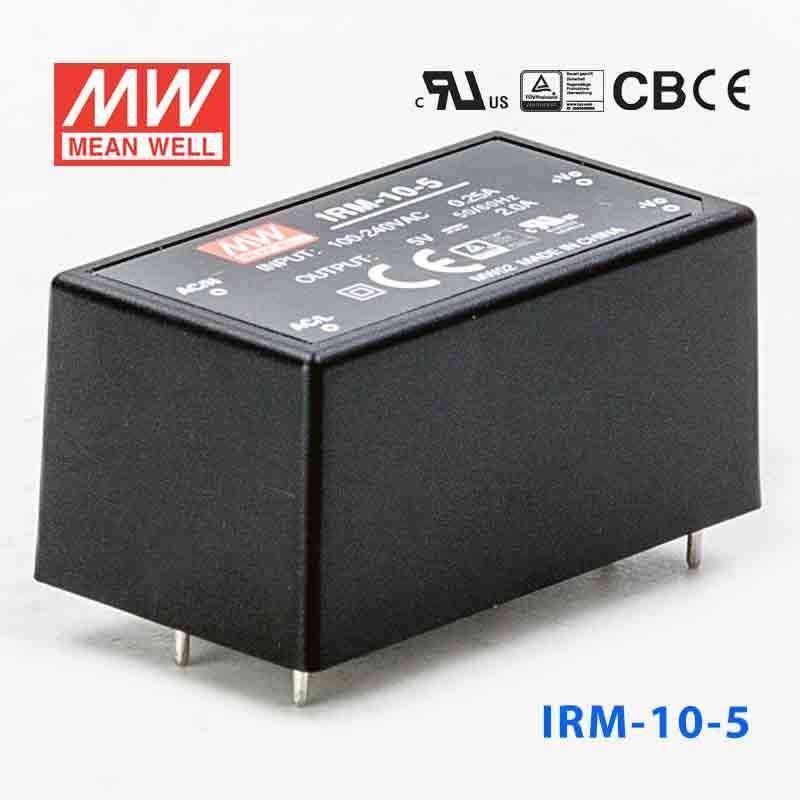

Mean Well IRM-10-5 Switching Power Supply 10W 5V 2A - Encapsulated

Q: Can I use the IRM-10-5 for a 5V embedded controller or single-board computer?

Yes, if the controller requires a constant 5V input and the total draw stays within 2A and 10W. That makes it suitable for many embedded logic boards, controller boards, and compact computing modules that run from 5V DC. Its 85-305VAC input is also useful when the same design may see different AC mains ranges.

Q: Is this power supply suitable for a 5V microcontroller system with sensors and communication modules?

It can be, provided the full 5V load budget remains at or below 2A. For a PCB-based embedded system that combines a controller, sensors, and communications on one regulated 5V rail, the constant-voltage 5V output is the key fit criterion. If the design needs more than 10W total, a higher-capacity sibling would be the better match.

Q: Can the IRM-10-5 power industrial logic, interface, or monitoring electronics that run on 5V?

Yes, it is appropriate for compact 5V industrial logic and monitoring sections when their power demand stays within 10W. The miniature encapsulated PCB-mount format supports internal use in space-constrained assemblies. It is less suitable for 5V equipment that has higher inrush or sustained current needs beyond 2A.

Q: Is the IRM-10-5 meant for indoor or outdoor environments?

The listed operating temperature is -40°C to +85°C, so the thermal range is broad. However, no IP rating is provided, so the specs do not confirm weather exposure or washdown suitability. Based on the available data, it should be treated as an internal enclosed power module rather than an exposed outdoor supply.

Q: How does the IRM-10-5 compare with other 5V options in the IRM family?

The provided 5V siblings are IRM-01-5 and IRM-01-5S at 1W and 200A, IRM-02-5 and IRM-02-5S at 2W and 400A, IRM-03-5 and IRM-03-5S at 3W and 600A, IRM-05-5 at 5W and 1A, IRM-10-5 at 10W and 2A, IRM-15-5 at 15W and 3A, IRM-20-5 at 20W and 4A, IRM-30-5 and IRM-30-5ST at 30W and 6A, IRM-45-5 and IRM-45-5ST at 40W and 8A, and IRM-60-5 and IRM-60-5ST at 50W and 10A. IRM-10-5 is the 5V, 2A option in the middle of the lower-power part of that range.

miniature encapsulated type, PCB mouting style

SKU:

IRM-10-5

Please for Pricing

Notify me when it's back in stock

Description

Features

Universal AC input / Full range

No load power consumption < 0.1W

Protections: Short circuit / Overload / Over voltage

Miniature size, high power density

Cooling by free air convection

Isolation class II

Fully isolated plastic case

Withstand 5G vibration test

Low cost, high reliability

100% full load burn-in test

3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 20A at 115VAC, 40A at 230VAC
Setup, rise, hold up time	600ms, 30ms, 30ms
Overload protection	115%~190%
Over voltage protection	115%~135% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Leakage current	Less than 0.75mA at 240VAC
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection	4 industrial pins
Dimension (LxWxH)	45.7x 25.4x 21.5
Vibration	10~500Hz, 5G 10min./1 cycle, period for 60 min. each along X, Y, Z axes

Specifications

Brand

Mean Well
Series

IRM Series
Power Rating

10 Watt
Output Voltage

5 Volt
Rated Current

2 Ampere
Input Voltage

85V~305V
Standards Met

BSMI,CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

4.57 cm
Width

2.54 cm
Height

2.15 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the IRM-10-5 for a 5V embedded controller or single-board computer?

Yes, if the controller requires a constant 5V input and the total draw stays within 2A and 10W. That makes it suitable for many embedded logic boards, controller boards, and compact computing modules that run from 5V DC. Its 85-305VAC input is also useful when the same design may see different AC mains ranges.

Is this power supply suitable for a 5V microcontroller system with sensors and communication modules?

It can be, provided the full 5V load budget remains at or below 2A. For a PCB-based embedded system that combines a controller, sensors, and communications on one regulated 5V rail, the constant-voltage 5V output is the key fit criterion. If the design needs more than 10W total, a higher-capacity sibling would be the better match.

Can the IRM-10-5 power industrial logic, interface, or monitoring electronics that run on 5V?

Yes, it is appropriate for compact 5V industrial logic and monitoring sections when their power demand stays within 10W. The miniature encapsulated PCB-mount format supports internal use in space-constrained assemblies. It is less suitable for 5V equipment that has higher inrush or sustained current needs beyond 2A.

Is the IRM-10-5 meant for indoor or outdoor environments?

The listed operating temperature is -40°C to +85°C, so the thermal range is broad. However, no IP rating is provided, so the specs do not confirm weather exposure or washdown suitability. Based on the available data, it should be treated as an internal enclosed power module rather than an exposed outdoor supply.

How does the IRM-10-5 compare with other 5V options in the IRM family?

The provided 5V siblings are IRM-01-5 and IRM-01-5S at 1W and 200A, IRM-02-5 and IRM-02-5S at 2W and 400A, IRM-03-5 and IRM-03-5S at 3W and 600A, IRM-05-5 at 5W and 1A, IRM-10-5 at 10W and 2A, IRM-15-5 at 15W and 3A, IRM-20-5 at 20W and 4A, IRM-30-5 and IRM-30-5ST at 30W and 6A, IRM-45-5 and IRM-45-5ST at 40W and 8A, and IRM-60-5 and IRM-60-5ST at 50W and 10A. IRM-10-5 is the 5V, 2A option in the middle of the lower-power part of that range.

Model	Power	Voltage	Current
Mean Well IRM-10-3.3 Switching Power Supply 8.25W 3.3V 2.5A - Encapsulated	8.25W	3.3V	2.5A	View
