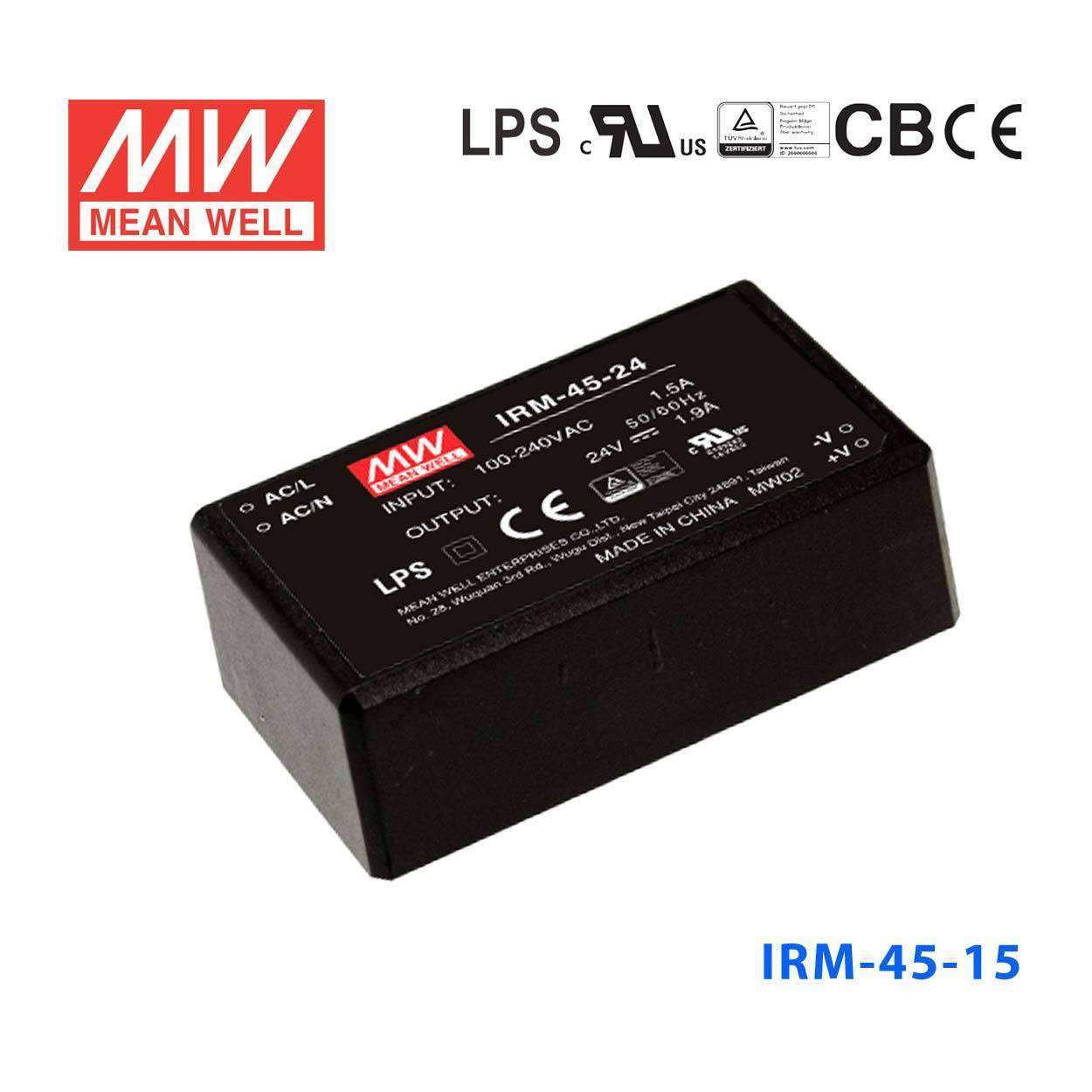

Mean Well IRM-45-15 Switching Power Supply 45W 15V 3A - Encapsulated
Please Login for Pricing
Description
Description
The IRM-45 is a 45W Mean Well power converter (input range: 85~305VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC62368-1, UL6 2368 -1, TUV EN6
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating45 Watt
-
Output Voltage15 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.7 cm
-
Width5.2 cm
-
Height2.95 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-45-15 for a 15V PLC accessory or industrial interface board?
Yes, if the load needs constant voltage 15V and stays within 3A and 45W, this model matches that requirement. Its 85-305VAC input also supports use where AC input ranges vary by installation region.
Is the IRM-45-15 a fit for 15V test, measurement, or embedded electronics inside OEM equipment?
It is intended for constant voltage 15V output and can support equipment loads up to 45W or 3A. The miniature encapsulated format and PCB mounting style make it appropriate for integration into internal equipment assemblies rather than field-exposed use.
Can this model power 15V control and monitoring devices in automation cabinets?
Yes, it can serve 15V control and monitoring circuits that require stable constant voltage and remain at or below 3A. Its operating temperature range of -30°C to +70°C supports use across a broad range of indoor industrial conditions.
How does the IRM-45-15 compare with other IRM-45 output options?
The IRM-45 family includes 5V at 8A and 40W, 12V at 3.8A and 45.6W, 15V at 3A and 45W, 24V at 1.9A and 45.6W, and 48V at 0.94A and 45.12W. This SKU is the 15V, 3A PCB mounting version, while the IRM-45-15ST keeps the same 15V and 3A electrical rating in screw terminal style.
Can the IRM-45-15 be used outdoors or in harsh ambient temperatures?
Its stated operating temperature is -30°C to +70°C, so the temperature range is broad for enclosed equipment. The provided specs do not include an IP rating, so the data here does not confirm outdoor, washdown, or weather-exposed use.
