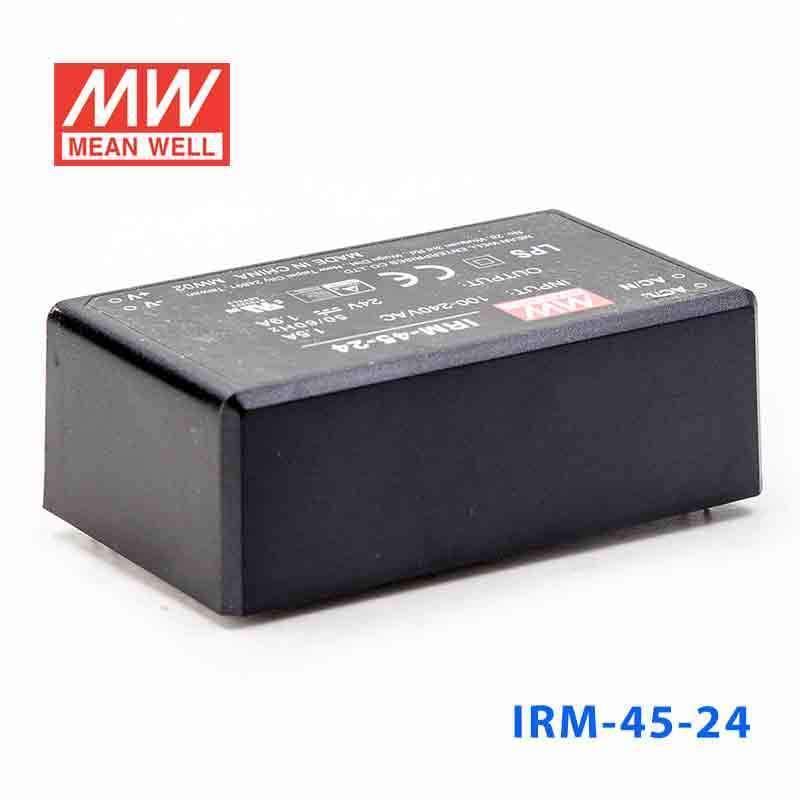

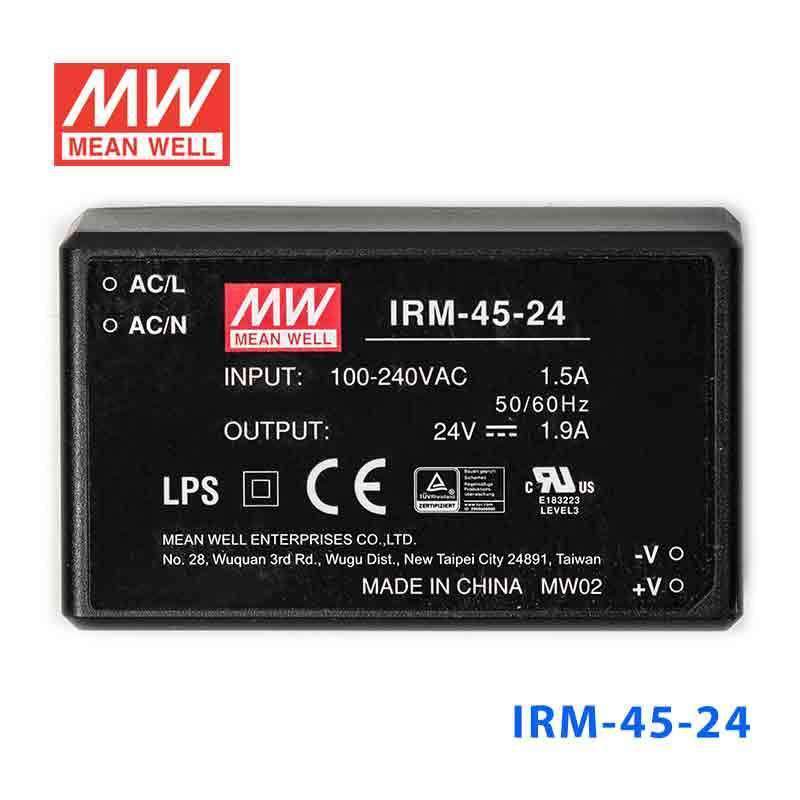

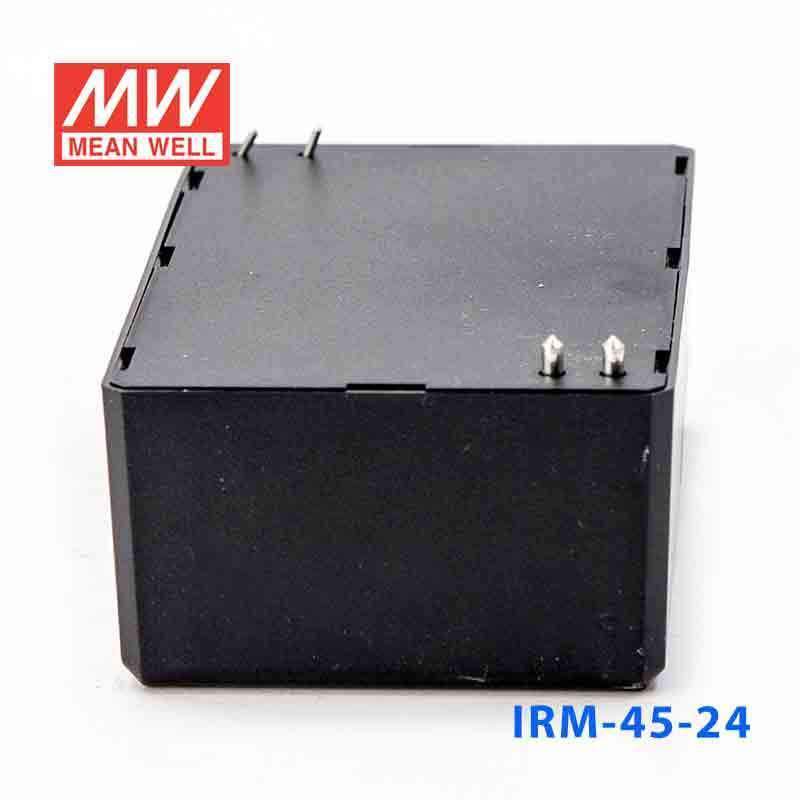

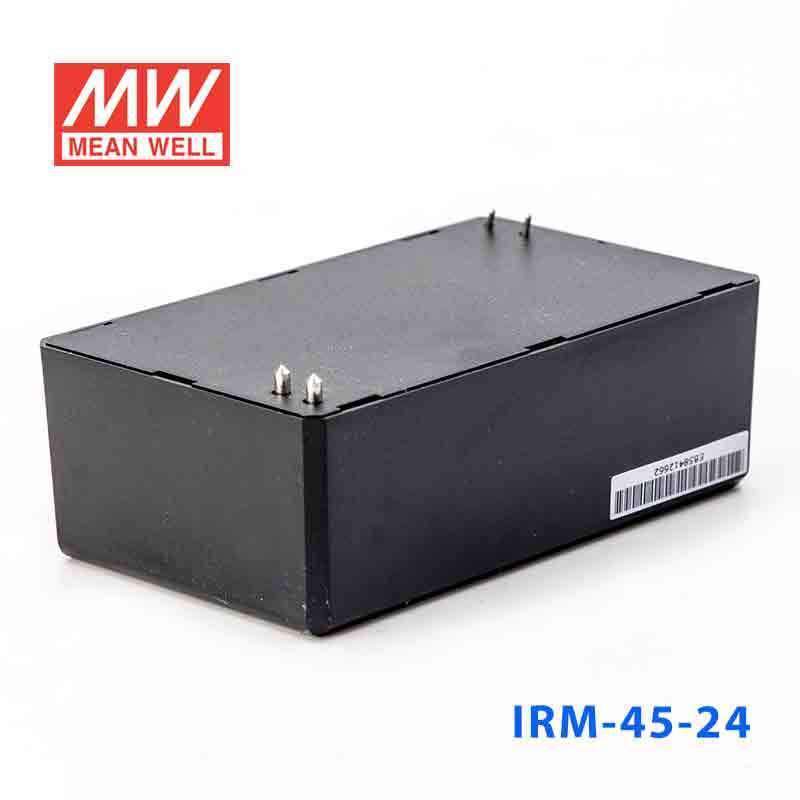

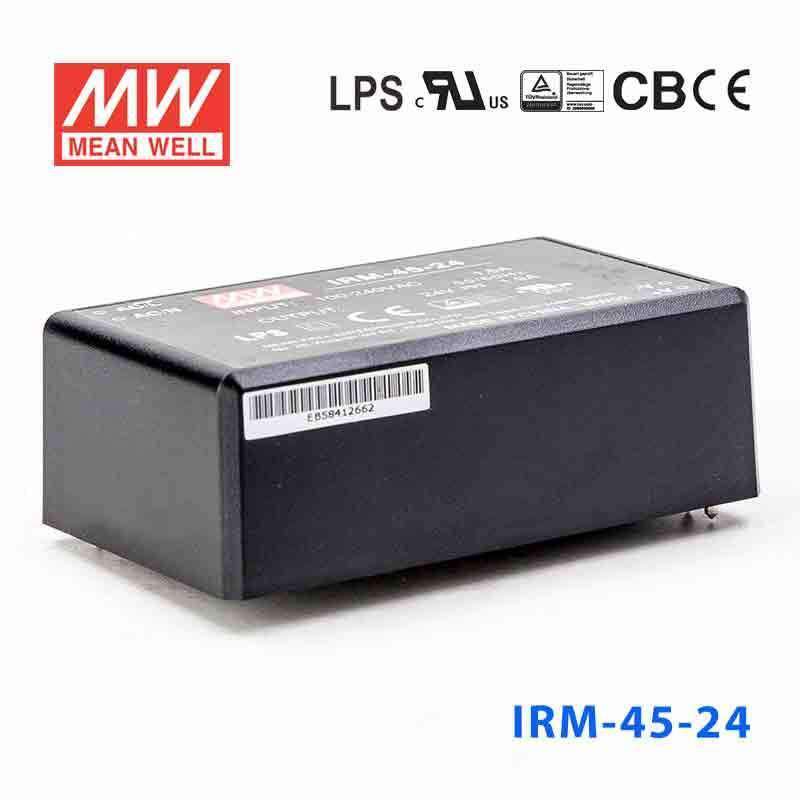

Mean Well IRM-45-24 Switching Power Supply 45.6W 24V 1.9A - Encapsu...
Please Login for Pricing
Description
Description
The IRM-45 is a 45W Mean Well power converter (input range: 85~305VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 85~305VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC62368-1, UL6 2368 -1, TUV EN6
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesIRM Series
-
Power Rating45.6 Watt
-
Output Voltage24 Volt
-
Rated Current1.9 Ampere
-
Input Voltage85V~305V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.7 cm
-
Width5.2 cm
-
Height2.95 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the IRM-45-24 for a 24V PLC, sensor, or industrial I/O circuit?
Yes, if the load requires constant voltage 24V and stays within 1.9A and 45.6W, this model is electrically suitable. That makes it relevant for 24V control and interface loads commonly used in industrial automation equipment.
Is the IRM-45-24 suitable for 24V embedded or instrumentation electronics inside OEM equipment?
It can be used for 24V constant voltage electronics up to 45.6W total output. The miniature encapsulated body and PCB mounting style make it better suited to internal equipment integration than exposed field placement.
Can this model power 24V automation accessories in a compact control cabinet?
Yes, it is designed to deliver 24V DC at up to 1.9A, which fits many smaller automation accessory loads. Its 85-305VAC input range is also useful where the same product may be deployed across different AC mains conditions.
How does the IRM-45-24 compare with other IRM-45 power levels and outputs?
The IRM-45 family offers 5V at 8A and 40W, 12V at 3.8A and 45.6W, 15V at 3A and 45W, 24V at 1.9A and 45.6W, and 48V at 0.94A and 45.12W. This version is the 24V, 1.9A PCB mounting model, while IRM-45-24ST keeps the same electrical rating with screw terminal style.
Can the IRM-45-24 be used in outdoor or temperature-variable locations?
Its operating temperature is specified from -30°C to +70°C, so the temperature range is broad for enclosed applications. The provided specs do not state an IP rating, so outdoor or weather-exposed use cannot be confirmed from these specifications.
