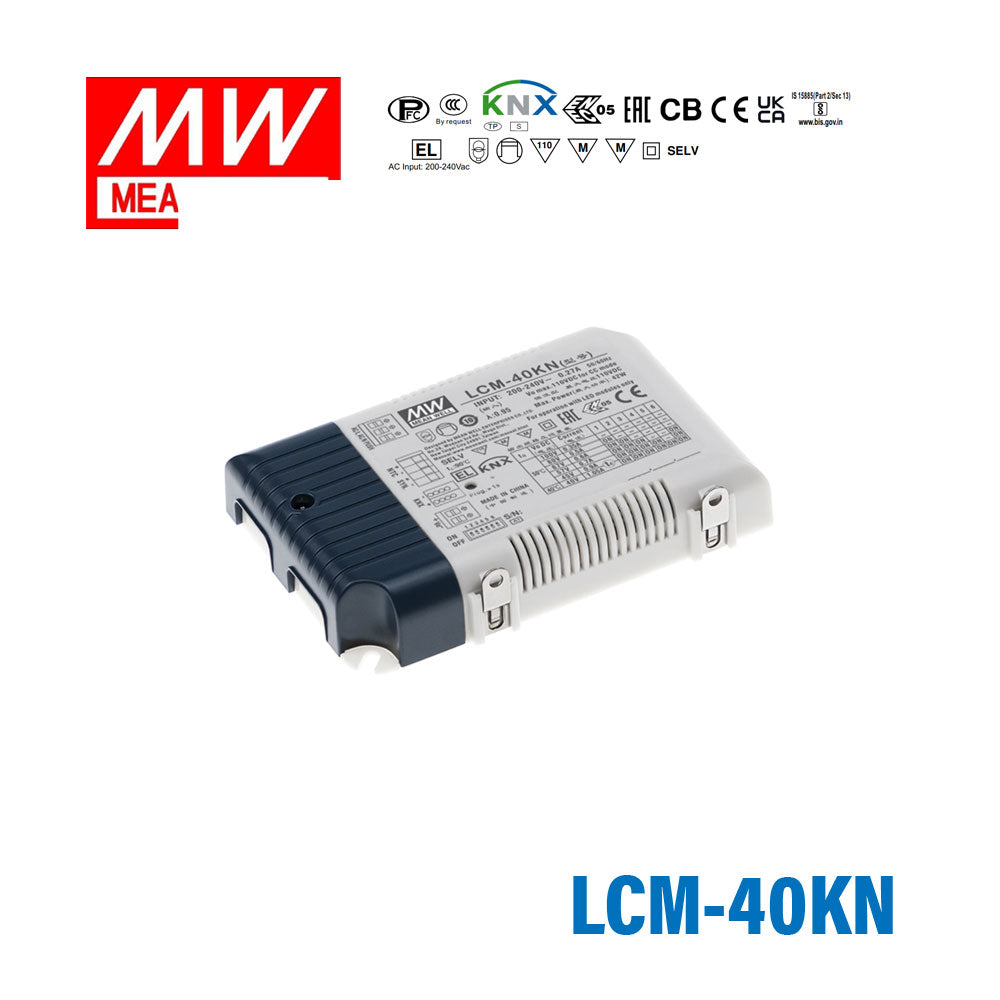

Mean Well LCM-40KN Power Supply 42W 350mA 500mA 600mA 700mA(default) 900mA 1050mA - KNX

constant current model with multiple levels selectable by dip switch, KNX protocol, synchronization up to 10 units
SKU:
LCM-40KN

|

Description

Features

Constant current mode output with multiple levels selectable by dip switch
KNX/EIB protocol
flicker free design
Support emergency lighting(EL)
Integrated constant light output
Integrated KNX push-button interface
Synchronization of up to 10 units
Functions: Manual dim, operation hours, power consumption feedback, log/linear curve selection...etc
3 years warranty

General Specification

AC input voltage range 180~295VAC; 220~392VDC
AC inrush current (Typ.) COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection Constant current limiting recovers automatically after the fault condition is removed
Over temperature protection Shutdown o/p voltage,re-power on to recover
Setup time 500ms / 230VAC
Withstand voltage I/P-O/P:3.75KVAC
Working temperature Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, BIS IS15885(Part2/Sec13), EAC TP TC 004 approved, GB19510.14 and GB19510.1(by request) ; According to BS EN/EN50172, BS EN/EN 60598-2-22, BS EN/EN61347-2-13 appendix J suitable for emergency installations
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm) 123.5*81.5*23mm
Packing 54pcs/15Kg

Specifications

  • Brand
    Mean Well
  • Series
    LCM KNX Series
  • Power Rating
    42 Watt
  • Output Voltage
    65 Volt
  • Rated Current
    0.7 Ampere
  • Input Voltage
    180V~295V
  • Standards Met
    CB,CCC,CE,EAC,ENEC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~90°C
  • Warranty
    3 Year
  • Length
    12.35 cm
  • Width
    8.15 cm
  • Height
    2.3 cm
  • Weight
    0.24 kg
