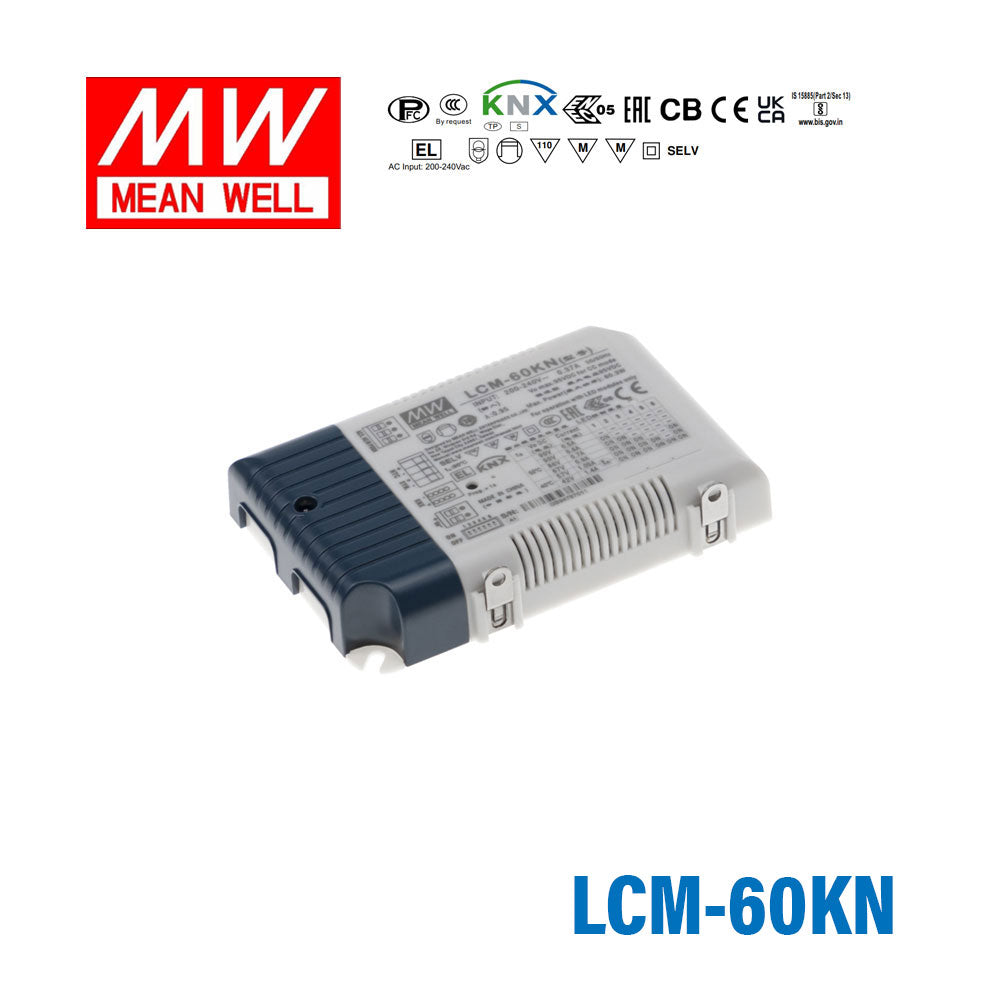

Mean Well LCM-60KN Power Supply 60.3W 500mA 600mA 700mA(default) 90...
Please Login for Pricing
Description
Description
Features
| Constant current mode output with multiple levels selectable by dip switch |
| KNX/EIB protocol |
| flicker free design |
| Support emergency lighting(EL) |
| Integrated constant light output |
| Integrated KNX push-button interface |
| Synchronization of up to 10 units |
| Functions: Manual dim, operation hours, power consumption feedback, log/linear curve selection...etc |
| 3 years warranty |
General Specification
| AC input voltage range | 180~295VAC; 220~392VDC |
| AC inrush current (Typ.) | COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Constant current limiting recovers automatically after the fault condition is removed |
| Over temperature protection | Shutdown o/p voltage,re-power on to recover |
| Setup time | 500ms / 230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC |
| Working temperature | Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Safety standards | ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, BIS IS15885(Part2/Sec13), EAC TP TC 004 approved, GB19510.14 and GB19510.1(by request) ; According to BS EN/EN50172, BS EN/EN 60598-2-22, BS EN/EN61347-2-13 appendix J suitable for emergency installations |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 123.5*81.5*23mm |
| Packing | 54pcs/15Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesLCM KNX Series
-
Power Rating60.3 Watt
-
Output Voltage95 Volt
-
Rated Current0.7 Ampere
-
Input Voltage180V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC
-
Operation ModeConstant Current
-
Operating Temperature-30°C~90°C
-
Warranty3 Year
-
Length12.35 cm
-
Width8.15 cm
-
Height2.3 cm
-
Weight0.24 kg
