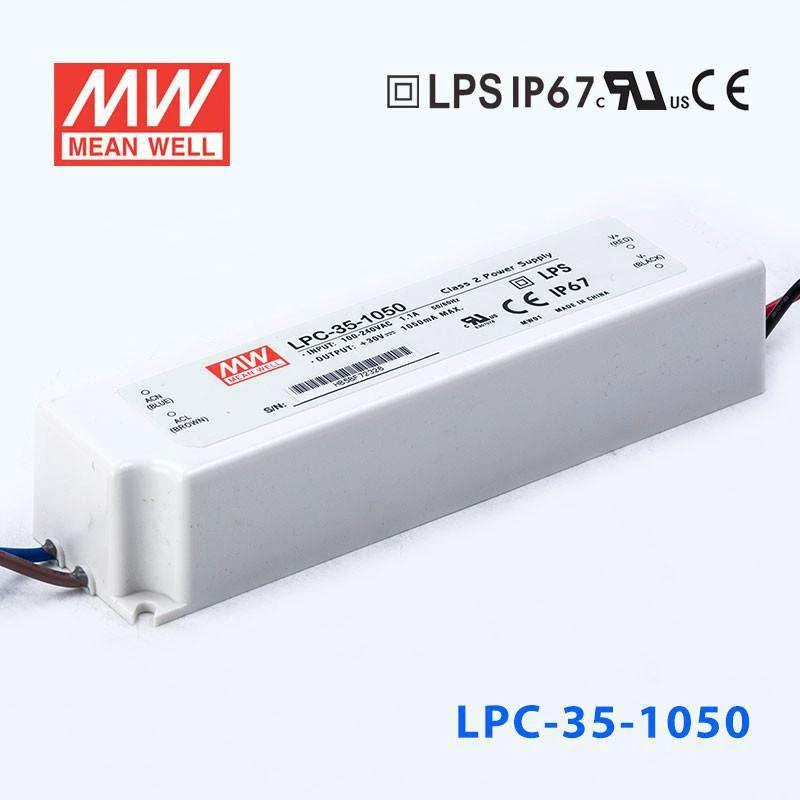

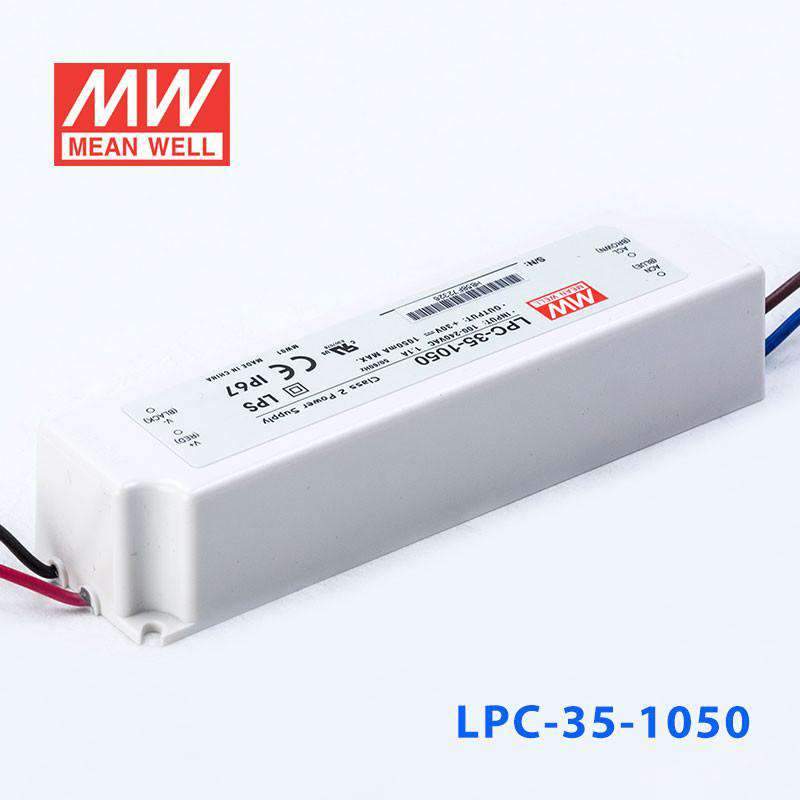

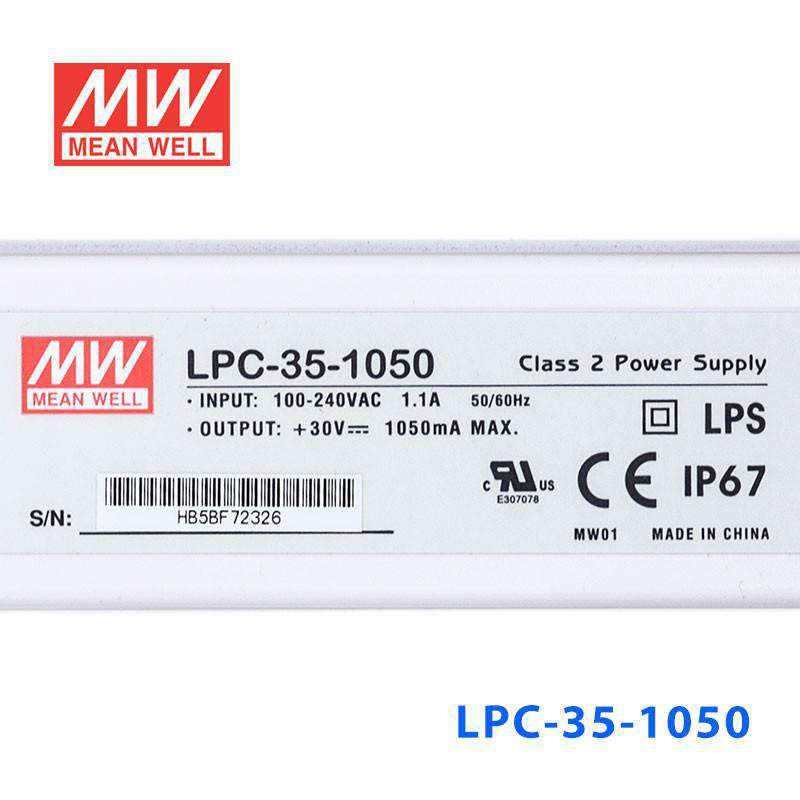

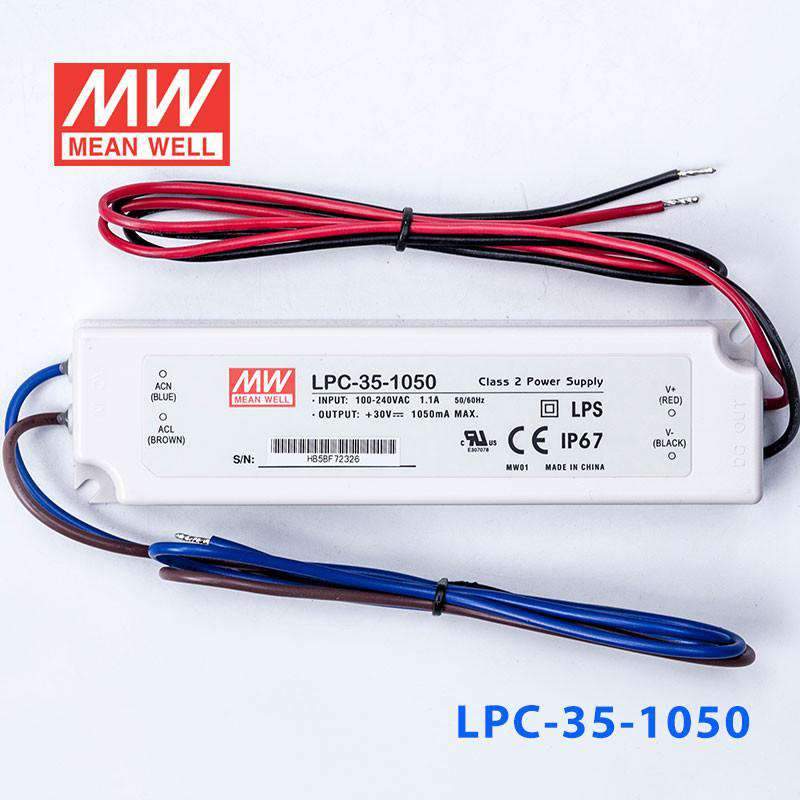

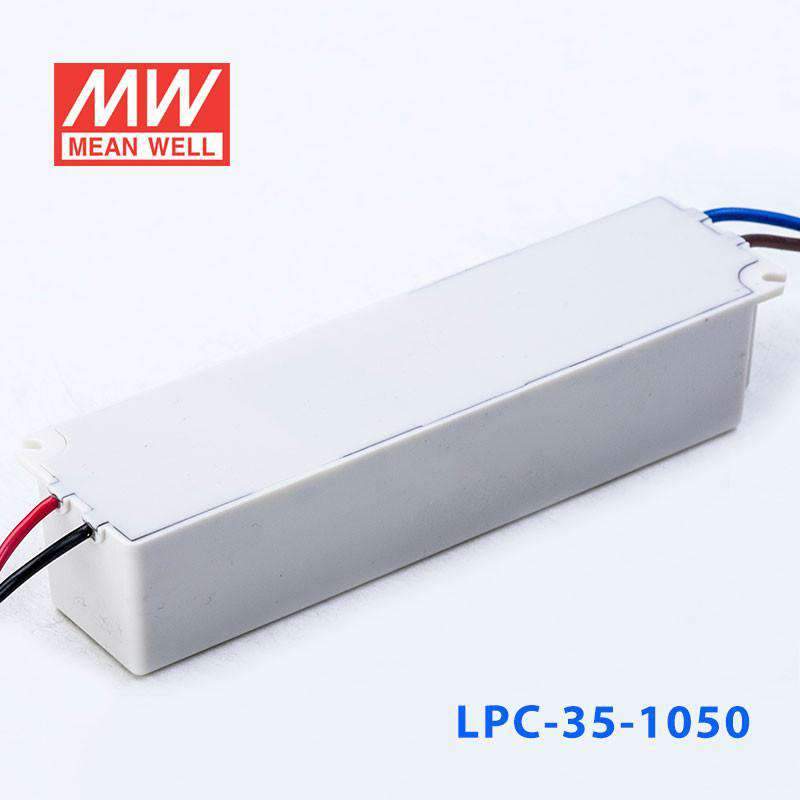

Mean Well LPC-35-1050 Power Supply 35W 1050mA
Please Login for Pricing
Description
Description
The LPC-35 is a 35W Mean Well DIN rail power converter with a 148mm profile (input range: 9~48V, operating temperature: -30~+70℃).
Key Features
- ✓ 148mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 9~48V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL1310, CAN/CSA C22.2 No. 223-M91(except for LPC-35-700), IP67
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating31.5 Watt
-
Output Voltage30 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~264V
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Current
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length14.8 cm
-
Width4 cm
-
Height3 cm
-
Weight0.34 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPC-35-1050 for a 1050mA LED downlight?
Yes, if the downlight LED engine is designed for constant current operation at 1050mA and its total forward voltage falls within 9-30V. The 31.5W output makes it suitable for moderate-power LED downlights that stay inside that voltage range. It should be matched to constant current loads rather than constant voltage fixtures.
Is the LPC-35-1050 suitable for signage modules that need more current than 700mA?
It can be suitable when the signage module or LED board is specified for 1050mA constant current and the total load voltage is between 9V and 30V. Compared with a 700mA driver, this model is intended for higher-current assemblies at similar low voltage levels. It is not a constant voltage power supply.
Can this driver run a small LED array for accent or display lighting?
It can run a small LED array if the array is designed for 1050mA constant current and stays within the 9-30V CC range. With 31.5W available, it fits higher-current small arrays better than lower-power drivers in the series. The load still has to be a constant current LED assembly.
How do I determine LED compatibility for the LPC-35-1050?
The driver must be paired with a constant current LED load rated for 1050mA, and the total forward voltage must stay within 9-30V. The number of LEDs depends on the forward voltage of each LED, so the correct match is based on total load voltage rather than a specific LED count. This model is not intended for constant voltage LED products.
How does the LPC-35-1050 compare with the other LPC-35 versions?
In the LPC-35 group, the LPC-35-700 is 700mA with a 9-48V CC range and 33.6W, the LPC-35-1050 is 1050mA with a 9-30V range and 31.5W, and the LPC-35-1400 is 1400mA with a 9-24V range and 33.6W. As current rises across the series, the constant current voltage range becomes narrower. Power stays in the low-30W class across these models.
Can the LPC-35-1050 be used where moisture and temperature swings are a concern?
It has an IP67 waterproof rating, so it is built for applications where sealing against dust and water exposure is important. The operating temperature range is -30°C to +70°C, which supports use in both cold and hot environments within that rating. Those conditions make it suitable for more demanding locations than a non-sealed driver.
Other LPC-35 Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well LPC-35-700 Power Supply 35W 700mA | 33.6W | 48V | 0.7A | IP67 | View |
| Mean Well LPC-35-1400 Power Supply 35W 1400mA | 33.6W | 24V | 1.4A | IP67 | View |
