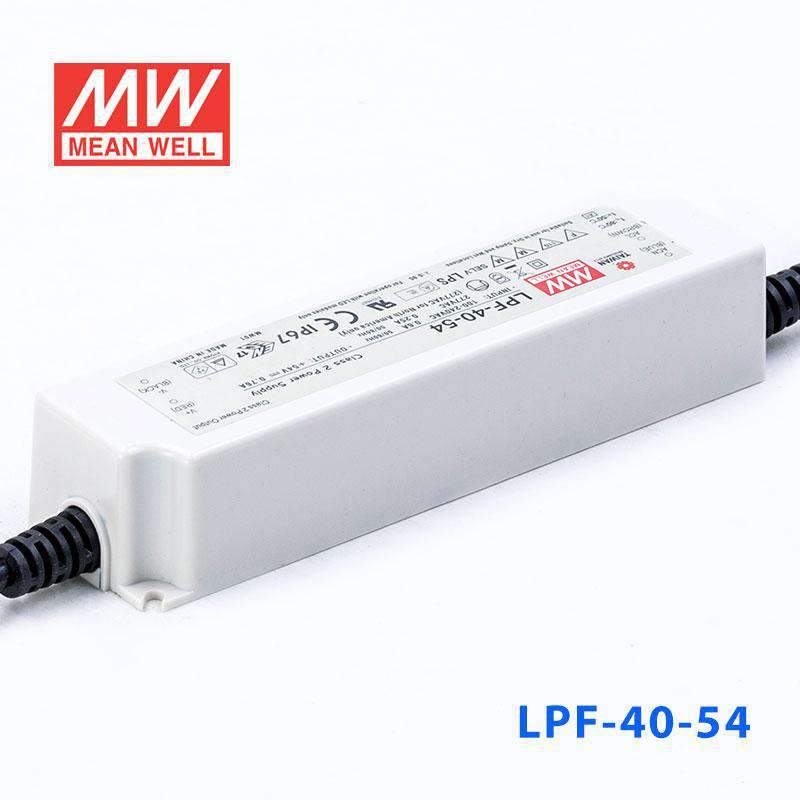

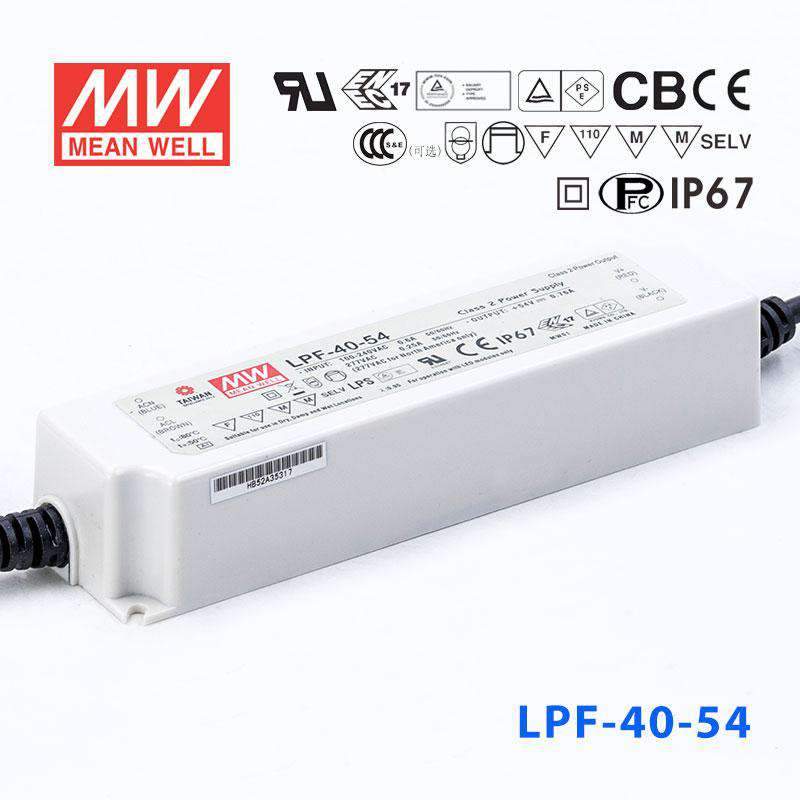

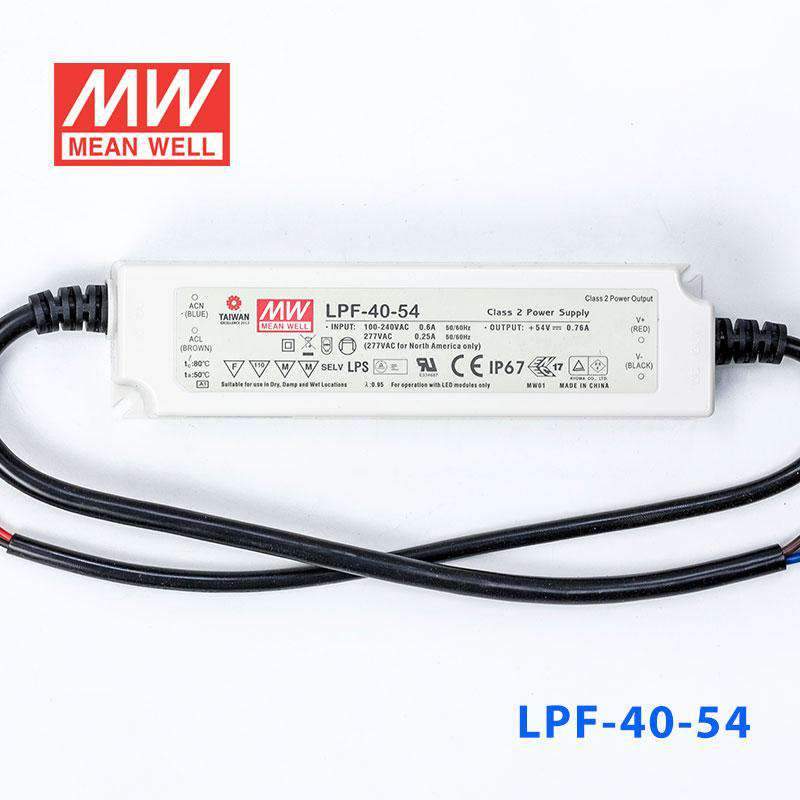

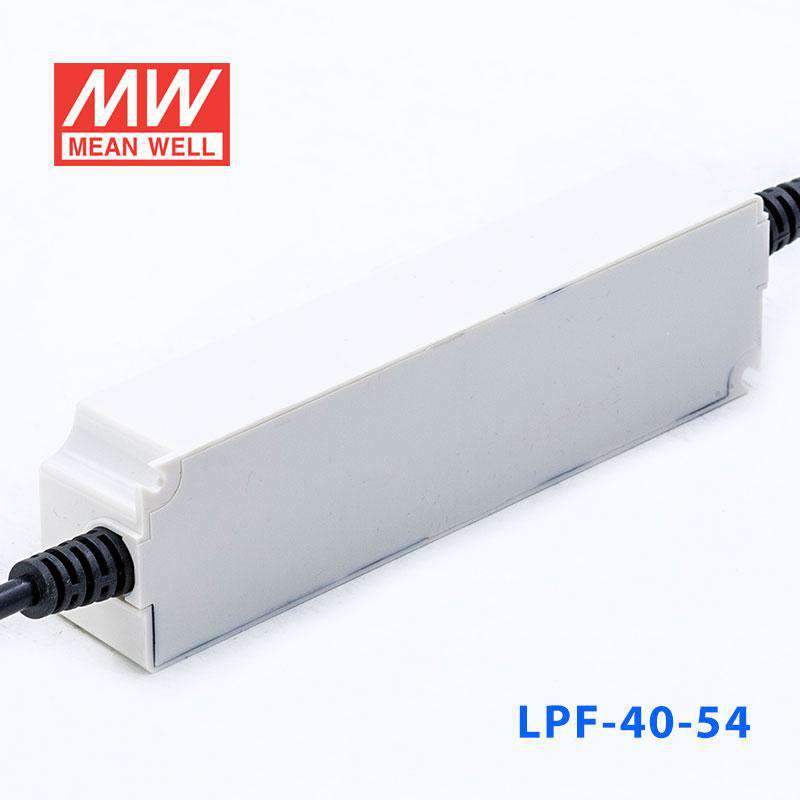

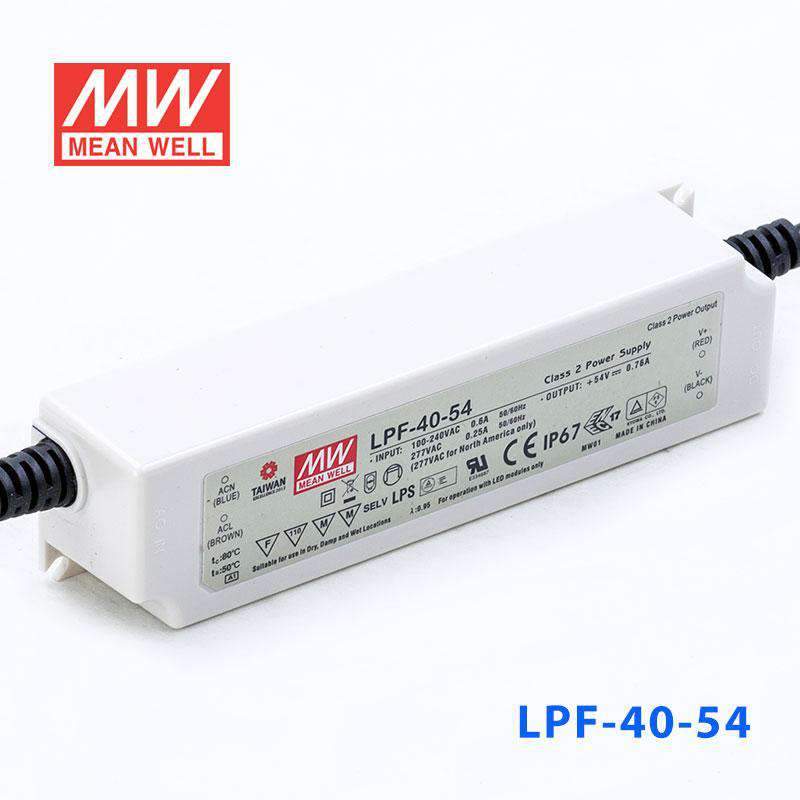

Mean Well LPF-40-54: 40W 54V Power Supply | Mean Well Auckland NZ

Description

The LPF-40 is a 40W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

41.04 Watt
Output Voltage

54 Volt
Rated Current

0.76 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.44 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-40-54 for a 54V LED lighting load?

Yes, if the load is designed for 54V constant-current operation and falls within the 32-54V constant-current range. The LPF-40-54 delivers up to 41.04W at 54V and 0.76A.

Is the LPF-40-54 suitable for 54V signage or linear light applications?

It can be used where the sign or linear fixture is a 54V constant-current load within 0.76A and 41.04W. Its IP67 waterproof construction also supports use in exposed lighting locations.

Can this model power a 54V LED strip?

Only if the strip is built for 54V constant-current operation rather than constant-voltage operation. This driver is limited to 41.04W total output at 54V and 0.76A.

How much 54V LED strip can I run from the LPF-40-54?

The maximum output power is 41.04W. Estimated strip length = 41.04W divided by your strip’s rated watts per meter, so check your strip rated power per meter before calculating the final length.

Can the LPF-40-54 be used outdoors or in wet conditions?

Yes, this driver has an IP67 Waterproof rating, so it is intended for wet and outdoor conditions where that enclosure level is needed. Its operating temperature range is -40°C to +80°C.

What are the 54V options in the LPF family?

The 54V series options are LPF-16-54 at 16.2W and 0.3A, LPF-25-54 at 25.38W and 0.47A, LPF-40-54 at 41.04W and 0.76A, LPF-60-54 at 60.48W and 1.12A, and LPF-90-54 at 90.18W and 1.67A. Dimmable siblings are LPF-16D-54, LPF-25D-54, LPF-40D-54, LPF-60D-54, and LPF-90D-54 with the same listed voltage and output ratings.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-40-24 Power Supply 40W 24V	40.08W	24V	1.67A	IP67	View
Mean Well LPF-40-48 Power Supply 40W 48V	40.32W	48V	0.84A	IP67	View
