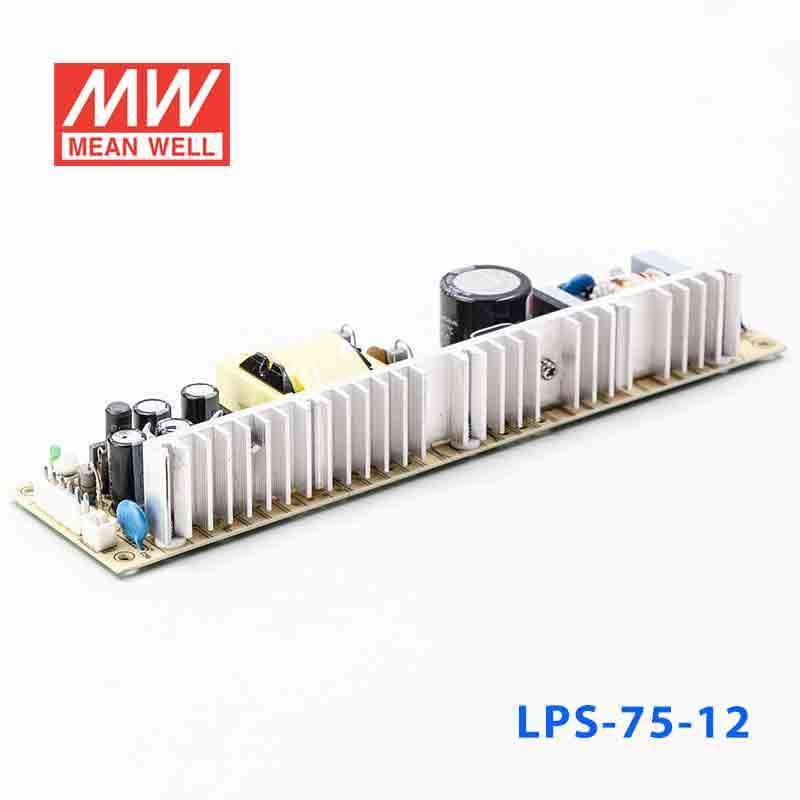

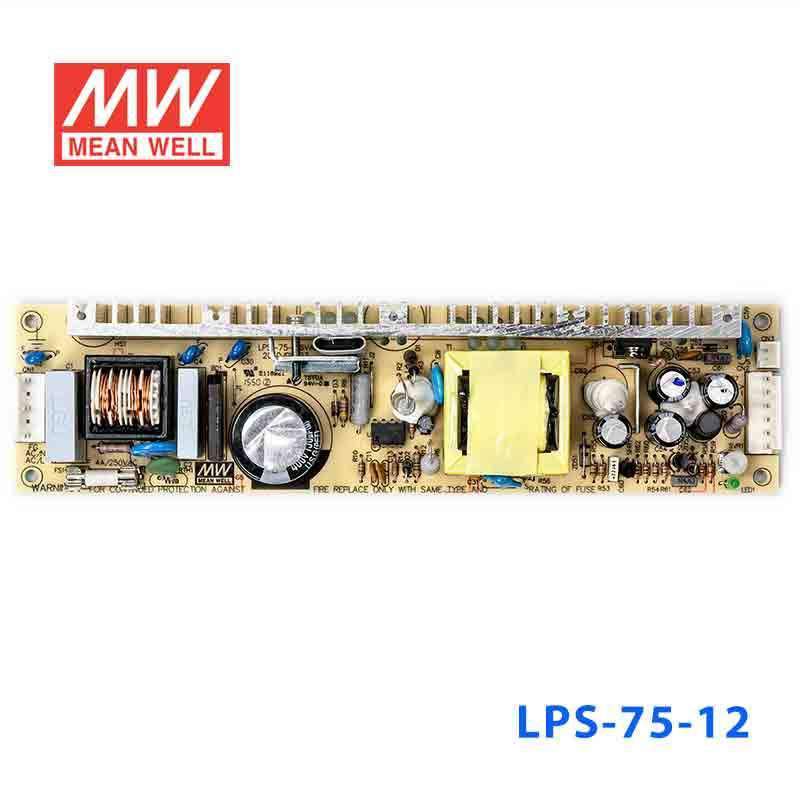

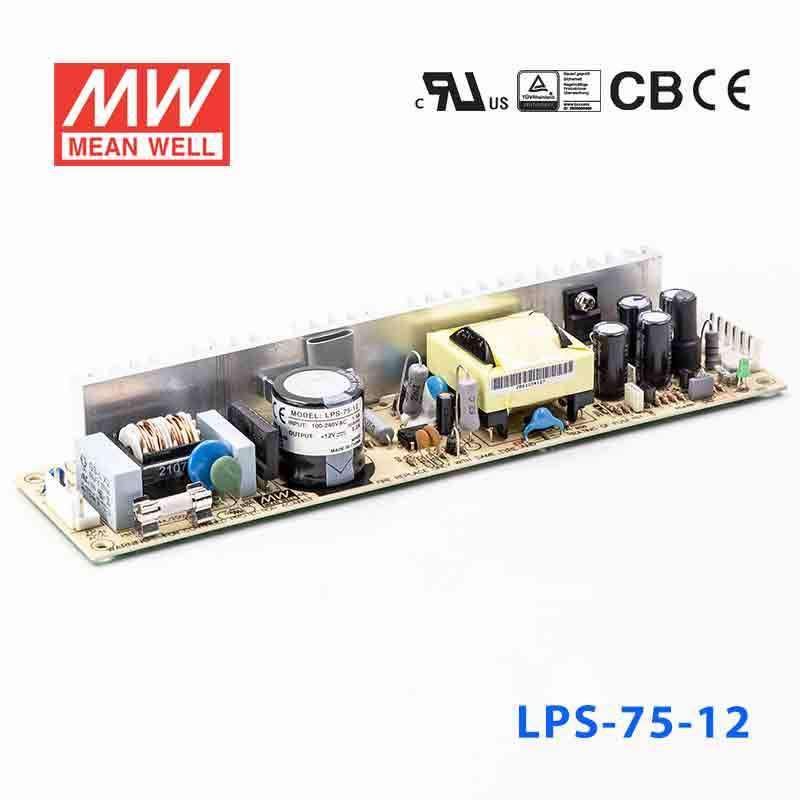

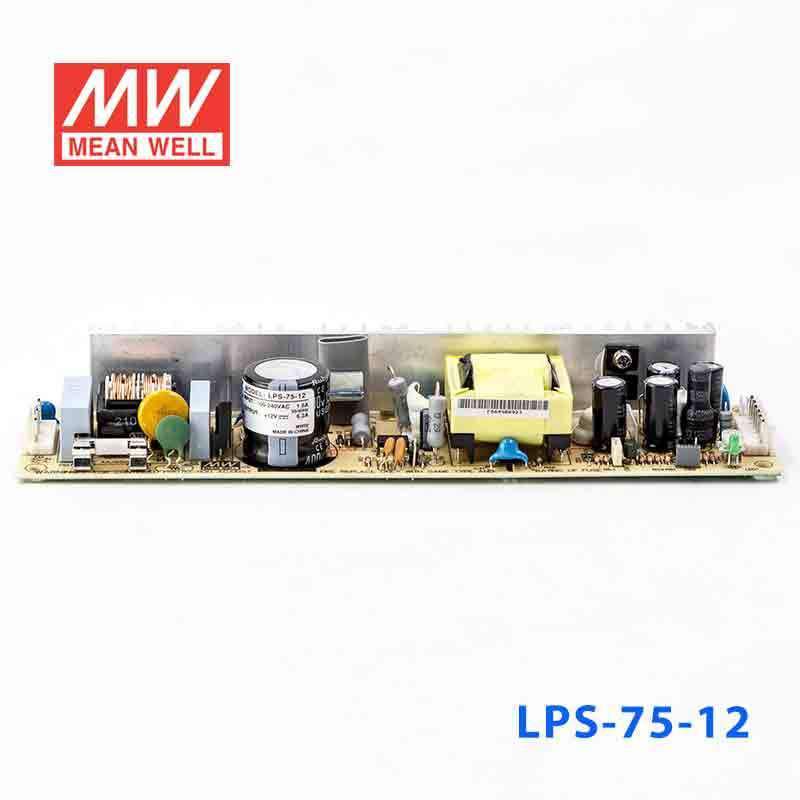

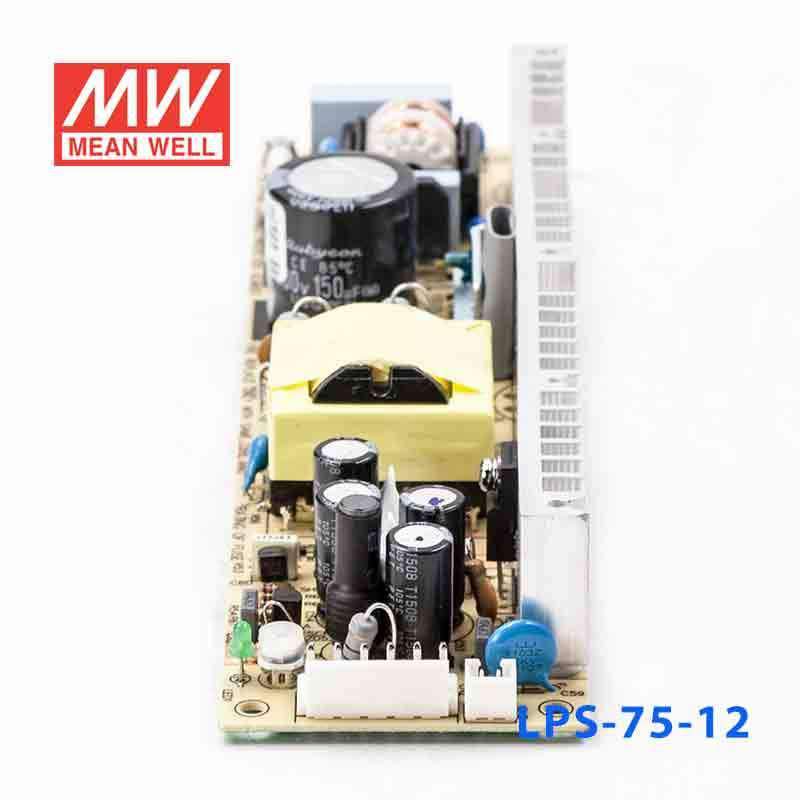

Mean Well LPS-75-12 Power Supply 74W 12V
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Cooling by free air convection |
| Protections: Short circuit / Overload / Over voltage |
| Built-in remote ON/OFF control |
| 100% full load burn-in test |
| 2 years warranty for LPS series |
General Specification
| AC input voltage range | 90~264VAC |
| AC inrush current(230VAC) | 36A |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 115%~150% |
| Overload protection Type | Hiccup mode, auto recovery |
| Over voltage protection Range | 110%~135% of rated output voltage |
| Over voltage protection Type | Hiccup mode, auto recovery |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, O/P-FG: 0.5kVAC, 1 minute |
| Working temperature | -20~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry |
| Connection | JST B5P / B6P-VH |
| Dimension (LxWxH) | 222x55x30 |
| Packing | 48pcs / 15.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating74.4 Watt
-
Output Voltage12 Volt
-
Rated Current6.2 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length22.2 cm
-
Width5.5 cm
-
Height3 cm
-
Weight0.3 kg
