Mean Well

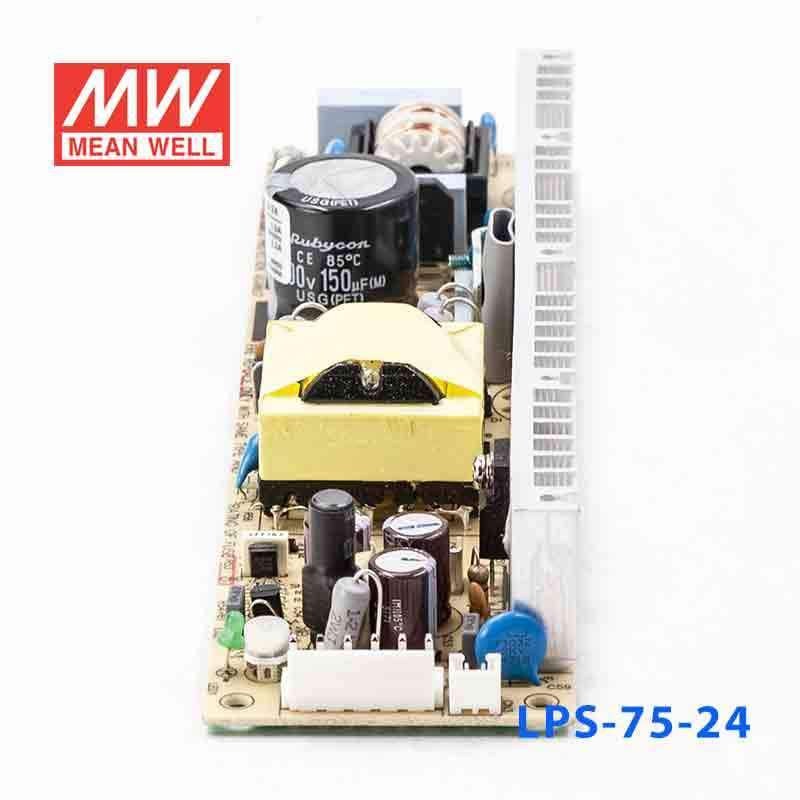

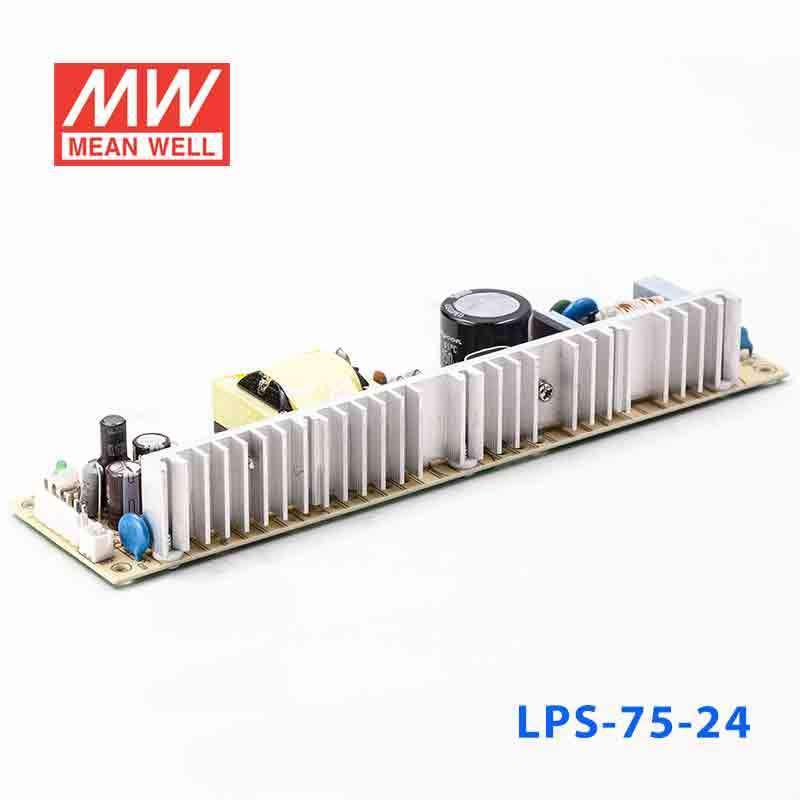

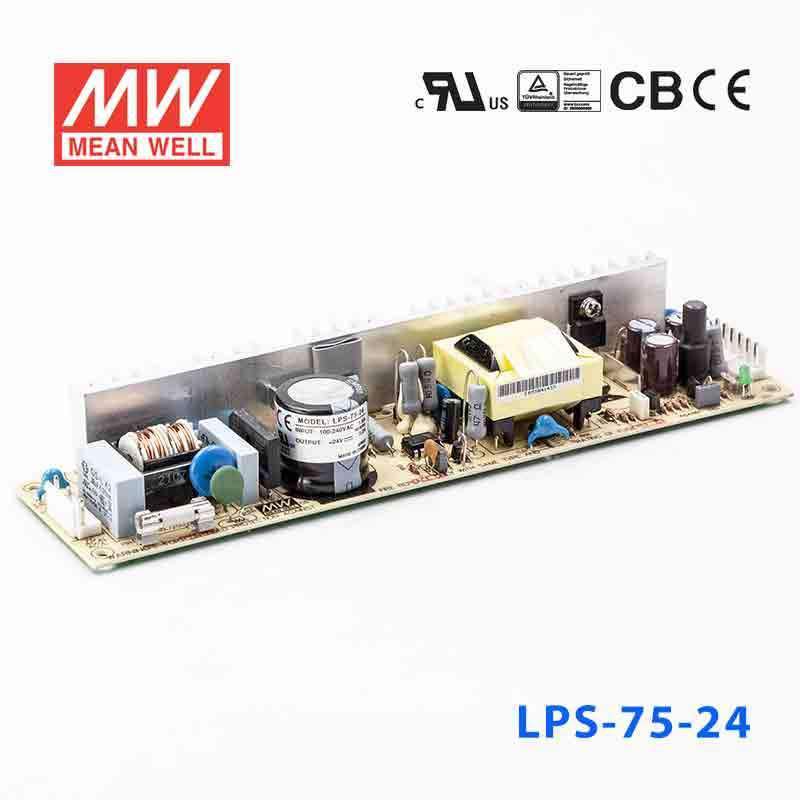

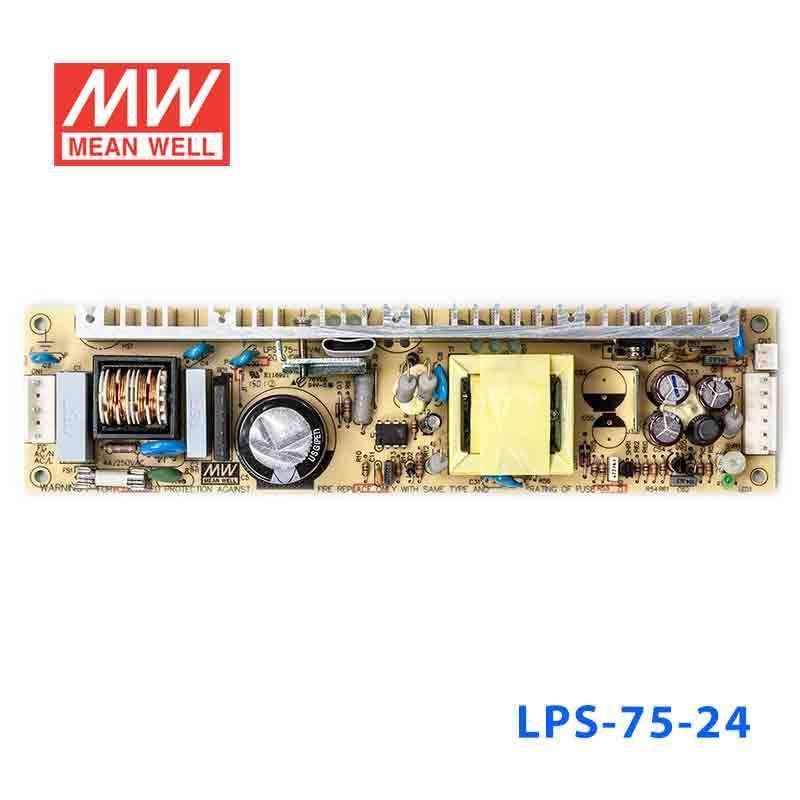

Mean Well LPS-75-24 Power Supply 76W 24V 3.2A

small and compactlow profile23mm thicknessbuilt-in remote ON-OFF control
SKU LPS-75-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

LPS-75-24 is the 24V output model of this series: rated current 3.2A, rated power 76.8W, typical efficiency 83%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • PWM control and regulated
  • Small and compact size
  • Built-in remote ON-OFF control
  • LED indicator for power on
  • 100% full load burn-in test
  • 2 years warranty

Specifications

LPS-75-24Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
3.2A
CURRENT RANGE
0 ~ 3.5A
RATED POWER
76.8W
PEAK LOAD(10sec.)Note.4
84W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
22 ~ 27V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
200ms, 35ms/230VAC 200ms, 35ms/115VAC at full load
HOLD UP TIME (Typ.)
60ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
83%
AC CURRENT (Typ.)
1.9A/115VAC 1.1A/230VAC
INRUSH CURRENT (Typ.)
COLD START 18A/115VAC 36A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed

FUNCTION

REMOTE ON/OFF
RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.04%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
3180.0K hrs min. Telcordia SR-332 (Bellcore) ; 608.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
222*55*30mm (L*W*H)
PACKING
0.3Kg; 48pcs/15.6Kg/1.23CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. 33.3% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

LPS-75-24 Mechanical Specification
Mechanical Specification
LPS-75-24 Block Diagram
Block Diagram
LPS-75-24 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the LPS-75-24 for a 24V PLC, HMI, or automation controller?

Yes, if the equipment needs a constant 24V DC supply and the total load stays within 3.2A. This unit is rated for 76.8W, which suits many 24V control and automation devices within that range.

Is this a good fit for 24V sensors, relays, and control accessories in one enclosure?

It can be used where multiple 24V DC loads share a supply, as long as their combined draw does not exceed 3.2A or 76.8W. The wide 90-264VAC input also supports use across common AC power environments.

Can the LPS-75-24 power a compact industrial panel that needs low-profile hardware?

Yes, this model is intended for compact internal power applications with a 222.0 x 55.0 x 30.0 mm form factor and 0.3 kg weight. It provides constant 24V output up to 3.2A for panel-based equipment that fits within 76.8W.

Can I use this 24V supply in equipment that needs remote power enable control?

Yes, the LPS-75-24 includes built-in remote ON-OFF control. That can be useful in automation or embedded systems where the 24V supply needs to be switched under system control.

Is the LPS-75-24 suitable for outdoor installations?

The temperature rating is -20 degrees C to +70 degrees C, but no IP rating is provided in the listed specs. That means it is better treated as a supply for indoor or protected enclosure environments rather than direct outdoor exposure.
