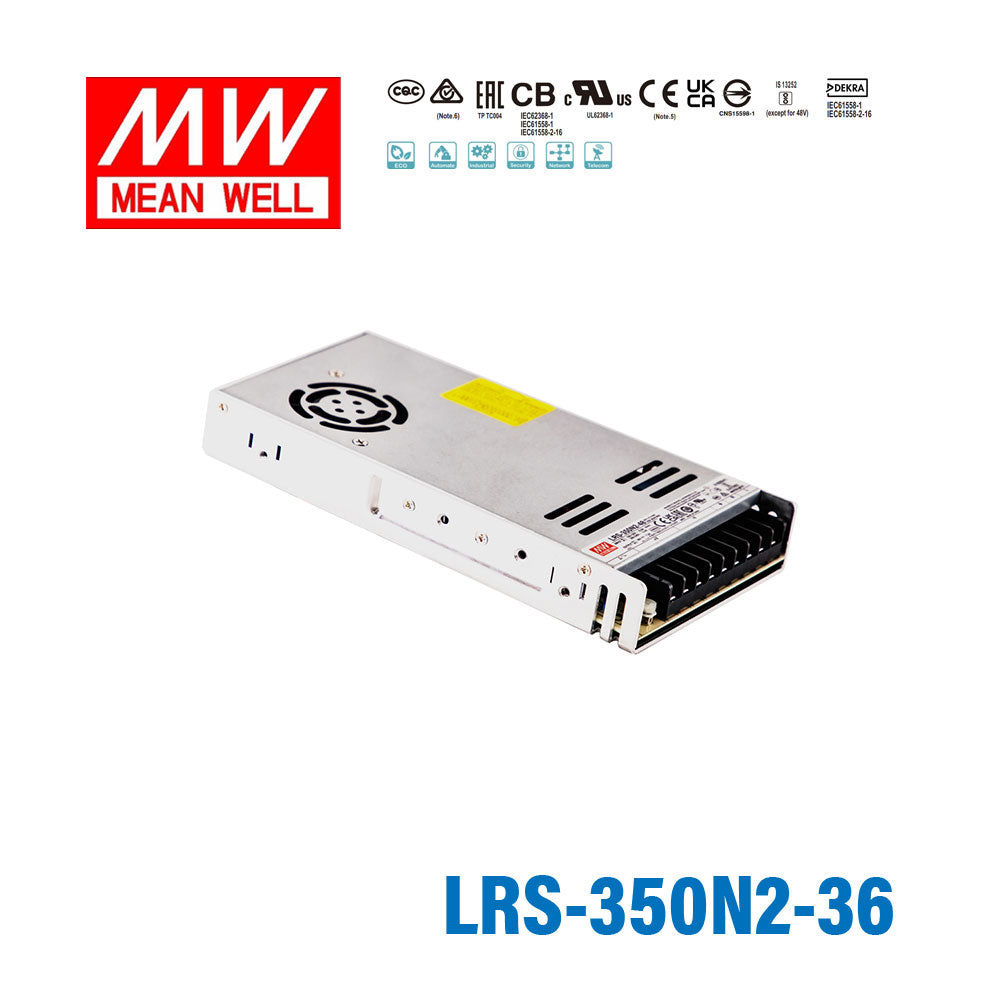

Mean Well LRS-350N2-36 Single Output High Peak Power Supply 349.2W ...
Please Login for Pricing
Description
Description
Key Features
- ✓AC input range selectable by switch
- ✓Withstand 300VAC surge input for 5 second
- ✓Up to 200% peak power capability
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Forced air cooling by built-in DC fan
- ✓Built-in cooling Fan ON-OFF control
- ✓Compliance to IEC/BS EN/EN61558-1 and 62368-1
- ✓Withstand 5G vibration test
- ✓LED indicator for power ON
- ✓No load power consumption<1W
- ✓Overvoltage category III(OVC III)
- ✓High operating temperature up to 70℃
- ✓Operating altitude up to 2000 meters
- ✓High efficiency, long life, and high reliability
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating349.2 Watt
-
Output Voltage36 Volt
-
Rated Current9.7 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.76 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications suit the LRS-350N2-36 at 36V with peak power support?
The LRS-350N2-36 outputs 36V at 9.7A (349.2W) with 200% peak power capability, making it a good fit for 36V brushless DC motors, power tool battery emulation benches, and high-voltage sensor arrays where transient inrush exceeds steady-state draw. The peak feature allows momentary power surges without triggering shutdown.
How does the LRS-350N2-36 differ from the LRS-350-36?
Both models deliver 36V at 9.7A (349.2W) and share the same 215 × 115 × 30 mm case and 0.76 kg weight. The LRS-350N2-36 supports up to 200% peak output power for transient loads; the LRS-350-36 operates at continuous rated power only. Input range and certification set are identical for both.
Is 36V an uncommon bus voltage, and when should the LRS-350N2-36 be selected over 24V or 48V models?
36V is used in specific brushless motor platforms, e-bike systems, and some industrial battery formats. Choose the LRS-350N2-36 when the load specifies a 36V input and the transient inrush or surge current exceeds the 9.7A continuous rating, since the 200% peak feature provides headroom the standard LRS-350-36 lacks.
What environmental conditions can the LRS-350N2-36 withstand?
The LRS-350N2-36 is rated -25°C to +70°C and withstands 5G vibration. It is an open-frame, board-mount supply requiring installation in a protective enclosure; it is not rated for direct exposure to moisture, dust, or outdoor conditions without an appropriate IP-rated cabinet.
How does the LRS-350N2-36 compare to the other LRS-350N2 models?
All LRS-350N2 variants share the 215 × 115 × 30 mm footprint, 0.76 kg weight, 90–264VAC input, and 200% peak power. Output ratings: LRS-350N2-12 (348W, 29A at 12V), LRS-350N2-24 (350.4W, 14.6A at 24V), LRS-350N2-36 (349.2W, 9.7A at 36V), LRS-350N2-48 (350.4W, 7.3A at 48V).
