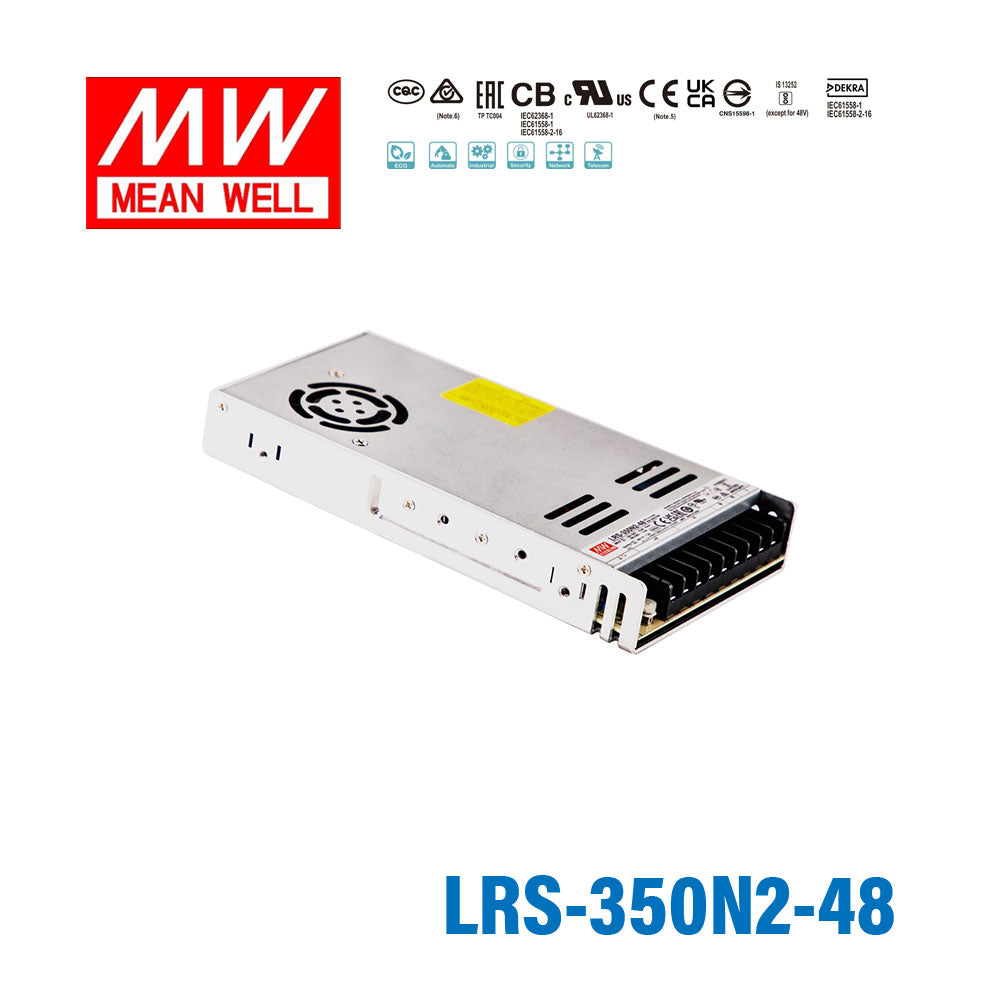

Mean Well LRS-350N2-48 Single Output High Peak Power Supply 350.4W ...
Please Login for Pricing
Description
Description
Key Features
- ✓AC input range selectable by switch
- ✓Withstand 300VAC surge input for 5 second
- ✓Up to 200% peak power capability
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Forced air cooling by built-in DC fan
- ✓Built-in cooling Fan ON-OFF control
- ✓Compliance to IEC/BS EN/EN61558-1 and 62368-1
- ✓Withstand 5G vibration test
- ✓LED indicator for power ON
- ✓No load power consumption<1W
- ✓Overvoltage category III(OVC III)
- ✓High operating temperature up to 70℃
- ✓Operating altitude up to 2000 meters
- ✓High efficiency, long life, and high reliability
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLRS Series
-
Power Rating350.4 Watt
-
Output Voltage48 Volt
-
Rated Current7.3 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,CQC,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height3 cm
-
Weight0.76 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 48V systems benefit from the LRS-350N2-48's peak power capability?
The LRS-350N2-48 supplies 48V at 7.3A (350.4W) with 200% peak power, making it suited for 48V brushless DC motor systems, PoE++ switches with high inrush at port activation, and 48V industrial bus networks where transient current exceeds steady-state draw. The peak feature prevents nuisance shutdown during startup surges.
How does the LRS-350N2-48 compare to the LRS-350-48?
Both supply 48V at 7.3A (350.4W) in an identical 215 × 115 × 30 mm, 0.76 kg package. The LRS-350N2-48 adds 200% peak power for transient handling; the LRS-350-48 does not. Both accept 90–264VAC and share the same CB, CE, CQC, EAC, TÜV, and UL certification set.
What is the operating temperature range of the LRS-350N2-48, and can it run in hot enclosures?
The LRS-350N2-48 operates from -25°C to +70°C, allowing full-rated output in enclosures reaching 70°C ambient. Its 5G vibration resistance supports installation in industrial cabinets subject to mechanical noise.
How does the LRS-350N2-48 compare across the LRS-350N2 family?
All LRS-350N2 models share the same 215 × 115 × 30 mm case, 0.76 kg weight, and 200% peak power feature. LRS-350N2-12: 348W, 29A. LRS-350N2-24: 350.4W, 14.6A. LRS-350N2-36: 349.2W, 9.7A. LRS-350N2-48: 350.4W, 7.3A. The 48V model outputs the lowest current but the same wattage as the 24V sibling.
Does the LRS-350N2-48 support global AC input voltages?
Yes, the LRS-350N2-48 accepts 90–264VAC, covering 120V (North America) and 230V (Europe/international) mains without any hardware modification. This universal input is important for equipment deployed across multiple regional markets.
Other LRS-350N2 Models
3 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well LRS-350N2-36 Single Output High Peak Power Supply 349.2W 36V, 2 Times Peak Power 9.7A | 349.2W | 36V | 9.7A | View |
| Mean Well LRS-350N2-24 Single Output High Peak Power Supply 350.4W 24V, 2 Times Peak Power 14.6A | 350.4W | 24V | 14.6A | View |
| Mean Well LRS-350N2-12 Single Output High Peak Power Supply 348W 12V, 2 Times Peak Power 29A | 348W | 12V | 29A | View |
