Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

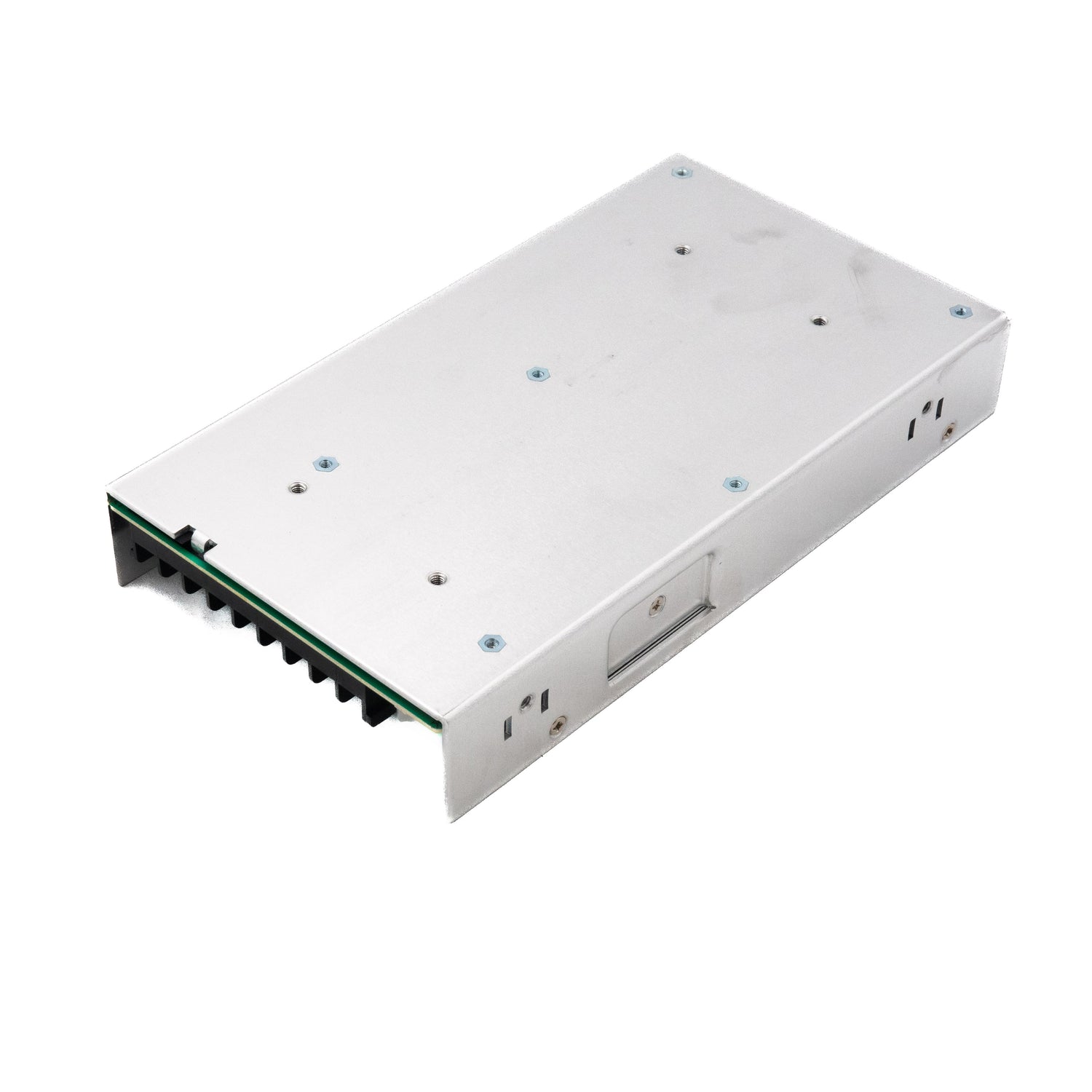

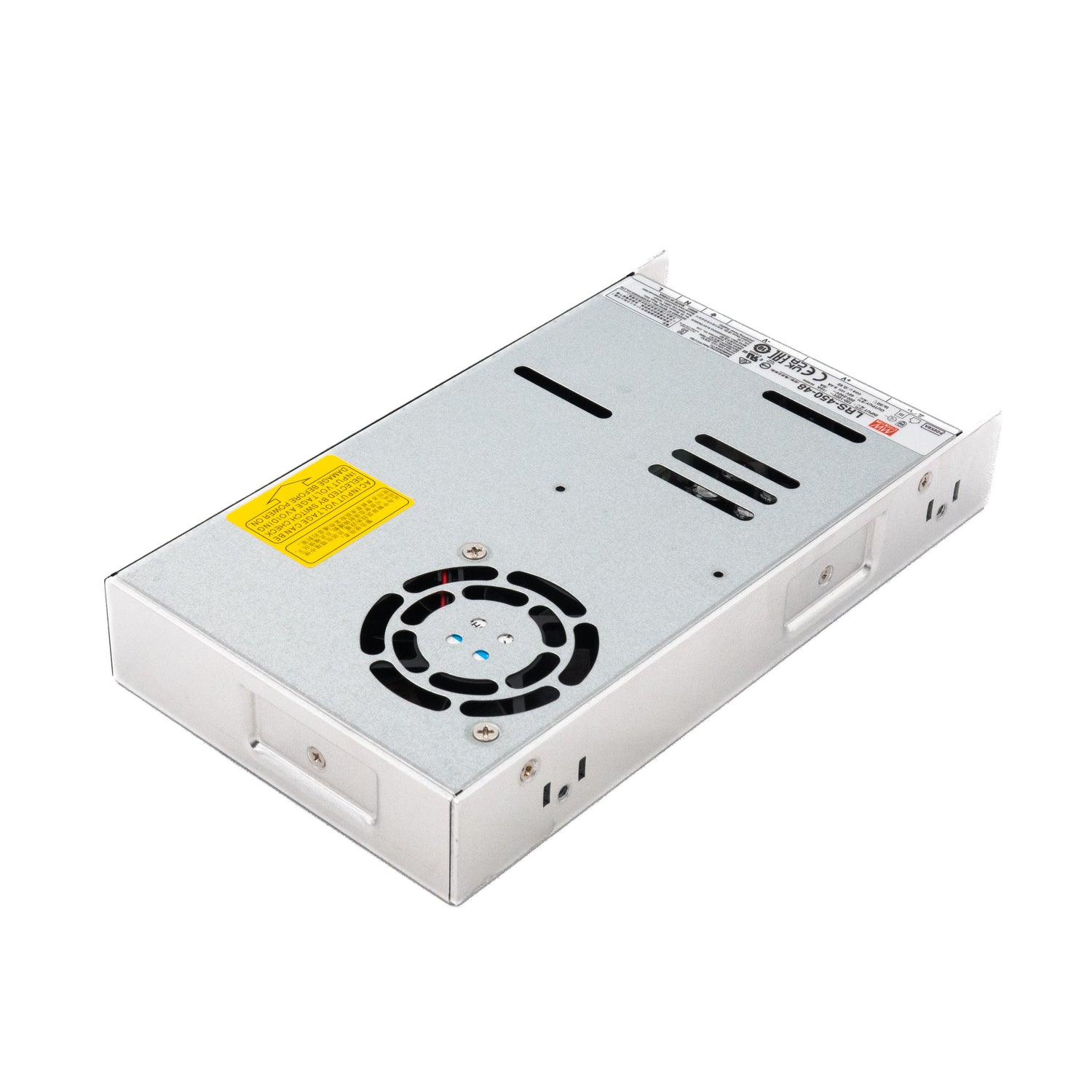

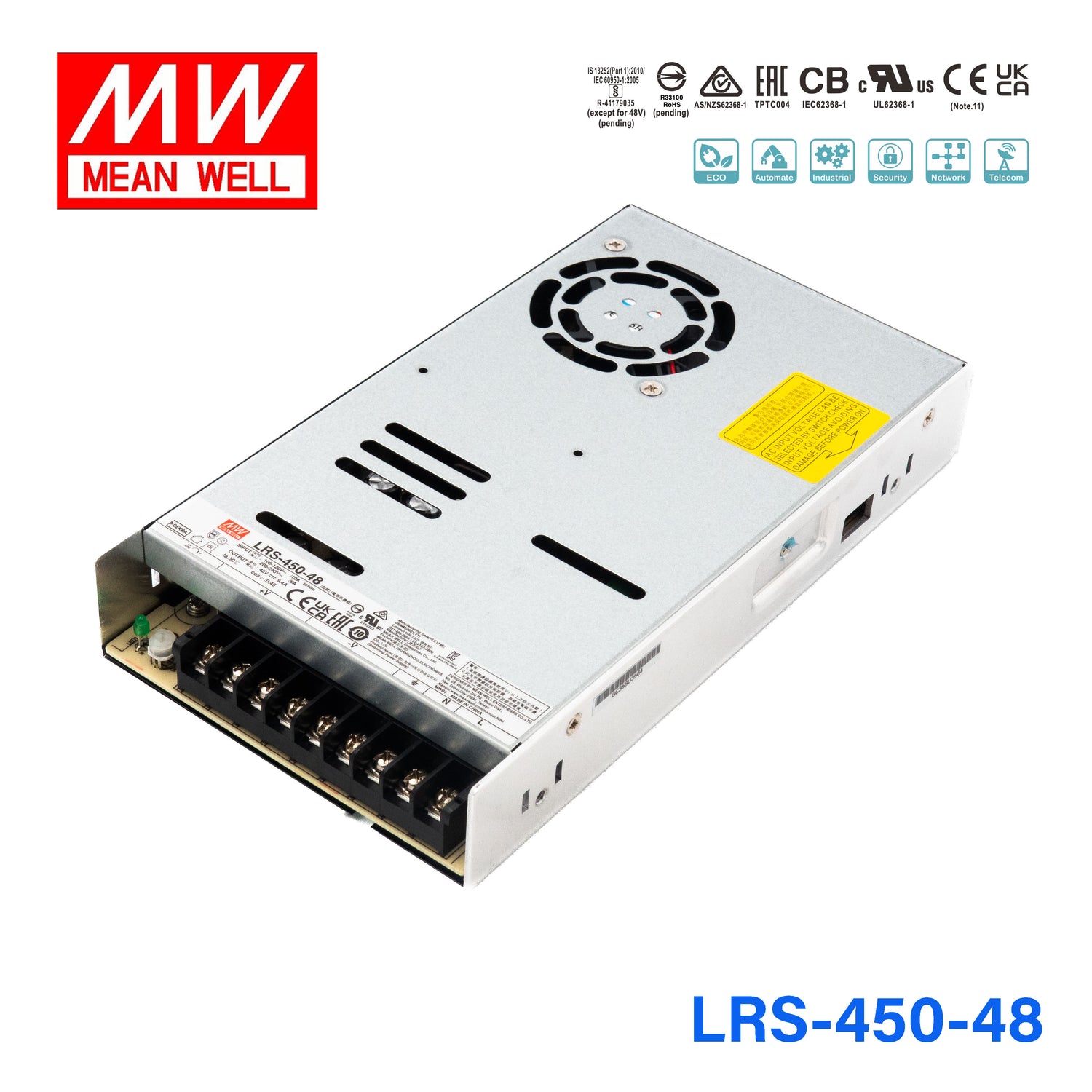

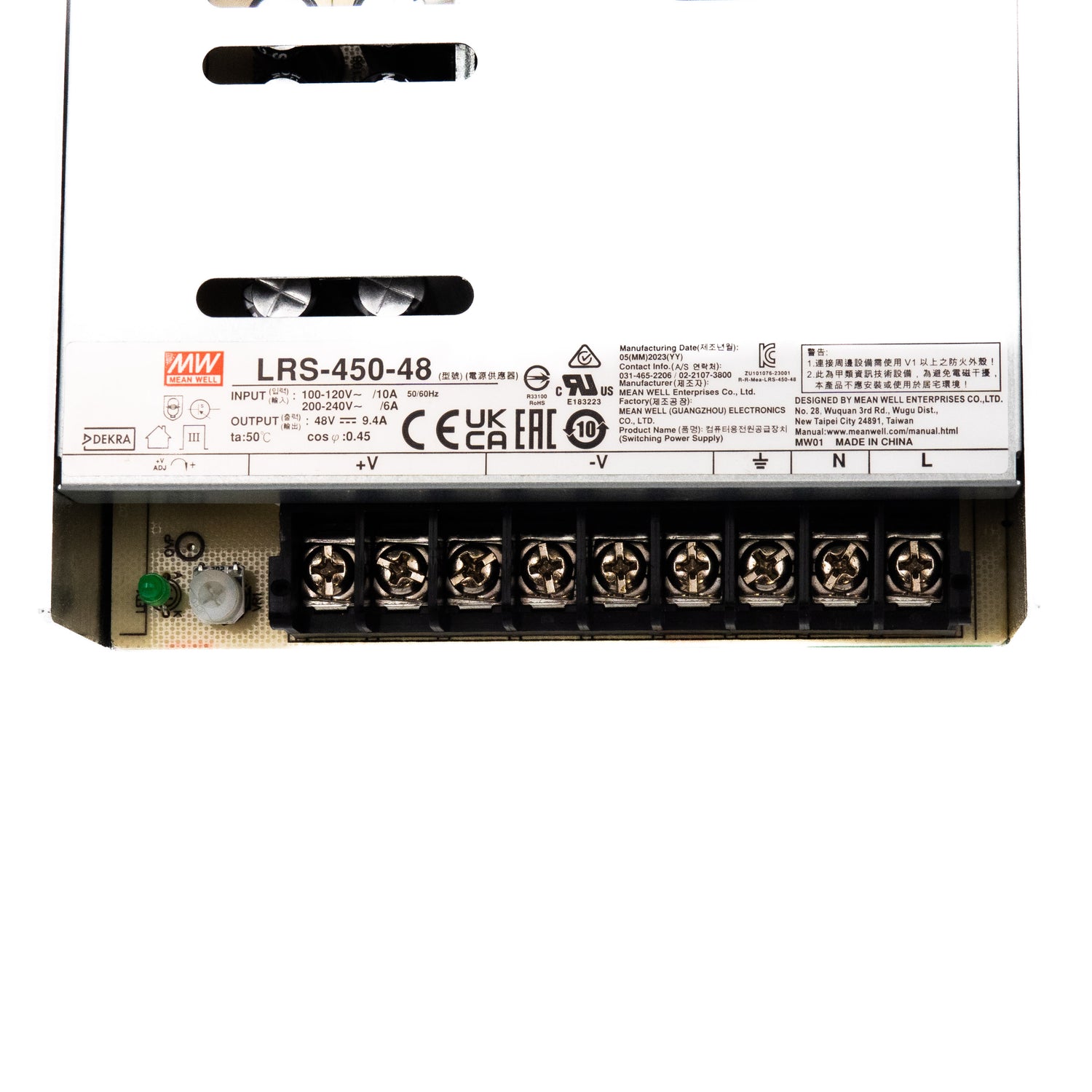

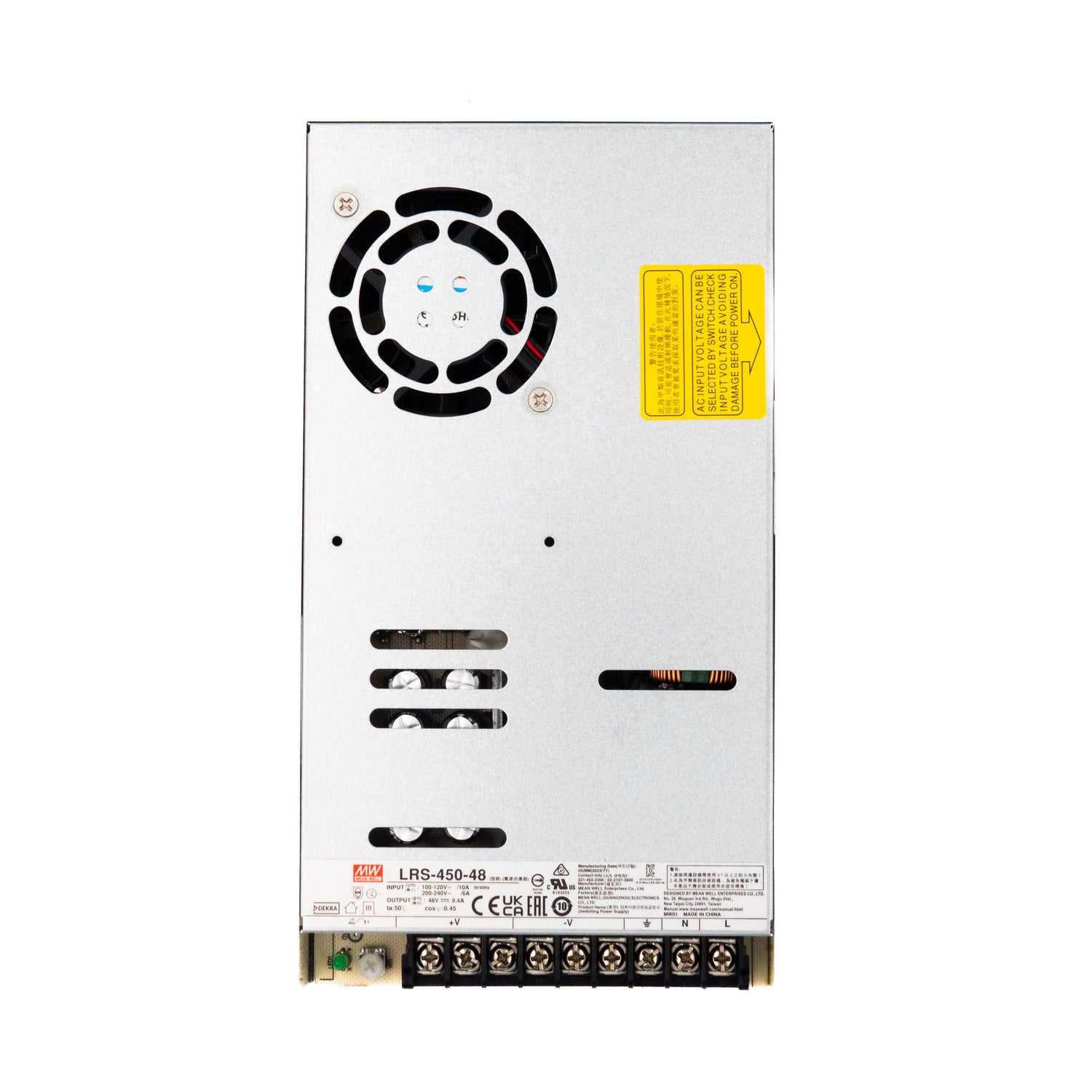

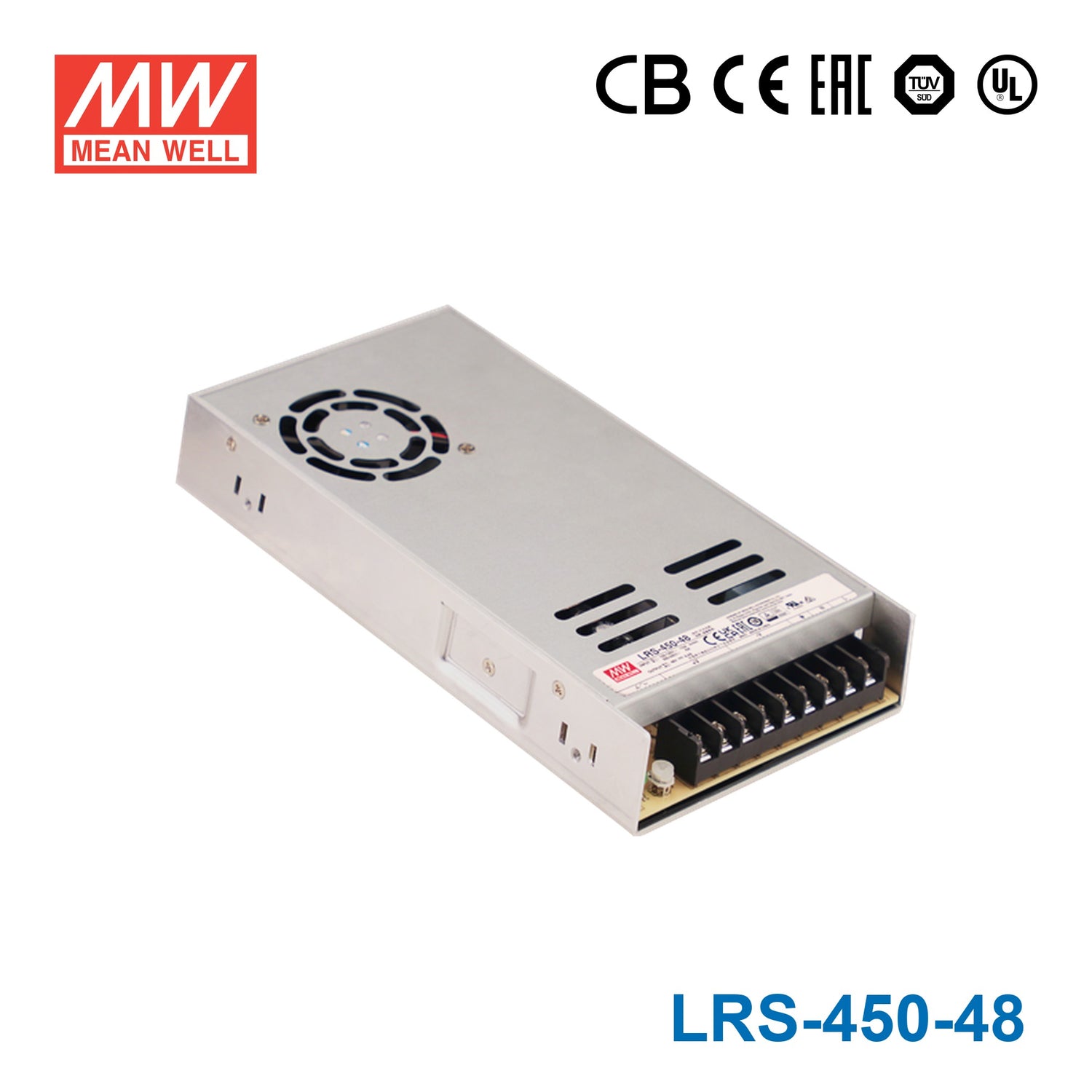

Mean Well LRS-450-48 Power Supply 450W 48V 9.4A

4.7 (17 reviews)

most economical modelultra compact and 1U low profilewithstand 5G vibration and 70°C operation

SKU:

LRS-450-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

LRS-450-48

LRS-35-48 35W 48V Backorder

LRS-100-48 100W 48V Backorder

LRS-150-48 150W 48V Backorder

LRS-200-48 200W 48V Backorder

LRS-350-48 350W 48V Backorder

LRS-450-48 450W 48V Backorder

LRS-50-48 50W 48V Backorder

LRS-600-48 600W 48V Backorder

LRS-75-48 75W 48V Backorder

Product variants

Notify me when it's back in stock

Brand MEANWELL

AC input voltage range: 90 ~ 132VAC

Rated power: 450W

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

Built-in cooling Fan ON-OFF control

1U low profile

Withstand 5G vibration test

LED indicator for power on

No load power consumption < 0.75W

100% full load burn-in test

High operating temperature up to 70℃

Operating altitude up to 5000 meters (Note.8)

High efficiency, long life and high reliability

3 years warranty

Key Features

✓180 / 264VAC by switch
✓Cold start, 60A at 230VAC
✓±10% by potentiometer
✓105%~150%
✓Constant current limiting, unit will shutdown after 3 sec, re-power on to recover
✓55.2 ~ 64.8V
✓Shut down o/p voltage, re-power on to recover
✓I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
✓-20 ~ +70℃ (Refer to "Derating Curve")
✓BS IEC/UL 62368-1, EAC TP TC 004, AS/NZS62368.1 approved
✓225*124*35mm (L*W*H)

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well LRS-450-12 Power Supply 450W 12V 37.5A	450W	12V	37.5A	View
Mean Well LRS-450-24 Power Supply 450W 24V 18.8A	451.2W	24V	18.8A	View

Customer reviews

4.7 Reviews verified for authenticity

5 ★ (13)

4 ★ (3)

3 ★ (1)

2 ★ (0)

1 ★ (0)

Reviewed by 17 customers across the LRS series

Cheap and reliable enclosed PSU
By Ravi N.|2026-06-14✓ Verified Buyer
Model: LRS-50-24Quantity: 10
LRS-50-24 powers our sensor rack. Great price, no fuss.
Good budget option
By Kelly B.|2026-05-20✓ Verified Buyer
Model: LRS-100-24Quantity: 4
Runs a bit warm in a sealed box — add airflow. Otherwise solid.
Standardised on these
By FitOut Ltd|2026-04-25
Model: LRS-350-24Quantity: 25
Use LRS across all our retail fit-outs now.

Please log in to write a review.

{ "id":8343902060843, "variants" :[{ "context":"default", "variant_id": 45321087156523, "sku":"LRS-450-48", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓180 / 264VAC by switch

✓Cold start, 60A at 230VAC

✓±10% by potentiometer

✓105%~150%

✓Constant current limiting, unit will shutdown after 3 sec, re-power on to recover

✓55.2 ~ 64.8V

✓Shut down o/p voltage, re-power on to recover

✓I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

✓-20 ~ +70℃ (Refer to "Derating Curve")

✓BS IEC/UL 62368-1, EAC TP TC 004, AS/NZS62368.1 approved

✓225*124*35mm (L*W*H)
