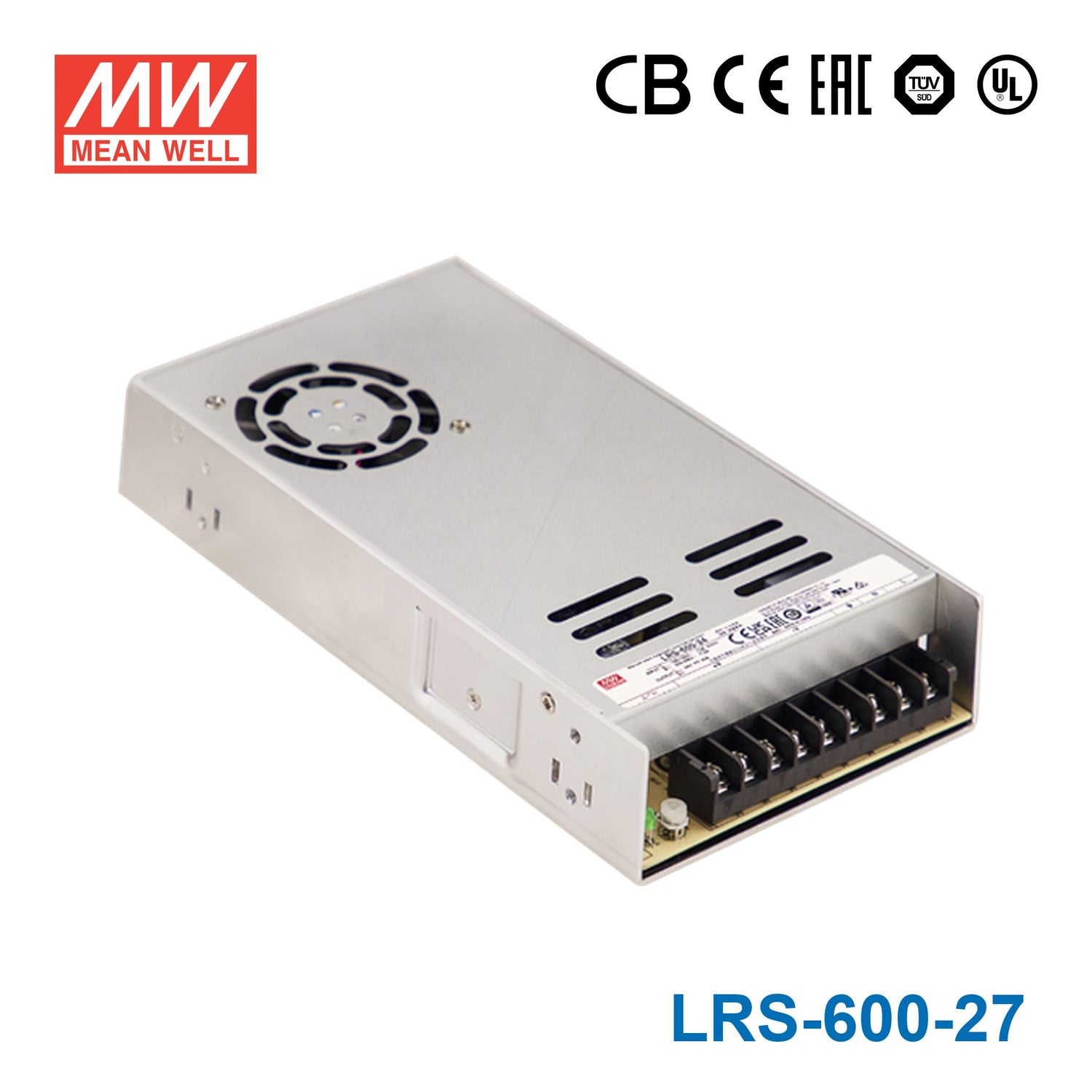

Mean Well LRS-600-27 Power Supply 600W 27V

most economical model, ultra compact and 1U low profile, withstand 5G vibration and 70°C operation

|

Description

Features:

Brand MEANWELL

AC input voltage range: 90 ~ 132VAC

Rated power: 600W

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

Protections: Short circuit / Overload / Over voltage / Over temperature

Forced air cooling by built-in DC fan

Built-in cooling Fan ON-OFF control

1U low profile

Withstand 5G vibration test

LED indicator for power on

No load power consumption < 0.75W

100% full load burn-in test

High operating temperature up to 70℃

Operating altitude up to 5000 meters (Note.8)

High efficiency, long life and high reliability

3 years warranty


General Specification

AC input voltage range 90 ~ 132VAC / 180 ~ 264VAC by switch
AC inrush current (max.) Cold start, 60A at 230VAC
Overload protection Range 105 ~ 150% rated output power
Overload protection Type Constant current limiting, unit will shutdown after 3 sec. re-power on to recover
Over voltage protection Range 5.75 ~ 6.75V, 13.8 ~ 16.2V, 18 ~ 21V, 27.6 ~ 32.4V, 31 ~ 36.5V, 41.4 ~ 48.6V, 55.2 ~ 64.8V
Over voltage protection Type Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature -20 ~ +65℃ (Refer to "Derating Curve")
Safety standards BS IEC/UL 62368-1, EAC TP TC 004,AS/NZS62368.1 approved
Dimension (LxWxH) 225*124*41mm (L*W*H)

Specifications

  • Brand
    Mean Well
  • Series
    LRS Series
  • Power Rating
    599.4 Watt
  • Output Voltage
    27 Volt
  • Rated Current
    22.2 Ampere
  • Input Voltage
    90V~132V
  • Standards Met
    CB,CE,CQC,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~65°C
  • Warranty
    3 Year
  • Length
    22.5 cm
  • Width
    12.4 cm
  • Height
    4.1 cm
  • Weight
    0.95 kg

File Downloads

::specification::
