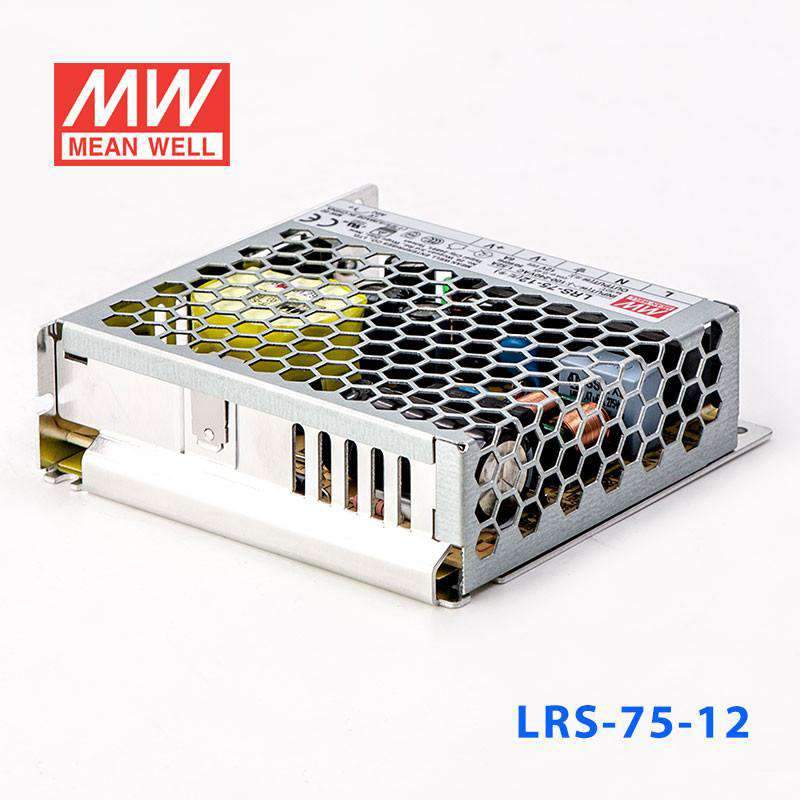

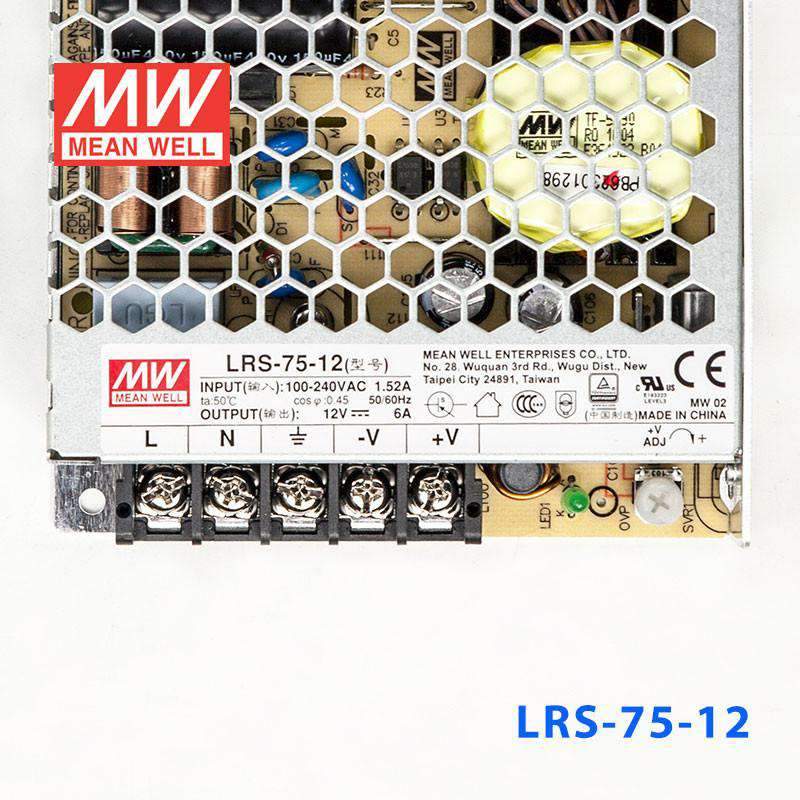

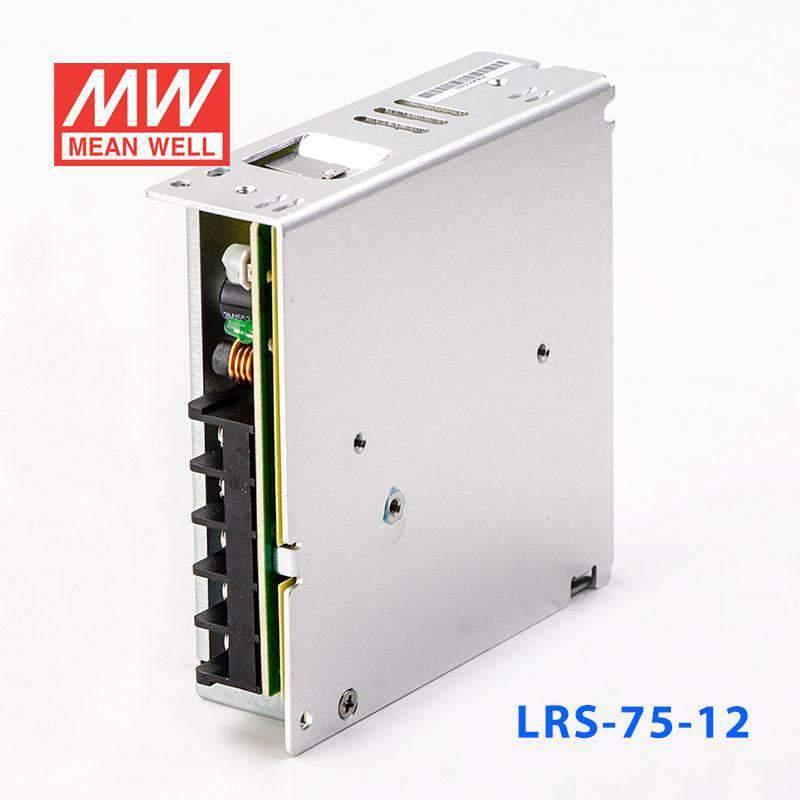

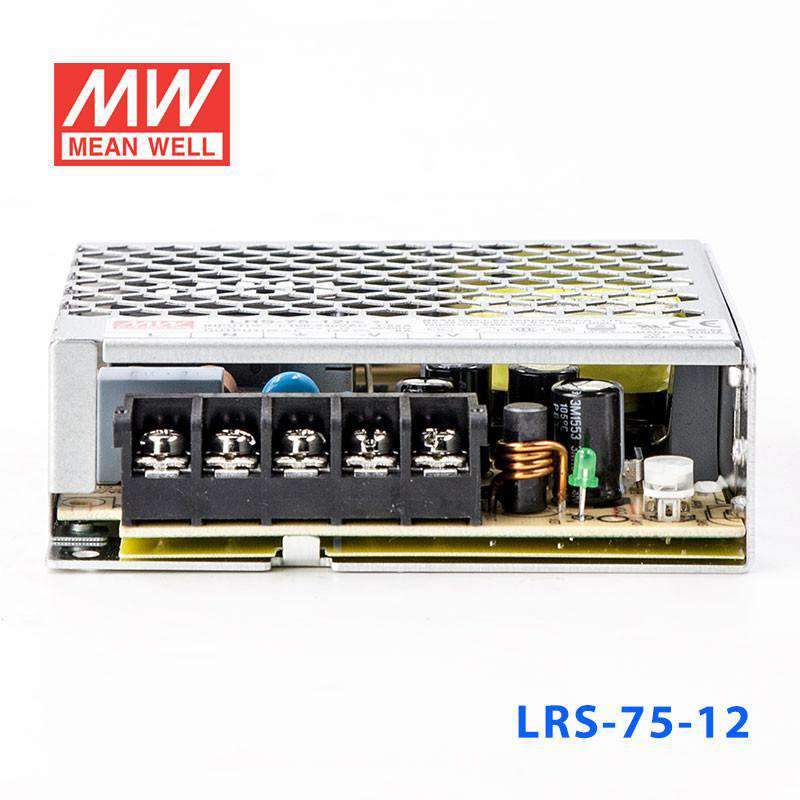

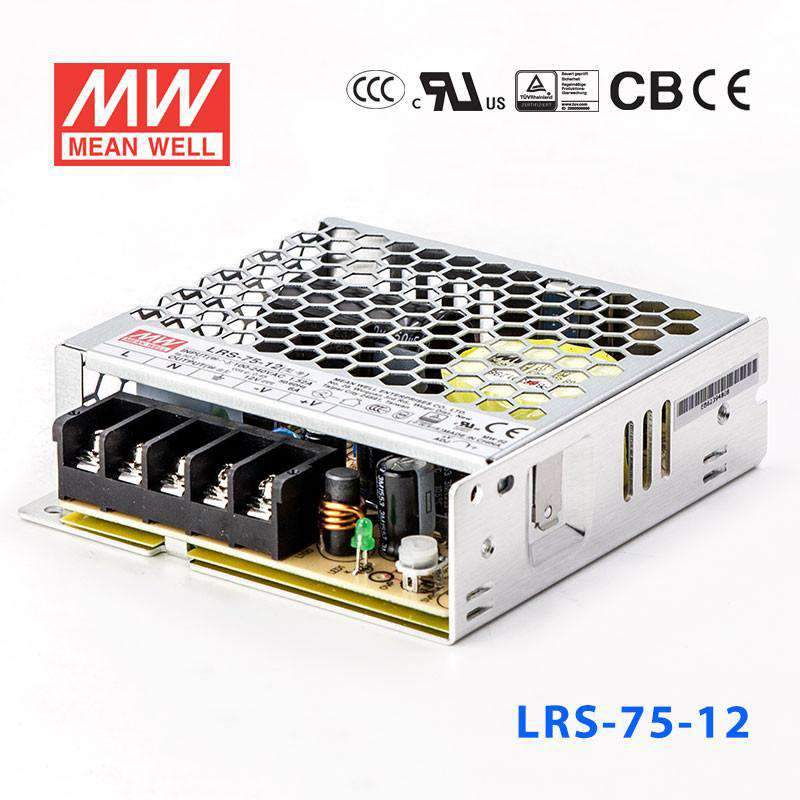

Mean Well LRS-75-12 Power Supply 75W 12V 6A

4.7 (17 reviews)

most economical modelultra compact and 1U low profilewithstand 5G vibration and 70°C operation

SKU LRS-75-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

LRS-75-12

LRS-35-12 35W 12V In stock

LRS-100-12 100W 12V Low stock

LRS-150-12 150W 12V Low stock

LRS-200-12 200W 12V Low stock

LRS-350-12 350W 12V Low stock

LRS-450-12 450W 12V Low stock

LRS-50-12 50W 12V In stock

LRS-600-12 600W 12V Low stock

LRS-75-12 75W 12V Low stock

Product variants

In stock

Overview

LRS-75-12 is the 12V output model of this series: rated current 6A, rated power 72W, typical efficiency 89%.

LRS-75 series is a 75W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation of LRS-75 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-75 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB 4943.1. LRS-75 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.3W
Miniature size and 1U low profile
High operating temperature up to 70℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1, -2-16 for household applications
Operating altitude up to 5000 meters (Note.7)
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category Ⅲ
100% full load burn-in test
3 years warranty

Specifications

LRS-75-12Specifications from the official datasheet (2025-04-07 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 6A
CURRENT RANGE: 0 ~ 6A
RATED POWER: 72W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 10.2 ~ 13.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME (Typ.): 60ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 373VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.4A/115VAC 0.85A/230VAC
INRUSH CURRENT (Typ.): COLD START 65A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER LOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 8)

OVER VOLTAGE CATEGORY: Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178,BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters
SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,GB 4943.1, BSMI CNS15598-1, EAC TP TC 004,AS/NZS 62368.1(by CB),KC62368-1, BIS IS13252(Part1): 2010/IEC 60950-1: 2005(NOTE 9) approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB17625.1,GB/T 9254.1, BSMI CNS15936, EAC TP TC 020,KC KSC 9832, KSC 9835
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN55035, heavy industry level,EAC TP TC 020,KC KSC 9832, KSC 9835

OTHERS

MTBF: 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 667.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 99*97*30mm (L*W*H)
PACKING: 0.23Kg ; 45pcs/ 11.5Kg/ 0.77CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
7. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft).
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

LRS-75-12 Derating Curve — Derating Curve

LRS-75-12 Mechanical Specification — Mechanical Specification

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Downloads

Certificates7

UL Certificate (LRS-75)(EN) PDF Download

EMC Certificate (LRS-75)(EN) PDF Download

CB(60335) Certificate (LRS-75)(EN) PDF Download

CB(60950) Certificate (LRS-75)(EN) PDF Download

CB(61558) Certificate (LRS-75)(EN) PDF Download

TUV(60335) Certificate (LRS-75)(EN) PDF Download

TUV(60950) Certificate (LRS-75)(EN) PDF Download

Test reports1

Test Report (LRS-75-12)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What 12V applications is the LRS-75-12 appropriate for at 72W?

At 12V and 6A (72W), the LRS-75-12 suits powering IP cameras, access control panels, small 12V DC fans and blower arrays, industrial routers, and embedded controllers requiring moderate 12V current. Its 99 × 97 × 30 mm footprint fits in compact control enclosures.

What is the operating temperature range of the LRS-75-12?

The LRS-75-12 operates from -30°C to +70°C, accommodating cold-start in unheated industrial spaces and operation in warm enclosures, with output derating at higher ambient temperatures per the derating curve. It also withstands 5G vibration.

What certifications does the LRS-75-12 carry for global market access?

The LRS-75-12 is approved to UL62368-1, TÜV BS EN/EN62368-1, GB 4943.1, BSMI CNS15598-1, EAC TP TC 004, AS/NZS 62368.1 (by CB), KC62368-1 and BIS IS13252 (some units may not carry the BIS logo). This covers North America (UL), Europe (TÜV EN62368-1), China (GB 4943.1), Taiwan (BSMI), Australia/New Zealand (AS/NZS), Korea (KC), India (BIS) and Eurasia (EAC), enabling broad international deployment.
