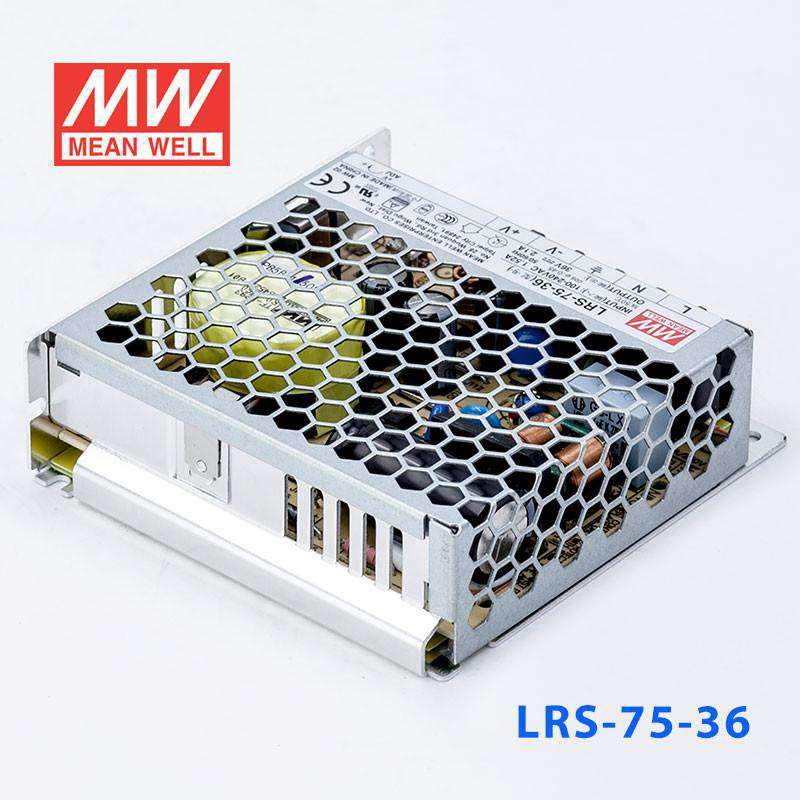

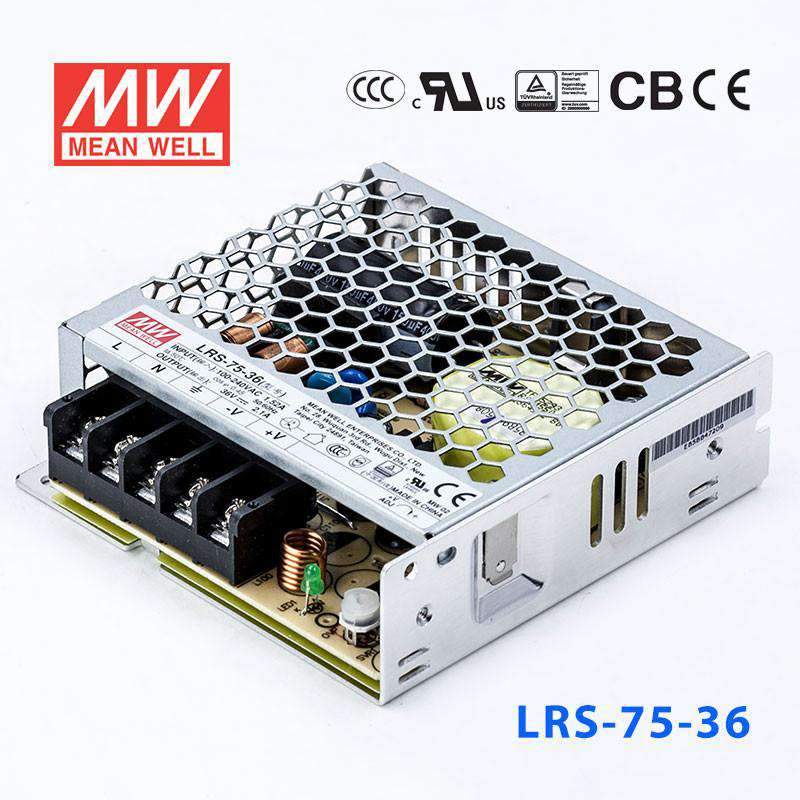

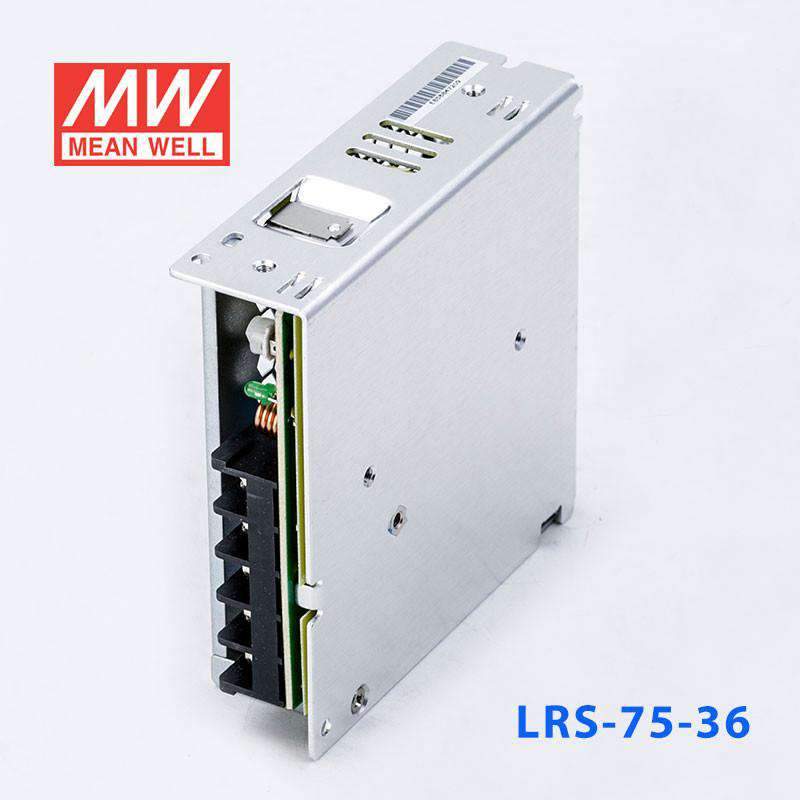

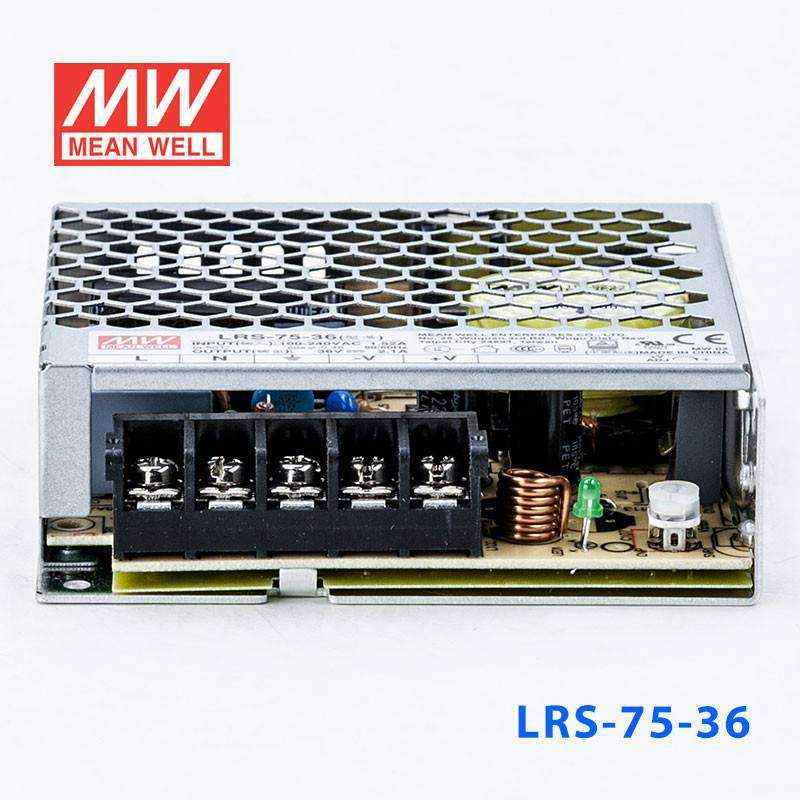

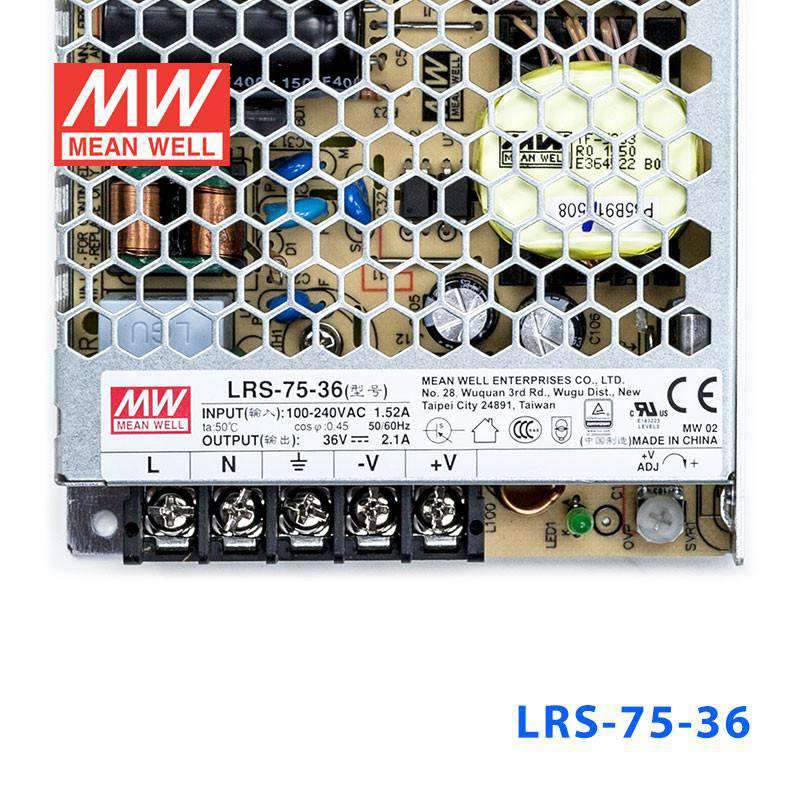

Mean Well LRS-75-36 Power Supply 75W 36V 2.1A

4.7 (17 reviews)

most economical modelultra compact and 1U low profilewithstand 5G vibration and 70°C operation

SKU LRS-75-36

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

LRS-75-36

LRS-35-36 35W 36V Backorder

LRS-100-36 100W 36V Backorder

LRS-150-36 150W 36V Backorder

LRS-200-36 200W 36V Backorder

LRS-350-36 350W 36V Backorder

LRS-450-36 450W 36V Backorder

LRS-50-36 50W 36V Backorder

LRS-600-36 600W 36V Low stock

LRS-75-36 75W 36V Backorder

Product variants

Available to order

Overview

LRS-75-36 is the 36V output model of this series: rated current 2.1A, rated power 75.6W, typical efficiency 91.5%.

LRS-75 series is a 75W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation of LRS-75 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-75 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB 4943.1. LRS-75 series serves as a high price-to-performance power supply solution for various industrial applications.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.3W
Miniature size and 1U low profile
High operating temperature up to 70℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61558-1, -2-16 for household applications
Operating altitude up to 5000 meters (Note.7)
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category Ⅲ
100% full load burn-in test
3 years warranty

Specifications

LRS-75-36Specifications from the official datasheet (2025-04-07 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 2.1A
CURRENT RANGE: 0 ~ 2.1A
RATED POWER: 75.6W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 32.4 ~ 39.6V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME (Typ.): 60ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 373VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 91.5%
AC CURRENT (Typ.): 1.4A/115VAC 0.85A/230VAC
INRUSH CURRENT (Typ.): COLD START 65A/230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

PROTECTION

OVER LOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 41.4 ~ 48.6V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 8)

OVER VOLTAGE CATEGORY: Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178,BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters
SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,GB 4943.1, BSMI CNS15598-1, EAC TP TC 004,AS/NZS 62368.1(by CB),KC62368-1, BIS IS13252(Part1): 2010/IEC 60950-1: 2005(NOTE 9) approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB17625.1,GB/T 9254.1, BSMI CNS15936, EAC TP TC 020,KC KSC 9832, KSC 9835
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN55035, heavy industry level,EAC TP TC 020,KC KSC 9832, KSC 9835

OTHERS

MTBF: 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 667.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 99*97*30mm (L*W*H)
PACKING: 0.23Kg ; 45pcs/ 11.5Kg/ 0.77CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
7. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft).
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

LRS-75-36 Derating Curve — Derating Curve

LRS-75-36 Mechanical Specification — Mechanical Specification

Typical applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances

Downloads

Certificates7

UL Certificate (LRS-75)(EN) PDF Download

EMC Certificate (LRS-75)(EN) PDF Download

CB(60335) Certificate (LRS-75)(EN) PDF Download

CB(60950) Certificate (LRS-75)(EN) PDF Download

CB(61558) Certificate (LRS-75)(EN) PDF Download

TUV(60335) Certificate (LRS-75)(EN) PDF Download

TUV(60950) Certificate (LRS-75)(EN) PDF Download

Test reports1

Test Report (LRS-75-36)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What 36V equipment can the LRS-75-36 power at 2.1A?

At 36V and 2.1A (75.6W), the LRS-75-36 is suitable for small 36V brushless motor drivers, 36V battery-format test supplies, and specific 36V sensor networks or field instruments. Its compact 99 × 97 × 30 mm form factor fits into tight panel installations.

How does the LRS-75-36 compare to the LRS-75-24 and LRS-75-48?

All three share the 99 × 97 × 30 mm case, 0.23 kg weight, 85–264VAC input, and -30°C to +70°C operating range. LRS-75-24 (76.8W, 3.2A at 24V), LRS-75-36 (75.6W, 2.1A at 36V), LRS-75-48 (76.8W, 1.6A at 48V). Wattage is nearly identical; the primary selection criterion is the required DC output voltage.

Does the LRS-75-36 support cold-start in unheated environments?

The LRS-75-36 is rated for -30°C to +70°C operation. This -30°C lower limit allows cold-start in unheated industrial buildings or cold-climate installations inside a suitably rated protective enclosure. At higher ambient temperatures the output must be derated according to the derating curve.

What certifications does the LRS-75-36 hold?

The LRS-75-36 is approved to UL62368-1, TÜV BS EN/EN62368-1, GB 4943.1, BSMI CNS15598-1, EAC TP TC 004, AS/NZS 62368.1 (by CB), KC62368-1 and BIS IS13252, covering North America, Europe, China, Taiwan, Australia/New Zealand, Korea, India and Eurasia. This broad certification set supports international procurement and regulatory compliance.
