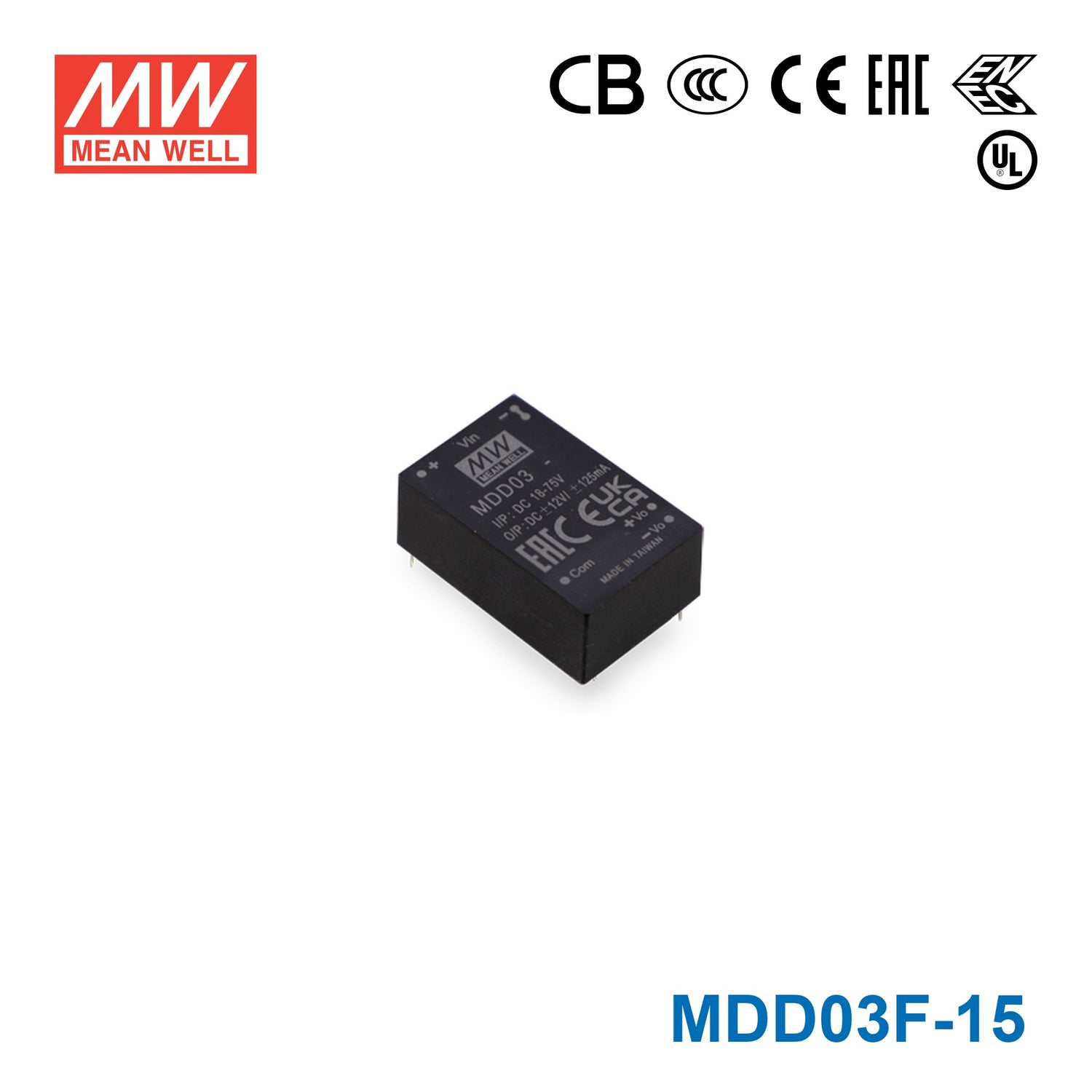

Mean Well MDD03F-15 Medical Grade DC/DC Converter 3W - 9-36V input,...
Please Login for Pricing
Description
Description
The MDD03F is a 3W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating3 Watt
-
Output Voltage15 Volt
-
Rated Current0.1 Ampere
-
Input Voltage9V~36V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDD03F-15 in medical or lab equipment that requires a small +/-15V rail?
Yes, it is listed as a medical grade 3W DC/DC converter with constant-voltage 15 and -15V output. Its 0.1A output current makes it suitable for low-power medical, lab, or measurement electronics that need a compact auxiliary supply.
Is the MDD03F-15 a fit for industrial analog or interface circuits running from a wide input range?
It supports a 9-36VAC input range, so it can fit equipment built around different upstream supply levels while still delivering +/-15V output. The available power is 3W, so it is intended for lighter analog, interface, or signal-path sections rather than higher-power loads.
Can this model be used for low-power embedded instrumentation that needs +/-15V?
It can, provided the load stays within the 3W rating and 0.1A output current. The 31.8 x 20.3 x 12.2 mm package and 0.017 kg weight also make it practical where board space and mass need to stay controlled.
Is the MDD03F-15 suitable for outdoor or exposed environments?
The operating temperature range is -40°C to +90°C, which supports demanding thermal conditions inside equipment. The specs do not list an IP rating, so this converter alone should not be treated as outdoor- or exposed-environment rated.
How does the MDD03F-15 compare with the 5V and 12V versions in the same series?
The MDD03F series uses the same 3W medical grade platform with 9-36VAC input, but each version changes the output: MDD03F-05 is 5V at 0.3A, MDD03F-12 is 12V at 0.12A, and MDD03F-15 is 15V at 0.1A. The MDD03F-15 is the highest-voltage option among those three siblings.
Other MDD03 Models
5 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well MDD03G-15 Medical Grade DC/DC Converter 3W - 18-75V input, 15 and -15V output | 3W | 15V | 0.1A | Indoor | View |
| Mean Well MDD03G-12 Medical Grade DC/DC Converter 3W - 18-75V input, 12 and -12V output | 3W | 12V | 0.12A | Indoor | View |
| Mean Well MDD03G-05 Medical Grade DC/DC Converter 3W - 18-75V input, 5 and -5V output | 3W | 5V | 0.3A | Indoor | View |
| Mean Well MDD03F-12 Medical Grade DC/DC Converter 3W - 9-36V input, 12 and -12V output | 3W | 12V | 0.12A | Indoor | View |
| Mean Well MDD03F-05 Medical Grade DC/DC Converter 3W - 9-36V input, 5 and -5V output | 3W | 5V | 0.3A | Indoor | View |
