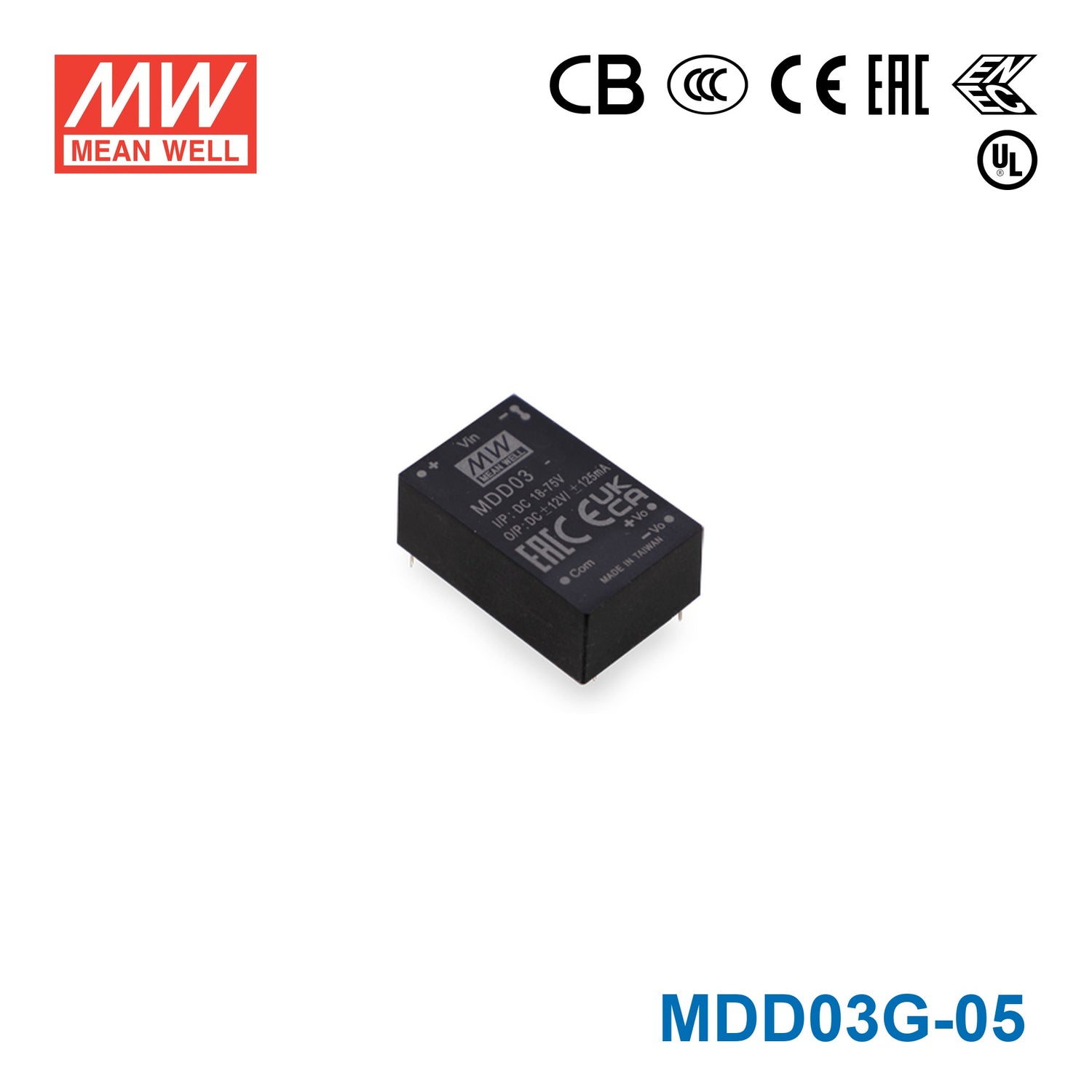

Mean Well MDD03G-05 Medical Grade DC/DC Converter 3W - 18-75V input, 5 and -5V output

This model is a 3W constant-voltage DC/DC converter with 5V output at 0.3A, so it fits low-power 5V medical or embedded subcircuits that stay within that output limit. Its medical-grade positioning and CB, CCC, CE, EAC, ENEC, and UL certifications make it appropriate for regulated equipment designs where those approvals matter.

It can fit compact industrial control or automation electronics that need a 5V rail and draw no more than 0.3A from a 3W converter. The 18-75V input range also suits systems built around a wide nominal DC bus within that stated range.

Yes, it is aligned with low-power 5V logic sections in embedded or data acquisition designs, provided the load stays within 5V and 0.3A. The small 31.8 × 20.3 × 12.2 mm package also helps where board or enclosure space is limited.

Within this 3W series, the MDD03G-05 provides 5V at 0.3A, the MDD03G-12 provides 12V at 0.12A, and the MDD03G-15 provides 15V at 0.1A. All three share the same 18-75V input range, 31.8 × 20.3 × 12.2 mm dimensions, 0.017 kg weight, and -40°C to +90°C operating temperature range.

The operating temperature range is -40°C to +90°C, so the temperature spec supports use across a wide range of enclosed equipment environments. No IP rating is listed in the provided specs, so outdoor exposure or washdown suitability cannot be confirmed from this data alone.
