Mean Well

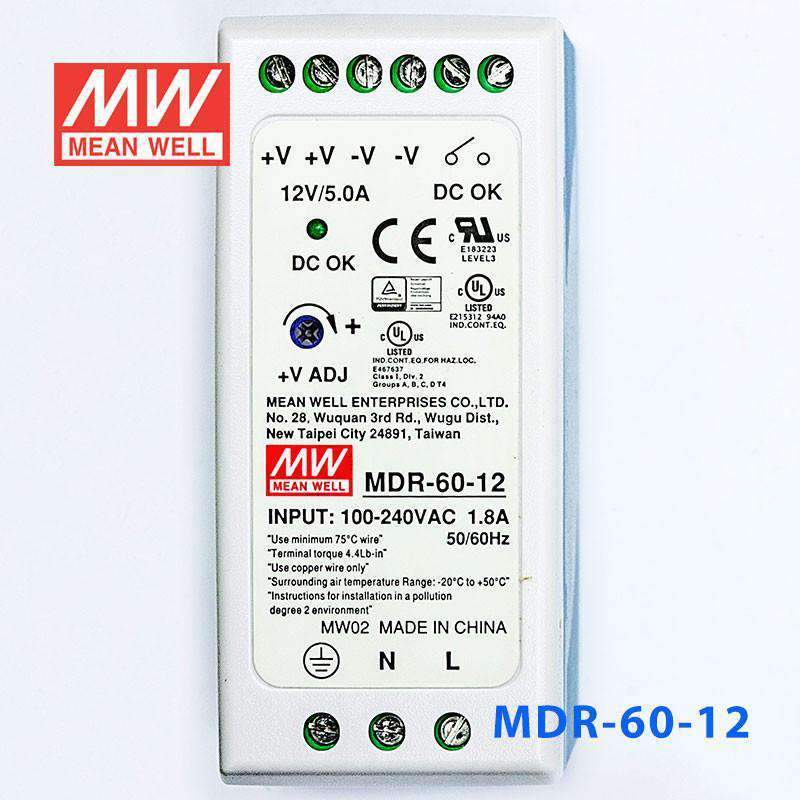

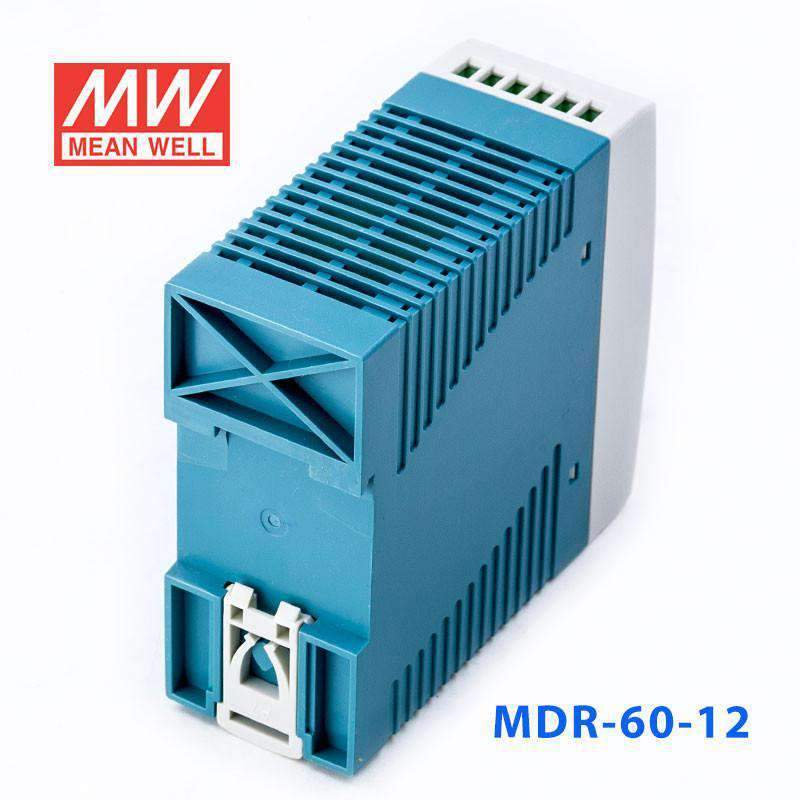

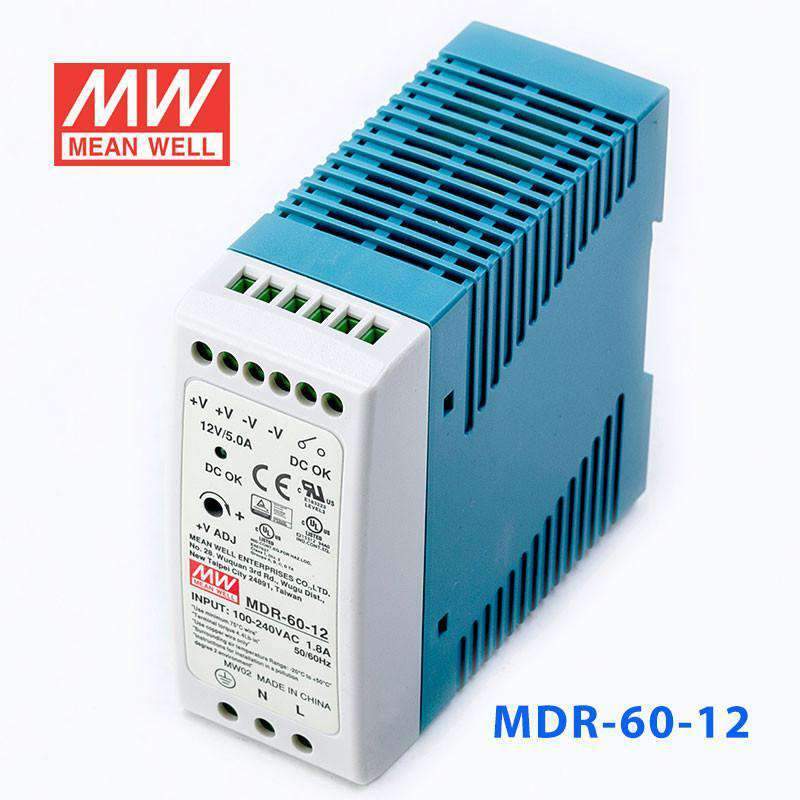

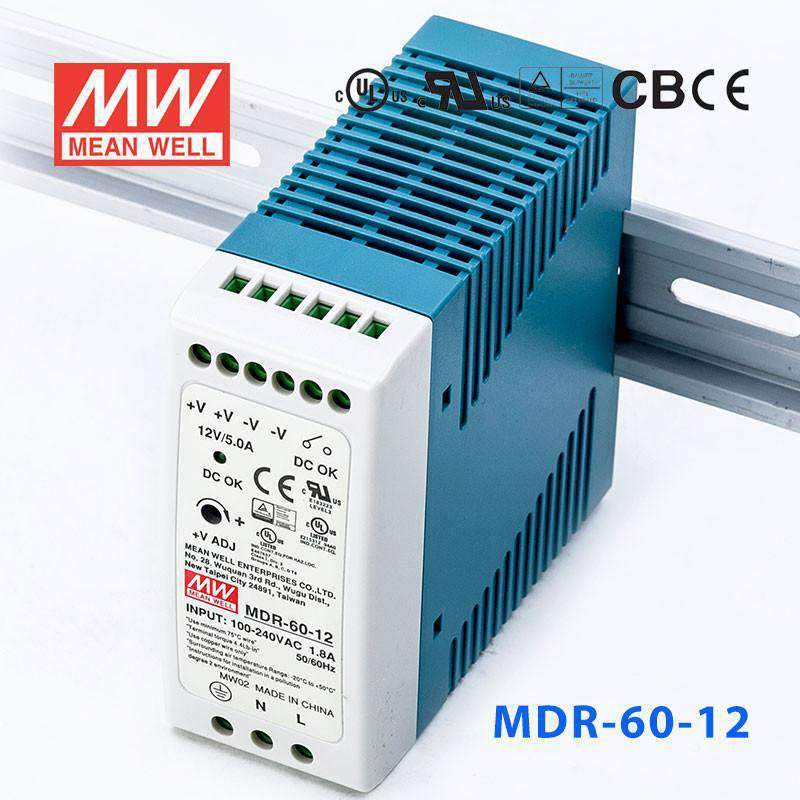

Mean Well MDR-60-12 Single Output Industrial Power Supply 60W 12V 5A - DIN Rail

ultra slimbuilt-in active PFC function
SKU MDR-60-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 5 in this family

MDR-60-12
Available to order
|

Overview

MDR-60-12 is the 12V output model of this series: rated current 5A, rated power 60W, typical efficiency 85%.

Features

  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection

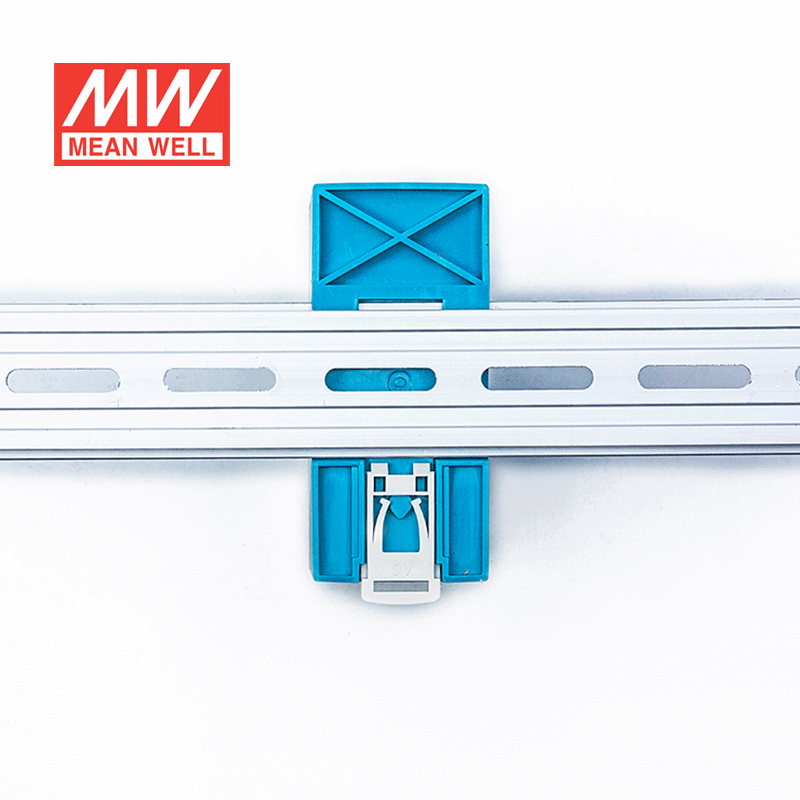

  • Can be installed on DIN rail TS-35/7.5 or 15
  • Class I, Div 2 Hazardous Locations T4
  • LED indicator for power on
  • DC OK relay contact
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • 3 years warranty

Specifications

MDR-60-12Specifications from the official datasheet (2025-07-25 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
5A
CURRENT RANGE
0 ~ 5A
RATED POWER
60W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
12 ~ 15V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIMENote.5
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
50ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
85%
AC CURRENT (Typ.)
1.8A/115VAC 1A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/115VAC 60A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
15.6 ~ 18V Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK SIGNAL
Relay contact rating(max.): 30V/1A resistive

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL508, UL62368-1, TUV BS EN/EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 , BIS IS13252(Part1): 2010/IEC 60950-1:2005(except 48V) approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, EAC TP TC 020

OTHERS

MTBF
2355.2K hrs min. Telcordia SR-332 (Bellcore) ; 489.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
40*90*100mm (W*H*D)
PACKING
287g; 42pcs/13.05Kg/0.82CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

MDR-60-12 Mechanical Specification
Mechanical Specification
MDR-60-12 Block Diagram
Block Diagram
MDR-60-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the MDR-60-12 for a 12V control panel with a higher DC load than the 40W version?

Yes, this model provides 12V DC up to 5A with a 60W rating, so it supports more 12V load than a 40W supply. It is suited to DIN rail control panels that need additional current capacity without changing to a different output voltage.

Is the MDR-60-12 suitable for 12V building automation or industrial control devices in one enclosure?

It can be used for 12V building management and automation loads when the combined demand stays within 60W and 5A. That makes it a practical option for cabinets feeding several 12V devices from one DIN rail supply.

Would the MDR-60-12 work for 12V relays, sensors, and controller accessories in a DIN rail cabinet?

Yes, provided the total 12V DC load does not exceed 5A or 60W. The DIN rail design and compact 40 mm width make it suitable for control cabinets where multiple 12V accessories share one power source.

Is this model appropriate for compact panels even though it has a higher 12V output?

Yes, it uses a compact 40 x 90 x 100 mm (W x H x D) housing that mounts on TS-35/7.5 or TS-35/15 DIN rail. That allows a 60W, 12V supply to fit into narrow DIN rail panel layouts.

Can the MDR-60-12 be used in a control cabinet across a wide temperature range?

Yes, the specified operating range is -20C to +70C, with output derating at higher temperatures per the sheet's derating curve, which supports industrial cabinet use across a broad temperature span. The provided specs do not list a separate exposed-environment protection rating, so enclosure installation is the safer fit.

How does the MDR-60-12 compare with other MDR DIN rail siblings?

Within the MDR-60 series, the MDR-60-12 provides 60W at 12V and 5A. The other models on the same sheet are the MDR-60-5 at 50W and 10A, the MDR-60-24 at 60W and 2.5A, and the MDR-60-48 at 60W and 1.25A.
