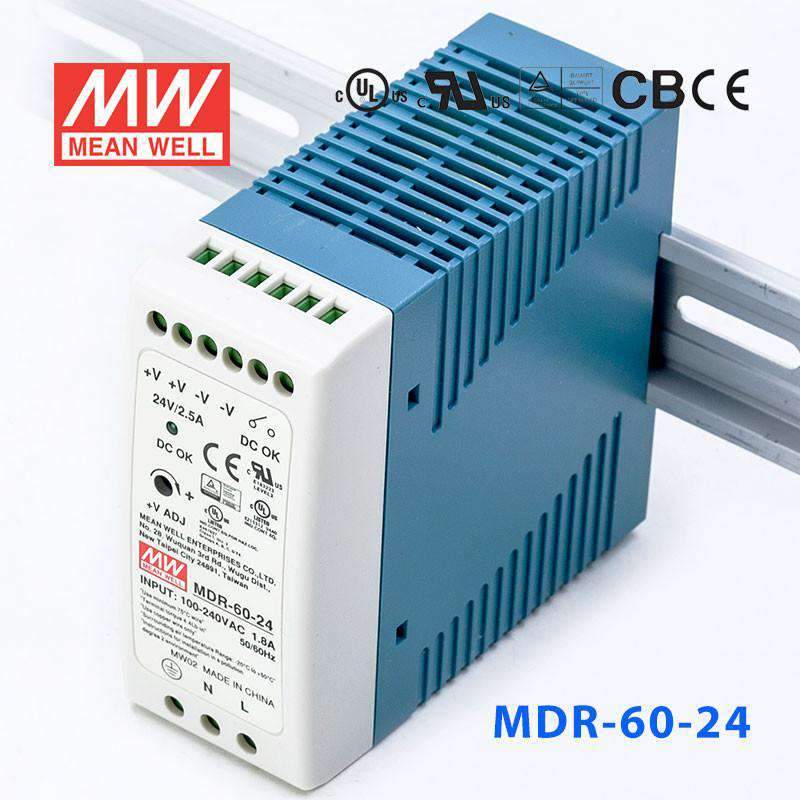

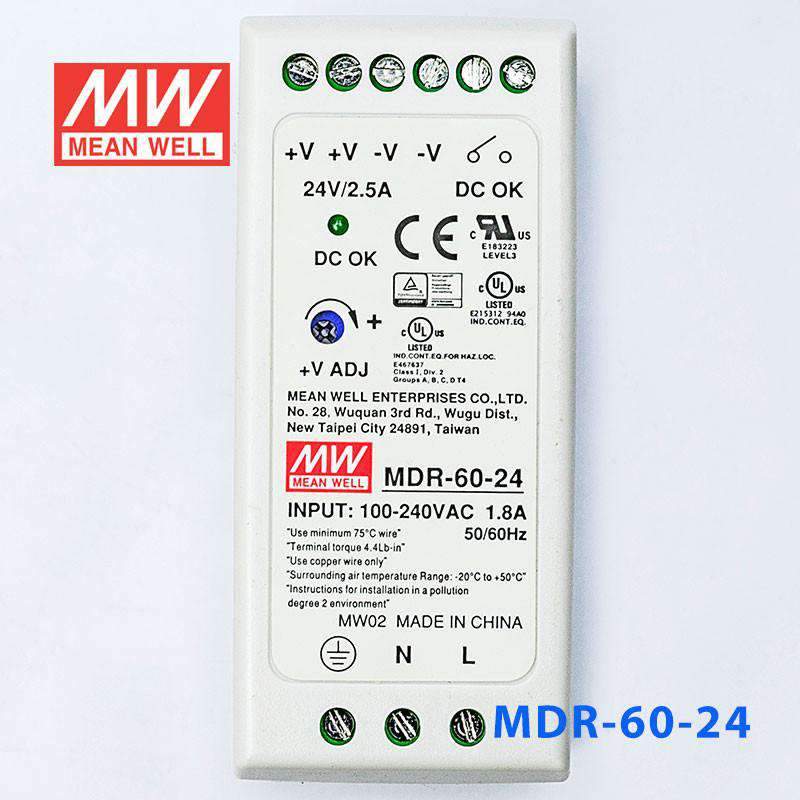

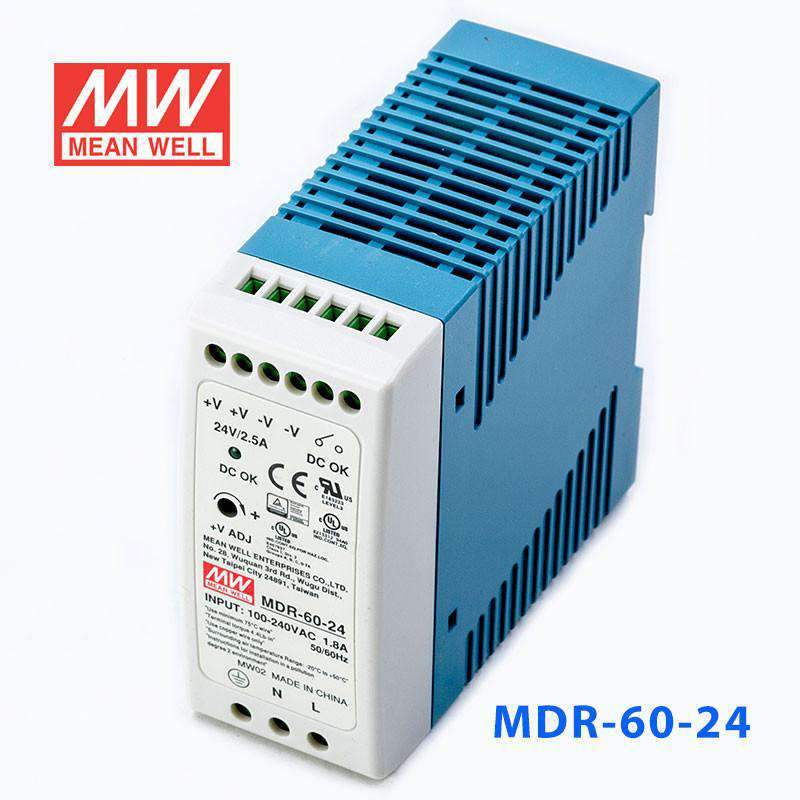

Mean Well MDR-60-24 Single Output Industrial Power Supply 60W 24V 2...
Log in to see priceOverview
MDR-60-24 is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 87%.
Features
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection

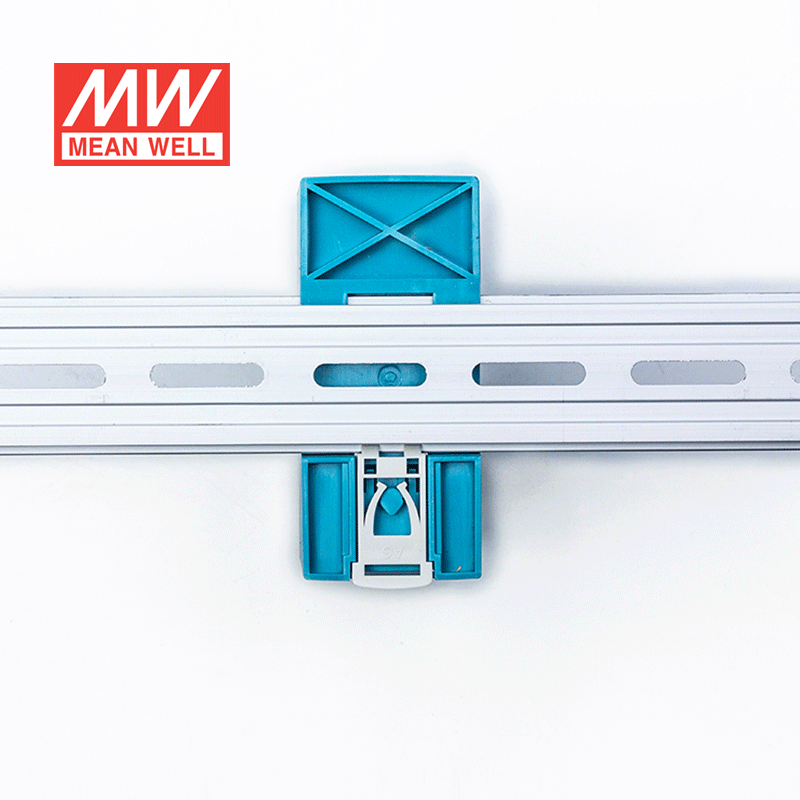

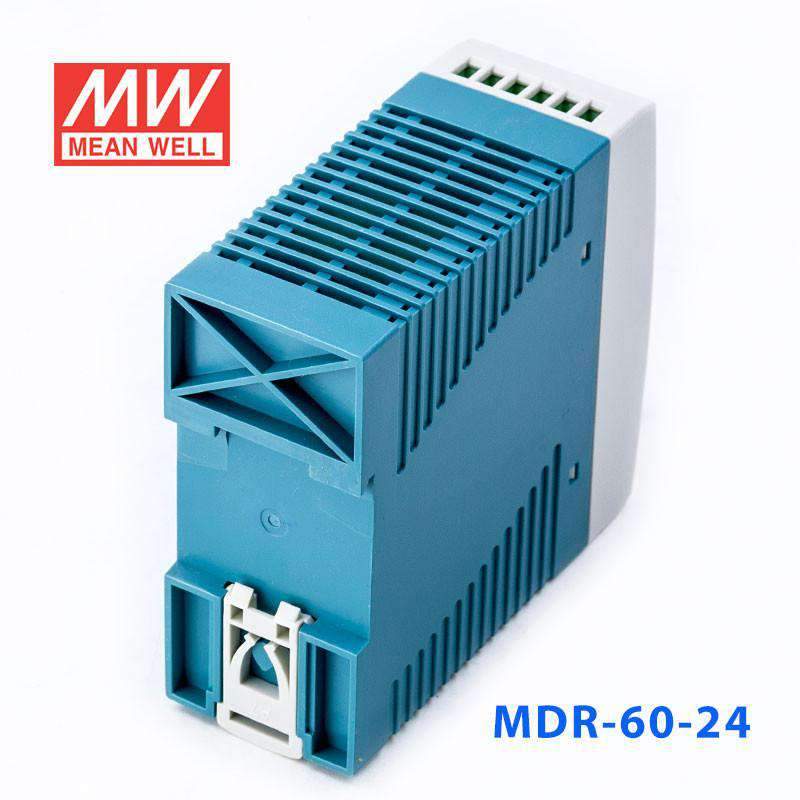

- Can be installed on DIN rail TS-35/7.5 or 15
- Class I, Div 2 Hazardous Locations T4
- LED indicator for power on
- DC OK relay contact
- No load power consumption<0.75W
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 2.5A
- CURRENT RANGE
- 0 ~ 2.5A
- RATED POWER
- 60W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE ADJ. RANGE
- 24 ~ 30V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.5
- 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 87%
- AC CURRENT (Typ.)
- 1.8A/115VAC 1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/115VAC 60A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 31.2 ~ 36V Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION
- DC OK SIGNAL
- Relay contact rating(max.): 30V/1A resistive
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL508, UL62368-1, TUV BS EN/EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 , BIS IS13252(Part1): 2010/IEC 60950-1:2005(except 48V) approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55035, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2355.2K hrs min. Telcordia SR-332 (Bellcore) ; 489.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 40*90*100mm (W*H*D)
- PACKING
- 287g; 42pcs/13.05Kg/0.82CUFT
Test conditions and notes6
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the MDR-60-24 for a 24V PLC or industrial automation panel?
Yes, this model is designed for 24VDC systems and provides up to 2.5A with a 60W rating. That makes it suitable for 24V PLC, industrial automation, and control panel applications that stay within those output limits. Its DIN rail form factor and compact 100.0 × 90.0 × 40.0 mm housing also fit space-conscious panel layouts.
Is the MDR-60-24 a good fit for building management and control cabinet equipment?
It can be used for 24V building management and cabinet-mounted control equipment that requires up to 2.5A. The wide 85-264VAC input supports common AC supply ranges, and the DIN rail design is intended for organized enclosure installation. The 40 mm wide housing is helpful where cabinet space is limited.
Can this 24V DIN rail power supply run sensors, relays, and small controllers in one enclosure?
It is appropriate for 24VDC control cabinet loads such as sensors, relays, and small controllers as long as the combined load does not exceed 60W or 2.5A. The single-output design suits centralized 24V distribution inside industrial panels. Its DIN rail mounting format is consistent with standard enclosure-based control builds.
Can I use the MDR-60-24 in a narrow control panel where space is tight?
Yes, this unit is 40 mm wide, 90 mm high and 100 mm deep. That compact DIN rail format makes it easier to place in narrow control cabinets and crowded automation enclosures. It still delivers the full 24V, 2.5A, and 60W output within that footprint.
Is the MDR-60-24 suitable for exposed outdoor use or should it be installed inside an enclosure?
This model is better suited to control cabinet or enclosure use because the provided specs do not list an external IP rating for exposed environments. Its operating temperature range is -20°C to +70°C, with output derating at higher temperatures per the derating curve, which supports demanding indoor panel conditions. For outdoor or washdown exposure, buyers typically look for a supply with a stated enclosure protection rating.
How does the MDR-60-24 compare with other Mean Well MDR series models?
Within the MDR-60 series, the MDR-60-24 provides 60W at 24V and 2.5A. The other models on the same sheet are the MDR-60-5 at 50W, 5V, 10A; the MDR-60-12 at 60W, 12V, 5A; and the MDR-60-48 at 60W, 48V, 1.25A.
