Can I use the MDS06G-12 for a 12V PLC interface or automation control module?

Yes, it provides constant 12V output at up to 0.5A, with 6W total output power. That suits low-power PLC interface cards, automation control modules, and auxiliary 12V electronics that remain within that load range.

Is the MDS06G-12 suitable for powering 12V instrumentation or monitoring electronics?

It can support 12V monitoring, instrumentation, or telemetry boards that need regulated constant voltage and draw no more than 0.5A. The 6W rating makes it appropriate for smaller electronic loads rather than higher-power field devices.

Can this model be used in compact medical equipment that needs 12V DC output?

This converter is listed as medical grade and carries CB, CCC, CE, EAC, ENEC, and UL certifications. With its 31.8 x 20.3 x 12.2 mm dimensions, it fits applications where a compact 12V, 0.5A converter is needed.

Is the MDS06G-12 rated for outdoor use?

The published operating temperature range is -40C to +90C, so it is specified for broad temperature conditions. However, there is no IP rating in the provided specs, so the data here does not confirm suitability for direct outdoor exposure.

How does the MDS06G-12 compare to the other 6W MDS06G versions?

The MDS06G-05, MDS06G-12, and MDS06G-15 are all 6W converters with the same 18-75VAC input family. Their outputs are 5V at 1.2A, 12V at 0.5A, and 15V at 0.4A respectively.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

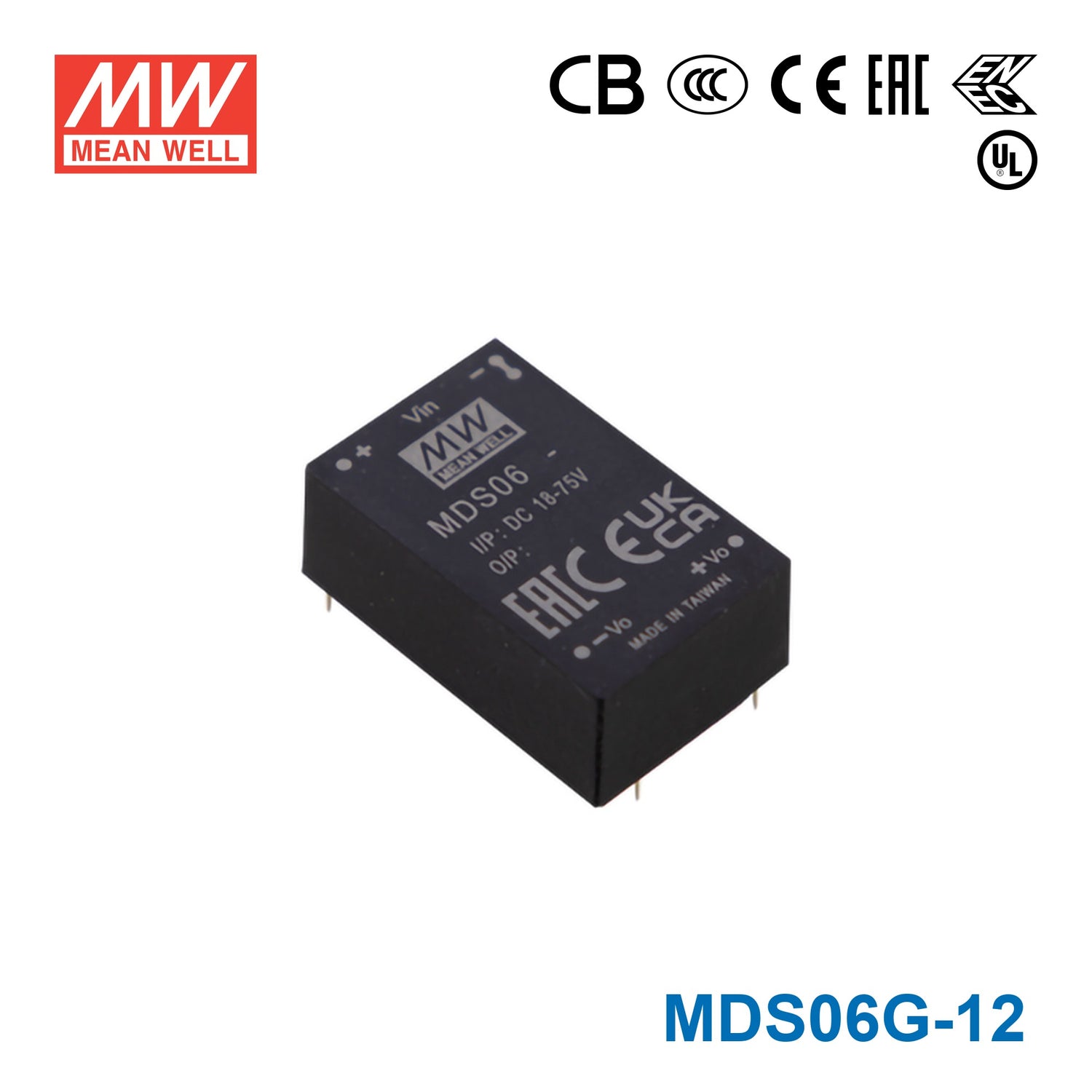

Mean Well MDS06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12V output 500mA

12V6WDC/DCMedical Grade

SKU:

MDS06G-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS06G is a 6W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15V output 400mA	6W	15V	0.4A	Indoor	View
