Can I use the MDS06G-15 for a 15V industrial sensor or control circuit?

Yes, it supplies constant 15V output at up to 0.4A, with a 6W maximum power rating. That fits low-power 15V control circuits, sensors, and signal-processing electronics that stay within those limits.

Is the MDS06G-15 suitable for compact automation or embedded equipment with a wide input range?

It is intended for applications needing a 15V output from an 18-75VAC input range. The compact 31.8 x 20.3 x 12.2 mm package is useful where board space is limited in embedded or automation hardware.

Can this converter be used in low-power medical electronics that require 15V?

The product is specified as medical grade and provides 15V at up to 0.4A. That makes it a fit for low-power medical or lab electronics that need a regulated 15V rail and fall within the 6W output limit.

Will the MDS06G-15 handle wide temperature swings in equipment enclosures?

The stated operating temperature range is -40C to +90C, so it is specified for a wide thermal range. No IP rating is listed, so the provided specs cover temperature capability but not enclosure protection against water or dust.

What are the main differences between the MDS06G-15 and its sibling models?

Within the MDS06G series, all listed models are 6W units. The MDS06G-05 outputs 5V at 1.2A, the MDS06G-12 outputs 12V at 0.5A, and the MDS06G-15 outputs 15V at 0.4A.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

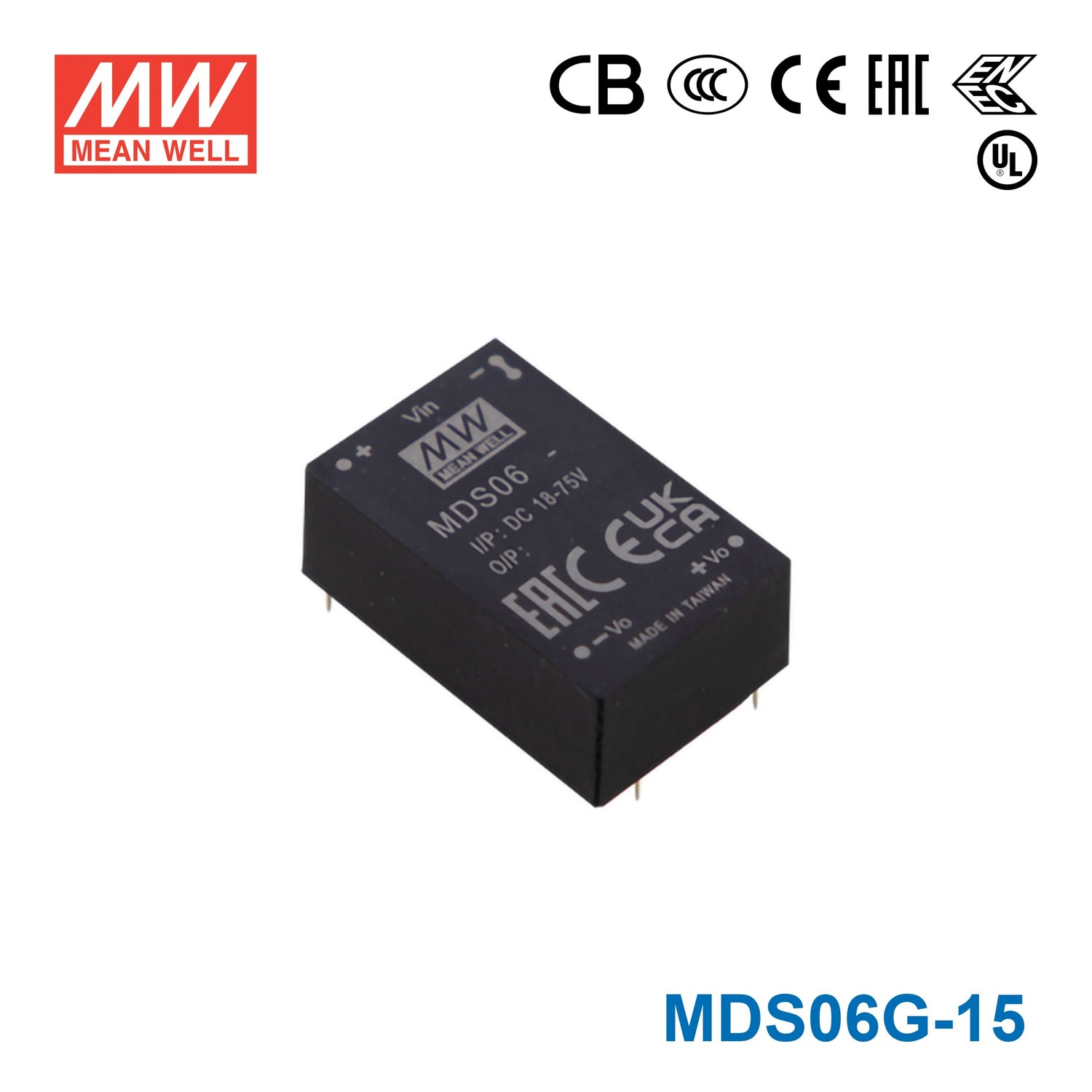

Mean Well MDS06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15V output 400mA

15V6WDC/DCMedical Grade

SKU:

MDS06G-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MDS06G is a 6W Mean Well power converter (input range: 9~36Vdc).

Key Features

✓ Input voltage range: 9~36Vdc
✓ 6KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MDS06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12V output 500mA	6W	12V	0.5A	Indoor	View
