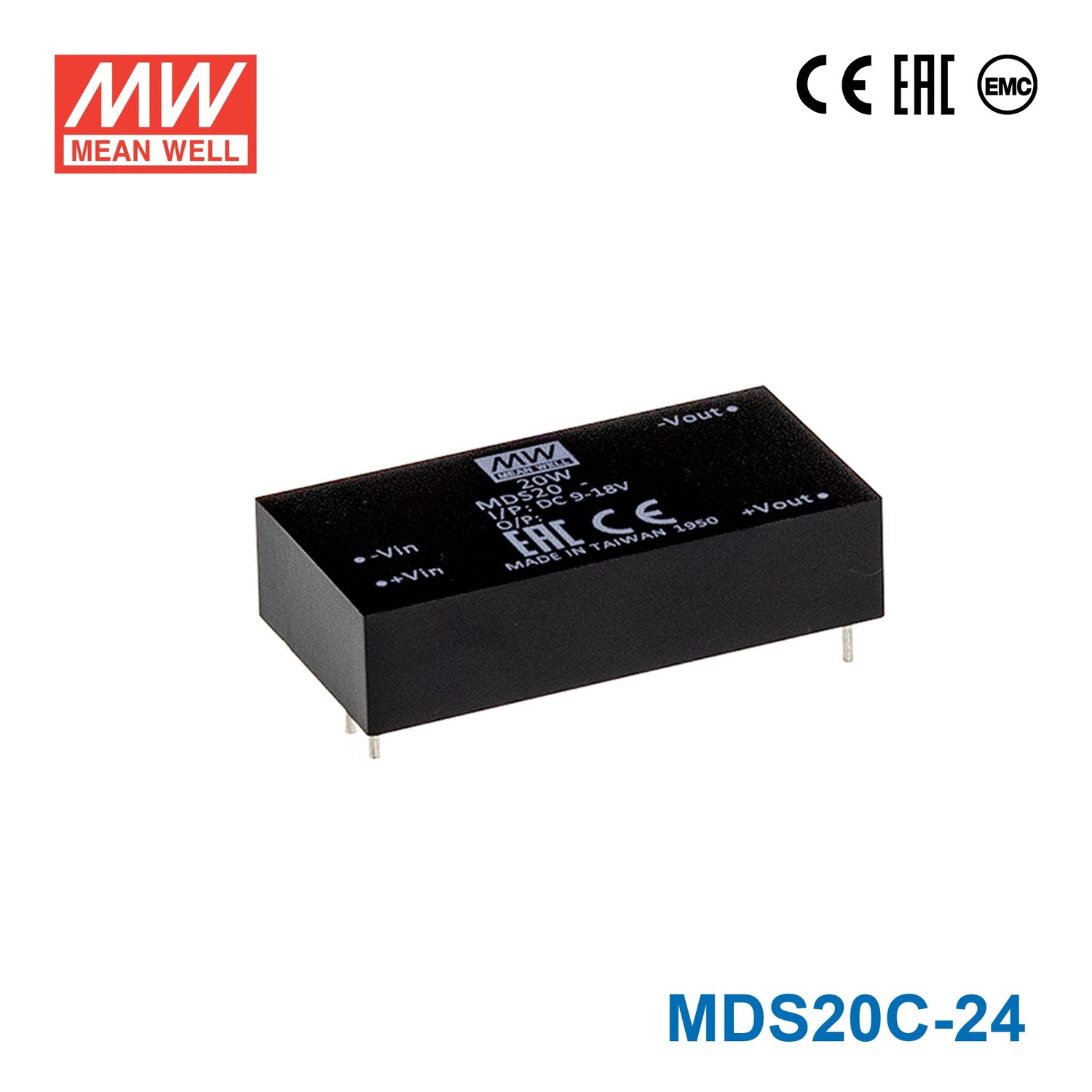

Mean Well MDS20C-24 DC-DC Converter - 20W - 36~75V in 24V out 833mA
Log in to see priceThe MDS20C is a 20W Mean Well power converter (input range: 9~18Vdc).
Key Features
- ✓ Input voltage range: 9~18Vdc
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating20 Watt
-
Output Voltage24 Volt
-
Rated Current0.83 Ampere
-
Input Voltage36V~75V
-
Standards MetCE,EAC,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length5.08 cm
-
Width2.54 cm
-
Height1.2 cm
-
Weight0.03 kg
::specification::
Frequently Asked Questions
Can I use the MDS20C-24 to supply 24V to a compact industrial control circuit from a 36-75VAC source?
Yes, this converter is specified for a 36-75VAC input and provides a constant 24V output. It is intended for low-power 24V loads that stay within 20W and the listed 833A output current.
Is the MDS20C-24 suitable for embedded or automation electronics that need a regulated 24V rail?
It can fit embedded or automation designs that require constant 24V and have modest power demand. The unit is rated for 20W, with compact dimensions of 50.8 x 25.4 x 12.0 mm and a weight of 0.03 kg.
Can this model be used on a higher-voltage bus when the downstream device requires 24V?
Yes, provided the source is within the stated 36-75VAC input range and the load matches the 24V constant-voltage output. The load also needs to remain inside the converter's 20W rating and listed 833A output current.
Is the MDS20C-24 rated for outdoor or temperature-extreme use?
The operating temperature range is -40 degrees C to +90 degrees C, which supports use across a broad temperature window. Since no IP rating is listed in the provided specifications, it should not be treated as an exposed outdoor-rated product based on these specs alone.
How does the 24V version compare with the other MDS20C models?
The series siblings listed here all carry a 20W rating. Their outputs are 5V at 4A for MDS20C-05, 12V at 1.67A for MDS20C-12, 15V at 1.33A for MDS20C-15, and 24V at 833A for MDS20C-24.
