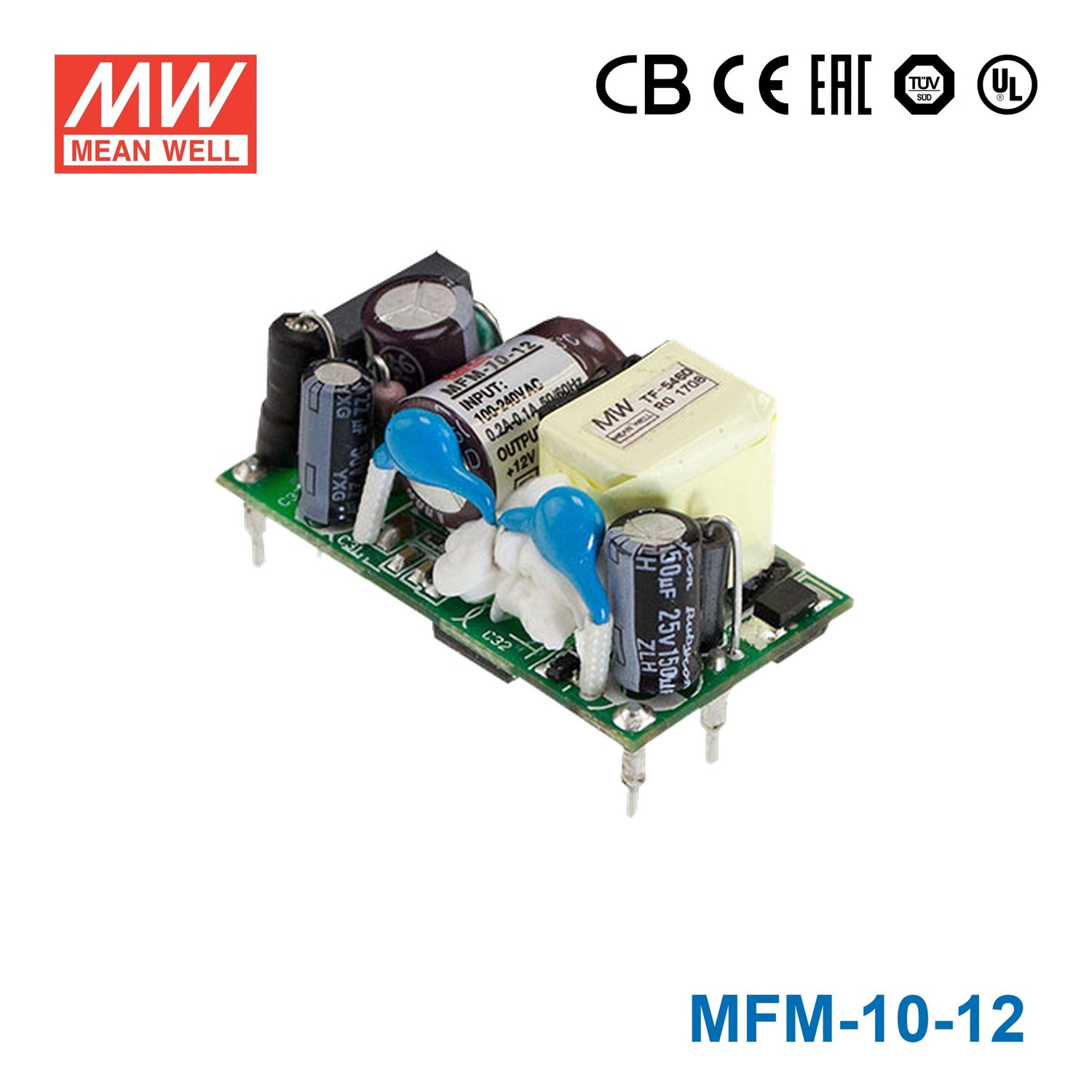

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MFM-10-12 Power Supply 10W 12V

Q: Can I use the MFM-10-12 for a 12V PLC accessory or industrial control circuit?

Yes, it is a constant voltage 12V power supply rated for 10.2W and 0.85A. That makes it suitable for low-power 12V control electronics, PLC accessories, and interface circuits that stay within those limits.

Q: Is the MFM-10-12 suitable for embedded 12V automation electronics?

It can fit embedded automation electronics that require regulated 12V DC and less than 0.85A. The compact PCB-type form factor and 42.0 × 22.3 × 20.5 mm dimensions support use in small electronic assemblies.

Q: Can this model power small 12V alarm, monitoring, or communications equipment?

It is a fit for small 12V monitoring, alarm, or communications electronics when the total load remains within 10.2W. The wide 80-264VAC input is also useful when the AC source may vary across standard mains ranges.

Q: How does the MFM-10-12 compare with other MFM series options?

The MFM family includes 3.3V, 5V, 12V, 15V, 24V, and 48V outputs from 4.1W up to 31.2W. Sibling models are MFM-05-3.3 at 4.1W 3.3V 1.25A, MFM-05-5 at 5W 5V 1A, MFM-05-12 at 5W 12V 0.42A, MFM-05-15 at 5W 15V 0.33A, MFM-05-24 at 5.5W 24V 0.23A, MFM-10-3.3 at 8.3W 3.3V 2.5A, MFM-10-5 at 10W 5V 2A, MFM-10-15 at 10W 15V 0.67A, MFM-10-24 at 10W 24V 0.42A, MFM-15-3.3 at 11.6W 3.3V 3.5A, MFM-15-5 at 15W 5V 3A, MFM-15-12 at 15W 12V 1.25A, MFM-15-15 at 15W 15V 1A, MFM-15-24 at 15.1W 24V 0.63A, MFM-20-3.3 at 14.9W 3.3V 4.5A, MFM-20-5 at 20W 5V 4A, MFM-20-12 at 21.6W 12V 1.8A, MFM-20-15 at 21W 15V 1.4A, MFM-20-24 at 21.6W 24V 0.9A, MFM-30-3.3 at 19.8W 3.3V 6A, MFM-30-5 at 30W 5V 6A, MFM-30-12 at 30W 12V 2.5A, MFM-30-15 at 30W 15V 2A, MFM-30-24 at 31.2W 24V 1.3A, and MFM-30-48 at 30.2W 48V 0.63A. The MFM-10-12 sits between the 5W 12V and higher-power 12V versions.

Q: Is the MFM-10-12 intended for indoor or outdoor operating conditions?

The stated operating temperature range is -30°C to +85°C, so the thermal limit is defined in the specs. No IP rating is listed, so the product data does not specify outdoor dust or water protection.

PCB type, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current

SKU:

MFM-10-12

Please for Pricing

Notify me when it's back in stock

Description

Touch current<80 μA/264VAC

Key Features

✓1.65"x0.88" compact size
✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
✓Suitable for BF application with appropriate system consideration
✓No-load power consumption<0.075W
✓Extremely low leakage current
✓Wide operating temp. range -30~+85°C
✓EMI Class B for class II configuration
✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
✓No minimum load required
✓3 years warranty

Specifications

Brand

Mean Well
Series

MFM Series
Power Rating

10.2 Watt
Output Voltage

12 Volt
Rated Current

0.85 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~85°C
Warranty

3 Year
Length

4.2 cm
Width

2.23 cm
Height

2.05 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the MFM-10-12 for a 12V PLC accessory or industrial control circuit?

Yes, it is a constant voltage 12V power supply rated for 10.2W and 0.85A. That makes it suitable for low-power 12V control electronics, PLC accessories, and interface circuits that stay within those limits.

Is the MFM-10-12 suitable for embedded 12V automation electronics?

It can fit embedded automation electronics that require regulated 12V DC and less than 0.85A. The compact PCB-type form factor and 42.0 × 22.3 × 20.5 mm dimensions support use in small electronic assemblies.

Can this model power small 12V alarm, monitoring, or communications equipment?

It is a fit for small 12V monitoring, alarm, or communications electronics when the total load remains within 10.2W. The wide 80-264VAC input is also useful when the AC source may vary across standard mains ranges.

How does the MFM-10-12 compare with other MFM series options?

The MFM family includes 3.3V, 5V, 12V, 15V, 24V, and 48V outputs from 4.1W up to 31.2W. Sibling models are MFM-05-3.3 at 4.1W 3.3V 1.25A, MFM-05-5 at 5W 5V 1A, MFM-05-12 at 5W 12V 0.42A, MFM-05-15 at 5W 15V 0.33A, MFM-05-24 at 5.5W 24V 0.23A, MFM-10-3.3 at 8.3W 3.3V 2.5A, MFM-10-5 at 10W 5V 2A, MFM-10-15 at 10W 15V 0.67A, MFM-10-24 at 10W 24V 0.42A, MFM-15-3.3 at 11.6W 3.3V 3.5A, MFM-15-5 at 15W 5V 3A, MFM-15-12 at 15W 12V 1.25A, MFM-15-15 at 15W 15V 1A, MFM-15-24 at 15.1W 24V 0.63A, MFM-20-3.3 at 14.9W 3.3V 4.5A, MFM-20-5 at 20W 5V 4A, MFM-20-12 at 21.6W 12V 1.8A, MFM-20-15 at 21W 15V 1.4A, MFM-20-24 at 21.6W 24V 0.9A, MFM-30-3.3 at 19.8W 3.3V 6A, MFM-30-5 at 30W 5V 6A, MFM-30-12 at 30W 12V 2.5A, MFM-30-15 at 30W 15V 2A, MFM-30-24 at 31.2W 24V 1.3A, and MFM-30-48 at 30.2W 48V 0.63A. The MFM-10-12 sits between the 5W 12V and higher-power 12V versions.

Is the MFM-10-12 intended for indoor or outdoor operating conditions?

The stated operating temperature range is -30°C to +85°C, so the thermal limit is defined in the specs. No IP rating is listed, so the product data does not specify outdoor dust or water protection.

Model	Power	Voltage	Current
Mean Well MFM-10-5 Power Supply 10W 5V	10W	5V	2A	View
Mean Well MFM-10-3.3 Power Supply 10W 3.3V	8.3W	3.3V	2.5A	View
Mean Well MFM-10-24 Power Supply 10W 24V	10W	24V	0.42A	View
Mean Well MFM-10-15 Power Supply 10W 15V	10W	15V	0.67A	View
