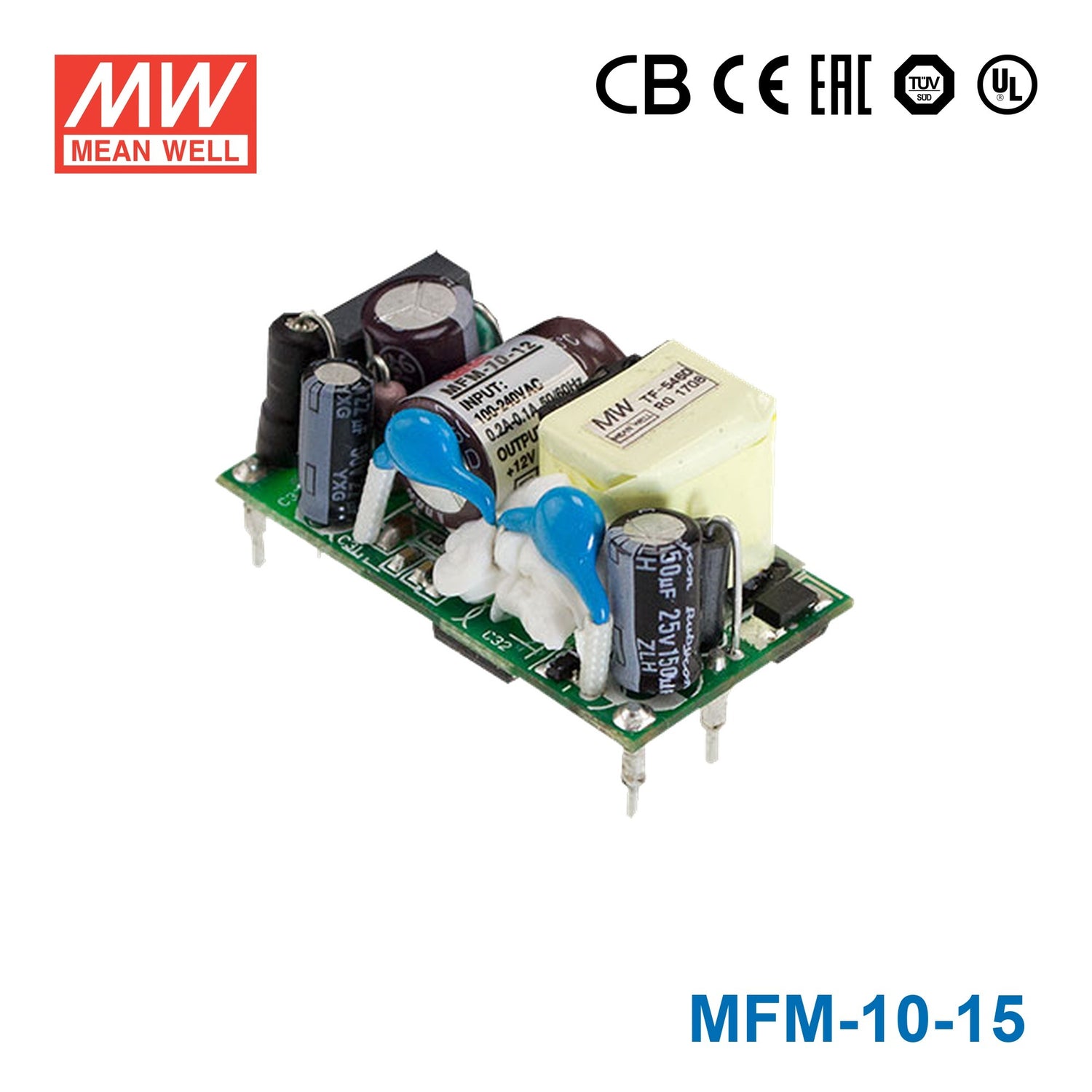

Mean Well MFM-10-15 Power Supply 10W 15V
Please Login for Pricing
Description
Description
Touch current<80 μA/264VAC
Key Features
- ✓1.65"x0.88" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -30~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMFM Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.67 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length4.2 cm
-
Width2.23 cm
-
Height2.05 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MFM-10-15 for a 15V industrial control or signal-processing circuit?
Yes, this is a constant voltage 15V power supply rated for 10W and 0.67A. It fits low-power 15V control, signal, or interface electronics that remain within that current and power limit.
Is the MFM-10-15 suitable for embedded 15V instrumentation or automation electronics?
It can suit embedded instrumentation or automation boards that require regulated 15V DC at less than 0.67A. The PCB-type construction and compact 42.0 × 22.3 × 20.5 mm size are useful where board space is limited.
Can this power supply be used in medical or low-leakage 15V equipment?
The listed features include medical safety approval and extremely low leakage current. It provides 15V constant voltage output with 10W total power and no load power consumption below 0.1W.
How does the MFM-10-15 compare with the rest of the MFM series?
The series spans outputs from 3.3V to 48V and power levels from 4.1W to 31.2W. Siblings include MFM-05-3.3 at 4.1W 3.3V 1.25A, MFM-05-5 at 5W 5V 1A, MFM-05-12 at 5W 12V 0.42A, MFM-05-15 at 5W 15V 0.33A, MFM-05-24 at 5.5W 24V 0.23A, MFM-10-3.3 at 8.3W 3.3V 2.5A, MFM-10-5 at 10W 5V 2A, MFM-10-12 at 10.2W 12V 0.85A, MFM-10-24 at 10W 24V 0.42A, MFM-15-3.3 at 11.6W 3.3V 3.5A, MFM-15-5 at 15W 5V 3A, MFM-15-12 at 15W 12V 1.25A, MFM-15-15 at 15W 15V 1A, MFM-15-24 at 15.1W 24V 0.63A, MFM-20-3.3 at 14.9W 3.3V 4.5A, MFM-20-5 at 20W 5V 4A, MFM-20-12 at 21.6W 12V 1.8A, MFM-20-15 at 21W 15V 1.4A, MFM-20-24 at 21.6W 24V 0.9A, MFM-30-3.3 at 19.8W 3.3V 6A, MFM-30-5 at 30W 5V 6A, MFM-30-12 at 30W 12V 2.5A, MFM-30-15 at 30W 15V 2A, MFM-30-24 at 31.2W 24V 1.3A, and MFM-30-48 at 30.2W 48V 0.63A. The MFM-10-15 is the 10W, 15V, 0.67A choice within that lineup.
Can the MFM-10-15 be used outdoors or in temperature-challenging equipment?
The operating temperature range is specified as -30°C to +85°C, so its thermal range is defined. No IP rating is provided in the specs, so outdoor dust and water protection are not stated for this model.
Other MFM-10 Models
4 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well MFM-10-5 Power Supply 10W 5V | 10W | 5V | 2A | View |
| Mean Well MFM-10-3.3 Power Supply 10W 3.3V | 8.3W | 3.3V | 2.5A | View |
| Mean Well MFM-10-24 Power Supply 10W 24V | 10W | 24V | 0.42A | View |
| Mean Well MFM-10-12 Power Supply 10W 12V | 10.2W | 12V | 0.85A | View |
