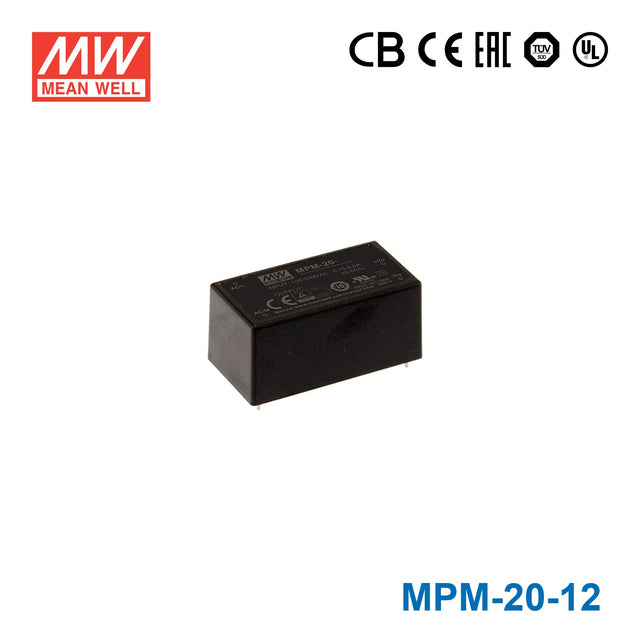

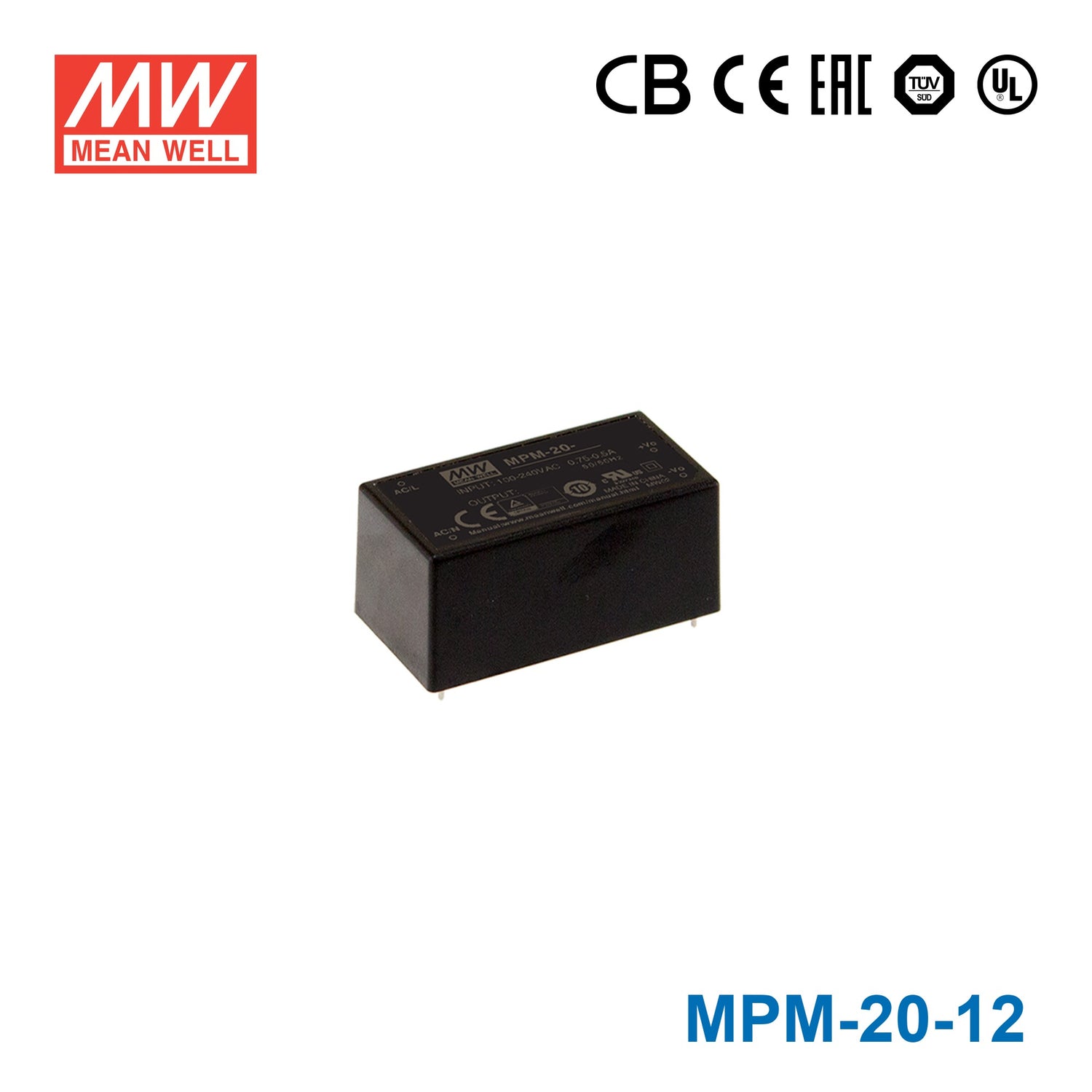

Mean Well MPM-20-12 Power Supply 20W 12V
Please Login for Pricing
Description
Description
Features
| 2.06"x1.07" compact size |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No-load power consumption<0.1W |
| Extremely low leakage current |
| Wide operating temp. range -35~+85°C |
| EMI Class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC; 113~370VDC |
| AC inrush current | Cold start 20A/115VAC |
| Leakage current | Touch current<80 μA/264VAC |
| Overload protection | 110 ~ 150% rated output power |
| Over-voltage protection | 115%~150% rated output voltage |
| Setup, rise, hold up time | 1500ms, 30ms, 40ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -35~+85°C |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, IEC60335-1, BS EN/EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), rd CAN/CSA-C22 3 Edition approved |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | 291A |
| Dimension (LxWxH) | 52.4x27.2x24 |
| Packing | 240pcs / 14.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating21.6 Watt
-
Output Voltage12 Volt
-
Rated Current1.8 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-35°C~85°C
-
Warranty3 Year
-
Length5.24 cm
-
Width2.72 cm
-
Height2.4 cm
-
Weight0.06 kg
