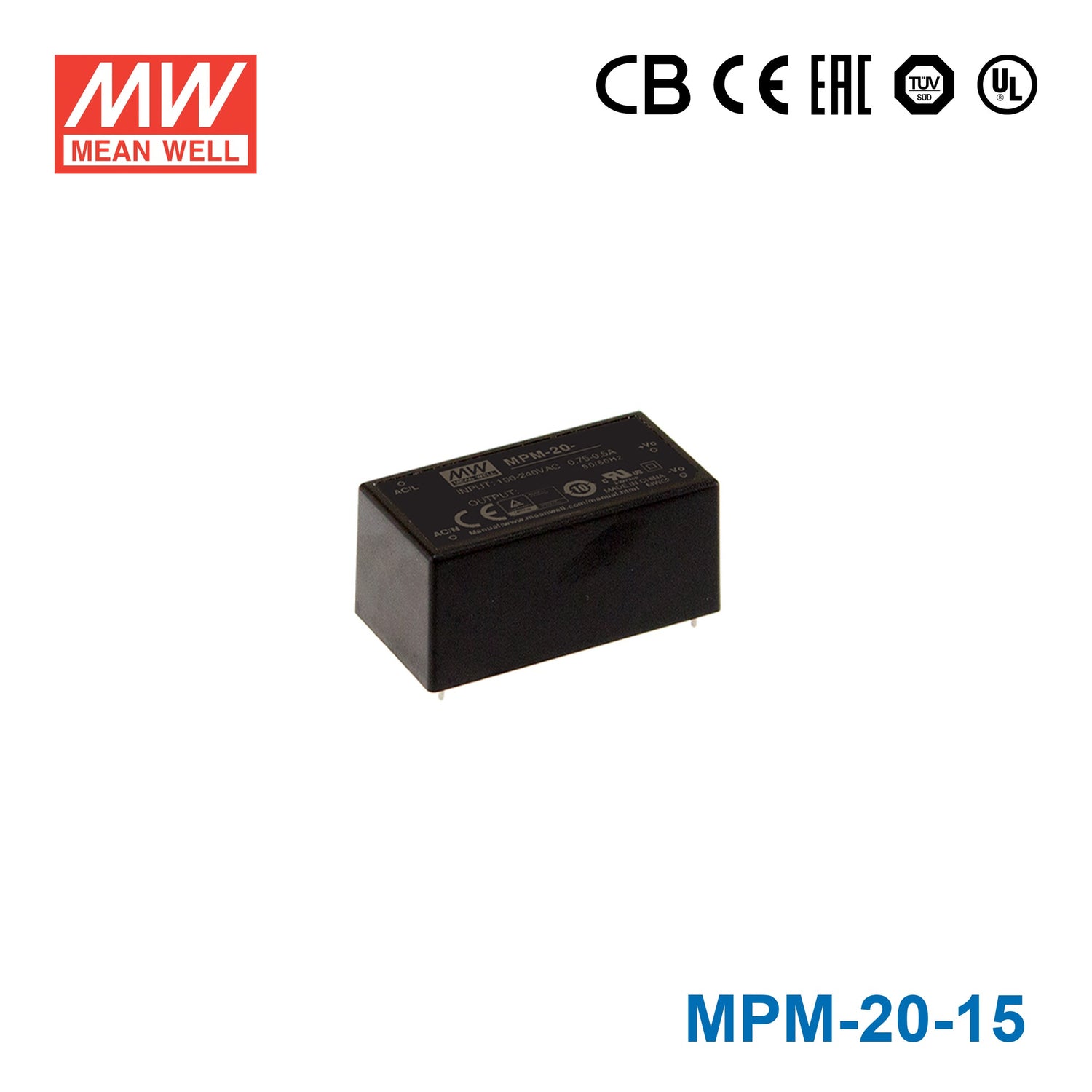

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well MPM-20-20 Power Supply 20W 15V 1.4A

Q: Can I use the MPM-20-15 for a 15V industrial control or measurement device?

Yes, this is a constant-voltage 15V supply rated for 21W and 1.4A, which fits low-power control or measurement electronics that require 15V and stay within that current limit. Its 80-264VAC input also supports use across a wide AC input range.

Q: Is the MPM-20-15 suitable for 15V analog or embedded electronics inside a compact enclosure?

It can be used for enclosed 15V analog, interface, or embedded assemblies drawing up to 1.4A. The 52.4 x 27.2 x 24.0 mm package is useful when the power section has limited mounting space.

Q: Can this power supply be used in medical or lab systems that need 15V DC?

It can fit low-power 15V medical or laboratory equipment when the load remains within 21W. The features list includes medical safety approval, no-load power consumption under 0.1W, and extremely low leakage current.

Q: What are the other 15V choices in the MPM series compared with the MPM-20-15?

For 15V outputs, the series includes MPM-05-15 at 5W and 0.33A, MPM-10-15 at 10W and 0.67A, MPM-15-15 at 15W and 1A, MPM-20-15 at 21W and 1.4A, MPM-30-15 and MPM-30-15ST at 30W and 2A, MPM-45-15 and MPM-45-15ST at 45W and 3A, MPM-65-15 and MPM-65-15ST at 65W and 4.33A, and MPM-90-15 and MPM-90-15ST at 85.05W and 5.67A. The family scales mainly by available output current at the same 15V level.

Q: Can the MPM-20-15 be used outdoors or in equipment exposed to cold and heat?

It is specified for operation from -35C to +85C, so it is suited to equipment that sees a wide internal temperature range. No IP rating is provided, so the product specs support protected indoor or enclosed use rather than exposed outdoor use.

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU:

MPM-20-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Touch current<80 μA/264VAC

Key Features

✓2.06"x1.07" compact size
✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
✓Suitable for BF application with appropriate system consideration
✓No-load power consumption<0.1W
✓Extremely low leakage current
✓Wide operating temp. range -35~+85°C
✓EMI Class B for class II configuration
✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
✓No minimum load required
✓3 years warranty

Frequently Asked Questions

Can I use the MPM-20-15 for a 15V industrial control or measurement device?

Yes, this is a constant-voltage 15V supply rated for 21W and 1.4A, which fits low-power control or measurement electronics that require 15V and stay within that current limit. Its 80-264VAC input also supports use across a wide AC input range.

Is the MPM-20-15 suitable for 15V analog or embedded electronics inside a compact enclosure?

It can be used for enclosed 15V analog, interface, or embedded assemblies drawing up to 1.4A. The 52.4 x 27.2 x 24.0 mm package is useful when the power section has limited mounting space.

Can this power supply be used in medical or lab systems that need 15V DC?

It can fit low-power 15V medical or laboratory equipment when the load remains within 21W. The features list includes medical safety approval, no-load power consumption under 0.1W, and extremely low leakage current.

What are the other 15V choices in the MPM series compared with the MPM-20-15?

For 15V outputs, the series includes MPM-05-15 at 5W and 0.33A, MPM-10-15 at 10W and 0.67A, MPM-15-15 at 15W and 1A, MPM-20-15 at 21W and 1.4A, MPM-30-15 and MPM-30-15ST at 30W and 2A, MPM-45-15 and MPM-45-15ST at 45W and 3A, MPM-65-15 and MPM-65-15ST at 65W and 4.33A, and MPM-90-15 and MPM-90-15ST at 85.05W and 5.67A. The family scales mainly by available output current at the same 15V level.

Can the MPM-20-15 be used outdoors or in equipment exposed to cold and heat?

It is specified for operation from -35C to +85C, so it is suited to equipment that sees a wide internal temperature range. No IP rating is provided, so the product specs support protected indoor or enclosed use rather than exposed outdoor use.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well MPM-20-5 Power Supply 20W 5V 4A	20W	5V	4A	View
Mean Well MPM-20-3.3 Power Supply 20W 3.3V 4.5A	14.9W	3.3V	4.5A	View
Mean Well MPM-20-24 Power Supply 20W 24V 900mA	21.6W	24V	0.9A	View
Mean Well MPM-20-12 Power Supply 20W 12V 1.8A	21.6W	12V	1.8A	View
