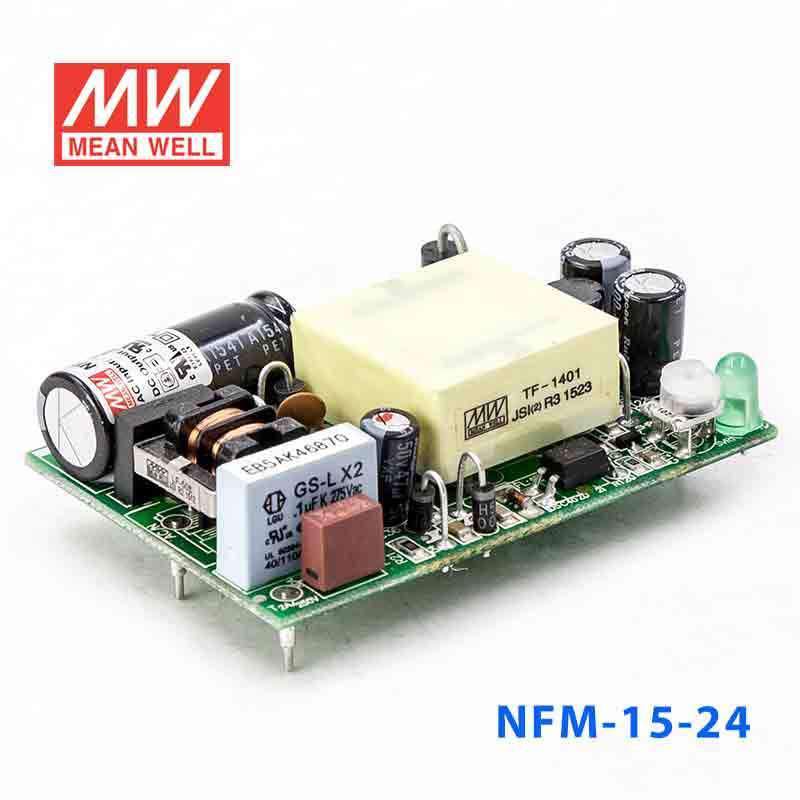

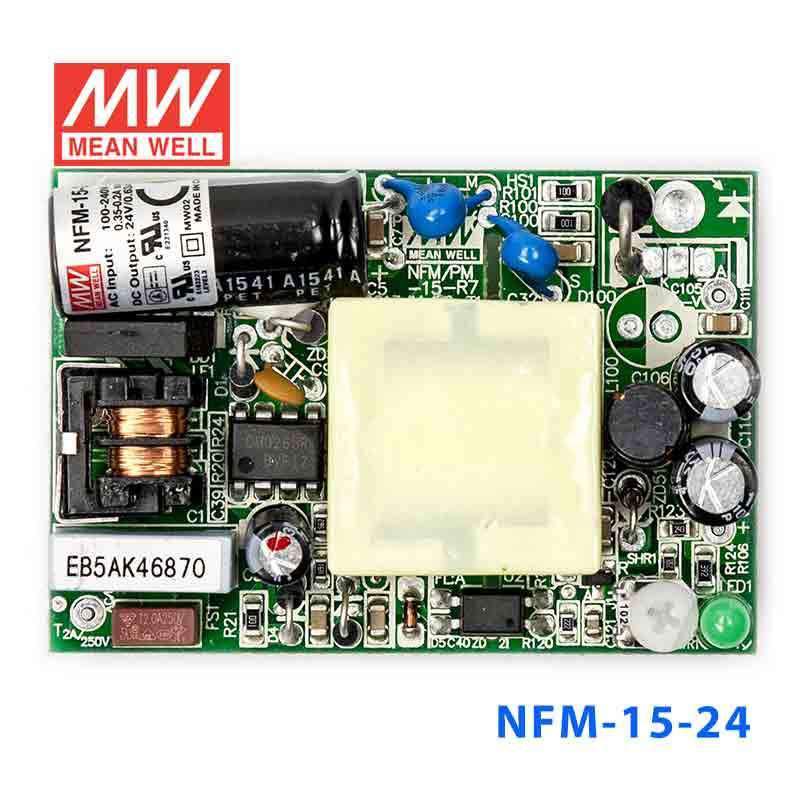

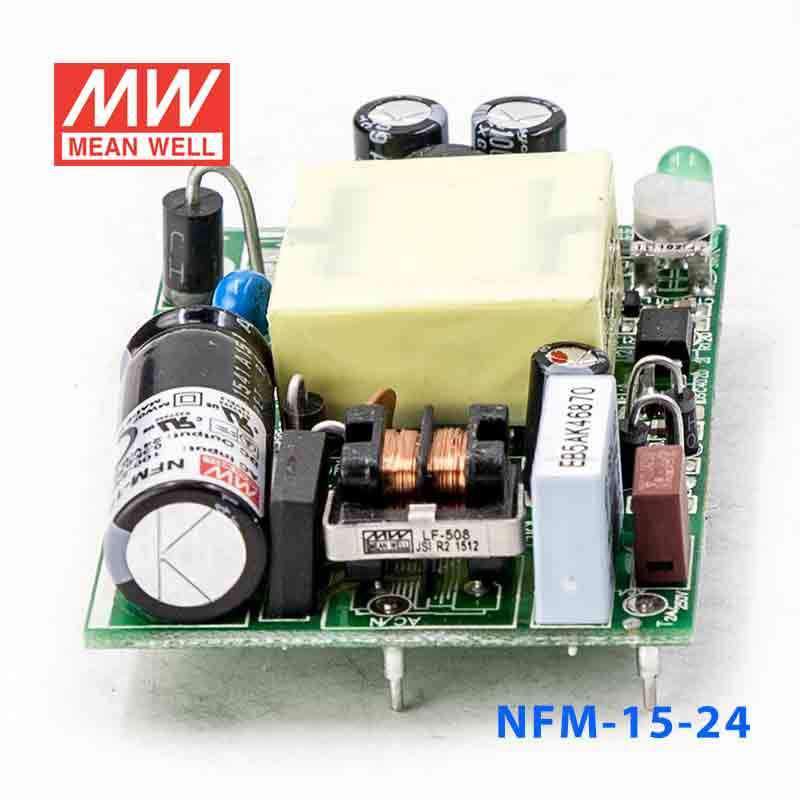

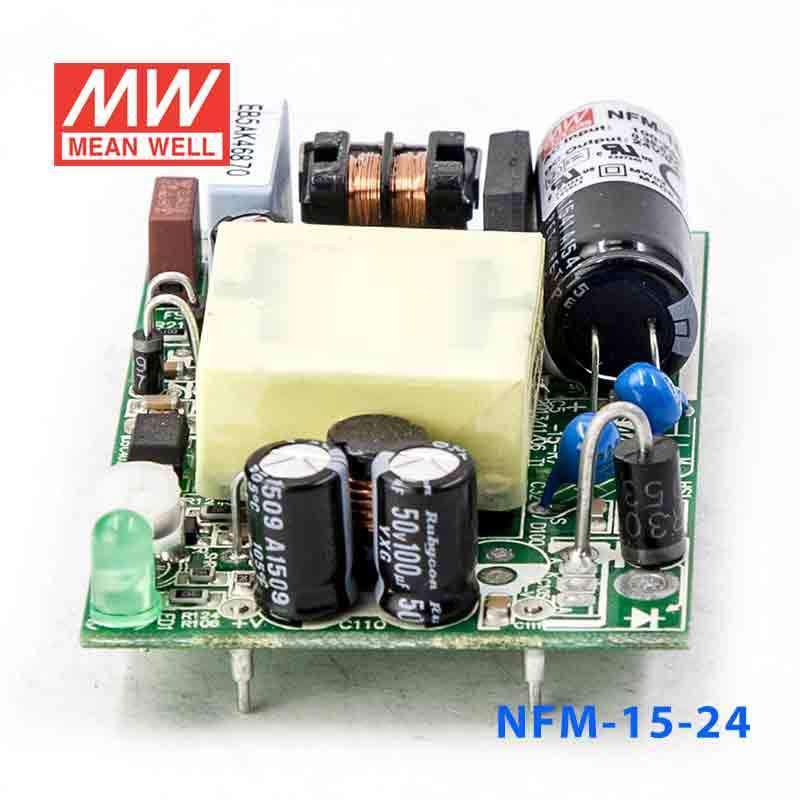

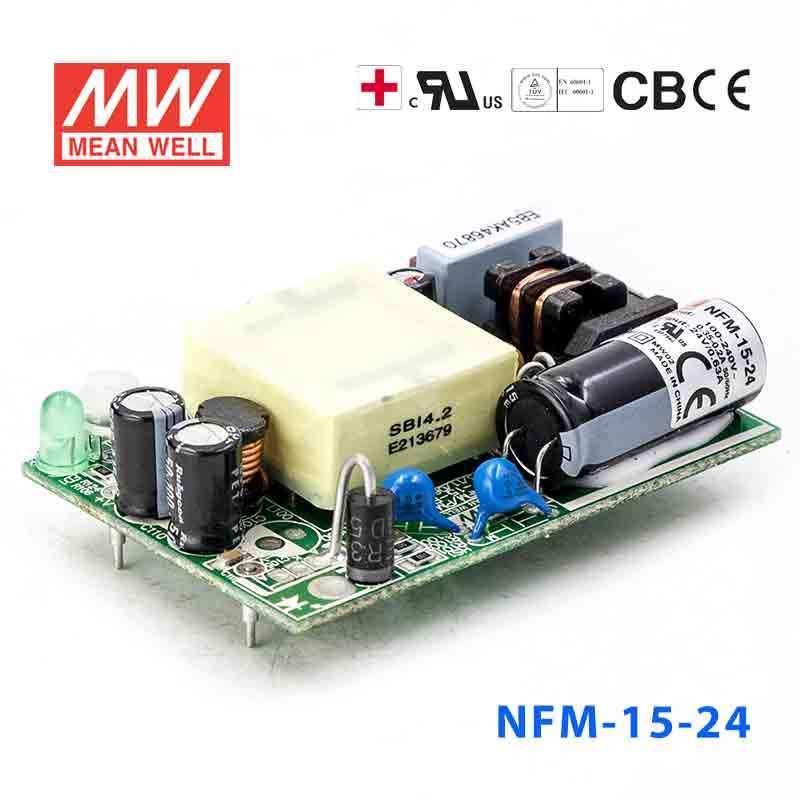

Mean Well NFM-15-24 Power Supply 15W 24V 630mA

SKU NFM-15-24

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by MFM-15-24

Available to order

Overview

NFM-15-24 is the 24V output model of this series: rated current 0.63A, rated power 15.12W, typical efficiency 81%.

Features

Universal AC input / Full range
Protections: Short circuit / Over load / Over voltage / Over temperature
Ultra-miniature size, light weight
Cooling by free air convection
Isolation classⅡ
Medical safety approved (2 x MOPP between primary to secondary)
No load power consumption<0.5W
100% full load burn-in test
Fixed switching frequency at 67KHz
High reliability
Suitable for BF application with appropriate system consideration
3 years warranty

Specifications

NFM-15-24Specifications from the official datasheet (2022-09-20 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 0.63A
CURRENT RANGE: 0 ~ 0.63A
RATED POWER: 15.12W
RIPPLE & NOISE (max.)^Note.2: 240mVp-p
VOLTAGE ADJ. RANGE: 21.6 ~ 26.4V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.): 100ms/230VAC 24ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 440Hz
EFFICIENCY (Typ.): 81%
AC CURRENT (Typ.): 0.35A/115VAC 0.2A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 50A/230VAC
LEAKAGE CURRENT^Note.6: Touch current < 80μA/264VAC

PROTECTION

OVERLOAD: Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE^Note.5: Tj 140℃ typically (U1) detect on main control IC Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS: ANSI/AAMI ES60601-1,TUV EN60601-1, IEC60601-1, UL60950-1, EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55011(CISPR11), EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020

OTHERS

MTBF: 499.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 70*48*22mm (L*W*H)
PACKING: 0.065Kg; 120pcs/8.8Kg/0.94CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specification provided by the IC manufacturer.
6. Touch current was measured from primary input to DC output.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NFM-15-24 Mechanical Specification — Mechanical Specification

NFM-15-24 Derating Curve — Derating Curve

Downloads

Certificates5

EMC Certificate (NFM-15)(EN) PDF Download

UL(e183223)Certificate(NFM-15)(EN) PDF Download

CB Certificate(NFM-15)(EN) PDF Download

TUV Certificate (NFM-15)(EN) PDF Download

UL(e227340)Certificate(NFM-15)(EN) PDF Download

Test reports1

Test Report(NFM-15-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the NFM-15-24 for a 24V PLC I/O module or small automation controller?

It can fit 24V control loads that stay within the unit's 0.63A output current and 15.12W power rating. That makes it relevant for small industrial control electronics that require constant 24V DC rather than higher-current field devices.

Is the NFM-15-24 suitable for powering a 24V sensor or relay interface in an industrial cabinet?

It is intended for constant-voltage 24V output and can support loads up to 0.63A. For low-power sensor interfaces, relay boards, or monitoring modules that stay inside 15.12W, the electrical rating is aligned with that type of use.

Can this 24V power supply be used for embedded or IT equipment that runs on 24V DC?

Yes, if the equipment requires a regulated 24V constant-voltage supply and draws no more than 0.63A. Its 85-264VAC input also suits equipment deployed across sites with different AC mains ranges.

Is the NFM-15-24 suitable for outdoor or harsh-environment use?

The provided specs list an operating temperature range of -20°C to +70°C, but they do not list an IP rating. Based on the provided data, temperature capability is defined, while outdoor or washdown suitability is not established by an IP classification.

How does the NFM-15-24 compare with the other NFM series models?

Within the provided sibling list, the series includes NFM-05-3.3 at 4.125W, 3.3V, 1.25A; NFM-05-5 at 5W, 5V, 1A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; NFM-05-24 at 5.52W, 24V, 0.23A; NFM-10-3.3 at 8.25W, 3.3V, 2.5A; NFM-10-5 at 10W, 5V, 2A; NFM-10-12 at 10.2W, 12V, 0.85A; NFM-10-15 at 10.05W, 15V, 0.67A; and NFM-10-24 at 10.08W, 24V, 0.42A. Higher-output siblings listed are NFM-15-3.3 at 11.5W, 3.3V, 3.5A; NFM-15-5 at 15W, 5V, 3A; NFM-15-12 at 15W, 12V, 1.25A; NFM-15-15 at 15W, 15V, 1A; NFM-20-3.3 at 14.85W, 3.3V, 4.5A; NFM-20-5 at 22W, 5V, 4.4A; NFM-20-12 at 21.6W, 12V, 1.8A; NFM-20-15 at 14.85W in the provided data; and NFM-20-24 at 22.08W, 24V, 0.92A. This NFM-15-24 sits between the 10.08W 24V model and the 22.08W 24V model in the 24V branch.
