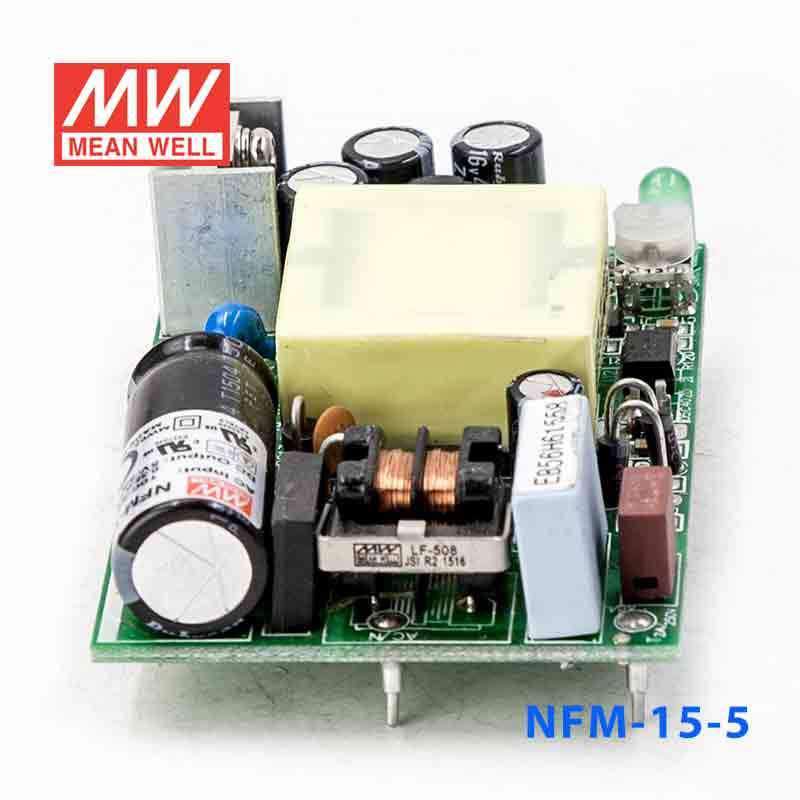

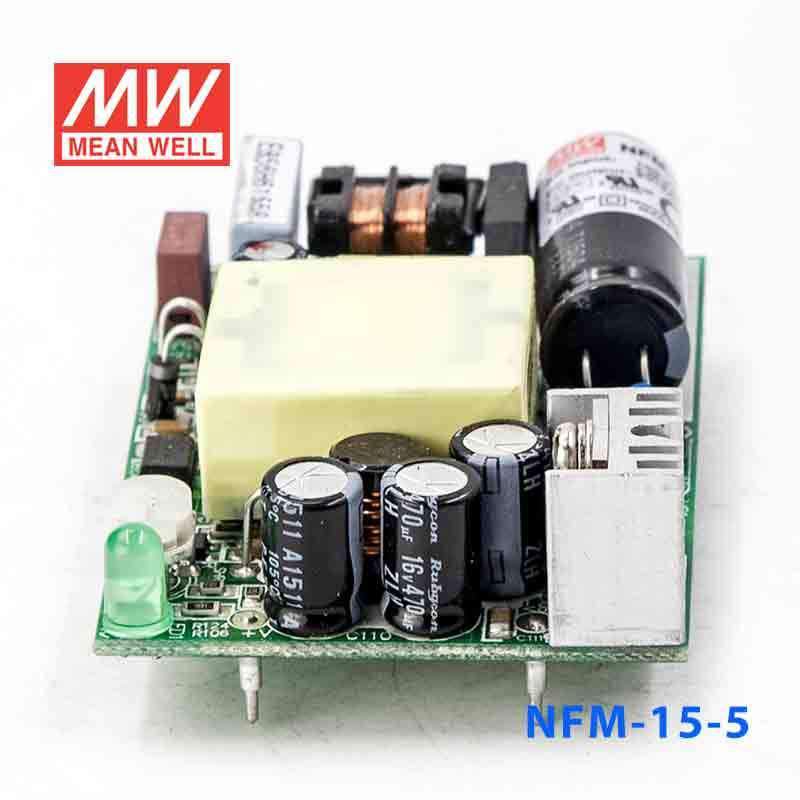

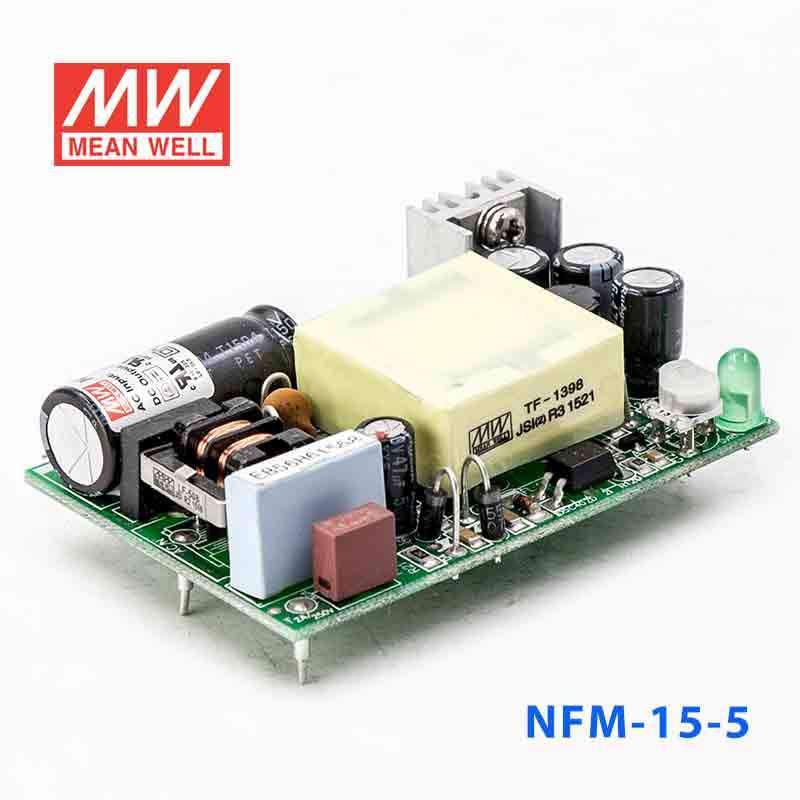

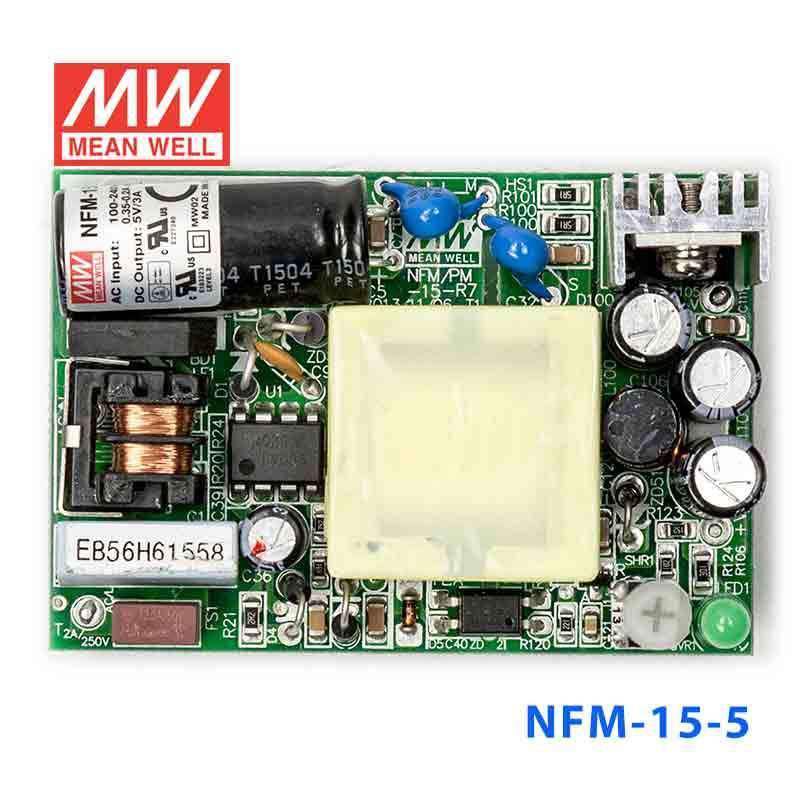

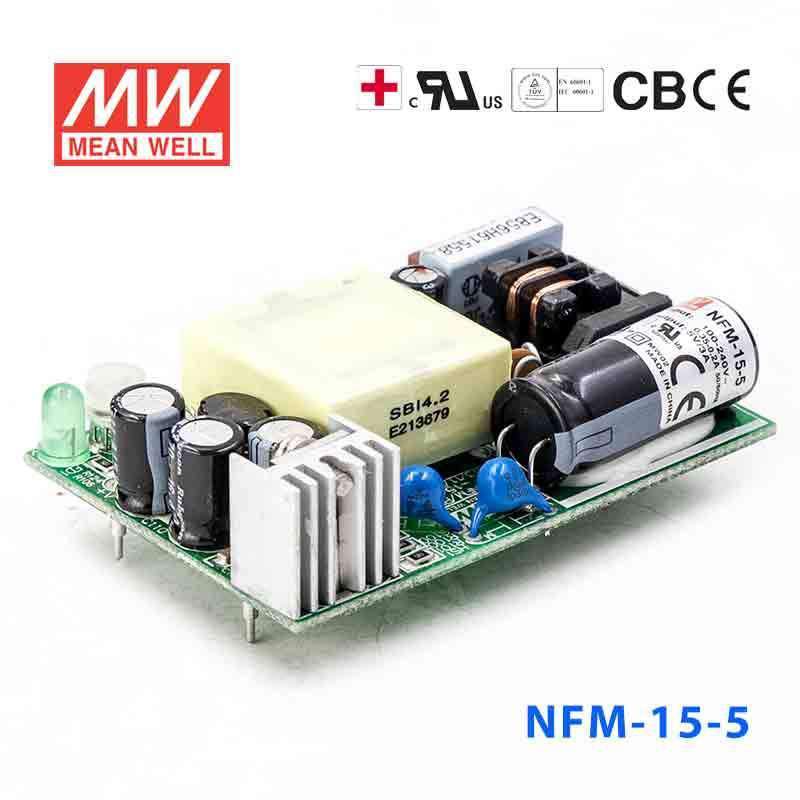

Mean Well NFM-15-5 Power Supply 15W 5V 3A

SKU NFM-15-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by MFM-15-5
Available to order
|

Overview

NFM-15-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 76%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Over load / Over voltage / Over temperature
  • Ultra-miniature size, light weight
  • Cooling by free air convection
  • Isolation classⅡ
  • Medical safety approved (2 x MOPP between primary to secondary)
  • No load power consumption<0.5W
  • 100% full load burn-in test
  • Fixed switching frequency at 67KHz
  • High reliability
  • Suitable for BF application with appropriate system consideration
  • 3 years warranty

Specifications

NFM-15-5Specifications from the official datasheet (2022-09-20 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER
15W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
4.5 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
HOLD UP TIME (Typ.)
100ms/230VAC 24ms/115VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 440Hz
EFFICIENCY (Typ.)
76%
AC CURRENT (Typ.)
0.35A/115VAC 0.2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/115VAC 50A/230VAC
LEAKAGE CURRENTNote.6
Touch current < 80μA/264VAC

PROTECTION

OVERLOAD
Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURENote.5
Tj 140℃ typically (U1) detect on main control IC Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
ANSI/AAMI ES60601-1,TUV EN60601-1, IEC60601-1, UL60950-1, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55011(CISPR11), EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN60601-1-2, EN61204-3, medical level, EAC TP TC 020

OTHERS

MTBF
499.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
70*48*22mm (L*W*H)
PACKING
0.065Kg; 120pcs/8.8Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
  5. 5. The over temperature protection (OTP) is the built-in function of the control IC (U1). The activating level described above is based on the specification provided by the IC manufacturer.
  6. 6. Touch current was measured from primary input to DC output.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

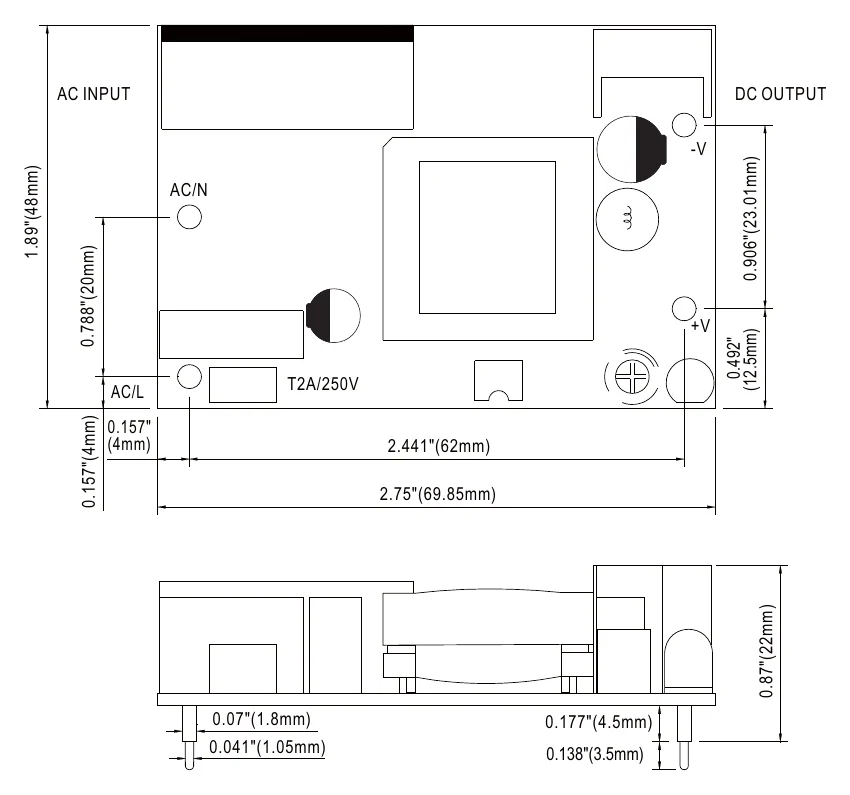

NFM-15-5 Mechanical Specification
Mechanical Specification

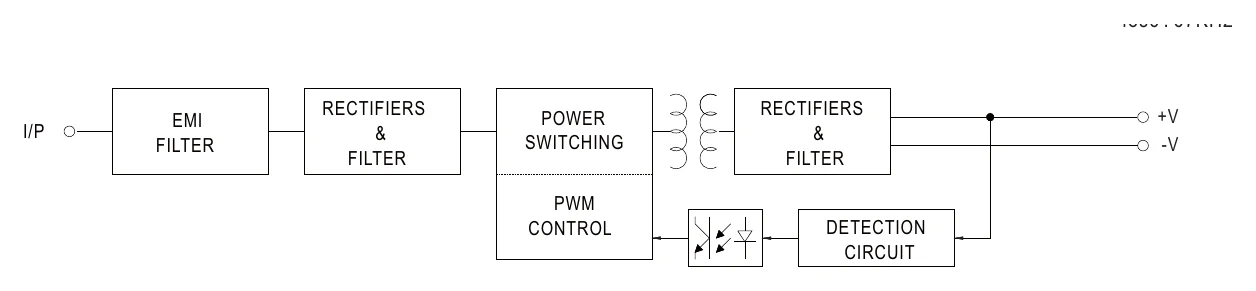

NFM-15-5 Block Diagram
Block Diagram

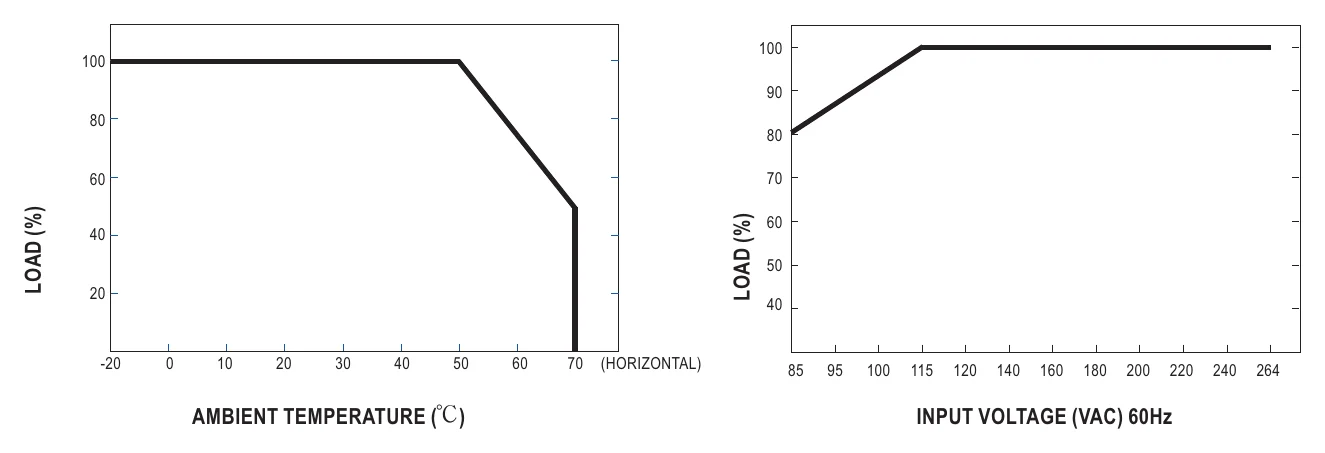

NFM-15-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the NFM-15-5 for a 5V single-board computer or embedded controller?

It provides constant 5V output up to 3A, with a 15W rating. That fits many embedded control boards and compact computing devices that need a regulated 5V rail within those current and power limits.

Is the NFM-15-5 suitable for 5V industrial logic or HMI support electronics?

It can support 5V DC electronics that require no more than 3A. For low-voltage control logic, panel electronics, or support circuitry that stays within 15W, the output profile is consistent with that type of load.

Can this model power 5V USB-class or peripheral electronics inside equipment?

It is appropriate for 5V constant-voltage loads up to 3A when the equipment is designed around a 5V DC supply. The 85-264VAC input range also helps when the same equipment platform is used across different AC input regions.

Is the NFM-15-5 rated for outdoor conditions?

The provided operating temperature range is -20°C to +70°C, so temperature performance is specified. The provided specs do not include an IP rating, so outdoor exposure suitability is not confirmed by the product data here.

How does the NFM-15-5 differ from the other NFM family options?

In the 5V branch of the provided sibling list, NFM-05-5 is 5W at 5V and 1A, NFM-10-5 is 10W at 5V and 2A, this NFM-15-5 is 15W at 5V and 3A, and NFM-20-5 is 22W at 5V and 4.4A. The same family also includes NFM-05-3.3 at 4.125W, 3.3V, 1.25A; NFM-05-12 at 5.04W, 12V, 0.42A; NFM-05-15 at 4.95W, 15V, 0.33A; NFM-05-24 at 5.52W, 24V, 0.23A; NFM-10-3.3 at 8.25W, 3.3V, 2.5A; NFM-10-12 at 10.2W, 12V, 0.85A; NFM-10-15 at 10.05W, 15V, 0.67A; NFM-10-24 at 10.08W, 24V, 0.42A; NFM-15-3.3 at 11.5W, 3.3V, 3.5A; NFM-15-12 at 15W, 12V, 1.25A; NFM-15-15 at 15W, 15V, 1A; NFM-15-24 at 15.12W, 24V, 0.63A; NFM-20-3.3 at 14.85W, 3.3V, 4.5A; NFM-20-12 at 21.6W, 12V, 1.8A; NFM-20-15 at 14.85W in the provided data; and NFM-20-24 at 22.08W, 24V, 0.92A. This makes the NFM-15-5 the mid-range 5V option by output current.
