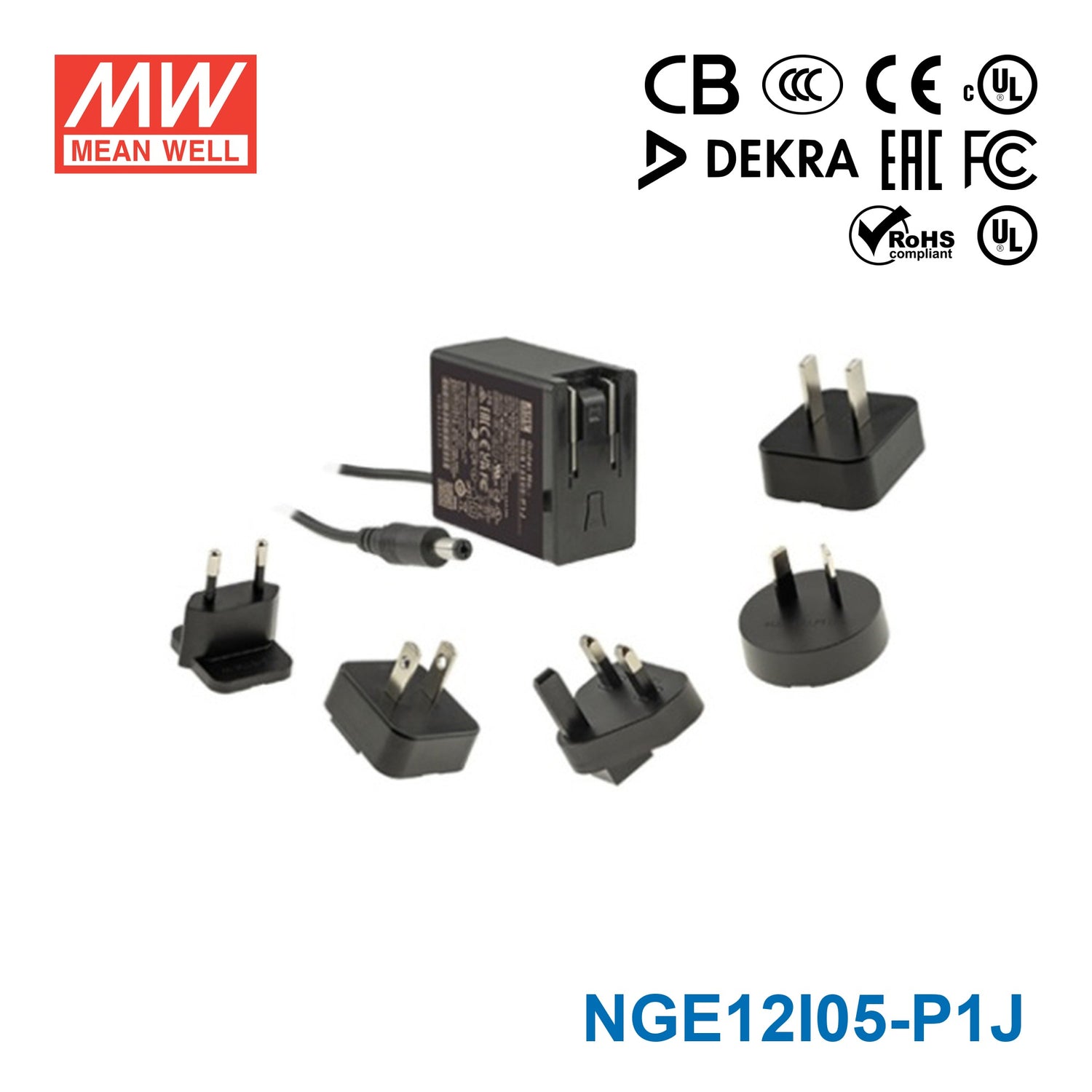

Mean Well NGE12I05-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE12I05 is a 12W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating12 Watt
-
Output Voltage5 Volt
-
Rated Current2.4 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.8 cm
-
Width2.8 cm
-
Height5.5 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NGE12I05-P1J provide?
This model provides a regulated 5V DC output with a rated current of 2.4A. Its maximum rated power is 12W. It is intended for equipment that matches those output requirements.
What kinds of devices is the NGE12I05-P1J typically used for?
The NGE12I05-P1J is suited to low-voltage electronics that require 5V DC and draw up to 2.4A. Typical B2B use cases include small electronic devices, control products, and other powered equipment within that rating. Buyers should confirm the device voltage and current requirements match this adaptor.
Does this adaptor support different mains power regions?
Yes. It has a universal input range of 80 to 264VAC and uses interchangeable AC plugs. That makes it suitable for buyers who need flexibility across supported plug formats and input voltages.
What protection features are included in this power adaptor?
This model includes short circuit, overload, and over voltage protection. Overload protection uses hiccup mode and recovers automatically after the fault condition is removed. These protections help support reliable operation in commercial and industrial environments.
Is the NGE12I05-P1J designed for energy-efficient operation?
Yes. It meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. That makes it a good option for applications where standby power usage matters.
Can this adaptor operate in harsh temperature conditions?
It is rated for operation from -30°C to +70°C. This wide operating range makes it suitable for demanding environments where ambient temperatures may vary significantly. Actual suitability should still be checked against the end equipment's full operating conditions.
What certifications or standards does this adaptor meet?
The NGE12I05-P1J is listed with a broad set of safety approvals including IEC62368-1, IEC60601-1/-1-11, IEC61558-1/-2-16, IEC60335-1, UL62368-1, and related regional approvals. It also passes LPS and is a Class II power unit with no earth pin. This makes it relevant for professional buyers who need compliance-oriented power solutions.
