Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

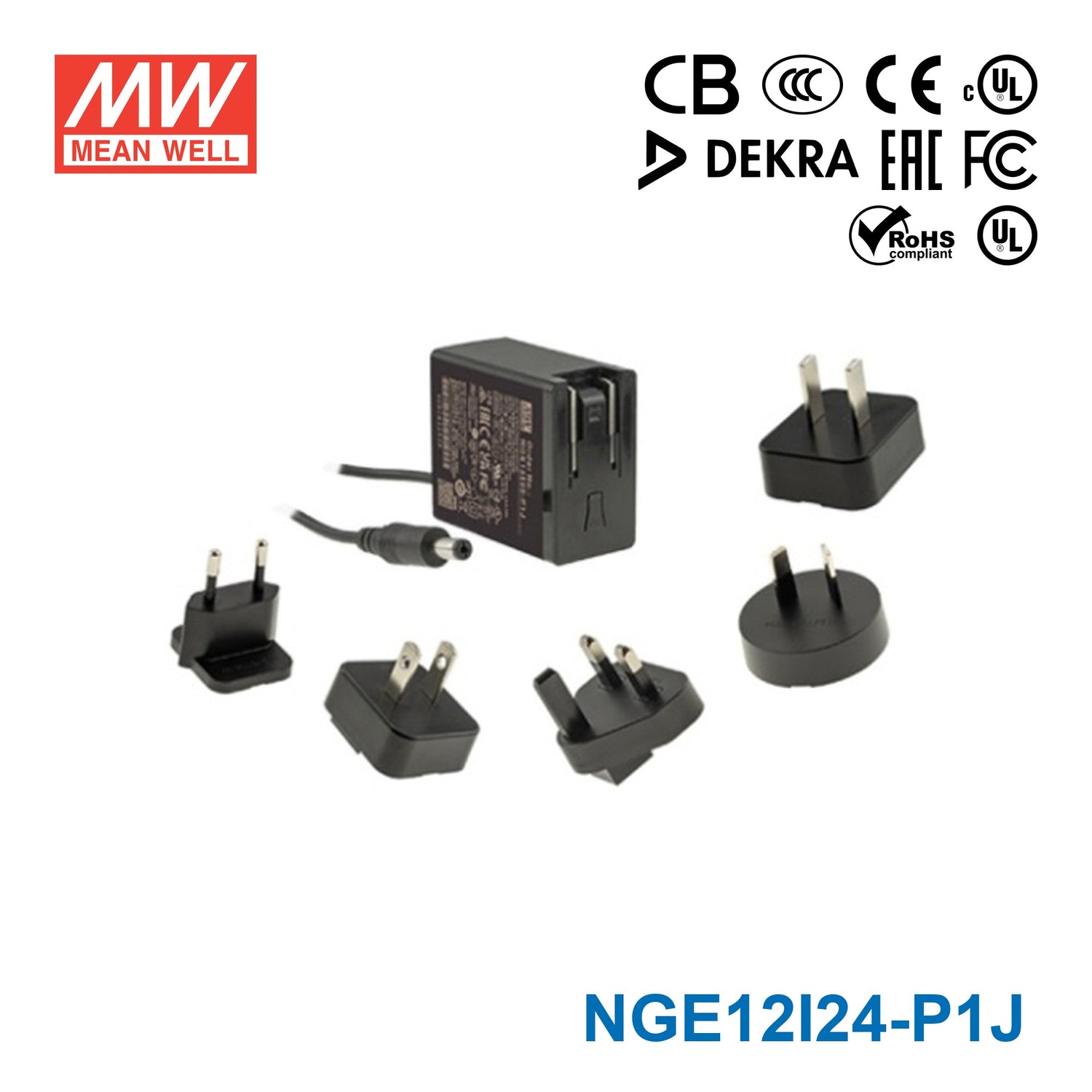

Mean Well NGE12I24-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE12I24 is a 12W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.8 cm
-
Width2.8 cm
-
Height5.5 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NGE12I24-P1J provide?
The NGE12I24-P1J provides a regulated 24V DC output at 0.625A. It is described as a 12W wall-mounted AC-DC adaptor with interchangeable plug capability. This makes it suitable for equipment that requires a 24V DC supply within that current rating.
What makes the NGE12I24-P1J suitable for international or multi-region use?
This model supports universal AC input over 80 to 264VAC and uses interchangeable AC plugs. That combination makes it useful for buyers standardizing one adaptor platform across different regions. It is also listed with multiple international safety approvals.
Is the Mean Well NGE12I24-P1J designed for energy-efficient operation?
Yes, this adaptor is rated to Energy Efficiency Level VI and has no-load power consumption below 0.075W. Those specifications make it a strong fit for applications where standby efficiency matters. It is positioned as a green adaptor in the product name and feature set.
What protection features are included in the NGE12I24-P1J?
The NGE12I24-P1J includes protection against short circuit, overload, and over voltage. The overload protection uses hiccup mode and recovers automatically after the fault condition is removed. Over-voltage protection is provided by zener diode clamp circuitry.
Can this power adaptor be used in demanding temperature environments?
This model has a specified working temperature range of -30°C to +70°C. That wide operating range makes it more suitable than many basic adaptors for industrial or commercial environments with variable ambient conditions. Buyers should still ensure the full application stays within the product's rated limits.
What kinds of applications is the NGE12I24-P1J commonly suited for?
This adaptor is generally suited for commercial and industrial devices that need a compact 24V DC wall-mounted power supply at up to 0.625A. Its Class II design, low leakage current, and broad safety standard coverage make it relevant for professional equipment procurement. Final compatibility depends on the device's required voltage, current draw, and plug format.
How compact is the Mean Well NGE12I24-P1J?
The listed dimensions are 48 x 28 x 55 mm, and the design is described as ultra slim with a 28 mm profile. It also has a product weight of 0.13 kg. This compact format helps when a low-profile wall adaptor is preferred.
