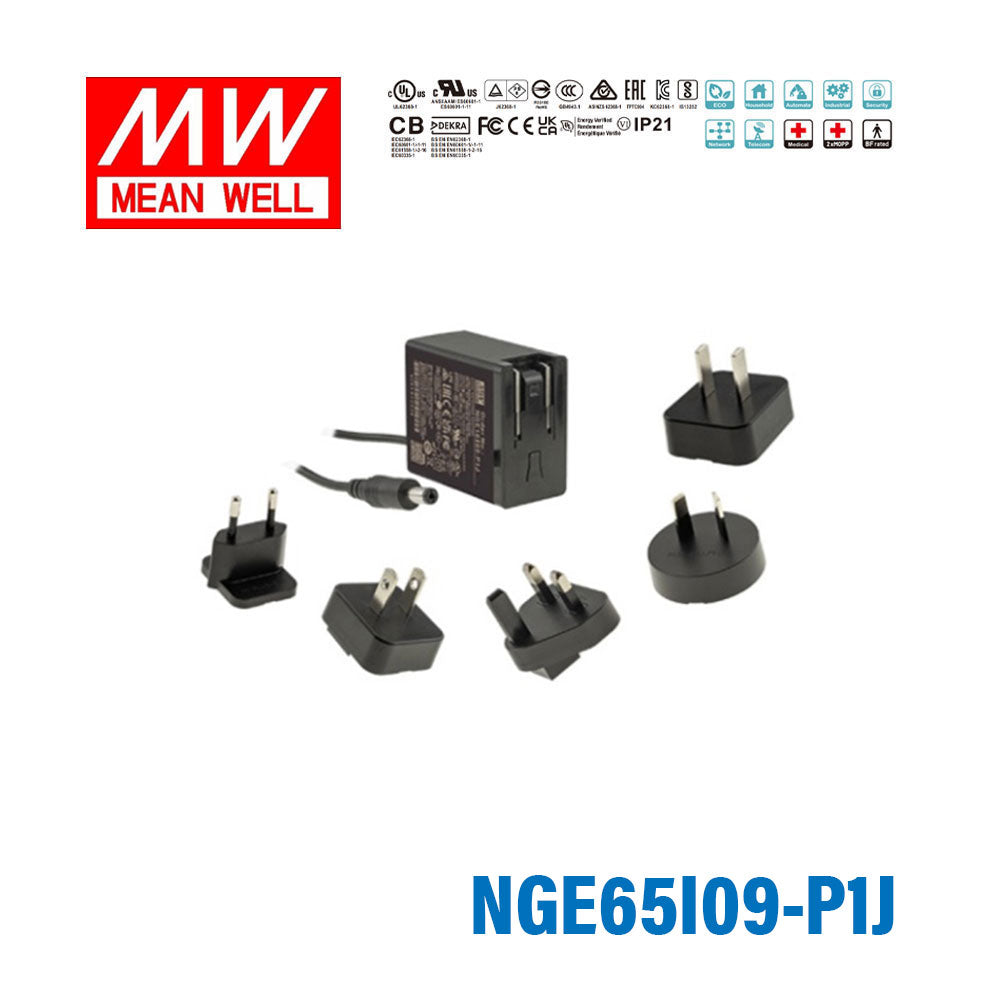

Mean Well NGE65I09-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE65I09 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating53.6 Watt
-
Output Voltage9 Volt
-
Rated Current5.96 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NGE65I09-P1J?
This model provides a regulated 9V DC output with a rated current of 5.96A. Its maximum output power is 53.6W, which makes it suitable for equipment that needs a higher-current 9V wall adaptor.
What type of power adaptor is the NGE65I09-P1J?
The NGE65I09-P1J is an AC-DC wall-mounted green adaptor with interchangeable AC plugs. It is a Class II power supply, so it is designed without an earth pin, and it has an ultra-slim 28mm profile.
Is this power supply suitable for international or multi-region use?
Yes. It has a universal input range of 80 to 264VAC and supports interchangeable AC plugs, which makes it practical for deployments across different regions. The product listing also states approvals and certifications across multiple international standards.
What protections are built into the Mean Well NGE65I09-P1J?
This model includes short circuit, overload, and over voltage protection. The overload protection is specified at 110% to 150% of rated output power, and the unit is designed to recover automatically after applicable fault conditions are removed.
Can the NGE65I09-P1J be used in demanding temperature environments?
It is rated for operation from -30°C to +70°C, which is a wide working temperature range for an external wall adaptor. That makes it a practical option for commercial and industrial environments where ambient temperatures may vary significantly.
Is this adaptor designed for energy-efficient applications?
Yes. The NGE65I09-P1J meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. That can help reduce standby energy use in applications where the adaptor remains plugged in continuously.
What certifications or standards does this model support?
The NGE65I09-P1J is listed with safety approvals covering ITE, medical, household, and industrial categories, including IEC62368-1, IEC60601-1, IEC60335-1, and IEC61558-1/-2-16. This broad standards coverage can be useful for buyers sourcing one adaptor platform for different regulated equipment categories.
