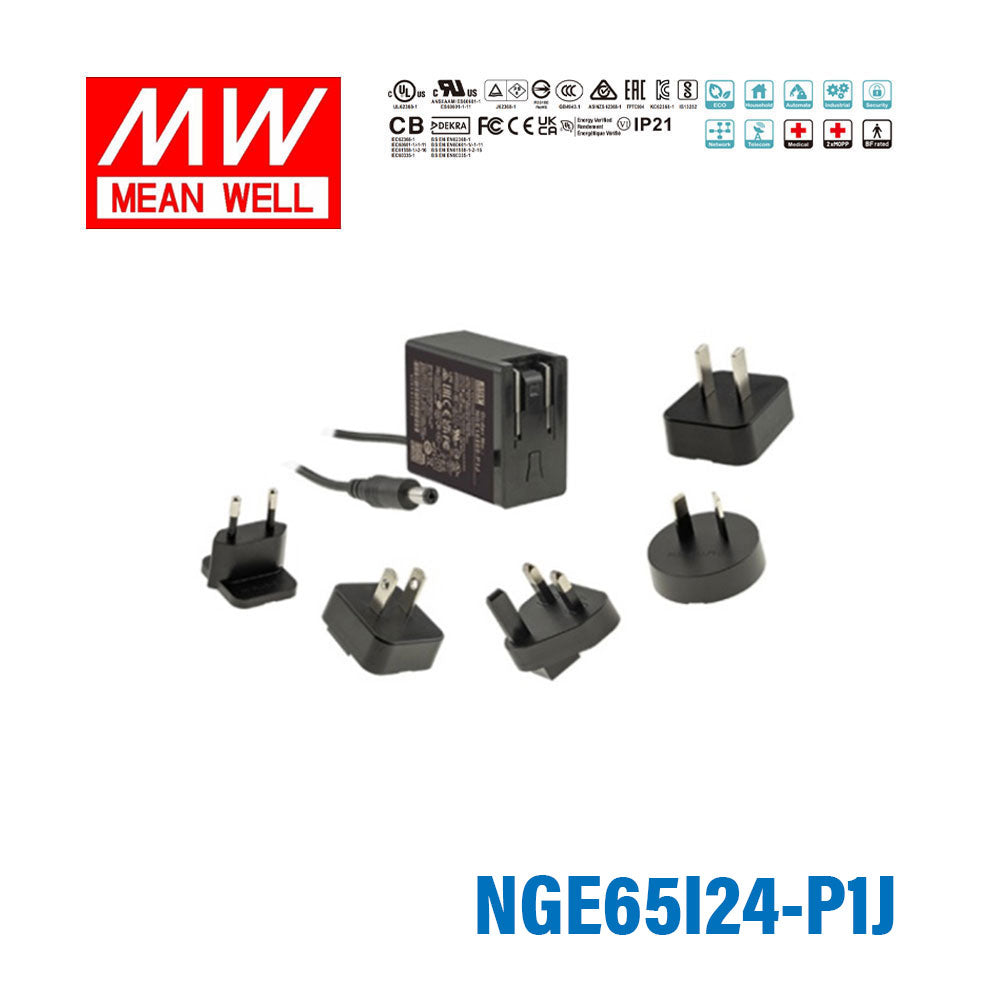

Mean Well NGE65I24-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE65I24 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: energy when it is under either the operating mode or the standby mode. The entire series is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating65 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NGE65I24-P1J?
This model provides a regulated 24V DC output at up to 2.71A. Its maximum rated output power is 65W, making it suitable for equipment that requires a 24V external desktop-style adaptor in a wall-mounted form factor.
What kind of applications is the NGE65I24-P1J designed for?
The NGE65I24-P1J is intended for professional and commercial equipment needing a 24V, 65W AC-DC adaptor. Its certification coverage spans ITE, medical, household, and industrial standards, which makes it a strong fit for buyers sourcing across multiple equipment categories.
Does this power adaptor support different regional plug formats?
Yes. This model uses interchangeable AC plugs, which is one of its key differentiators for international or multi-region deployments. That can simplify procurement where the same power supply platform is needed across different markets.
What safety and protection features does the Mean Well NGE65I24-P1J include?
This adaptor includes short circuit, overload, and over voltage protection. It is also a Class II power supply with no earth pin and is specified to pass LPS, with very low leakage current of less than 100uA.
Is the NGE65I24-P1J suitable for energy-efficient applications?
Yes. It meets Energy Efficiency Level VI and has very low no-load power consumption of less than 0.075W. That makes it a good choice for applications where standby power and operating efficiency matter.
What operating temperature range does this adaptor support?
The NGE65I24-P1J is rated for operation from -30°C to +70°C. This wide working temperature range makes it suitable for demanding environments where standard indoor-only adaptors may be too limited.
How compact is the Mean Well NGE65I24-P1J?
This adaptor has a slim profile and compact wall-mounted form factor. Its specified dimensions are 62 x 30 x 65 mm, and the product weight is 0.22 kg.
