Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

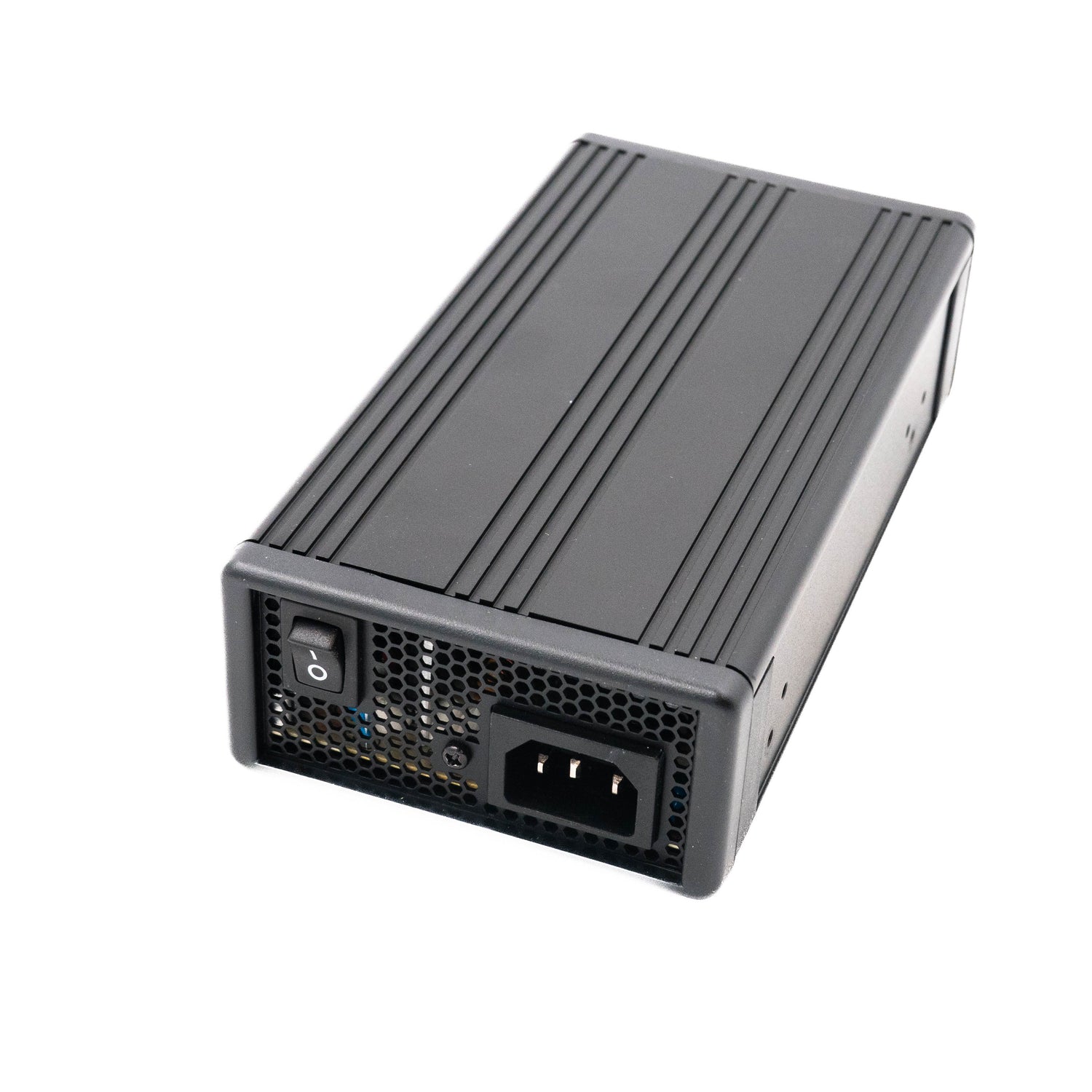

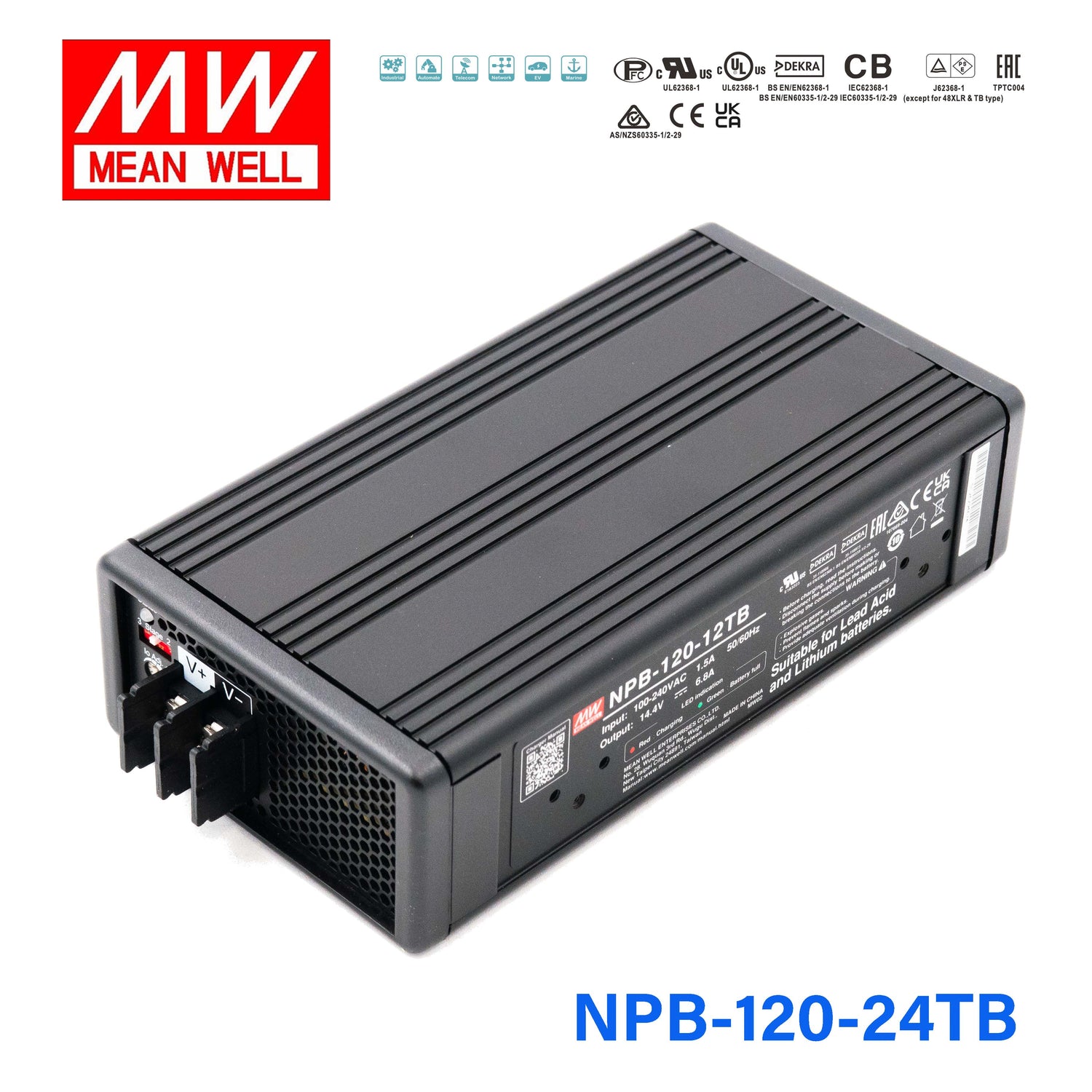

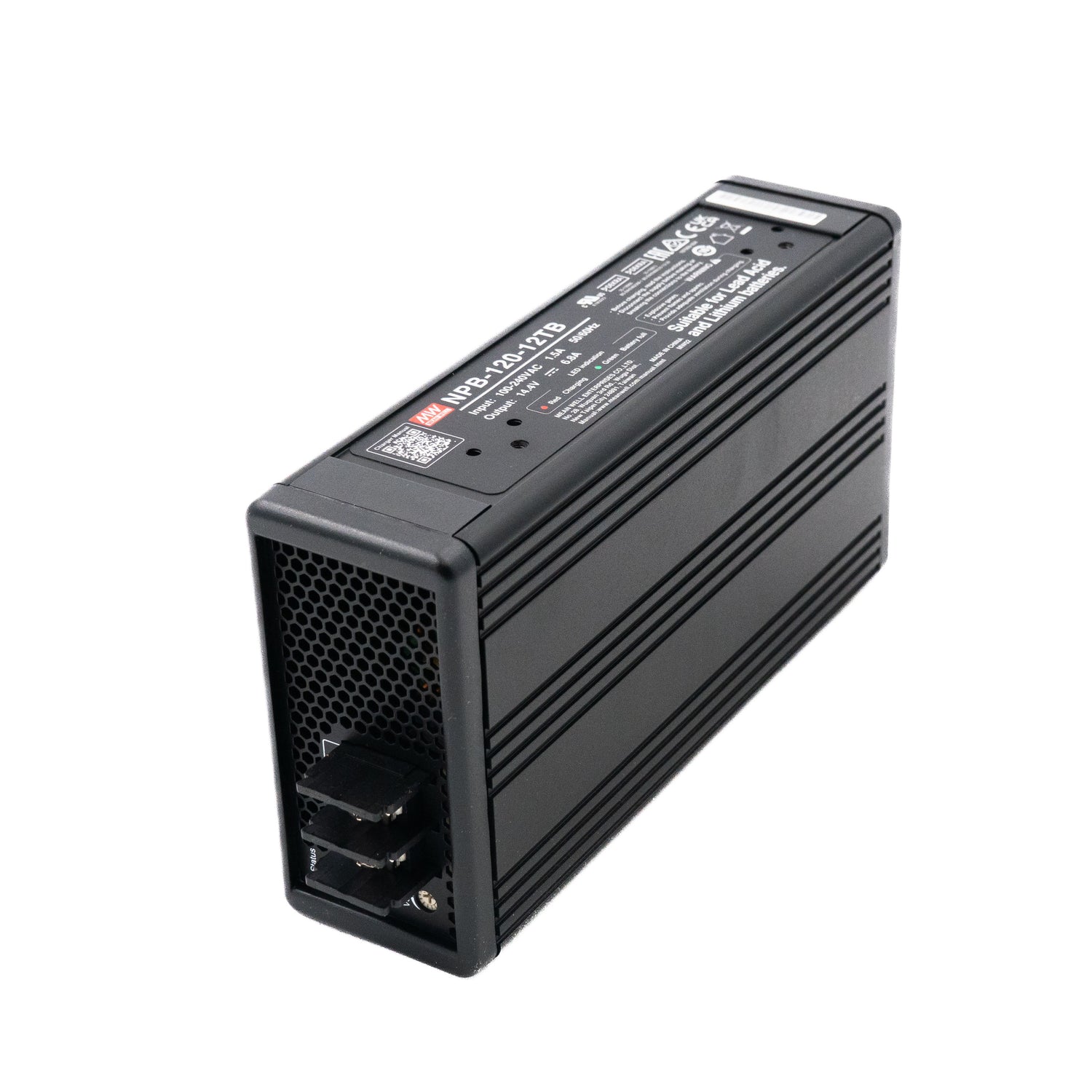

Mean Well NPB-120-24TB Battery Charger 120W 24V Terminal Block

wide voltage range, metal enclosure for better heat dissipation, easy and flexible adjustment for voltage and current, 2 or 3 stage selectable by dip switch
SKU:
NPB-120-24TB

|

Description

AC-DC Single output battery charger with PFC; 2 or 3 stage charging; Universal AC input; Output 28.8Vdc at 4A with terminal block

Specifications

  • Brand
    Mean Well
  • Series
    NPB Series
  • Power Rating
    120 Watt
  • Output Voltage
    28.8 Volt
  • Rated Current
    4 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    18 cm
  • Width
    9.6 cm
  • Height
    4.9 cm
  • Weight
    1.3 kg

File Downloads

::specification::
