Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

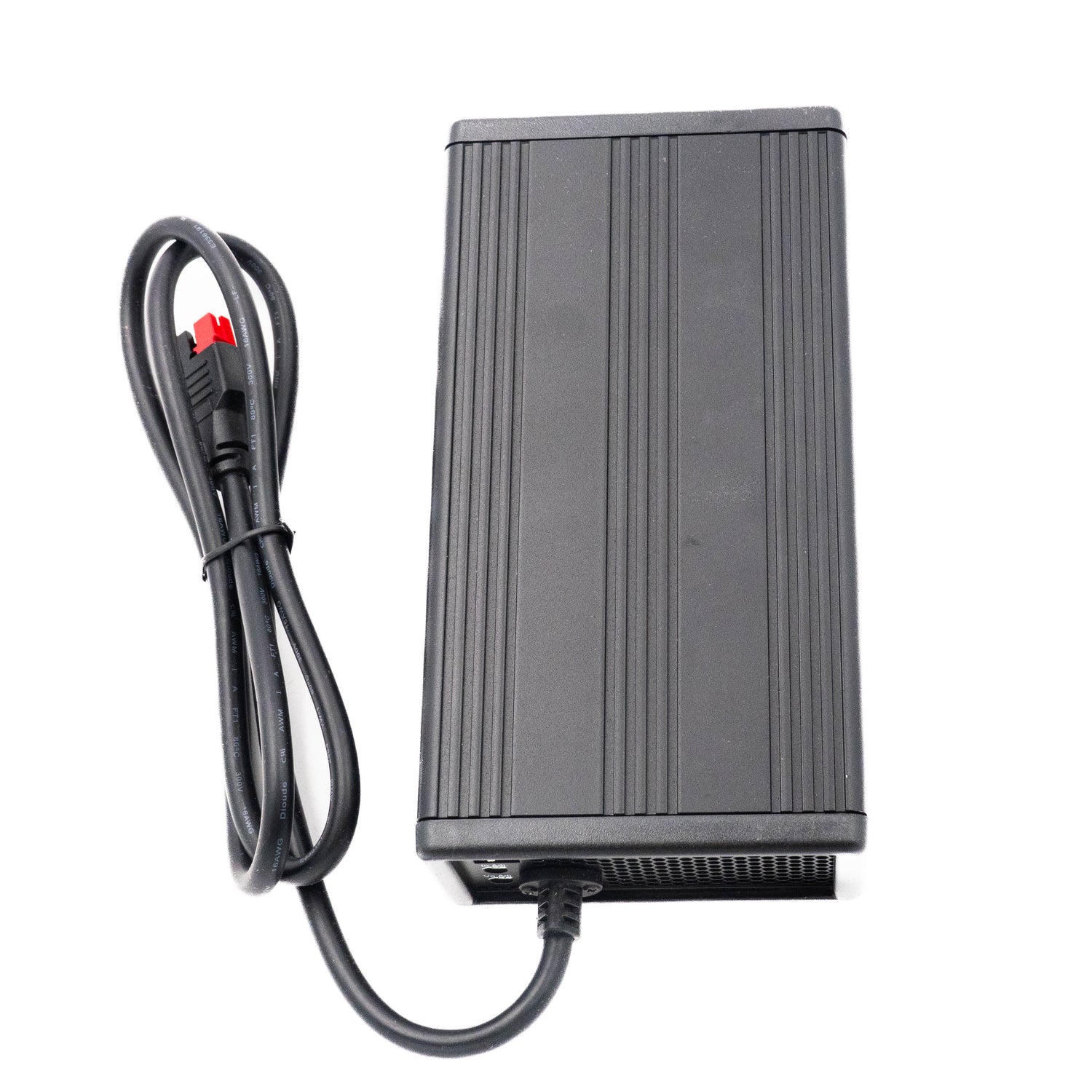

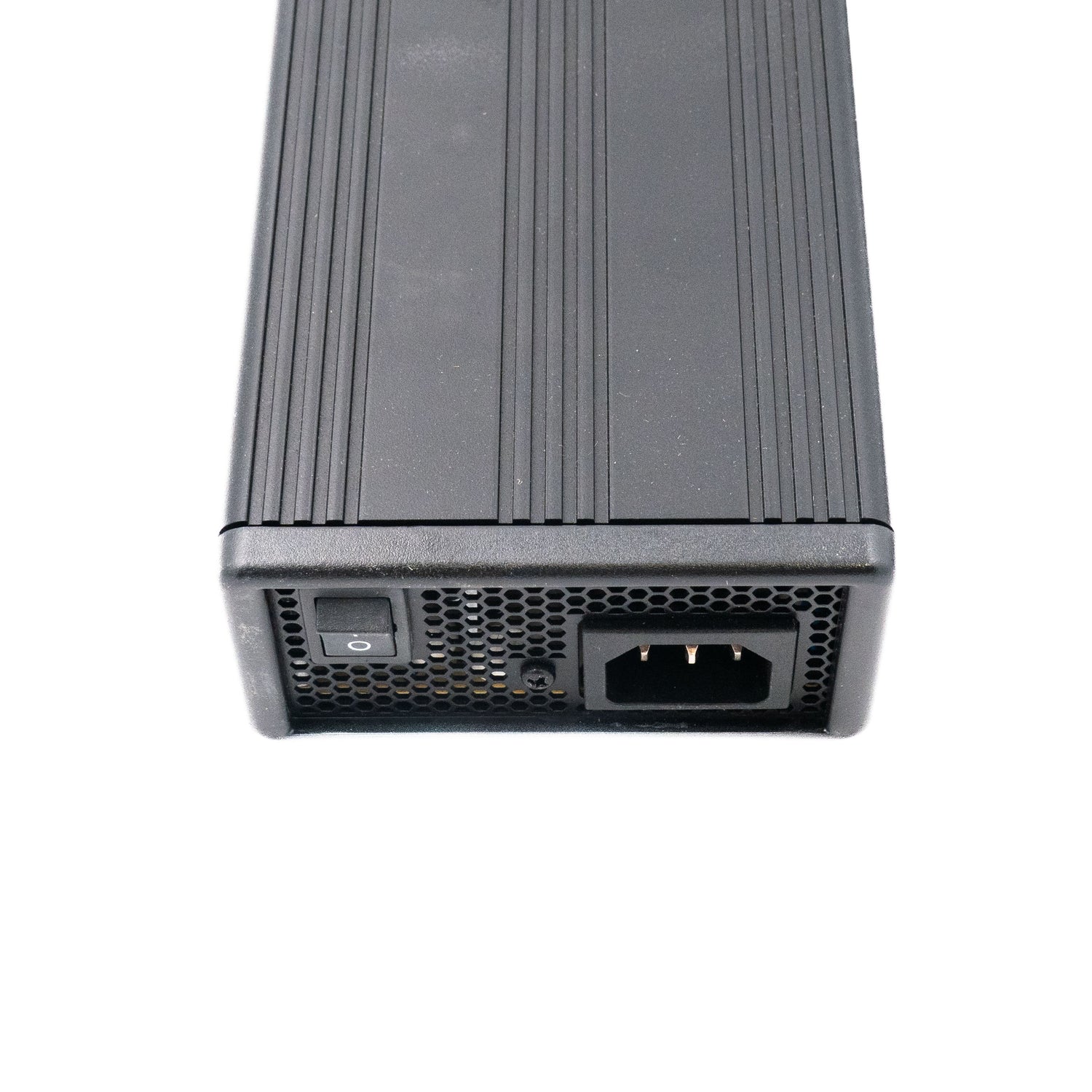

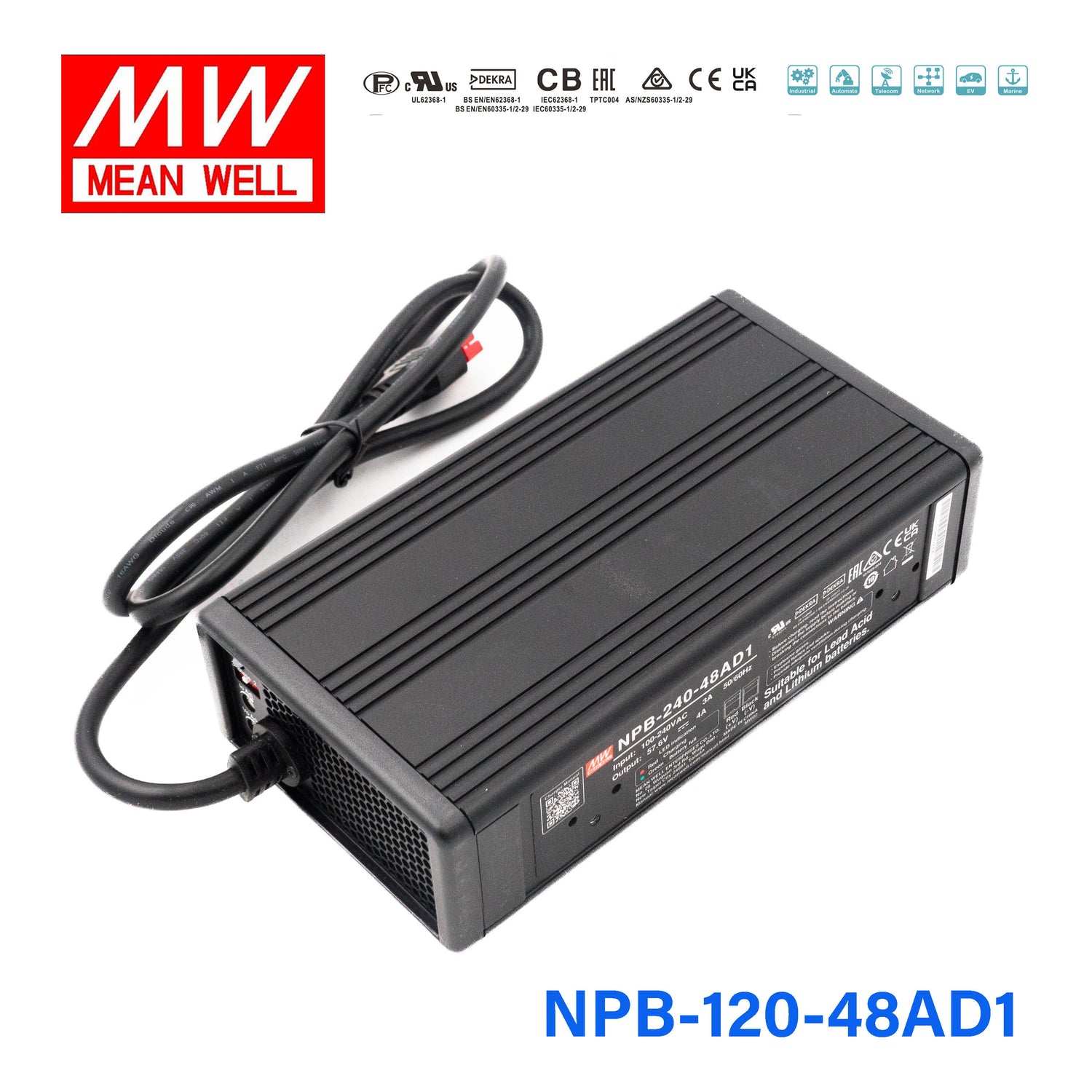

Mean Well NPB-120-48AD1 Battery Charger 120W 48V Anderson Connector 2A

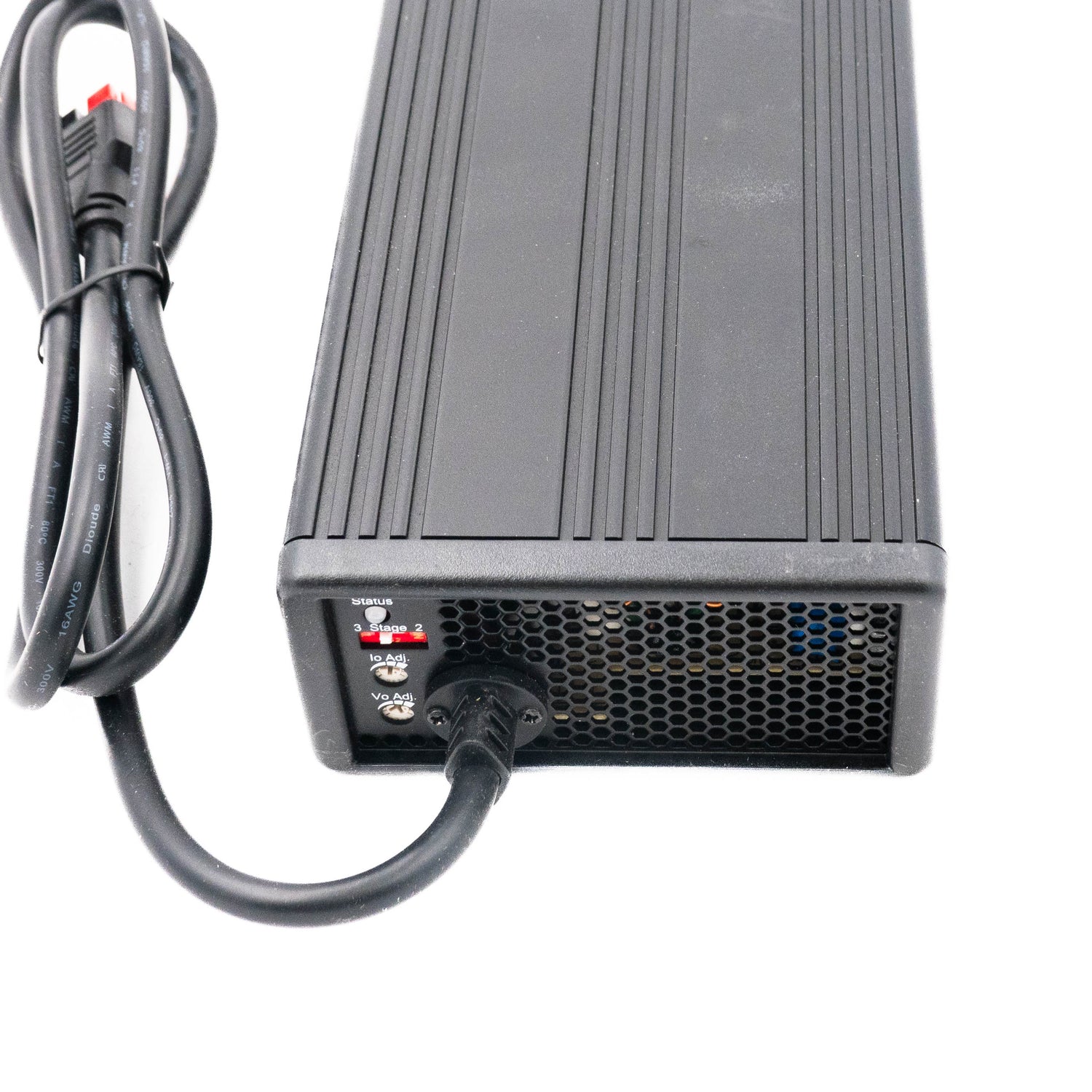

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-120-48AD1

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-120 is a 120W Mean Well DIN rail power converter with a 180mm profile (input range: 90~264VAC).

Key Features

✓ 180mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NPB-120-48AD1 designed for?

The NPB-120-48AD1 is an AC-DC battery charger intended for 48V battery charging applications where a compact 120W charger is needed. This model provides a 57.6V DC output at 2A and includes power factor correction for AC-powered use.

What are the key output specifications of the NPB-120-48AD1?

This model is rated at 120W with a DC output of 57.6V and a rated current of 2A. Those specifications make it suited to lower-current 48V charging tasks where a controlled charger output is required.

Does this charger use an Anderson connector?

Yes. The NPB-120-48AD1 version listed here is specified with an Anderson connector. That makes it relevant for buyers who need this connector style as part of their charger selection criteria.

What charging method does the NPB-120-48AD1 support?

According to the product specification, this charger supports 2-stage or 3-stage charging. That gives buyers a model intended for battery charging use rather than a basic fixed-output power supply only.

Can the NPB-120-48AD1 operate in demanding temperature conditions?

Yes. The specified operating temperature range is -30°C to 70°C, which is broad for industrial and commercial environments. Buyers should still confirm the surrounding equipment and enclosure conditions match their application requirements.

How portable is the Mean Well NPB-120-48AD1?

This charger weighs 1.3 kg, which keeps it relatively manageable for portable or field-use battery charging setups compared with larger industrial chargers. It is also grouped in portable battery charger categories in the supplied product data.

What warranty is provided for this model?

The listed warranty period for the NPB-120-48AD1 is 3 years. That can be useful for B2B buyers comparing lifecycle support across charger options in the same power class.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-120-12TB Battery Charger 120W 12V with Terminal Block 6.8A	120W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-120-48XLR Battery Charger 120W 48V 3 Pin Power Pin 2A	120W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-120-48TB Battery Charger 120W 48V Terminal Block 2A	120W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-120-24XLR Battery Charger 120W 24V 3 Pin Power Pin 4A	120W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-120-24TB Battery Charger 120W 24V Terminal Block 4A	120W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-120-24AD1 Battery Charger 120W 24V Anderson Connector 4A	120W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-120-12XLR Battery Charger 120W 12V 3 Pin Power Pin 6.8A	120W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-120-12AD1 Battery Charger 120W 12V with Anderson Connector 6.8A	120W	Lithium and Lead Acid Battery	14.4V	—	View
