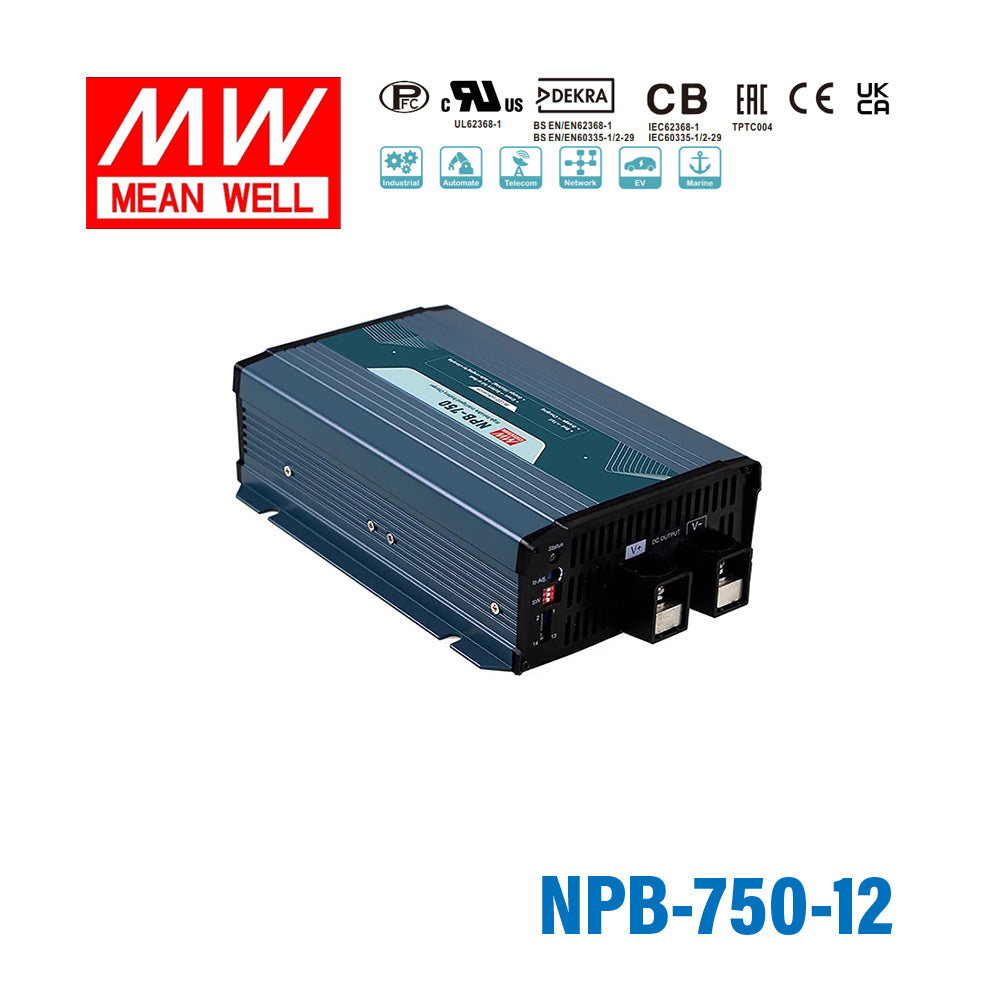

Mean Well NPB-750-12 Battery Charger 722.4W 12V - Suitable for Lead-acid and Li-ion
Notify me when it's back in stock
Mean Well NPB-750-12 Battery Charger 722.4W 12V - Suitable for Lead...
Please Login for Pricing
Description
Description
The NPB-750 is a 750W Mean Well power converter (input range: 10.5~21V, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 10.5~21V
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity / Under voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EN/EN62368-1, Standard BS EN/EN60335-1/2-29 , UL62368-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNPB Series
-
Power Rating750 Watt
-
Output Voltage14.4 Volt
-
Rated Current43 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length23 cm
-
Width15.8 cm
-
Height6.7 cm
-
Weight1.84 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What battery types is the Mean Well NPB-750-12 designed to charge?
The NPB-750-12 is suitable for both lead-acid and Li-ion batteries. This model also supports selectable default charging curves and 2-stage or 3-stage charging, which helps it fit different battery charging profiles.
What are the main output specifications of the NPB-750-12?
This charger is rated at 750W with a nominal output voltage of 14.4V and a rated current of 43A. It is intended for high-power 12V battery charging applications where strong output capacity is required.
Is the NPB-750-12 a good fit for industrial or commercial battery charging applications?
Yes. The NPB-750-12 is built as an intelligent, highly reliable general-purpose charger with programmable charging settings and built-in CANbus support, making it suitable for demanding commercial and industrial use cases.
What makes the NPB-750-12 different from a basic 12V battery charger?
Compared with basic chargers, the NPB-750-12 offers adjustable charging current, selectable charging curves, programmable voltage/current/timeout settings through the SBP-001, and built-in CANbus protocol. It is designed for users who need more control and better integration in professional systems.
Can the charging current be adjusted on the Mean Well NPB-750-12?
Yes. The charging current can be adjusted from 50% to 100% of rated current through the panel, allowing the charger to better match battery capacity or application requirements. Its voltage, current, and timeout can also be programmed through the SBP-001.
Is the NPB-750-12 suitable for harsh temperature environments?
The charger is rated for operation from -30°C to +70°C, which supports use in a wide range of environments. It also includes a temperature-controlled low-noise fan and automatic derating under over-temperature conditions.
What certifications and warranty come with the NPB-750-12?
The NPB-750-12 complies with UL/EN 62368-1 and IEC/EN 62368-1/-2-29 dual certifications. It is backed by a 3-year warranty.
Other NPB-750 Models
2 other models| Model | Power | Battery Type | Battery Voltage | Charging Current | |
|---|---|---|---|---|---|
| Mean Well NPB-750-48 Battery Charger 759.4W 48V - Suitable for Lead-acid and Li-ion | 750W | Lithium and Lead Acid Battery | — | — | View |
| Mean Well NPB-750-24 Battery Charger 756W 24V - Suitable for Lead-acid and Li-ion | 750W | Lithium and Lead Acid Battery | — | — | View |
