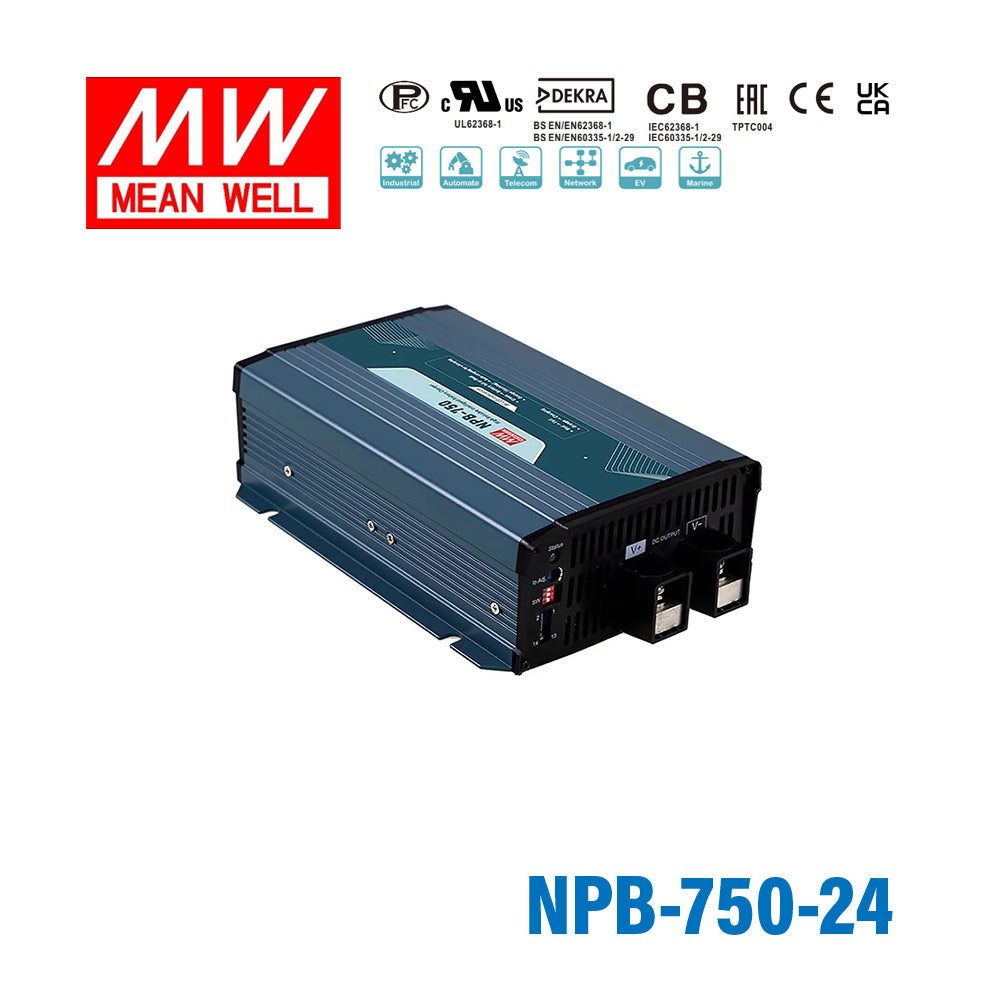

Mean Well NPB-750-24 Battery Charger 756W 24V - Suitable for Lead-acid and Li-ion

The NPB-750-24 is a 756W intelligent battery charger designed for 24V battery charging applications. It is suitable for both lead-acid and lithium battery types, making it a flexible option for commercial and industrial battery charging needs.

Yes. This model is specified as suitable for both lead-acid and lithium batteries, and it includes selectable default charging curves via the front panel DIP switch. That makes it useful where battery chemistry requirements may differ across equipment fleets.

This charger is rated at 756W with a nominal output voltage of 28.8V and a rated charging current of 22.5A. Those specifications place it in the high-power range for 24V battery charging applications that need substantial charging capacity.

Yes. The charging current can be adjusted from 50% to 100% of rated current from the panel, and charging voltage, charging current, and timeout can be programmed through the SBP-001 interface. It also supports selectable 2-stage or 3-stage charging modes and four default charging curves.

It is designed for harsh operating conditions, with a stated operating temperature range of -30°C to +70°C. The unit also uses a temperature-controlled low-noise fan and includes auto derating under over-temperature conditions to support reliability in demanding environments.

The NPB-750-24 includes built-in CANbus protocol support, which can be important for equipment or systems that require charger communication capability. It also supports programmable charging parameters through the SBP-001, giving buyers more control than a fixed-output charger.

This model complies with UL/EN 62368-1 and IEC/EN 62368-1/-2-29 dual certifications. It is backed by a 3-year warranty, which aligns with its positioning as a reliable industrial-grade charger.
