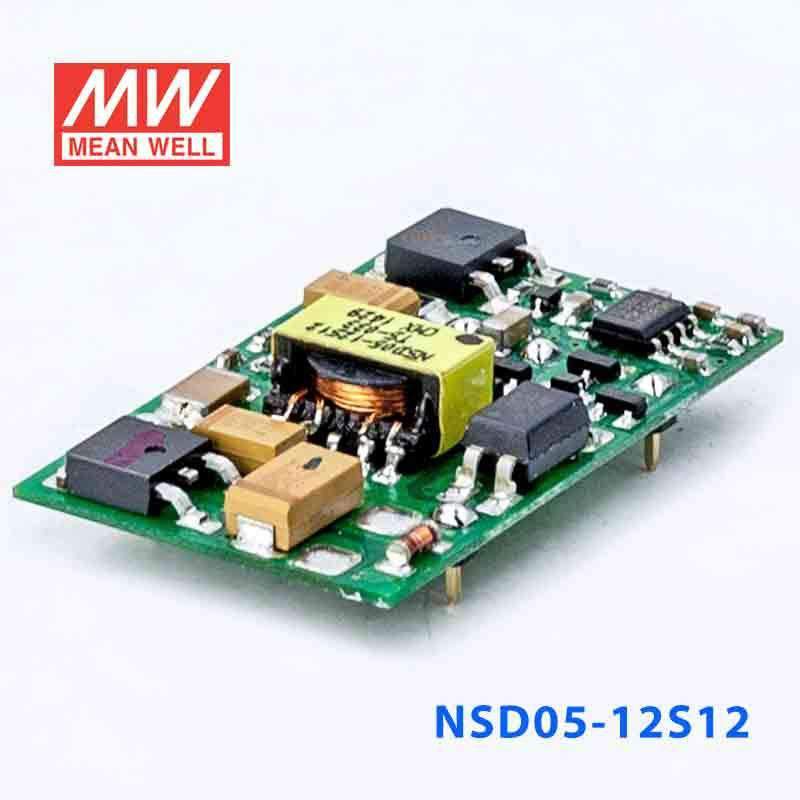

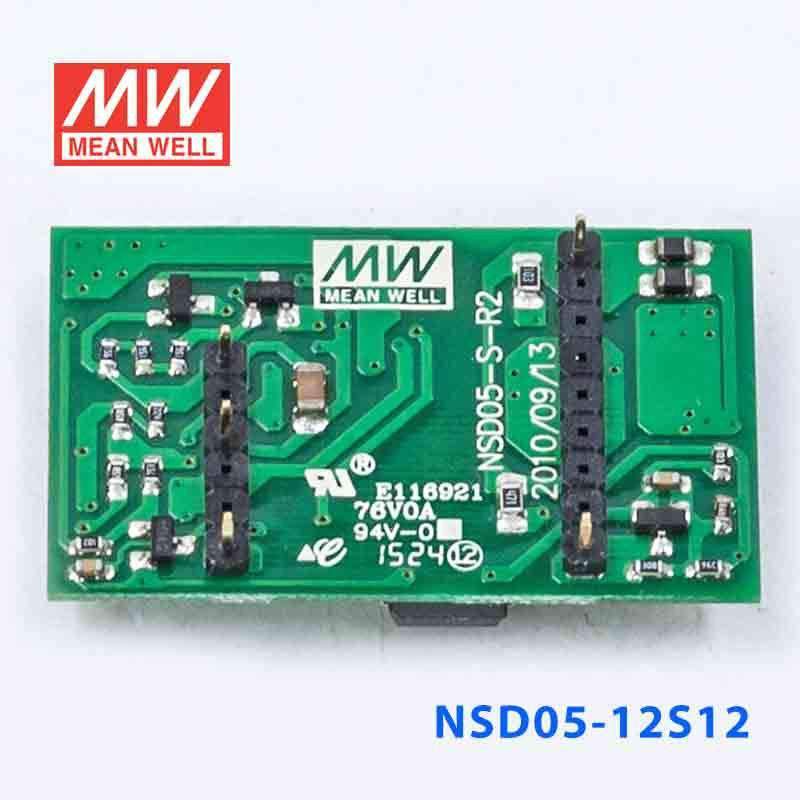

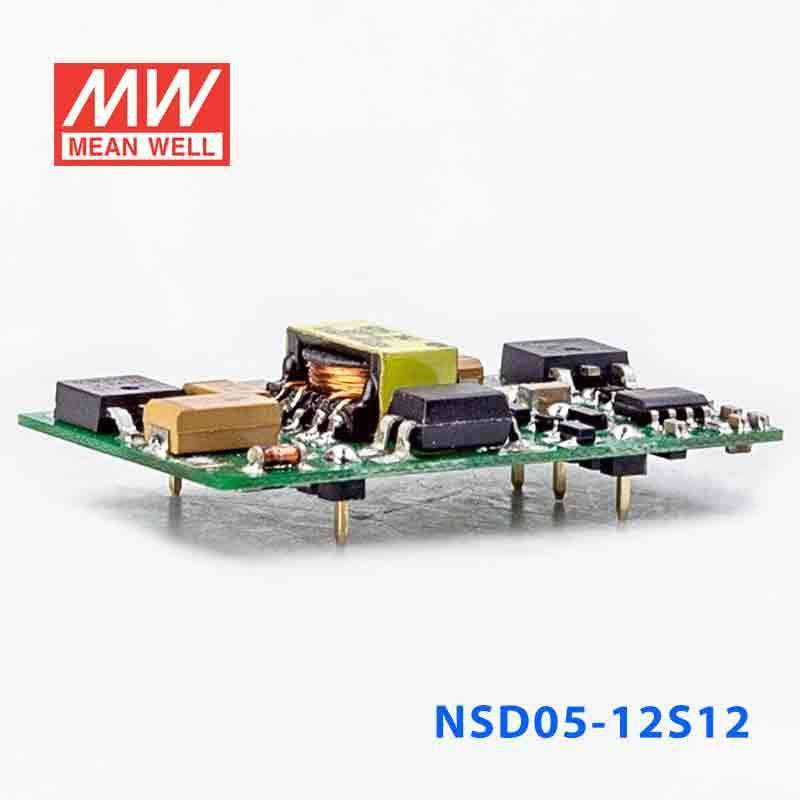

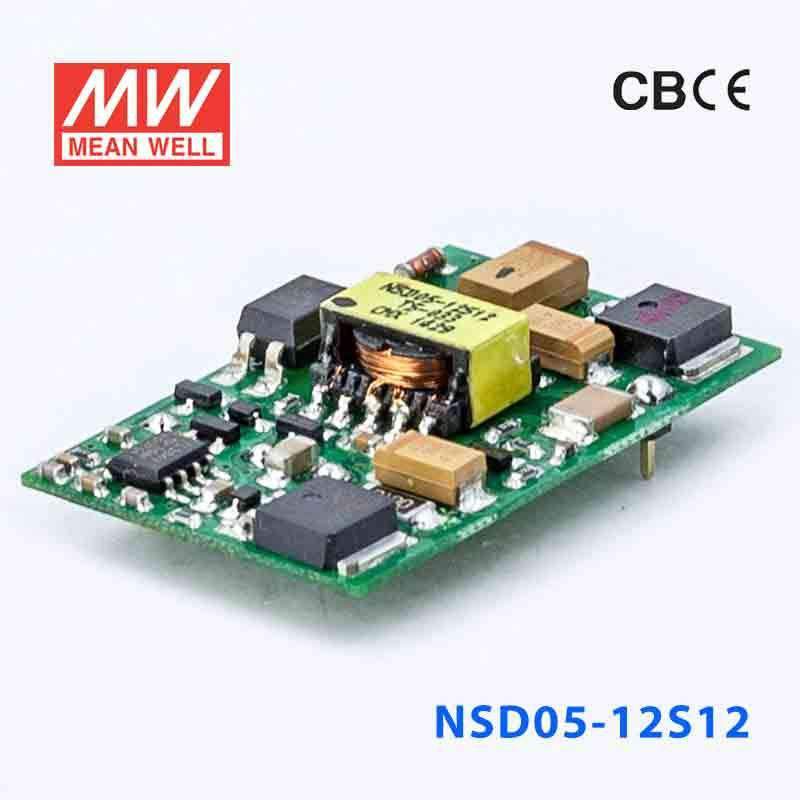

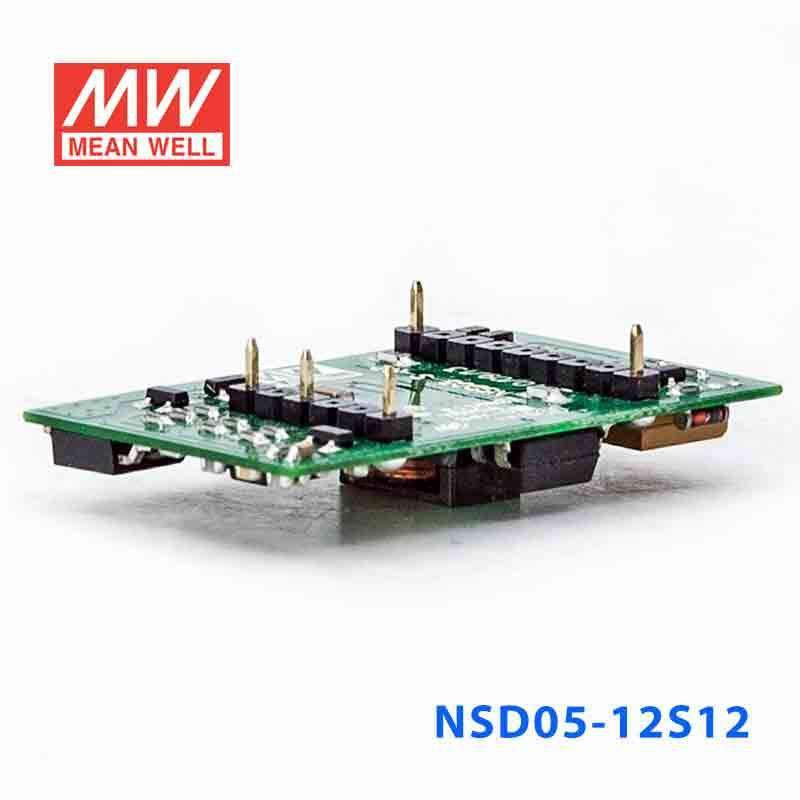

Mean Well NSD05-12S12 DC-DC Converter - 5.04W - 9.2~36V in 12V out 420mA

SKU:

NSD05-12S12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NSD05 is a 5W Mean Well power converter.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: EN62368-1,IEC62368-1 CB
✓ 3 years warranty

Frequently Asked Questions

Can I use the NSD05-12S12 in a 12V industrial control panel?

It is a constant-voltage DC-DC converter with a 12V output and 5.04W power, which fits low-power 12V control electronics. The 9.2~36V input range also suits systems that need to accept a wide DC supply window in industrial and automation equipment.

Is this converter suitable for embedded 12V auxiliary circuits inside automation equipment?

Yes, it is sized for low-power 12V auxiliary rails where a constant 12V output is required. Its compact 40.6 × 25.4 × 8.3 mm package and 0.007 kg weight make it easier to place in dense embedded or control assemblies.

Can this model be used for low-power 12V instrumentation or sensor power in a machine enclosure?

This model can fit low-power 12V instrumentation loads because it provides a regulated 12V constant-voltage output at 5.04W. It is better aligned with small electronics and interface circuits than with higher-power 12V loads.

How does the NSD05-12S12 compare with the other NSD05 series output options?

In the listed sibling range, NSD05-12S3 is 3.96W at 3.3V and 1.2A, NSD05-12S5 is 5W at 5V and 1A, and NSD05-12S15 is 4.95W at 15V and 333A. The related 48-series siblings are NSD05-48S3 at 3.96W and 3.3V/1.2A, NSD05-48S5 at 5W and 5V/1A, NSD05-48S12 at 5.04W and 12V/420A, and NSD05-48S15 at 4.95W and 15V/333A.

Is the NSD05-12S12 suitable for outdoor or harsh-environment use?

The published specs show an operating temperature range of -25°C to +70°C, so the temperature range supports use in a broad indoor equipment environment. No IP rating is listed in the provided specs, so outdoor exposure or washdown suitability is not specified by this data.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NSD05-48S5 DC-DC Converter - 5W - 18~72V in 5V out 1A	5W	5V	1A	Indoor	View
Mean Well NSD05-48S3 DC-DC Converter - 3.96W - 18~72V in 3.3V out 1.2A	3.96W	3.3V	1.2A	Indoor	View
Mean Well NSD05-48S15 DC-DC Converter - 4.95W - 18~72V in 15V out 333mA	4.95W	15V	0.33A	Indoor	View
Mean Well NSD05-48S12 DC-DC Converter - 5.04W - 18~72V in 12V out 420mA	5.04W	12V	0.42A	Indoor	View
Mean Well NSD05-12S5 DC-DC Converter - 5W - 9.2~36V in 5V out 1A	5W	5V	1A	Indoor	View
Mean Well NSD05-12S3 DC-DC Converter - 3.96W - 9.2~36V in 3.3V out 1.2A	3.96W	3.3V	1.2A	Indoor	View
Mean Well NSD05-12S15 DC-DC Converter - 4.95W - 9.2~36V in 15V out 333mA	4.95W	15V	0.33A	Indoor	View
