Can I use the NSD05-12S15 for a 15V analog or measurement circuit in industrial equipment?

It can fit low-power 15V analog or measurement circuits because it provides a constant 15V output at 4.95W. The 9.2~36V input range is also useful where the upstream supply can vary within that window.

Is this a good fit for embedded 15V support power inside automation hardware?

Yes, for low-power embedded 15V support rails, this model matches that use case with a regulated 15V constant-voltage output. Its 40.6 × 25.4 × 8.3 mm size and 0.007 kg weight help when board area and enclosure space are limited.

Can the NSD05-12S15 be used for low-power 15V interfaces in control cabinets?

It is appropriate for low-power 15V interface or support circuits that need a fixed 15V rail rather than a variable output. With 4.95W output capacity, it is better suited to lighter-duty electronics than to larger 15V loads.

What are the main differences between the NSD05-12S15 and the other NSD05 siblings?

Among the listed siblings, NSD05-12S3 is 3.96W at 3.3V and 1.2A, NSD05-12S5 is 5W at 5V and 1A, and NSD05-12S12 is 5.04W at 12V and 420A. The related 48-series models are NSD05-48S3 at 3.96W and 3.3V/1.2A, NSD05-48S5 at 5W and 5V/1A, NSD05-48S12 at 5.04W and 12V/420A, and NSD05-48S15 at 4.95W and 15V/333A.

Can this converter be used in cold or hot enclosed equipment spaces?

The specified operating temperature range is -25°C to +70°C, which supports use across a wide temperature span for enclosed equipment. The provided specs do not list an IP rating, so environmental sealing for outdoor exposure is not defined here.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

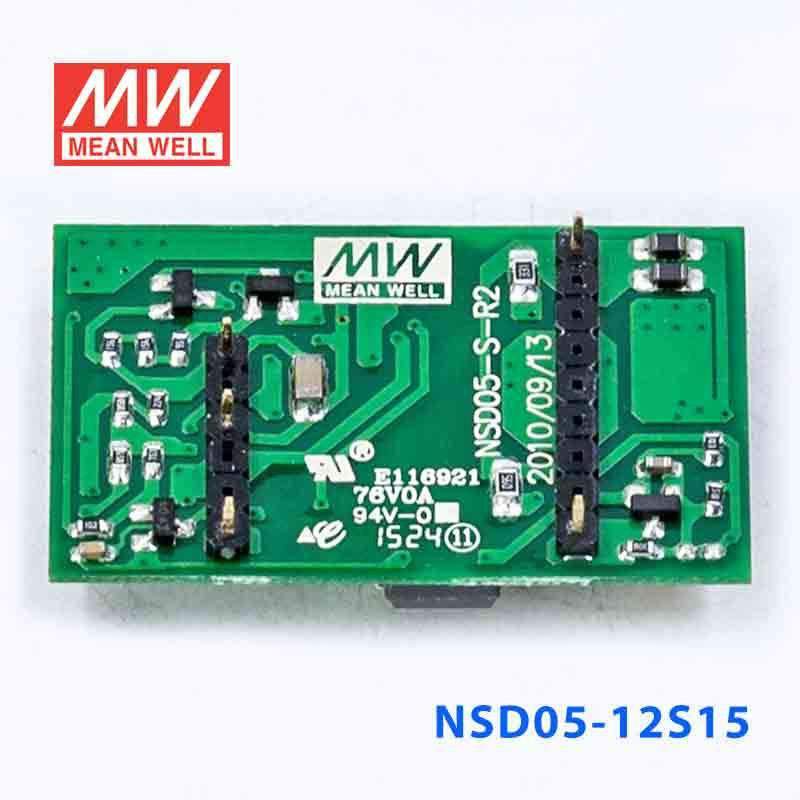

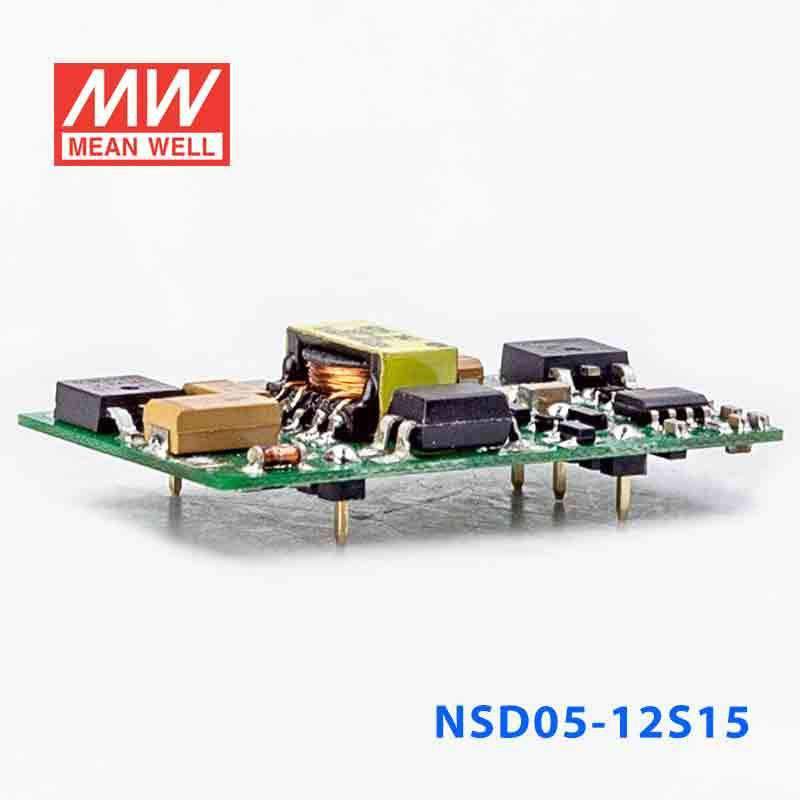

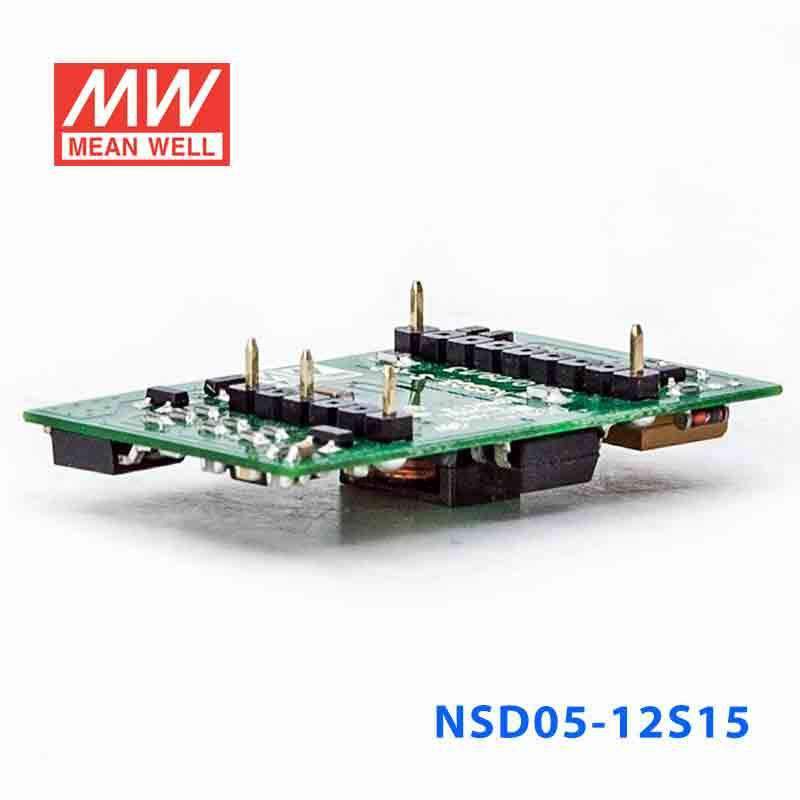

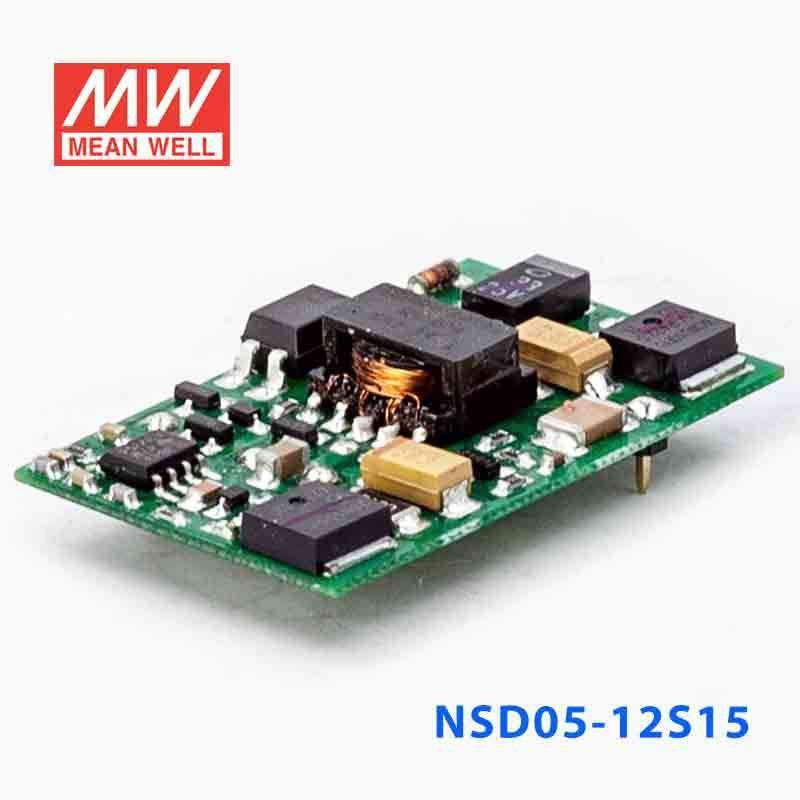

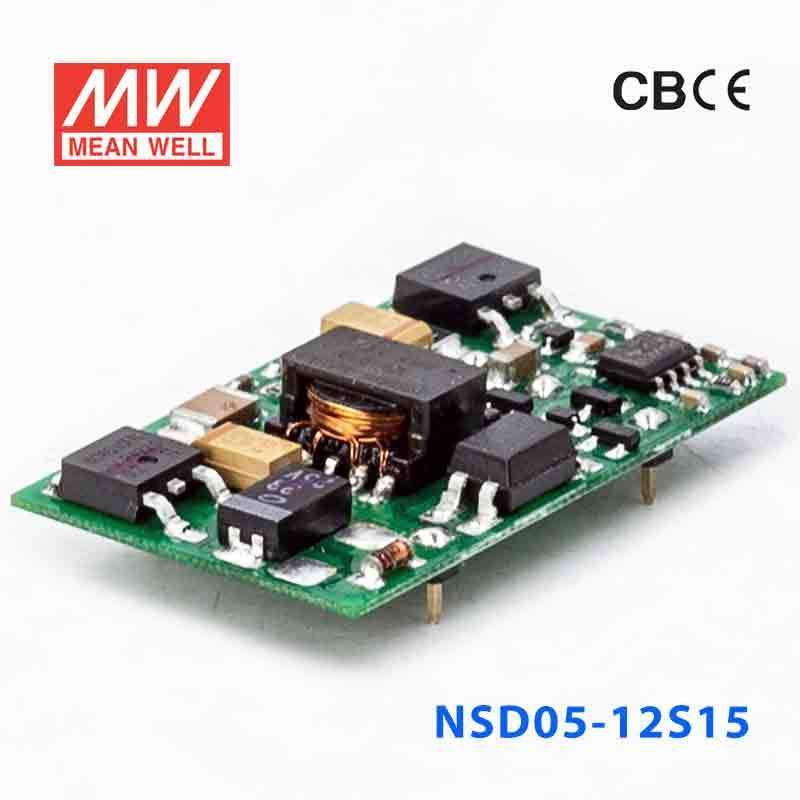

Mean Well NSD05-12S15 DC-DC Converter - 4.95W - 9.2~36V in 15V out 333mA

SKU:

NSD05-12S15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NSD05 is a 5W Mean Well power converter.

Key Features

✓ 1KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: EN62368-1,IEC62368-1 CB
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NSD05-48S5 DC-DC Converter - 5W - 18~72V in 5V out 1A	5W	5V	1A	Indoor	View
Mean Well NSD05-48S3 DC-DC Converter - 3.96W - 18~72V in 3.3V out 1.2A	3.96W	3.3V	1.2A	Indoor	View
Mean Well NSD05-48S15 DC-DC Converter - 4.95W - 18~72V in 15V out 333mA	4.95W	15V	0.33A	Indoor	View
Mean Well NSD05-48S12 DC-DC Converter - 5.04W - 18~72V in 12V out 420mA	5.04W	12V	0.42A	Indoor	View
Mean Well NSD05-12S5 DC-DC Converter - 5W - 9.2~36V in 5V out 1A	5W	5V	1A	Indoor	View
Mean Well NSD05-12S3 DC-DC Converter - 3.96W - 9.2~36V in 3.3V out 1.2A	3.96W	3.3V	1.2A	Indoor	View
Mean Well NSD05-12S12 DC-DC Converter - 5.04W - 9.2~36V in 12V out 420mA	5.04W	12V	0.42A	Indoor	View
