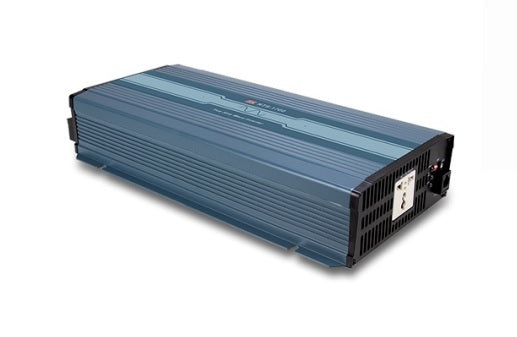

Mean Well NTS-1700-212AU True Sine Wave DC-AC Inverter 1700W 230V out 12V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU NTS-1700-212AU

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTS-1700-212AU is the model of this series: typical efficiency 89%.

NTS-1700 is a 1700W highly reliable off-grid true sine wave DC-AC power inverter. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 3400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTS-1700 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

True sine wave output (THD<3%)
High surge power up to 3400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
No load dissipation <1.5W at standby saving mode
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections : Input : Reverse polarity / DC low alarm / DC low shutdown / Over voltage Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller (IRC1, IRC2, IRC3 accessory sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1 )
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTS-1700-212AUSpecifications from the official datasheet (2024-10-30 edition)

AC OUTPUT

RATED POWER(Continuous): 1700W
OVER RATED POWER(3 Min.): 2000W
PEAK POWER(10 Sec.): 2550W
SURGE POWER(30 Cycles): 3400W
AC VOLTAGE: Default setting set at 230VAC 200 / 220 / 230 / 240Vac selectable by DIP S.W
FREQUENCY: Default setting set at 50±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage

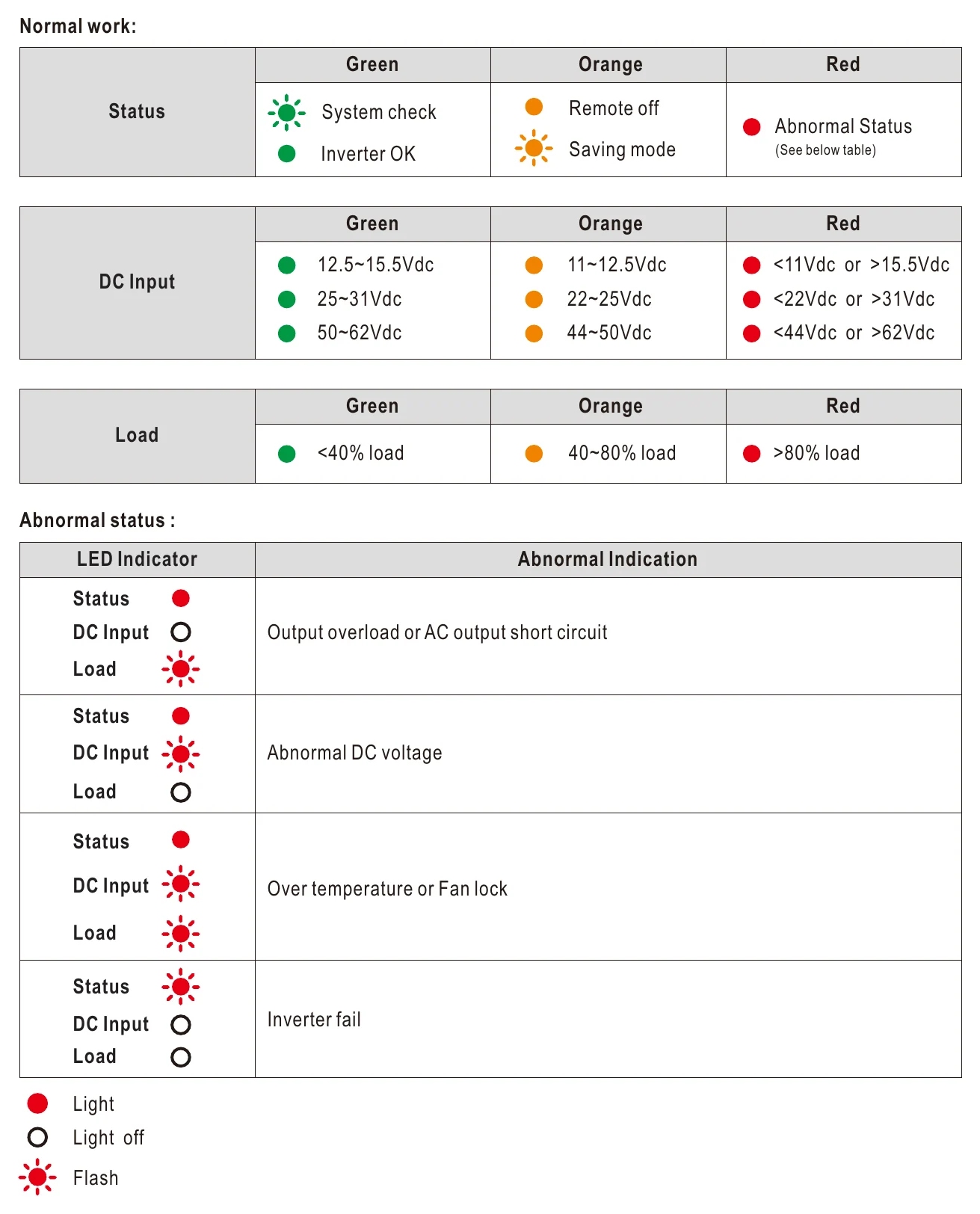

FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 12Vdc
VOLTAGE RANGE (Typ.): 10 ~ 16.5Vdc
DC CURRENT (Typ.): 170A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, ≦1.2W ~1.5W by models @ auto detect AC output load≦10W will be changed to saving mode
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: 1.2W
OFF MODE CURRENT DRAW: ≦1mA
EFFICIENCY (Typ.)^Note.1: 89%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 40A*6
LOW ALARM: 11±0.3Vdc
LOW SHUTDOWN: 10±0.3Vdc
LOW RESTART: 12.5±0.3Vdc
HIGH ALARM: 15.5±0.3Vdc
HIGH SHUTDOWN: 16.5±0.3Vdc
HIGH RESTART: 15±0.3Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER (ONLY FOR “GFCI”AC SOCKET): 10A
GFCI PROCTECTION: None

FUNCTION

REMOTE CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
REMOTE ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to “Derating curve”)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC O/P:3.0KVac AC O/P - FG:1.5KVac
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY: BS EN/ EN55024, BS EN/ EN55035

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 2, 3V/m
Magnetic Field BS EN/ EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only(expect for Type-UN)	Class A
Radiated	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 2, 3V/m
Magnetic Field	BS EN/ EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 475.5K hrs min. Telcordia TR/SR-332 (Bellcore) ; 46.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 400*184*70mm (L*W*H)
PACKING: 4.63Kg; 2pcs/ 12Kg/ 1.76CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 1350W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 16W, 212/224/248 for 29W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

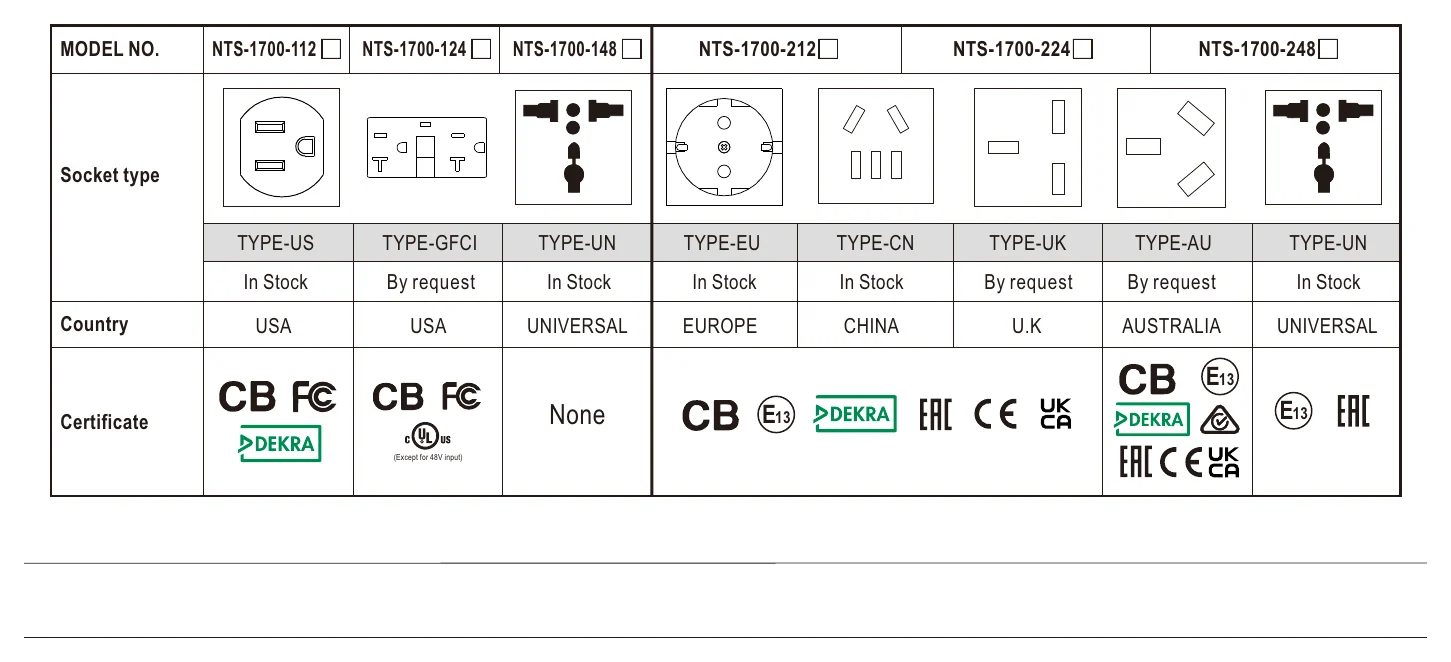

NTS-1700-212AU AC Output Socket — AC Output Socket

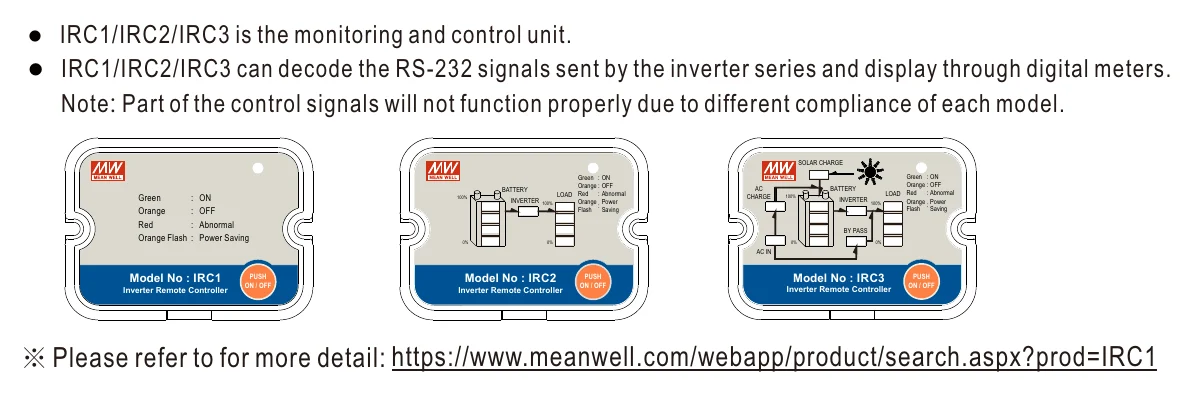

NTS-1700-212AU IRC1/2/3 Remote Controller (Accessory — IRC1/2/3 Remote Controller (Accessory

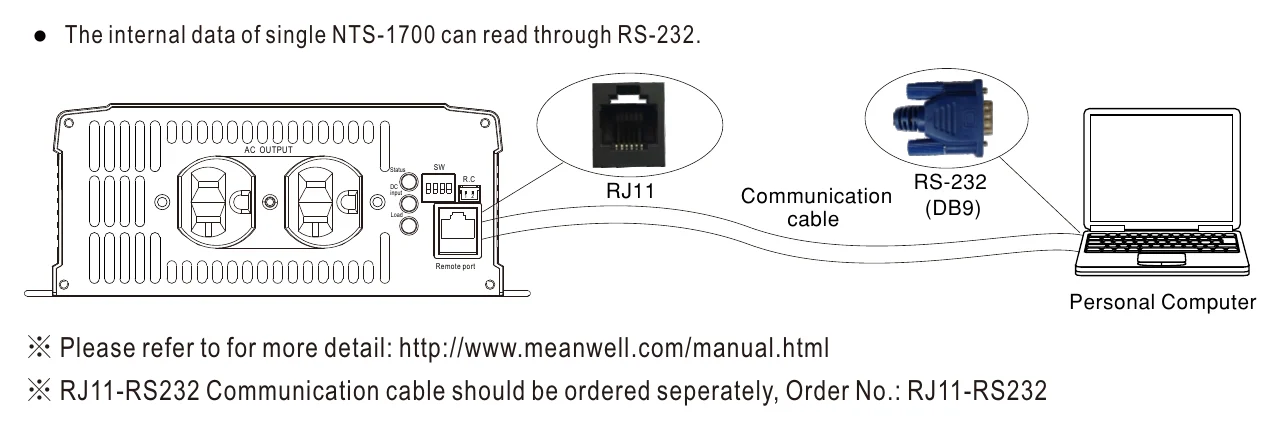

NTS-1700-212AU Support RS-232 Communication — Support RS-232 Communication

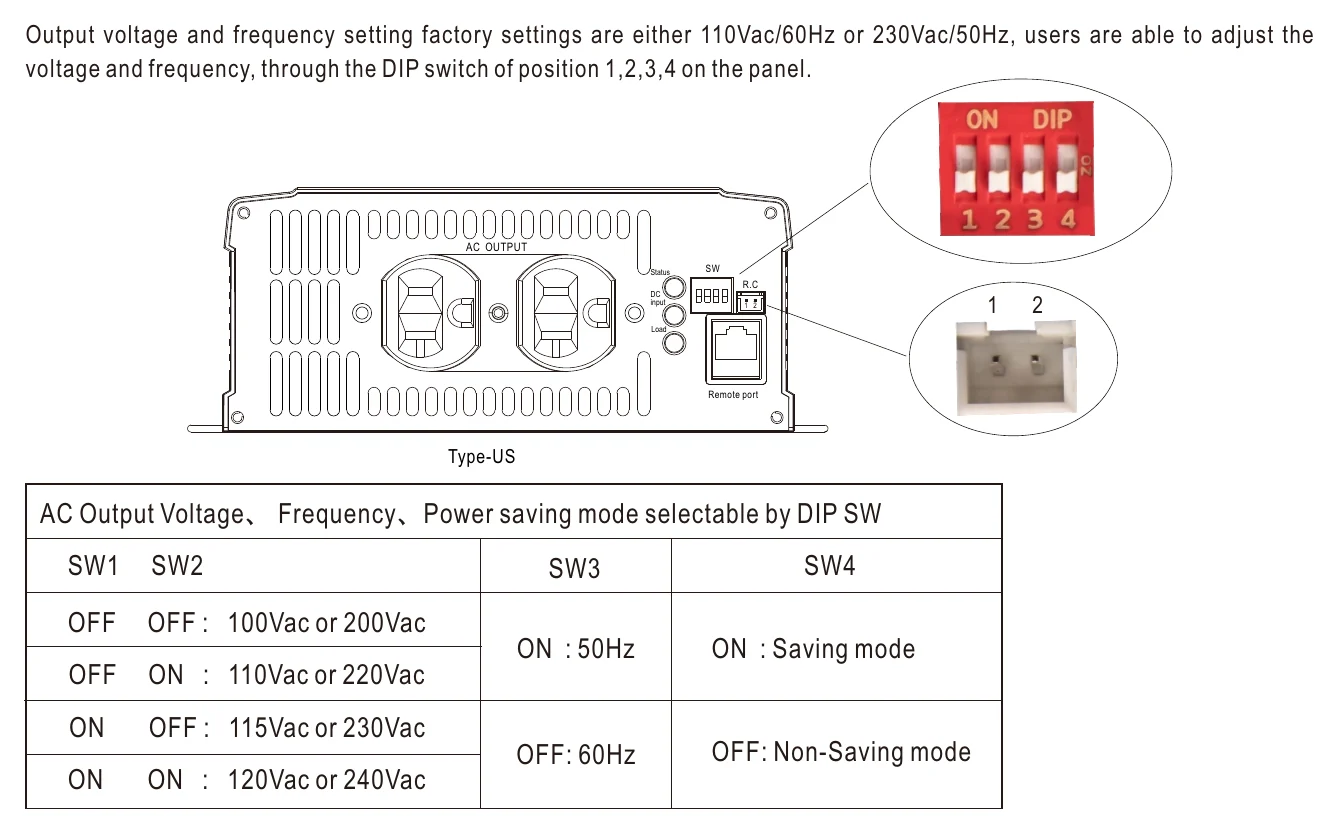

NTS-1700-212AU AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

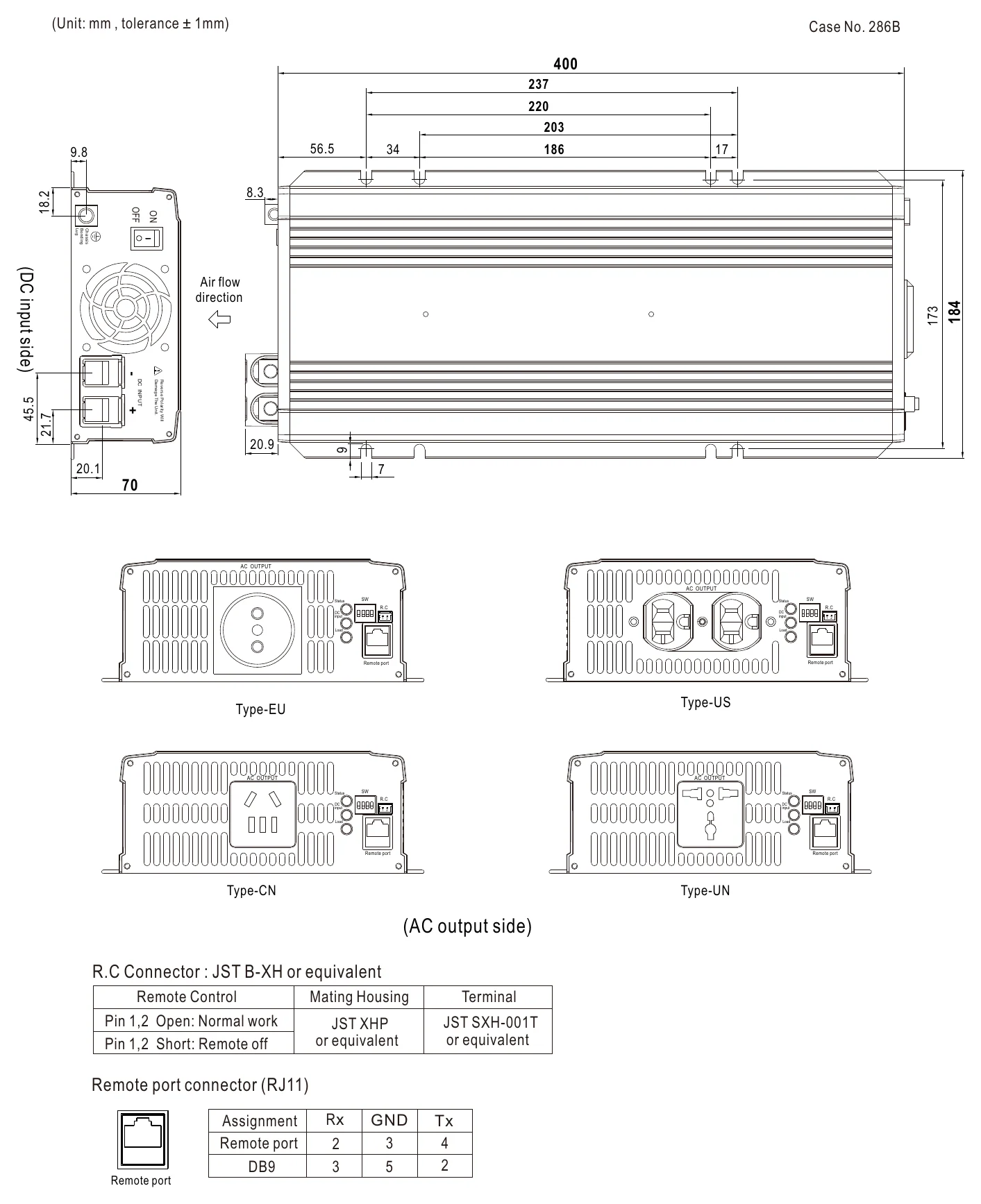

NTS-1700-212AU MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

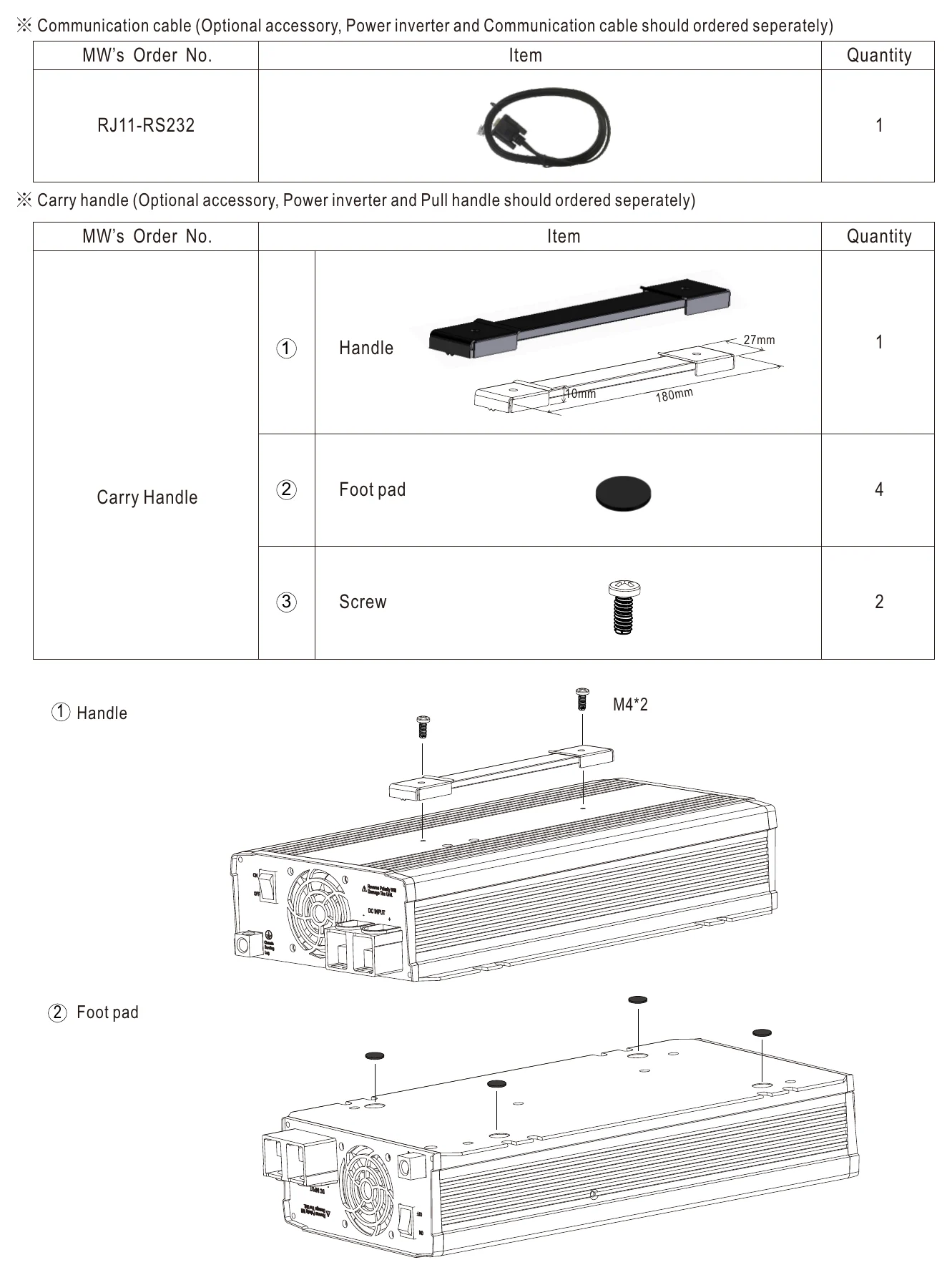

NTS-1700-212AU Accessory List — Accessory List

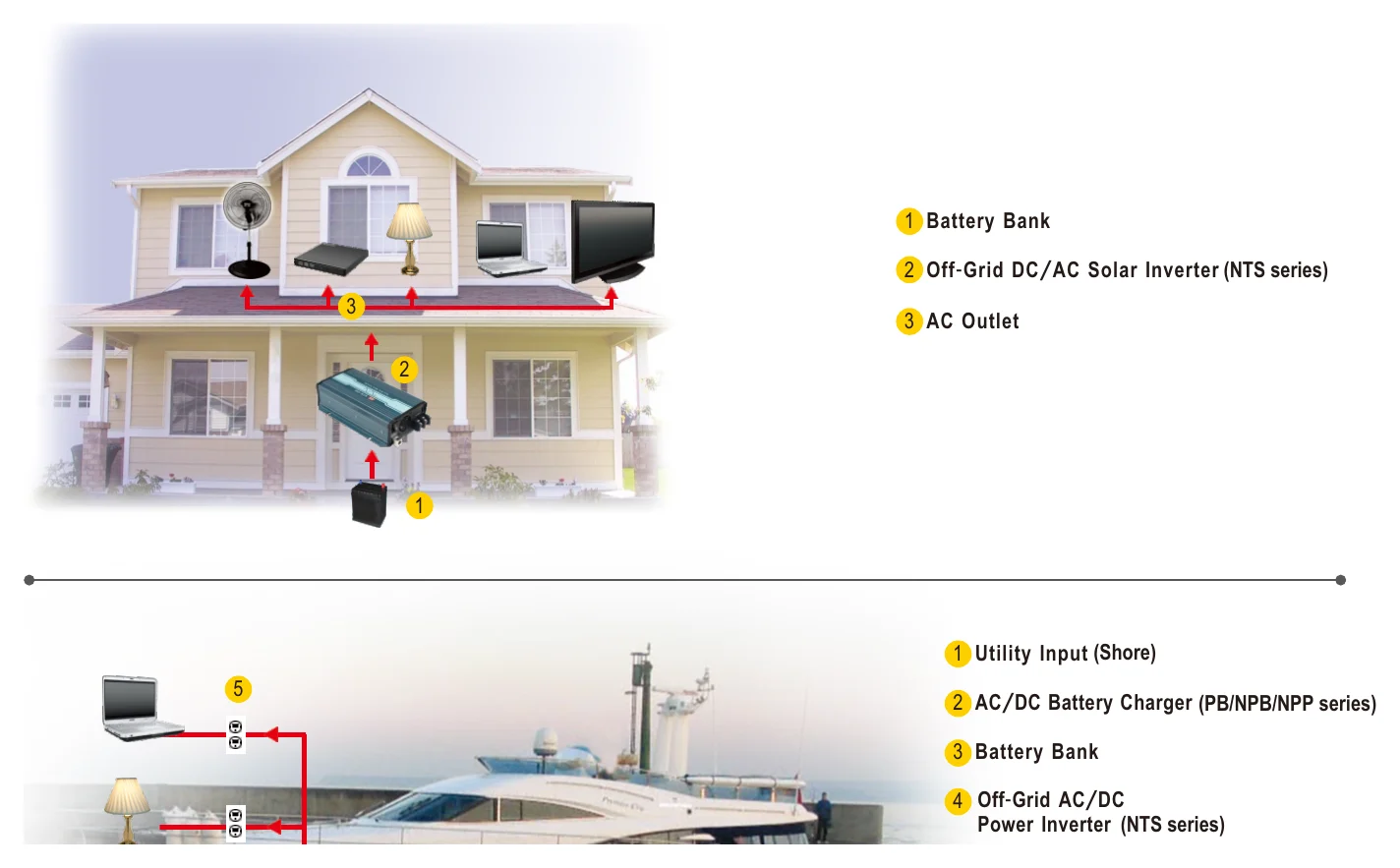

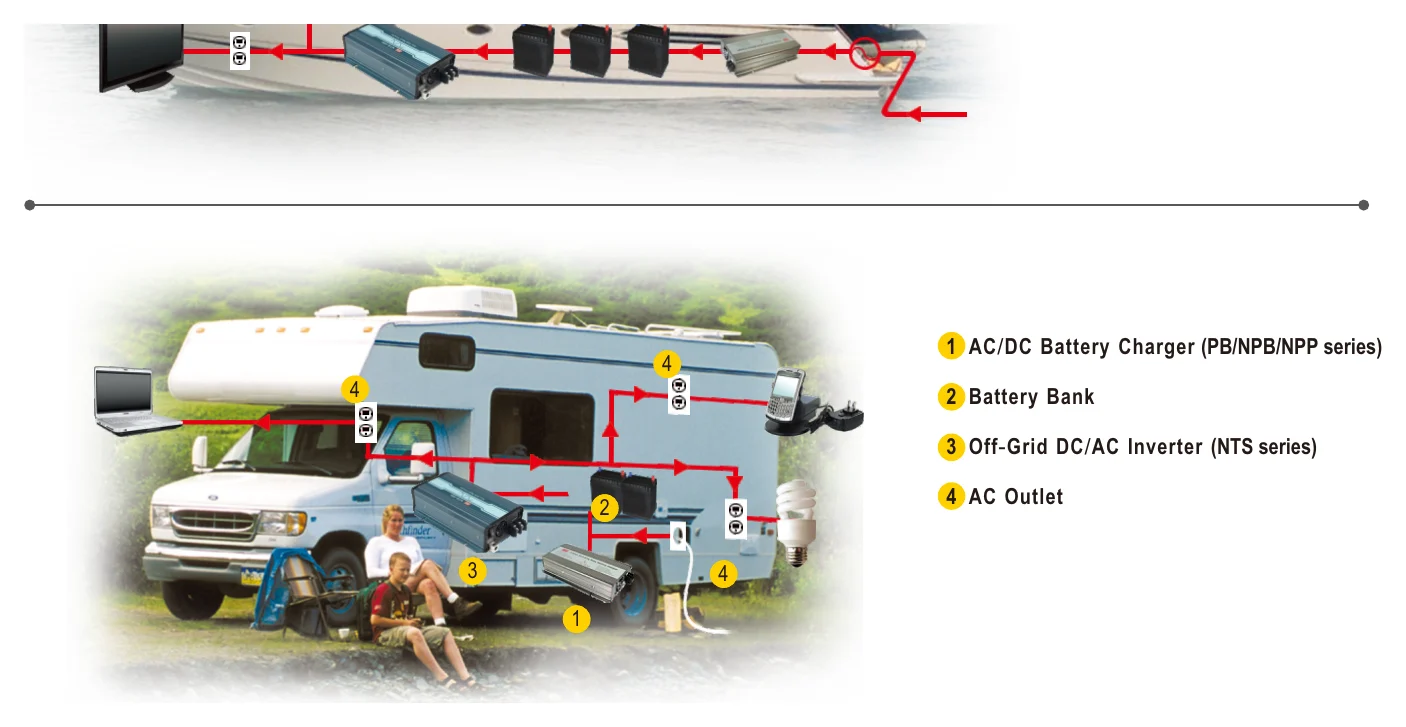

NTS-1700-212AU TYPICALTYPICAL APPLICATIONAPPLICATION — TYPICALTYPICAL APPLICATIONAPPLICATION

Typical applications

Downloads

Certificates7

Mean Well NTU-NTS-1700-2xx-E13 Certificate PDF Download

Mean Well NTU-NTS-1700-FCC Certificate PDF Download

Mean Well NTU-NTS-1700-EMC Certificate PDF Download

Mean Well NTS-NTU-1700-CB Certificate PDF Download

Mean Well NTS-NTU-1700-DEKRA MarK Certificate PDF Download

Mean Well NTS-NTU-1700-CE-dec Certificate PDF Download

Mean Well NTS-NTU-1700-UK-dec Certificate PDF Download

Test reports1

Mean Well NTS-1700-248 Test Report PDF Download

FAQ

What is the Mean Well NTS-1700-212AU designed for?

The NTS-1700-212AU is a 1700W true sine wave DC-AC inverter for converting 12V DC input to 230V AC output. It is suited to professional and mobile power applications where clean AC output is important for sensitive equipment.

Does this inverter produce true sine wave output?

Yes. This model provides true sine wave output with total harmonic distortion below 3%, which makes it a better fit than modified sine wave units for equipment that requires stable, low-distortion AC power. The output voltage and frequency are selectable by DIP switch.

What output and surge capacity does this model offer?

The NTS-1700-212AU is rated for 1700W continuous output power. It also supports high surge power up to 3400W, which helps with loads that have a higher startup demand than their normal running load.

What battery types is the NTS-1700-212AU compatible with?

This inverter is suitable for use with lead-acid or lithium-ion battery systems on the DC input side. It also gives a low-voltage alarm at 11V and shuts down at 10V (restarting at 12.5V) to help protect the battery system.

Can this inverter be used in demanding temperature conditions?

Yes. The specified operating temperature range is -25°C to +70°C, with output derating at higher temperatures per Mean Well's derating curve, and the unit is cooled by a built-in fan. That makes it suitable for tougher industrial or vehicle-based environments, provided the overall application stays within the product's rated conditions.

What protection features are included in the NTS-1700-212AU?

This model includes protection for output short circuit, overload, over temperature and DC input high voltage, along with low-voltage shutdown for battery over-discharge protection. For overload behavior, the specification states 105-115% load for 180 seconds and 115-150% load for 10 seconds before protection operates.

Does this model support remote monitoring or remote control?

Yes. The NTS-1700-212AU supports power on-off remote control and has front panel indicators for operating status. It also supports RS-232 communication, while compatible remote controllers and communication cable are sold separately.

What approvals and physical size should buyers know about?

This inverter is approved to standards including IEC62368-1, EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1. Its dimensions are 400 x 184 x 70 mm and unit weight is 4.63 kg.
