Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

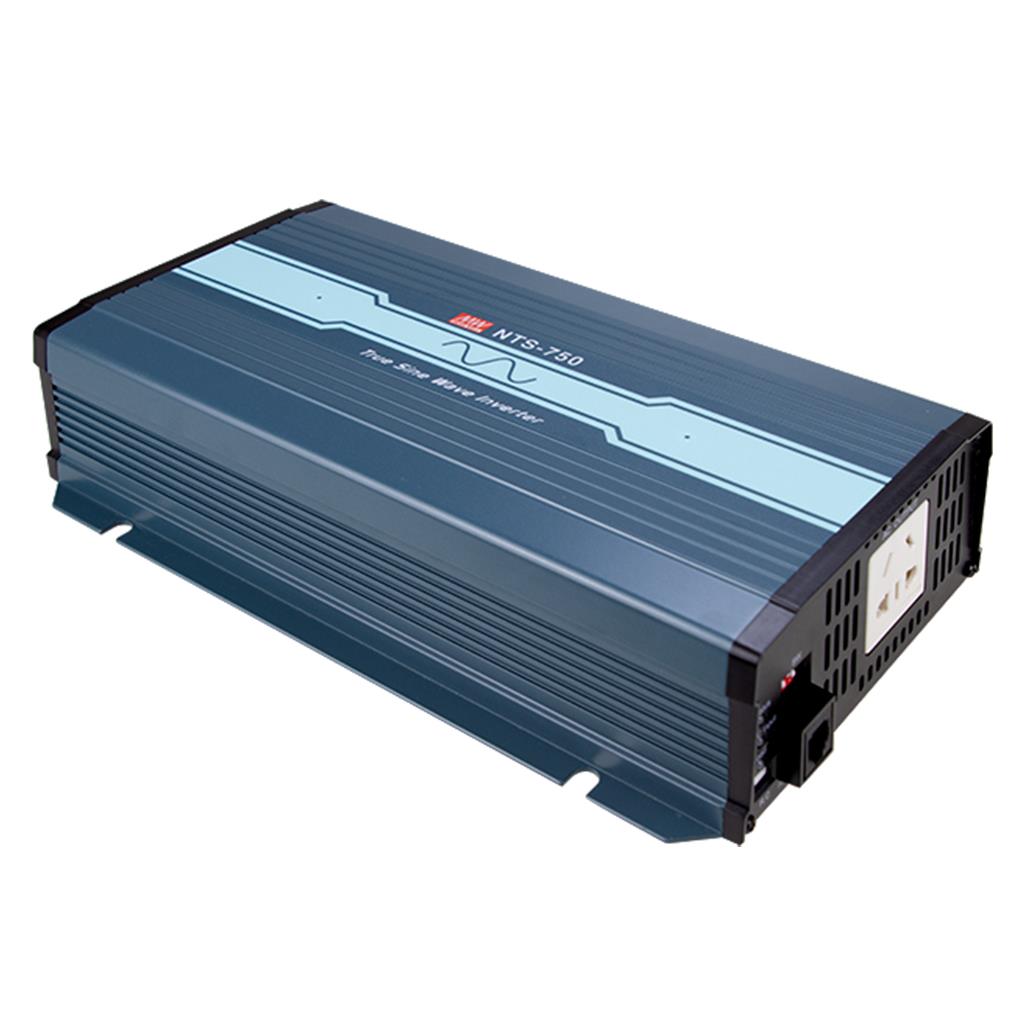

Mean Well NTS-750-212AU True Sine Wave DC-AC Inverter 750W 230V out 12V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU:

NTS-750-212AU

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NTS-750 is a 750W Mean Well power converter (input range: 10~16.5Vdc, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 10~16.5Vdc
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Overload / Over temperature
✓ Remote ON/OFF control
✓ Safety approvals: ℃ -25 ~ +70 20% ~ 90% RH non-condensing (Refer to “Derating curve”) -30 ~ +70 ℃ / -22 ~ +158 F, 10 ~ 95% RH non-condensing o 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NTS-750-212AU used for?

The NTS-750-212AU is a 750W true sine wave DC-AC inverter designed to convert 12V DC input into 230V AC output. It is suited to business and mobile power applications that need mains-style AC power from a 12V battery system.

Does this inverter produce a true sine wave output?

Yes. The NTS-750-212AU provides a true sine wave AC output with total harmonic distortion below 3%. That makes it a better fit for equipment that expects clean AC power compared with modified sine wave inverters.

What are the main electrical specifications of this model?

This model is rated for 750W continuous output and supports surge power up to 1500W. It uses a 12V DC input and this AU version is configured for 230V AC output, with output voltage and frequency selectable by DIP switch within the listed ranges.

Can the NTS-750-212AU work with different battery types?

Yes. Mean Well specifies this inverter as suitable for both lead-acid and lithium-ion battery systems. It also includes battery over-discharge protection through low voltage disconnect.

Is this inverter suitable for demanding temperature conditions?

Yes. The product is designed for wide-temperature operation, with a stated working range up to +70°C and low-temperature operation listed in the product specifications. It also uses a temperature-controlled cooling fan to help manage thermal performance.

What protection features are included in the NTS-750-212AU?

This inverter includes protection for short circuit, overload, over voltage, and battery over-discharge. It also has over-temperature shutdown behavior and a front panel status indicator for operating condition monitoring.

Does this model support remote operation or accessories?

Yes. The NTS-750-212AU supports power on-off remote control. Mean Well also lists compatible remote controller accessories such as the IRC1, IRC2, and IRC3, plus an optional carry handle sold separately.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Waveform	Frequency
Mean Well NTS-750-224AU True Sine Wave DC-AC Inverter 750W 230V out 24V in with AU Socket	750W	230V	True Sine Wave	50Hz	View
Mean Well NTS-750-248AU True Sine Wave DC-AC Inverter 750W 230V out 48V in with AU Socket	750W	230V	True Sine Wave	50Hz	View
