Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

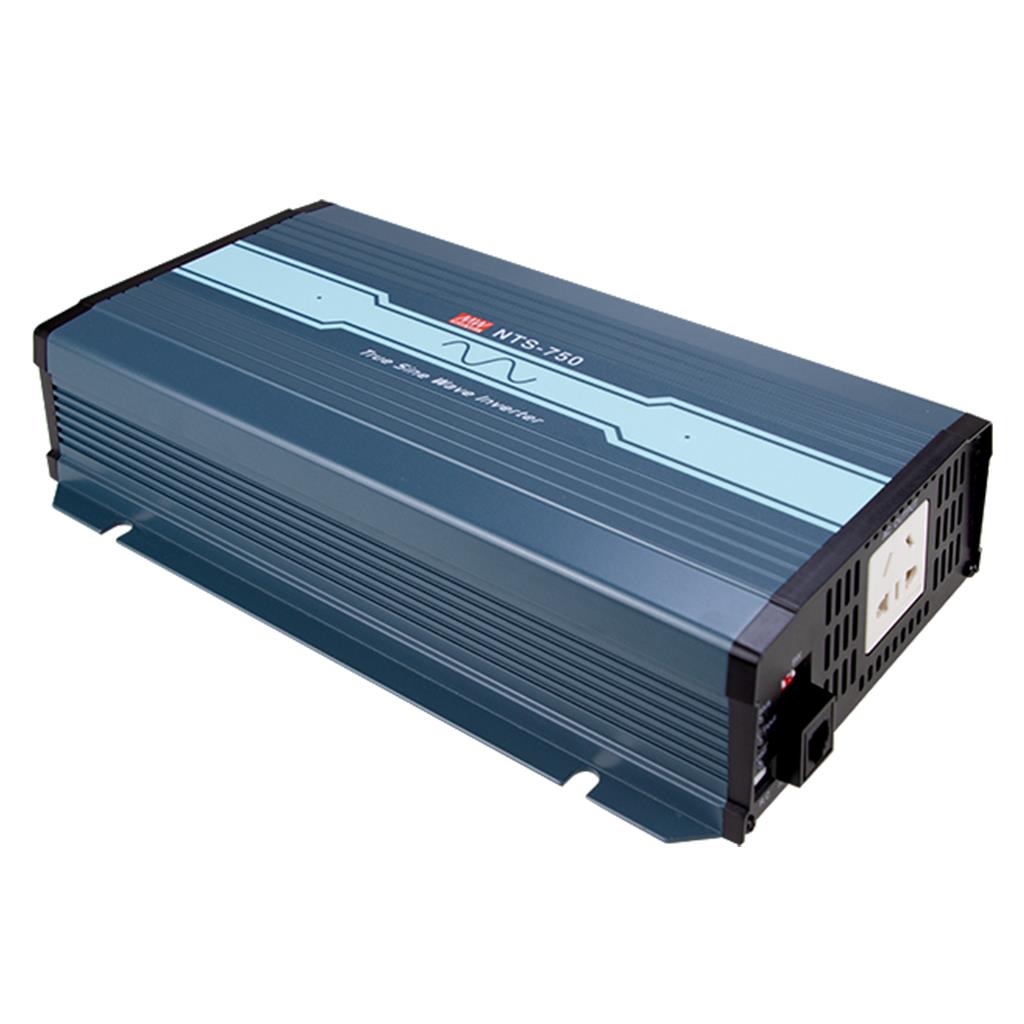

Mean Well NTS-750-248AU True Sine Wave DC-AC Inverter 750W 230V out 48V in with AU Socket

fanless designhigh efficiency up to 93%200% peak power capabilitybuilt-in dip switch to adjust AC output voltagefrequency and work mode

SKU:

NTS-750-248AU

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NTS-750 is a 750W Mean Well power converter (input range: 10~16.5Vdc, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 10~16.5Vdc
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Overload / Over temperature
✓ Remote ON/OFF control
✓ Safety approvals: ℃ -25 ~ +70 20% ~ 90% RH non-condensing (Refer to “Derating curve”) -30 ~ +70 ℃ / -22 ~ +158 F, 10 ~ 95% RH non-condensing o 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the main use case for the Mean Well NTS-750-248AU?

This model is a 750W true sine wave DC-AC inverter designed to convert 48V DC input into 230V AC output. It suits business and industrial applications where clean AC power is needed from a 48V battery-based system, such as mobile, backup, or off-grid equipment.

Does the NTS-750-248AU produce true sine wave output?

Yes. The NTS-750-248AU provides a true sine wave AC output with total harmonic distortion below 3%, which makes it suitable for equipment that needs cleaner power than a modified sine wave inverter can provide. This is one of the key differences that sets it apart for sensitive AC loads.

What are the key electrical specifications of this inverter?

This model is rated at 750W continuous output and supports surge power up to 1500W. It uses a 48V DC input and this AU version is configured for 230V AC output, with selectable AC output voltage options available by DIP switch within the product's supported range.

Is the NTS-750-248AU suitable for harsh operating environments?

It is designed for a wide operating temperature range and supports operation up to 70°C, with output derating applying at higher temperatures. The unit also includes conformal coating and a temperature-controlled cooling fan, which help it perform more reliably in demanding environments.

What protection features are included in the NTS-750-248AU?

The inverter includes protection for short circuit, overload, and over voltage conditions. It also has battery over-discharge protection through low voltage disconnect, helping protect the connected battery system during use.

Is this inverter compatible with different battery types and remote controls?

Yes. The NTS-750-248AU is specified as suitable for lead-acid and lithium-ion battery systems. It also supports optional remote controllers in the IRC1, IRC2, and IRC3 series, which are sold separately.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Waveform	Frequency
Mean Well NTS-750-224AU True Sine Wave DC-AC Inverter 750W 230V out 24V in with AU Socket	750W	230V	True Sine Wave	50Hz	View
Mean Well NTS-750-212AU True Sine Wave DC-AC Inverter 750W 230V out 12V in with AU Socket	750W	230V	True Sine Wave	50Hz	View
