Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

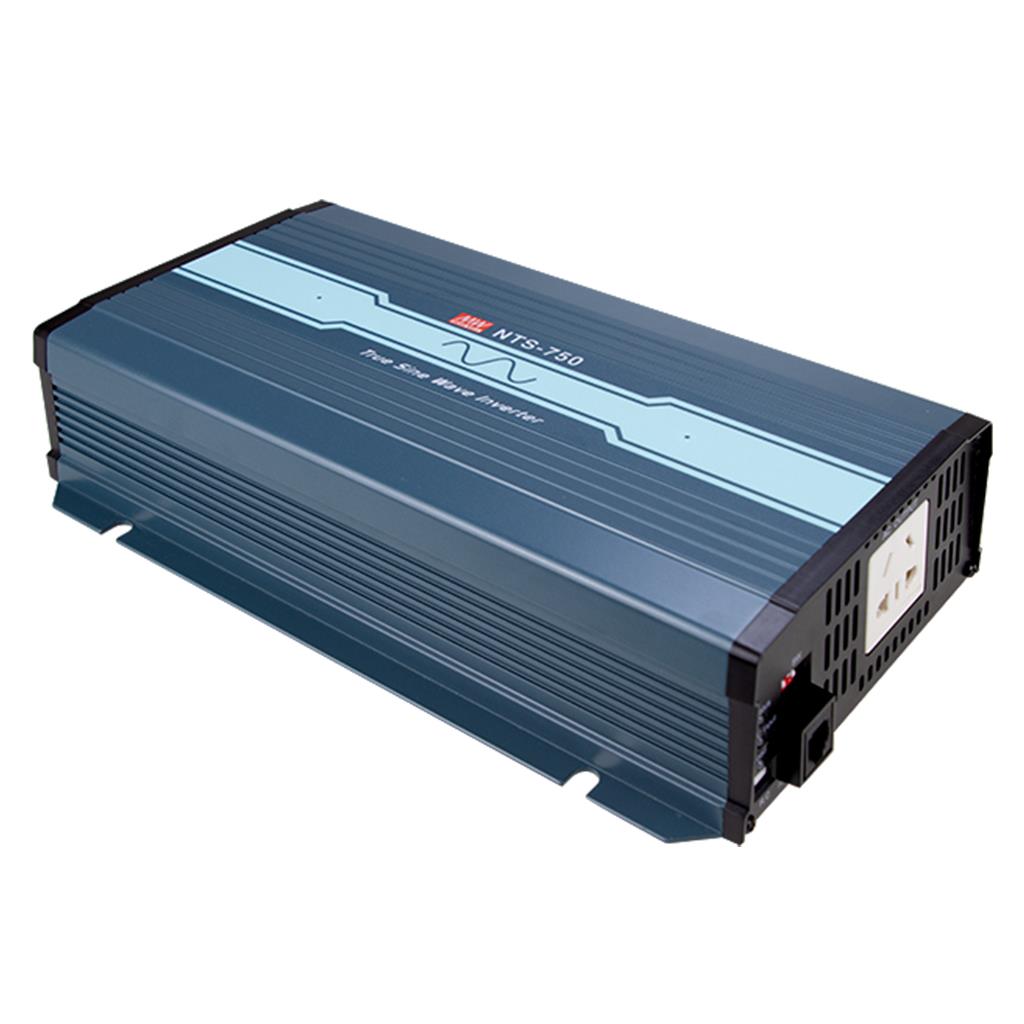

Mean Well NTS-750-212AU True Sine Wave DC-AC Inverter 750W 230V out 12V in with AU Socket

fanless design, high efficiency up to 93%, 200% peak power capability, built-in dip switch to adjust AC output voltage, frequency and work mode
SKU:
NTS-750-212AU
Please for Pricing
|

Description

Features

Compact size and lightweight
True sine wave output (THD<3%)
High surge power up to 1500W
Temperature-controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
No load disspation < 1.5W max. at standby saving mode
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections: Short circuit / Overload / Over voltage
Battery over-discharge protection(Low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller (IRC1, IRC2, IRC3 accessory sold separately
Carry handle accessory available(Order NO.: DS-Carry handle, sold separately
Conformal coating
3 years warranty

General Specification

AC output voltage range 100/110/115/120VAC;200/220/230/240VAC selectable by DIP S.W
AC output waveform True sine wave, THD<3.0%
Overload temperature Shut down o/p voltage, re-power on to recover(except 112/124GFCI); Shut down o/p voltage,recovers automatically after temperature goes down(for 112/124GFCI)
Overload 105~115% load for 180s, 115~150% load for 10s
Withstand voltage DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature -25~+70°C (refer to output derating curve )
Safety standards CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EAC TP TC 004 approved;Design refer to AS/NZS 62368.1
EMC standards EN55032 class A, BS En/EN61000-4-2,3,8
Dimension (LxWxH) 270x158x67mm
Packing 4pcs / 10.2Kg

Specifications
  • Brand
    Mean Well
  • Series
    NTS Series
  • Power Rating
    750 Watt
  • Output Voltage
    230 Volt
  • Input Voltage
    10V~16.5V
  • Standards Met
    CB,CE,cUL,E13,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    27 cm
  • Width
    15.8 cm
  • Height
    6.7 cm
  • Weight
    2.3 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Mean Well NTS-750-212AU used for?

The NTS-750-212AU is a 750W true sine wave DC-AC inverter designed to convert 12V DC input into 230V AC output. It is suited to business and mobile power applications that need mains-style AC power from a 12V battery system.

Does this inverter produce a true sine wave output?

Yes. The NTS-750-212AU provides a true sine wave AC output with total harmonic distortion below 3%. That makes it a better fit for equipment that expects clean AC power compared with modified sine wave inverters.

What are the main electrical specifications of this model?

This model is rated for 750W continuous output and supports surge power up to 1500W. It uses a 12V DC input and this AU version is configured for 230V AC output, with output voltage and frequency selectable by DIP switch within the listed ranges.

Can the NTS-750-212AU work with different battery types?

Yes. Mean Well specifies this inverter as suitable for both lead-acid and lithium-ion battery systems. It also includes battery over-discharge protection through low voltage disconnect.

Is this inverter suitable for demanding temperature conditions?

Yes. The product is designed for wide-temperature operation, with a stated working range up to +70°C and low-temperature operation listed in the product specifications. It also uses a temperature-controlled cooling fan to help manage thermal performance.

What protection features are included in the NTS-750-212AU?

This inverter includes protection for short circuit, overload, over voltage, and battery over-discharge. It also has over-temperature shutdown behavior and a front panel status indicator for operating condition monitoring.

Does this model support remote operation or accessories?

Yes. The NTS-750-212AU supports power on-off remote control. Mean Well also lists compatible remote controller accessories such as the IRC1, IRC2, and IRC3, plus an optional carry handle sold separately.
