Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

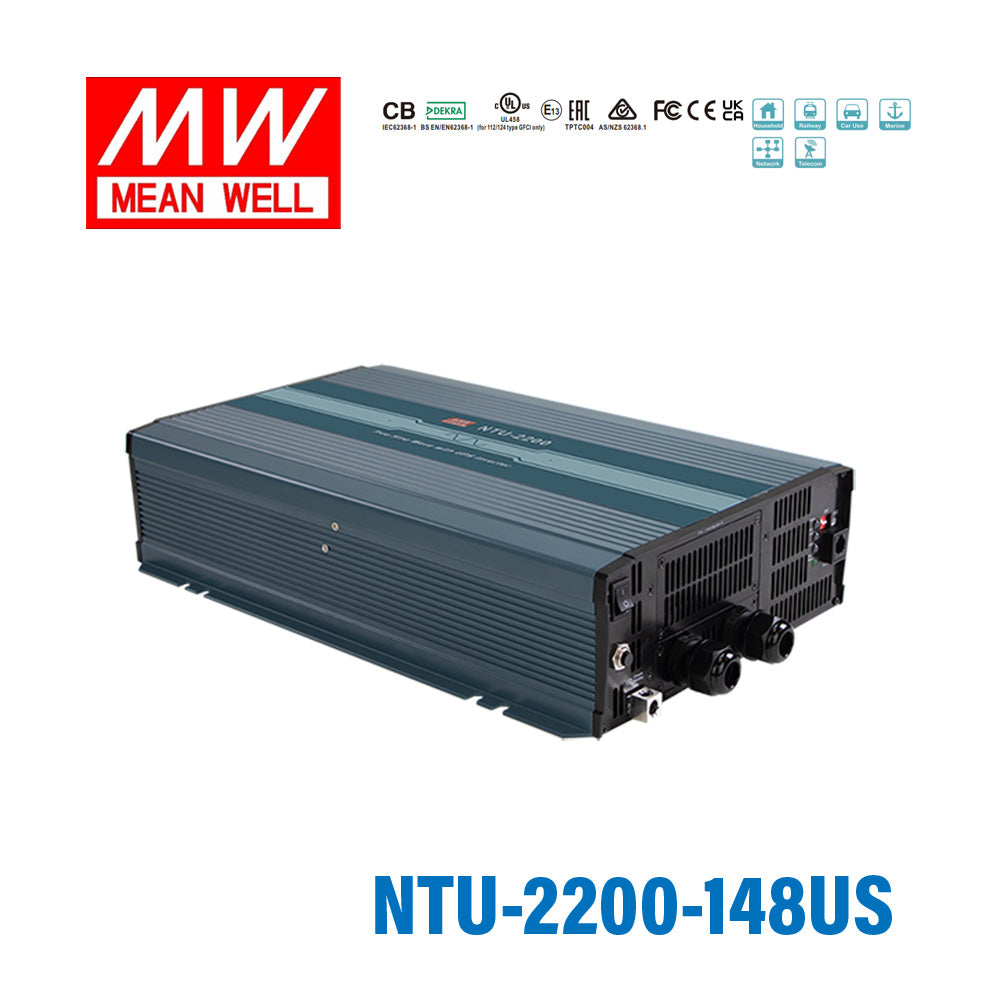

Mean Well NTU-2200-148US True Sine Wave DC-AC Inverter 2200W 110V out 48V in with US Socket, with AC by-pass function

built-in UPS function(AC by-pass)built-in dip switch to adjust AC output voltagefrequency and saving modecan be remotely controlled by IRC controllers

SKU NTU-2200-148US

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTU-2200-148US is the model of this series: typical efficiency 91%.

NTU-2200 is a 2200W highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 4400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTU-2200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

Built-in UPS function (AC by-pass)
True sine wave output (THD<3%)
High surge power up to 4400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections :
Input : Reverse polarity / DC. low alarm / DC low shutdown / Over voltage
Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller
(IRC1, IRC2, IRC3 accessory sold separate ly, please refer to:
https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTU-2200-148USSpecifications from the official datasheet (2026-02-04 edition)

AC OUTPUT

RATED POWER(Continuous): 2200W
OVER RATED POWER(3 Min.): 2530W
PEAK POWER(10 Sec.): 3300W
SURGE POWER(30 Cycles): 4400W
AC VOLTAGE: Factory setting set at 110VAC 100 / 110 / 115 / 120Vac selectable by DIP S.W
FREQUENCY: Factory setting set at 60±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage
FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 48Vdc
VOLTAGE RANGE (Typ.): 40 ~ 66Vdc
DC CURRENT (Typ.): 60A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, auto detect AC output load≦10W will be changed to saving mode <15W
OFF MODE CURRENT DRAW: ≦2mA
EFFICIENCY (Typ.)^Note.1: 91%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 25A*4
LOW ALARM: 44±1Vdc
LOW SHUTDOWN: 40±1Vdc
LOW RESTART: 50±1Vdc
HIGH ALARM: 62±1Vdc
HIGH SHUTDOWN: 66±1Vdc
HIGH RESTART: 60±1Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: 25A
TB TYPE: UL458 (Only for "TB" type AC socket)

FUNCTION CONTROL

REMOTE CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

AC UPS MODE

AC INPUT RANGE: 100/110/115/120Vac±16%, recover±13%
FREQUENCY RANGE: 45 ~ 65Hz
TRASFER TIME(Typ.): 10ms inverter AC by pass

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to "Derating curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158°F, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra Seal BS EN/ EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC I/P:3.0KVAC DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Conducted FCC for 112,124,148 only(expect for Type-UN) Class A
Conducted BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/ EN55024, BS EN/ EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 1
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only(expect for Type-UN)	Class A
Radiated	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Conducted	FCC for 112,124,148 only(expect for Type-UN)	Class A
Conducted	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 1
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 344.9K hrs min. Telcordia TR/SR-332 (Bellcore) ; 34.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 420*270*98mm (L*W*H)
PACKING: 8.6Kg; 1pcs/ 10.4Kg/ 1.39CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 1650W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 25W, 212/224/248 for 55W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

NTU-2200-148US AC Output Socket — AC Output Socket

NTU-2200-148US DERATING CURVE — DERATING CURVE

NTU-2200-148US Block Diagram — Block Diagram

NTU-2200-148US IRC1/2/3 Remote Controller (Accessory — IRC1/2/3 Remote Controller (Accessory

NTU-2200-148US Support RS-232 Communication — Support RS-232 Communication

NTU-2200-148US AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

NTU-2200-148US FUNCTION MANUAL — FUNCTION MANUAL

NTU-2200-148US MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NTU-2200-148US Accessory List — Accessory List

NTU-2200-148US ※ Terminal protector mating along with NTU-2200… — ※ Terminal protector mating along with NTU-2200…

NTU-2200-148US Illustration (page 9) — Illustration (page 9)

NTU-2200-148US TYPICALTYPICAL APPLICATIONAPPLICATION — TYPICALTYPICAL APPLICATIONAPPLICATION

Typical applications

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What type of output does the Mean Well NTU-2200-148US provide?

This model provides a true sine wave AC output with total harmonic distortion below 3%. It is designed for applications that require cleaner AC power than modified sine wave inverters. The rated output power is 2200W, with surge power up to 4400W.

What input and output voltage does the NTU-2200-148US use?

The NTU-2200-148US is a 48V DC input inverter (40 ~ 66Vdc range) with a 110V AC factory output setting for US use. Its AC output voltage is selectable by DIP switch from 100/110/115/120VAC, and frequency from 50/60Hz. This makes it more flexible than fixed-output inverter models.

Does this inverter include an AC by-pass or UPS-style function?

Yes, this model includes a built-in UPS function with AC by-pass. That feature is specifically listed as part of the NTU-2200-148US design and is one of its main differentiators for backup power applications. Buyers looking for inverter models with pass-through capability should verify this feature, and this unit includes it.

What kinds of battery systems is the NTU-2200-148US compatible with?

Mean Well specifies this inverter as suitable for lead-acid or lithium-ion battery systems. It also includes battery over-discharge protection through low-voltage disconnect. For buyers comparing models, that makes it suitable for a wider range of DC battery-based power systems.

Is the NTU-2200-148US a good fit for demanding industrial or mobile environments?

It is built for demanding environments with a wide working temperature range of -25°C to +70°C (with derating), 10 ~ 500Hz 3G vibration rating, and a cooling fan. The NTU-2200 series is approved to safety standards including CB IEC62368-1, with UL458 applying to the TB socket version. These characteristics make it better suited for professional and commercial use than basic consumer-grade inverters.

What protection features are included in this inverter?

The NTU-2200-148US includes protection for output short circuit, overload, over temperature, and DC input high-voltage shutdown. It also includes low-voltage disconnect to help protect against battery over-discharge. Front panel indicators provide status visibility during operation.

Can this model be used for higher startup loads?

Yes, the NTU-2200-148US supports surge power up to 4400W. Mean Well also lists overload behavior of 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds. That gives it added margin for applications with temporary peak demand above the 2200W continuous rating.

Are remote control or communication accessories available for this inverter?

Yes, this model supports remote on/off control and optional remote controllers including IRC1, IRC2, and IRC3, which are sold separately. It also supports RS-232 communication using the specified communication cable, also sold separately. Those options can be useful for monitored or managed power systems.
