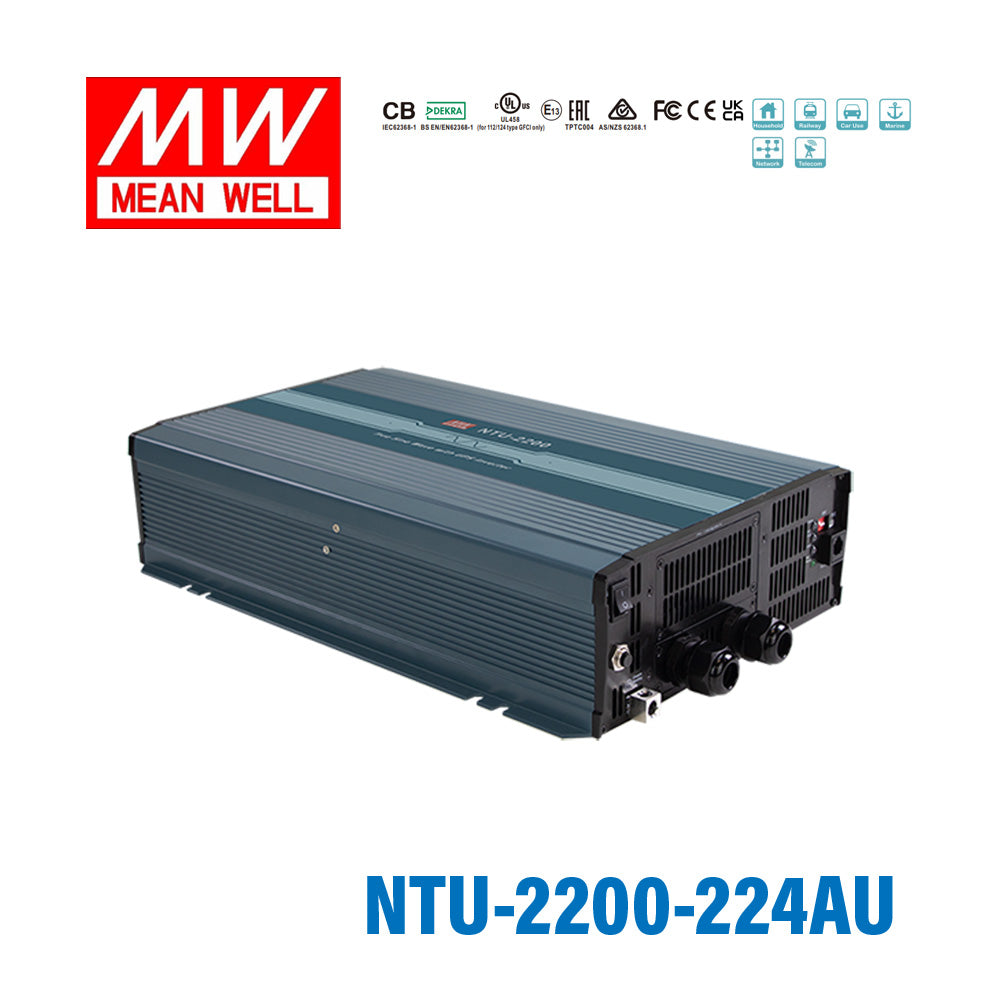

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well NTU-2200-224AU True Sine Wave DC-AC Inverter 2200W 220V out 24V in with AU Socket, with AC by-pass function

built-in UPS function(AC by-pass)built-in dip switch to adjust AC output voltagefrequency and saving modecan be remotely controlled by IRC controllers

SKU NTU-2200-224AU

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTU-2200-224AU is the model of this series: typical efficiency 92%.

NTU-2200 is a 2200W highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 4400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTU-2200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

Built-in UPS function (AC by-pass)
True sine wave output (THD<3%)
High surge power up to 4400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections :
Input : Reverse polarity / DC. low alarm / DC low shutdown / Over voltage
Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller
(IRC1, IRC2, IRC3 accessory sold separate ly, please refer to:
https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTU-2200-224AUSpecifications from the official datasheet (2026-02-04 edition)

AC OUTPUT

RATED POWER(Continuous): 2200W
OVER RATED POWER(3 Min.): 2530W
PEAK POWER(10 Sec.): 3300W
SURGE POWER(30 Cycles): 4400W
AC VOLTAGE: Factory setting set at 230VAC 200 / 220 / 230 / 240Vac selectable by DIP S.W
FREQUENCY: Factory setting set at 50±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage
FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 24Vdc
VOLTAGE RANGE (Typ.): 20 ~ 33Vdc
DC CURRENT (Typ.): 120A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, auto detect AC output load≦10W will be changed to saving mode <15W
OFF MODE CURRENT DRAW: ≦2mA
EFFICIENCY (Typ.)^Note.1: 92%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 40A*4
LOW ALARM: 22±0.5Vdc
LOW SHUTDOWN: 20±0.5Vdc
LOW RESTART: 25±0.5Vdc
HIGH ALARM: 31±0.5Vdc
HIGH SHUTDOWN: 33±0.5Vdc
HIGH RESTART: 30±0.5Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: 15A
TB TYPE: None

FUNCTION CONTROL

REMOTE CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

AC UPS MODE

AC INPUT RANGE: 200/220/230/240Vac±16%, recover±13%
FREQUENCY RANGE: 45 ~ 65Hz
TRASFER TIME(Typ.): 10ms inverter AC by pass

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to "Derating curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158°F, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra Seal BS EN/ EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC I/P:3.0KVAC DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Conducted FCC for 112,124,148 only(expect for Type-UN) Class A
Conducted BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/ EN55024, BS EN/ EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 1
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only(expect for Type-UN)	Class A
Radiated	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Conducted	FCC for 112,124,148 only(expect for Type-UN)	Class A
Conducted	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 1
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 344.9K hrs min. Telcordia TR/SR-332 (Bellcore) ; 34.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 420*270*98mm (L*W*H)
PACKING: 8.6Kg; 1pcs/ 10.4Kg/ 1.39CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 1650W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 25W, 212/224/248 for 55W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

NTU-2200-224AU AC Output Socket — AC Output Socket

NTU-2200-224AU DERATING CURVE — DERATING CURVE

NTU-2200-224AU Block Diagram — Block Diagram

NTU-2200-224AU IRC1/2/3 Remote Controller (Accessory — IRC1/2/3 Remote Controller (Accessory

NTU-2200-224AU Support RS-232 Communication — Support RS-232 Communication

NTU-2200-224AU AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

NTU-2200-224AU FUNCTION MANUAL — FUNCTION MANUAL

NTU-2200-224AU MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NTU-2200-224AU Accessory List — Accessory List

NTU-2200-224AU ※ Terminal protector mating along with NTU-2200… — ※ Terminal protector mating along with NTU-2200…

NTU-2200-224AU Illustration (page 9) — Illustration (page 9)

NTU-2200-224AU TYPICALTYPICAL APPLICATIONAPPLICATION — TYPICALTYPICAL APPLICATIONAPPLICATION

Typical applications

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the main use case for the Mean Well NTU-2200-224AU inverter?

This model is designed for converting 24V DC input power to true sine wave AC output (factory set at 230VAC, selectable 200/220/230/240VAC) for equipment that needs a true sine wave supply. Its 2200W continuous rating and built-in AC by-pass function make it relevant for higher-power mobile, industrial, backup, and off-grid applications where stable AC output is important.

Does the NTU-2200-224AU provide true sine wave output?

Yes. The NTU-2200-224AU provides true sine wave AC output with total harmonic distortion below 3%. That makes it better suited than modified sine wave units for sensitive AC loads that benefit from cleaner power.

What are the input and output ratings of this inverter?

This model uses a 24V DC input (20 ~ 33Vdc range) and delivers AC output factory set at 230VAC, selectable 200/220/230/240VAC by DIP switch. It is rated for 2200W continuous power, with surge power up to 4400W for short peak demands.

What does the AC by-pass function do on the NTU-2200-224AU?

The built-in AC by-pass function allows the unit to support UPS-style operation. This is a key differentiator for applications where maintaining AC availability is important during power source changes.

Is the NTU-2200-224AU compatible with both lead-acid and lithium-ion battery systems?

Yes. Mean Well specifies this inverter as suitable for both lead-acid and li-ion batteries. That gives more flexibility when selecting a DC battery platform around a 24V system.

Can this inverter be used in demanding temperature conditions?

Yes. The NTU-2200-224AU is specified for a working temperature range of -25°C to +70°C, with output derating at higher temperatures according to the derating curve. It uses a cooling fan, and the front panel LEDs signal over-temperature or fan lock.

What protection and monitoring features are included in this model?

The NTU-2200-224AU includes protection for output short circuit, overload, over temperature, DC input high-voltage shutdown, and battery low-voltage shutdown. It also has front panel status indicators, remote power on/off capability, and RS-232 communication via an RJ11 connector (communication cable ordered separately).
