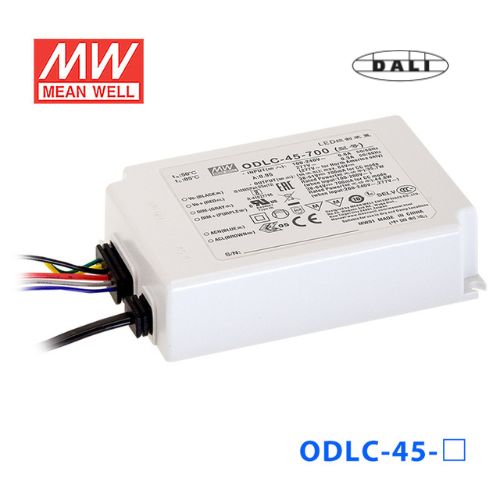

Mean Well ODLC-45-1050DA Power Supply 45W 1050mA, DALI
Please Login for Pricing
Description
Description
Features
| Constant current mode output |
| Flicker-free design |
| Plastic housing with class II design |
| Built-in active PFC function |
| No load power consumption<0.5W(Blank-Type) |
| IP67 rating for indoor or outdoor installations |
| Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output; DALI |
| 3 years warranty |
General Specification
| AC input voltage range | 90~295VAC |
| AC inrush current (Typ.) | COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| Short circuit protection | Hiccup mode, auto-recovery/re-power |
| No load power consumption | consumption<0.5W for Blank-Type,<1.2W for ODLC-45A |
| Setup time | 500ms/230VAC; 1200ms/115VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -20~+85ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020 |
| Dimension (LxWxH)(mm) | 111*77*28.5mm |
| Packing | 24pcs/11Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating45.15 Watt
-
Output Voltage43 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~295V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length11.1 cm
-
Width7.7 cm
-
Height2.85 cm
-
Weight0.42 kg
