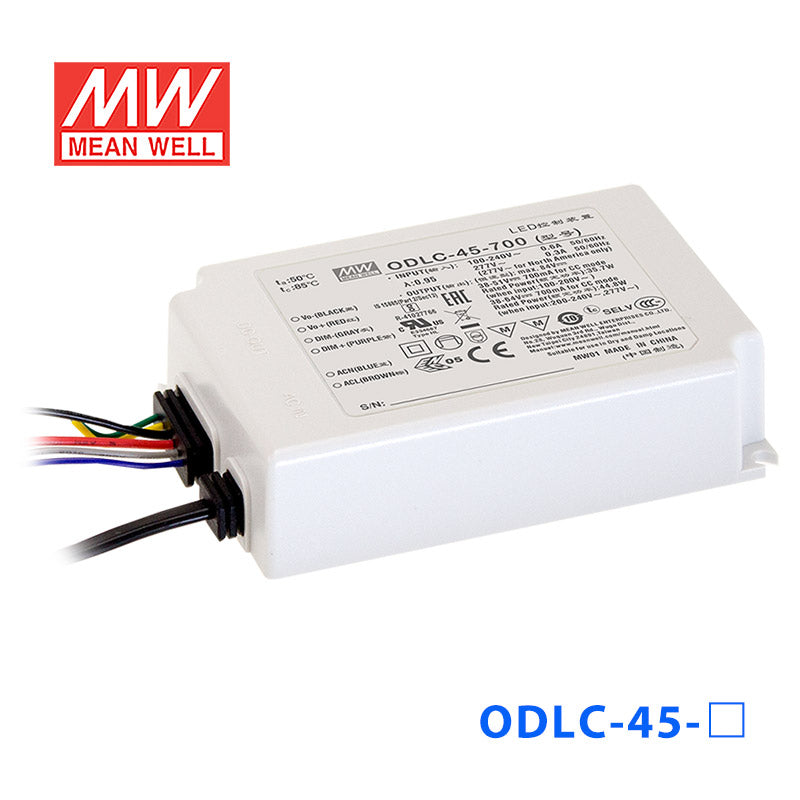

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well ODLC-45-350 Power Supply 45W 350mA, Dimmable

SKU ODLC-45-350

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LPF-25/40/60 SERIES (MATCH CURRENT TO LOAD)

Available to order

Overview

ODLC-45-350 is the model of this series: rated current 350mA, rated power 33.25W, typical efficiency 86%.

ODLC-45 series is a 45W LED AC/DC driver featuring the constant current mode output with flicker free design.ODLC-45 operates from 90~295VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -20℃~+85℃ case temperature under free convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications. ODLC-45 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features

Constant Current mode output
Flicker free design
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type), Standby power consumption<0.5W(DA-Type)
IP67 rating for indoor or outdoor installations
Function options: 2 in 1 dimming (dim-to-off); Auxiliary DC output; DALI
3 years warranty

Specifications

ODLC-45-350Specifications from the official datasheet (2022-04-12 edition)

OUTPUT

RATED CURRENT: 350mA
RATED POWER: 33.25W
CONSTANT CURRENT REGION^Note.2: 57 ~ 95V
OPEN CIRCUIT VOLTAGE(max.): 118V
CURRENT RIPPLE: 5% max. @rated current
CURRENT TOLERANCE: ±7.0%
SETUP TIME^Note.4: 500ms / 230VAC 1200ms/115VAC
AUXILIARY DC OUTPUT^Note.5: Nominal 12V(deviation 11.4~12.6)@50mA for ODLC-45A only

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/115VAC, PF>0.92/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 86%
AC CURRENT: 0.6A/115VAC 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD/STANDBY POWER CONSUMPTION: No load power consumption<0.5W for Blank-Type,<1.2W for ODLC-45A Standby power consumption<0.5W for DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode,auto-recovery after fault condition is removed for DA type； Hiccup mode,re-power on to recovery for other type

ENVIRONMENT

WORKING TEMP.: Tcase=-20 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 NO.250.13-12;ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13 independent, BS EN/EN62384; BIS IS15885( for ODLC-45-700,1050,700DA,1050DA only), EAC TP TC 004,IP67 approved
DALI STANDARDS: Compliance to IEC62386-101, 102 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB17743,GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity: Line-Line:1KV),EAC TP TC 020

OTHERS

MTBF: 3513.4K hrs min. Telcordia SR-332 (Bellcore) ;340.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 111*77*28.5mm(L*W*H)
PACKING: 0.42Kg; 24pcs/ 11Kg/ 0.72CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
5. Aux. 12V will be damaged with short circuit; It will not be available when output voltage is not in constant current region or output no load condition.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
7. The DALI version driver does not support the bit 1: Lamp failure in the Command 144 Query status of the DALI standard.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

ODLC-45-350 Block Diagram — Block Diagram

ODLC-45-350 DIMMING OPERATION — DIMMING OPERATION

ODLC-45-350 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

ODLC-45-350 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ODLC-45-350 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ODLC-45-350 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
LED flood lighting
Indoor LED lighting
Industrial lighting

Downloads

Certificates7

Mean Well ODLC-45-EMC Certificate PDF Download

Mean Well IDLV-ODLV-IDLC-ODLC-45(DA)-BIS Certificate PDF Download

Mean Well IDLC-ODLC-45-65-ENEC Certificate PDF Download

Mean Well IDLC-ODLC-45-65(A)-CB Certificate PDF Download

Mean Well IDLC-ODLC-45-65-CE-dec Certificate PDF Download

Mean Well IDLC-ODLC-45-65-UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well ODLC-45-350 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ODLC-45-350 for a high-voltage LED downlight string?

Yes, this model is suited to constant current LED loads at 350mA with a higher series voltage. Its constant current output range is 57-95V, with up to 33.25W available.

Is the ODLC-45-350 a good choice for long-series signage modules or linear LED arrays?

It can be a good fit when the signage modules or linear array are designed for 350mA constant current operation. The total LED forward voltage must fall within 57-95V, which makes it better matched to longer series strings than lower-voltage drivers.

Can this driver run small LED arrays that need lower current but more voltage?

Yes, if the array is specified for 350mA constant current and its total forward voltage is within 57-95V. The driver's 33.25W rating sets the upper power limit for the connected LED load.

How do I determine whether my LED module is compatible with the ODLC-45-350?

The LED module must require 350mA constant current, and the full LED string must fall within the 57-95V output range. The number of LEDs depends on each LED's forward voltage, so compatibility should be checked by total forward voltage instead of a specific LED count.

What should I compare when choosing between the ODLC-45-350 and other ODLC 45W models?

In the 45-series, the 350mA versions are 57-95V at 33.25W, the 500mA versions are 54-90V at 45W, the 700mA versions are 38-64V at 44.8W, the 1050mA versions are 26-43V at 45.15W, and the 1400mA versions are 19-32V at 44.8W. The main difference is the current rating paired with its corresponding constant current voltage window and power rating.
