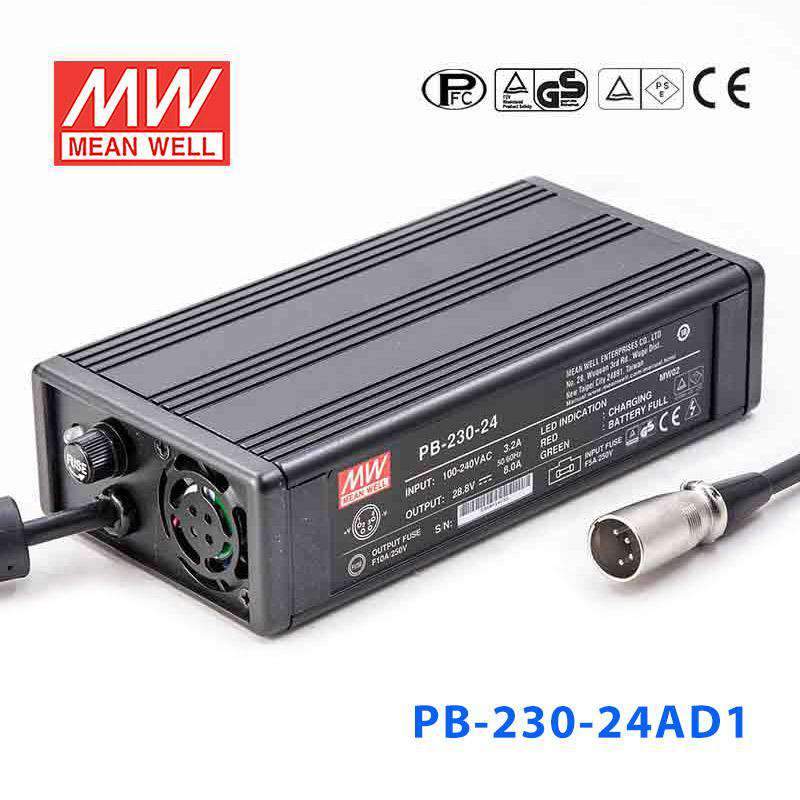

Mean Well PB-230-24AD1 Battery Chargers 230W 28.8V 8A - Single Outp...
Log in to see priceOverview
PB-230-24AD1 is the model of this series: typical efficiency 85.5%.
Features
- Charger for lead-acid batteries (flooded,Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
- 3 stage charging characteristic
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- Protection: Short circuit / Overload / Over voltage / Over temperature
- Built-in cooling Fan ON-OFF control
- Built-in remote ON-OFF control
- 2 color LED loading indicator
- Low cost, high reliability
- 2 years warranty
Specifications
PB-230-24AD1Specifications from the official datasheet (2020-07-13 edition)
OUTPUT
- BOOST CHARGE VOLTAGE
- 28.8V
- FLOAT CHARGE VOLTAGE
- 27.2V
- RECOMMENDED BATTERY CAPACITY(AMP HOURS)Note 5
- 24 ~ 80Ah
- BATTERY TYPE
- Open & Sealed Lead Acid
- OUTPUT CURRENT
- 8A
INPUT
- VOLTAGE RANGE
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.95/230VAC PF>0.98/115VAC at full load
- EFFICIENCY (Typ.)
- 85.5%
- AC CURRENT (Typ.)
- 3A/115VAC 1.5A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 50A
- LEAKAGE CURRENT
- <3.5mA / 240VAC
PROTECTION
- OVERLOAD
- 90 ~ 110% rated output current Protection type : Constant current limiting, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 31 ~ 35V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Protection type : Automatically derate charge current until zero
FUNCTION
- REMOTE CONTROL (CN105)
- Open: Normal work Short: Stop Charging
- FAN CONTROL
- RTH3 ≧ 50 ℃ Fan ON, ≦ 45 ℃ Fan OFF (Typ.)
- TEMPERATURE SENSE
- By NTC
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +50℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote 4
- UL1012 , EAC TP TC 004 (for PB-230-xxAD1 only), PSE J60950-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 244.5Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 190*96*49mm(L*W*H)
- PACKING
- 1.21Kg; 12pcs/15.5Kg/1.29CUFT
CONNECTOR
- PLUG
- See page 2 ; Other type available by customer requested
- CABLE
- See page 2 ; Other type available by customer requested
Test conditions and notes7
- 1. Modification for charger specification may be required for different battery specification. Please contact MEAN WELL for details.
- 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
- 6. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
