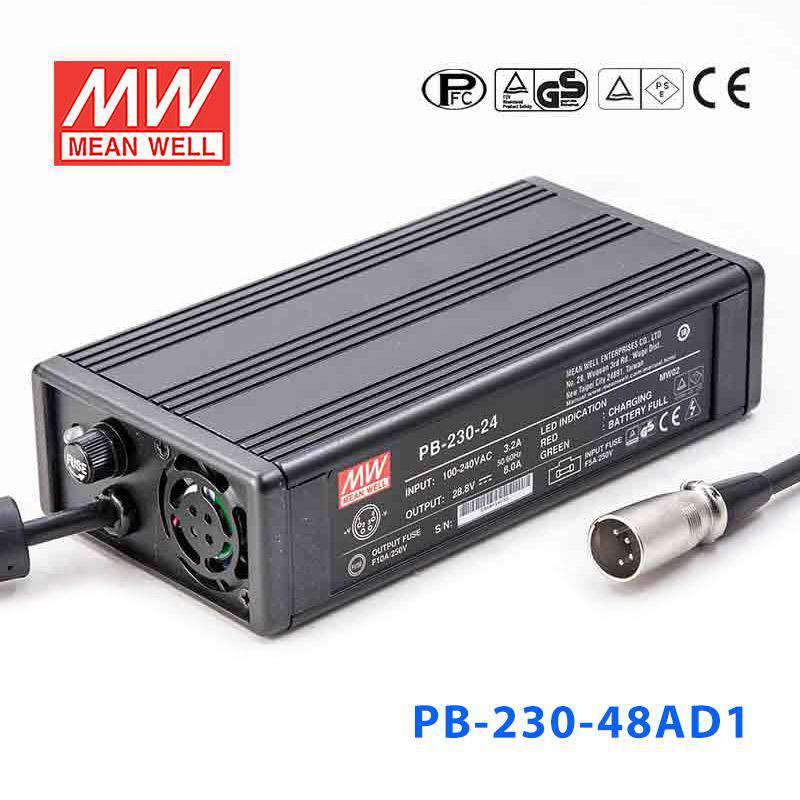

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well PB-230-48AD1 Battery Chargers 230W 57.6V 4A - Single Output Power Supply

SKU:

PB-230-48AD1

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)

3 stage charging

AC 115/230VAC selected by switch

Built-in passive PFC function compliance to BS EN/EN61000-3-2 Class A (option)

Protection: Short circuit / Reverse polarity / Over voltage / Over temperature

2 color LED loading indicator

Low cost, High reliability

2 color LED loading indicator

FAN on/off control (Depends on charging current

3 years warranty

General Specification

AC input voltage range	90 ~ 132VAC / 180 ~ 264VAC selected by switch; 127 ~ 187VDC / 254 ~ 370VDC
AC inrush current (max.)	COLD START 60A
Over-voltage protection	Protection type: Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-10~+50ºC(refer to output derating curve)
Safety standards	IEC60335-2-29 CB approved by TUV(except for 48V), UL62368-1, CSA C22.2 No. 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 for P-type only
EMC standards	EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024
Dimension (LxWxH) (mm)	253 x 135 x 48.5mm
Packing	1.45Kg; 6pcs/9.7Kg/1.03CUFT

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well PB-230-48 Battery Chargers 230W 57.6V 4A - Single Output Power Supply	230W	Lead Acid Battery	48V	—	View
Mean Well PB-230-24AD1 Battery Chargers 230W 28.8V 8A - Single Output Power Supply	230W	Lead Acid Battery	24V	—	View
Mean Well PB-230-12AD1 Battery Chargers 230W 14.4V 16A - Single Output Power Supply	230W	Lead Acid Battery	12V	—	View
Mean Well PB-230-12 Battery Chargers 230W 14.4V 16A - Single Output Power Supply	230W	Lead Acid Battery	12V	—	View
