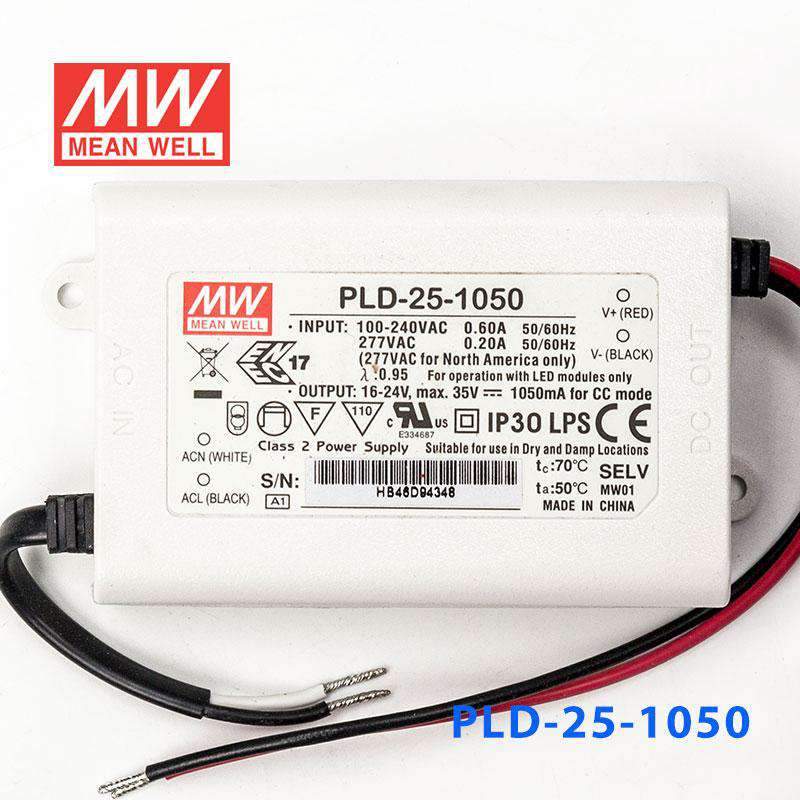

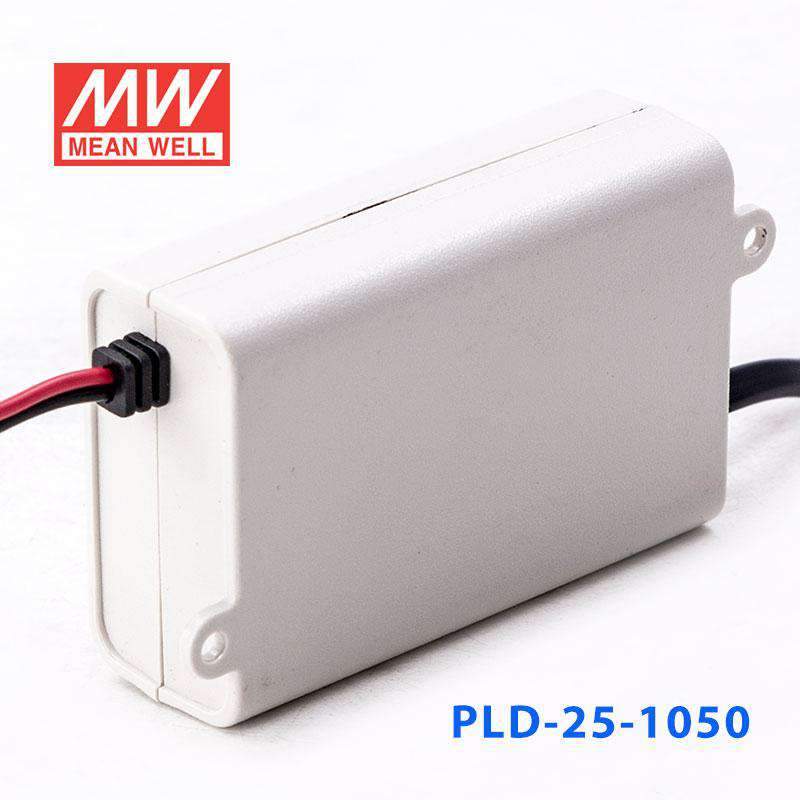

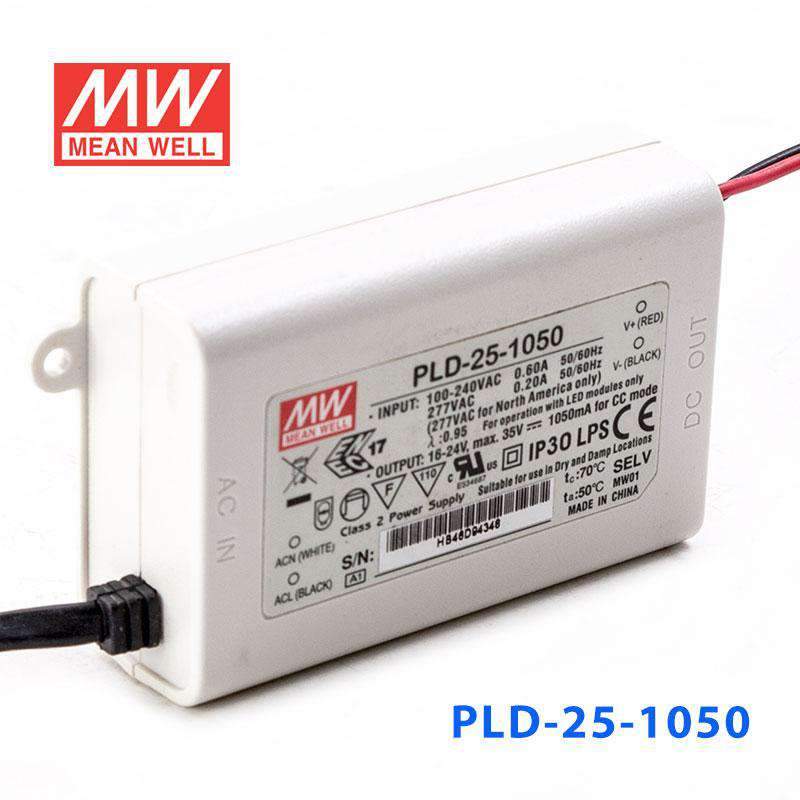

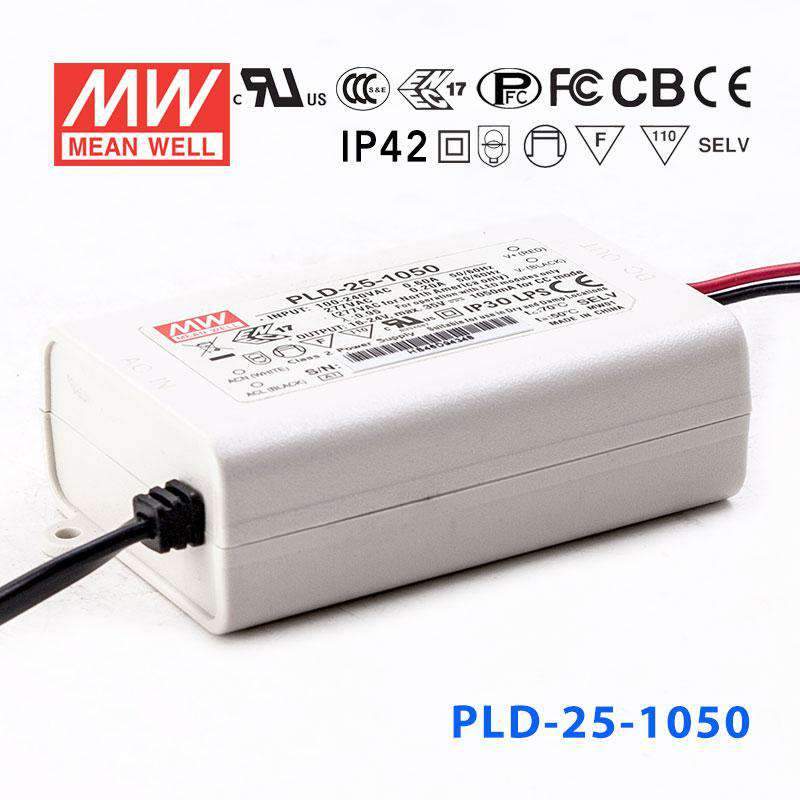

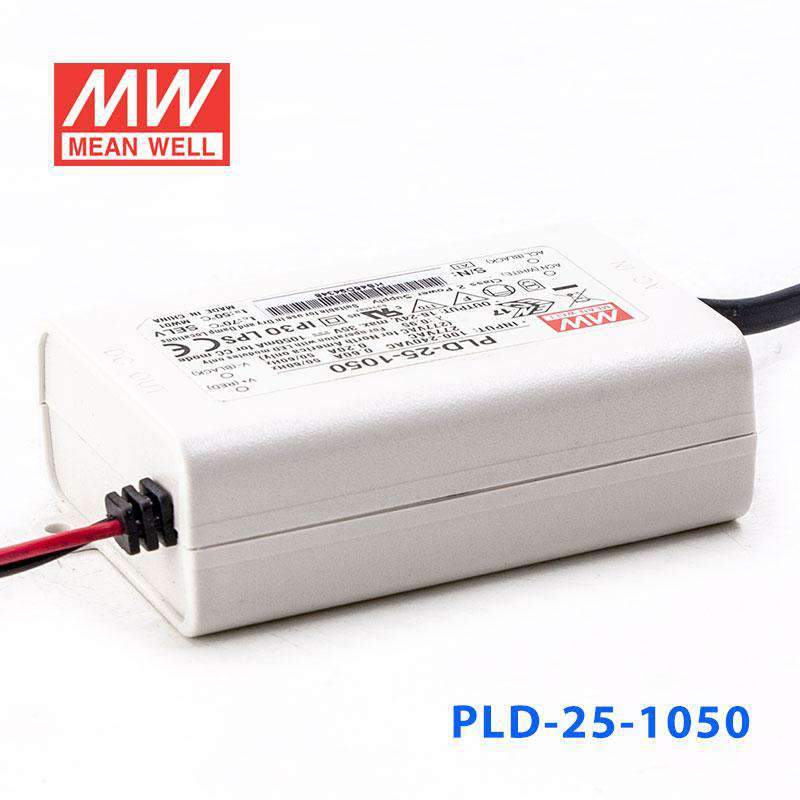

Mean Well PLD-25-1050 Power Supply 25W 1050mA

plastic case, IP42, Class II design without FG

|

Description

Features

90 ~ 295VAC input
Built-in active PFC function
Fully isolated plastic case
Constant current design (CC mode)
IP30 design
Class 2 power unit / Pass LPS
Isolation class II, no FG
Protections: Short circuit / Over temperature
Suitable for indoor LED lighting applications
Cooling by free air convection
3 years warranty

General Specification

AC input voltage range 90 ~ 295VAC
AC inrush current (max.) Cold start, 15A at 230VAC
Withstand voltage I / P - O / P: 3.75 k VAC
Short circuit protection Hiccup mode, auto-recovery
Over Temp. Protection 95ºC ± 10ºC (RTH1) shut down o / p voltage, re-power on to recover
Working temperature -30 ~ + 60ºC
Safety standards UL8750 (PLD-16/25 only), ENEC EN61347-1, EN61347-2-13, EN62384 (except for A-Type) approved
EMC standards A-Type & PLD-25: EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2,3,4, 5,6,8,11, EN61547
Connection Input A-Type: UL1430 18AWGx2C (7.5cm); B-Type & PLD-25: NISPT-1 18AWGx2C (7.5cm)
Connection Output UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm) 84x 57x 29.5

Specifications

  • Brand
    Mean Well
  • Series
    PLD Series
  • Power Rating
    25.2 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    1.05 Ampere
  • Input Voltage
    90V~295V
  • Standards Met
    CB,CE,cUL,EAC,ENEC,FCC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -30°C~60°C
  • Warranty
    3 Year
  • Length
    8.4 cm
  • Width
    5.7 cm
  • Height
    2.95 cm
  • Weight
    0.19 kg
